White-Westinghouse AL119K1A2 room air conditioner - lw34088130

White-Westinghouse AL119K1A2 room air conditioner - lw34088130 Parts

Here are the diagrams and repair parts for White-Westinghouse AL119K1A2 room air conditioner - lw34088130, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for AL119K1A2 Room Air Conditioner - LW34088130

  • Panel for White-Westinghouse AL119K1A2 - Part 5303015599

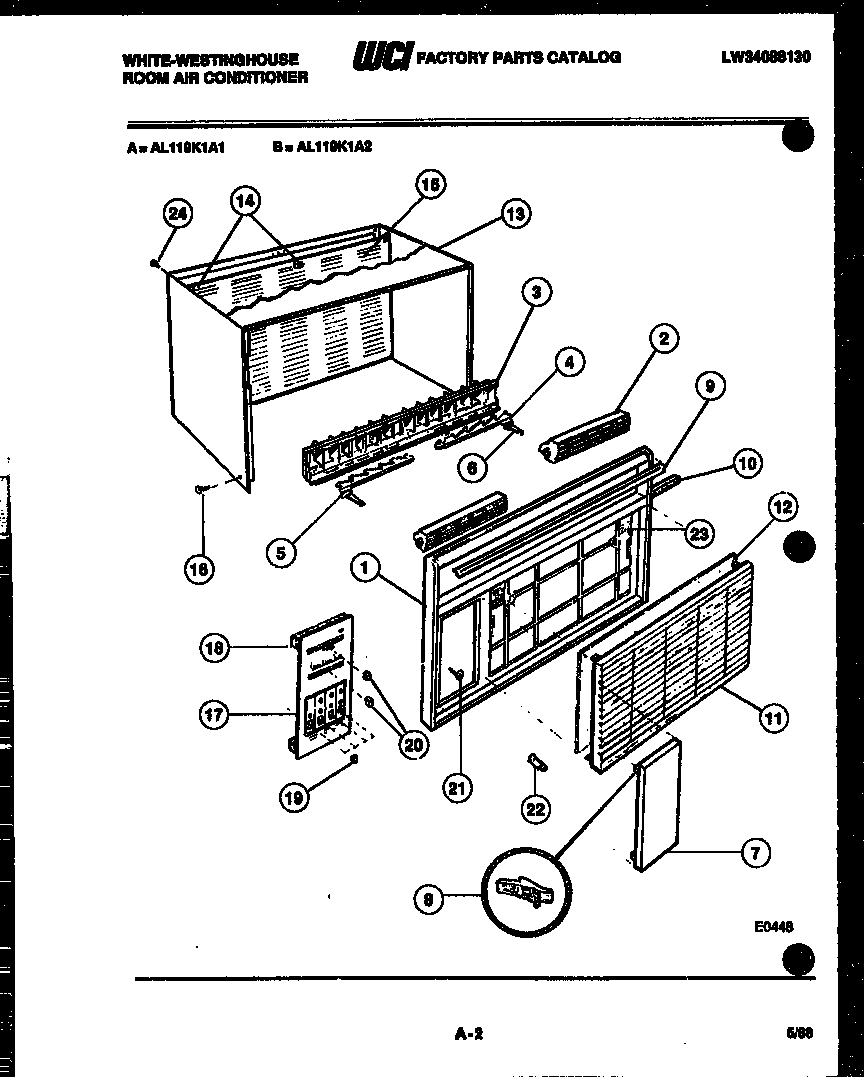

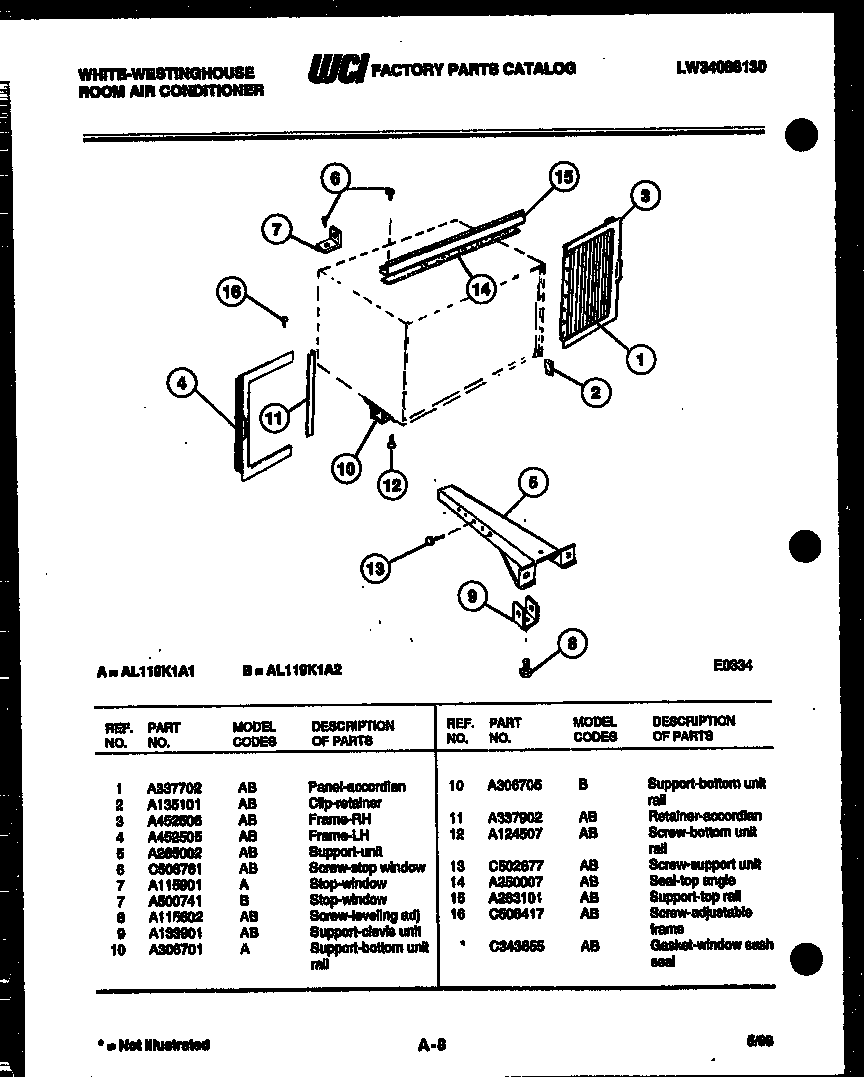

    Cabinet parts diagram

    Panel

    Part #3015599

    Replaced by #5303015599

    Info Icon
    Manufacturer substitution
    This part replaces 3015599. Substitute parts can look different from the original.
    In Stock
    $132.52
    Minus Item
    Qty
    Plus Item
  • Room Air Conditioner Compressor Start Relay Kit for White-Westinghouse AL119K1A2 - Part 5304413630

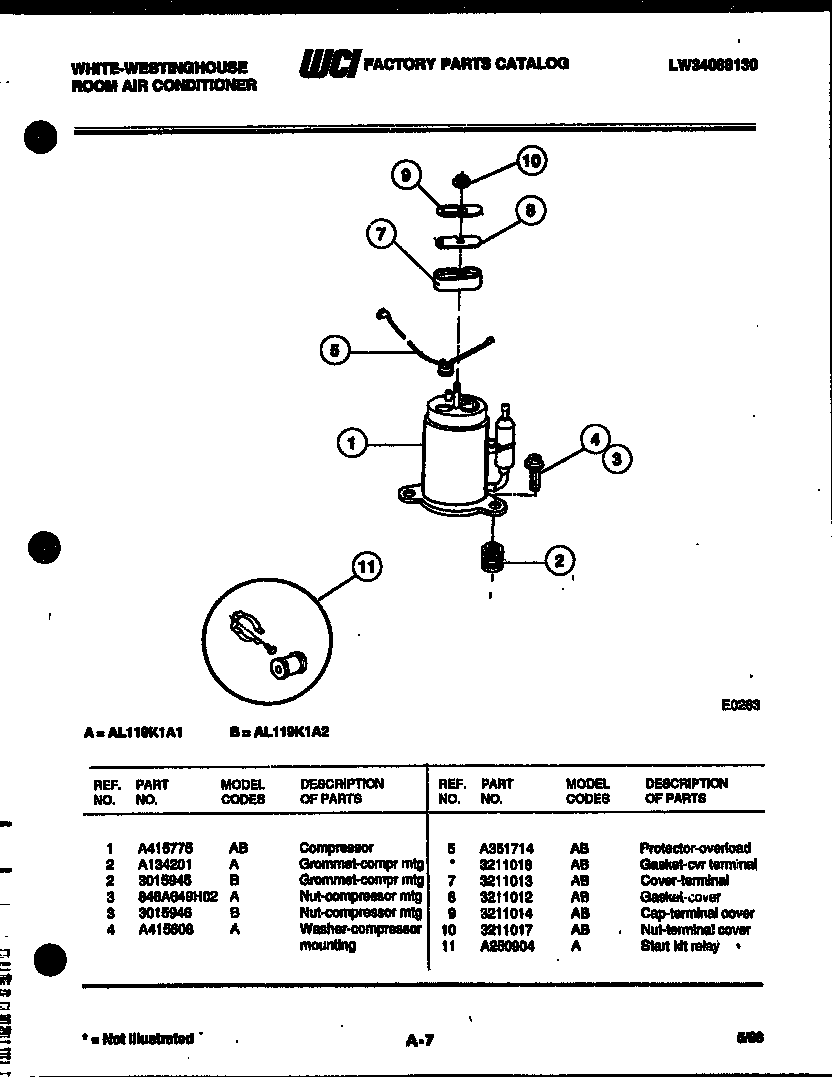

    Compressor parts diagram

    Relay

    Part #A250904

    Replaced by #5304413630

    Info Icon
    Manufacturer substitution
    This part replaces A250904. Substitute parts can look different from the original.
    In Stock
    $212.58
    Minus Item
    Qty
    Plus Item
  • Room Air Conditioner Compressor Mount Retainer Nut for White-Westinghouse AL119K1A2 - Part 5308006948

    Compressor parts diagram

    Nut

    Part #846A649H02

    Replaced by #5308006948

    Info Icon
    Manufacturer substitution
    This part replaces 846A649H02. Substitute parts can look different from the original.
    In Stock
    $28.42
    Minus Item
    Qty
    Plus Item
  • Terminal Cover Nut for White-Westinghouse AL119K1A2 - Part 5303211017

    Compressor parts diagram

    Nut

    Part #3211017

    Replaced by #5303211017

    Info Icon
    Manufacturer substitution
    This part replaces 3211017. Substitute parts can look different from the original.
    In Stock
    $36.79
    Minus Item
    Qty
    Plus Item
  • Panel for White-Westinghouse AL119K1A2 - Part 5304426658

    Cabinet parts diagram

    Rear Grille

    Part #3015951

    Replaced by #5304426658

    Info Icon
    Manufacturer substitution
    This part replaces 3015951. Substitute parts can look different from the original.
    In Stock
    $34.81
    Minus Item
    Qty
    Plus Item
  • Clip for White-Westinghouse AL119K1A2 - Part 5303209136

    Cabinet parts diagram

    Nut

    Part #684B618H04

    Replaced by #5303209136

    Info Icon
    Manufacturer substitution
    This part replaces 684B618H04. Substitute parts can look different from the original.
    In Stock
    $27.91
    Minus Item
    Qty
    Plus Item
  • Cap for White-Westinghouse AL119K1A2 - Part 5303211014

    Compressor parts diagram

    Cap Cover

    Part #3211014

    Replaced by #5303211014

    Info Icon
    Manufacturer substitution
    This part replaces 3211014. Substitute parts can look different from the original.
    In Stock
    $30.90
    Minus Item
    Qty
    Plus Item
  • Grommet for White-Westinghouse AL119K1A2 - Part 5303014757

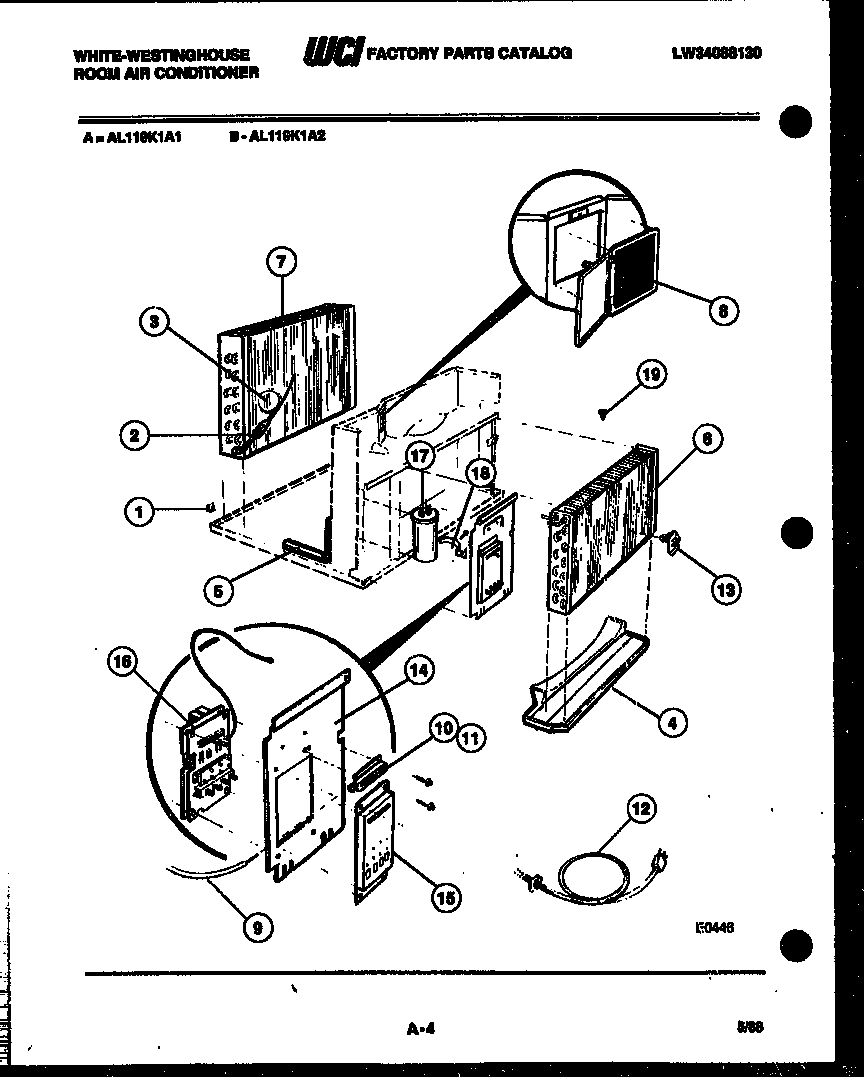

    Electrical parts diagram

    Fitting

    Part #846A623H03

    Replaced by #5303014757

    Info Icon
    Manufacturer substitution
    This part replaces 846A623H03. Substitute parts can look different from the original.
    In Stock
    $35.99
    Minus Item
    Qty
    Plus Item
  • Compressor Grommet for White-Westinghouse AL119K1A2 - Part 5303015945

    Compressor parts diagram

    Grommet

    Part #3015945

    Replaced by #5303015945

    Info Icon
    Manufacturer substitution
    This part replaces 3015945. Substitute parts can look different from the original.
    In Stock
    $48.73
    Minus Item
    Qty
    Plus Item
  • Seal for White-Westinghouse AL119K1A2 - Part 08013064

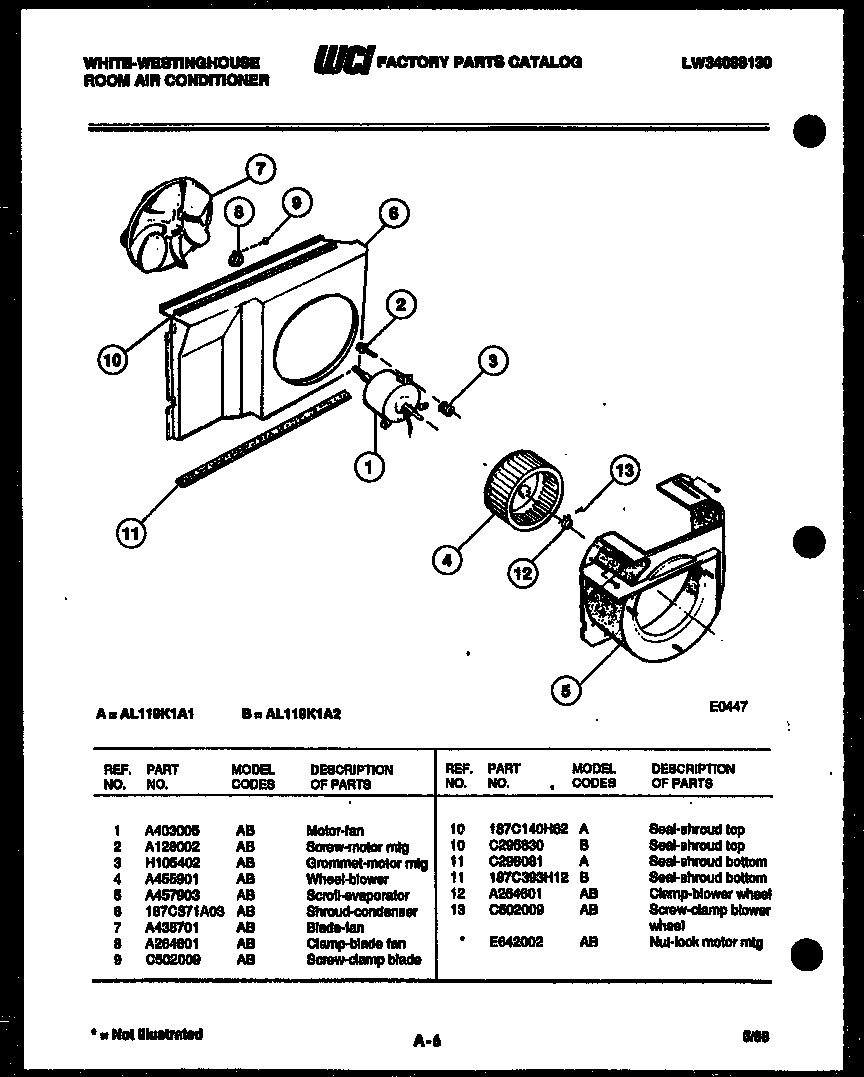

    Air handling parts diagram

    Seal

    Part #187C140H62

    Replaced by #08013064

    Info Icon
    Manufacturer substitution
    This part replaces 187C140H62. Substitute parts can look different from the original.
    In Stock
    $26.00
    Minus Item
    Qty
    Plus Item

Most common symptoms to help you fix your room air conditioners

View all

Why is water leaking into the house from my window air conditioner?

Main causes: clogged condensate drain, air conditioner not leveled properly, leaky window air seals …

Read more

Why your window AC compressor is not turning on?

Main causes: bad compressor, lack of refrigerant, bad compressor start relay, electronic control board failure…

Read more

Why won't my window air conditioner start?

Main causes: lack of electrical power, bad electronic control board, wiring failure, bad temperature sensor…

Read more

Why isn’t my air conditioner cooling?

Thermostat problems, bad compressor/condenser fan capacitor, lack of refrigerant, failed compressor…

Read more

Why isn’t my air conditioner cooling well?

Dirty air filter, clogged condenser coils, low refrigerant charge, faulty compressor…

Read more

Why does my window air conditioner's compressor hum but not work?

Main causes: turning the air conditioner off and the back on too quickly, dirty or restricted condenser coil, compressor…

Read more

Why won't my air conditioner turn on?

Main causes: errant thermostat settings, lack of electrical power, clogged drain line, wiring failure, control failure.…

Read more

Why are my window air conditioner's evaporator fins iced up?

Main causes: dirty air filter, air conditioner is too small for the room, temperature set too cold, control failure…

Read more

Why won't water draining from my window air conditioner?

Main causes: clogged drain hole, air conditioner not leveled properly…

Read more
