White-Westinghouse
Room Air Conditioner

Model # WAV157S1A3 Official White-Westinghouse room air conditioner - 5995277844

Here are the diagrams and repair parts for Official White-Westinghouse WAV157S1A3 room air conditioner - 5995277844, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

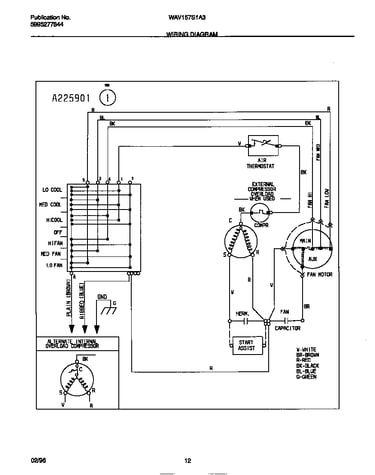

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |

Spacer 5303211009
#12

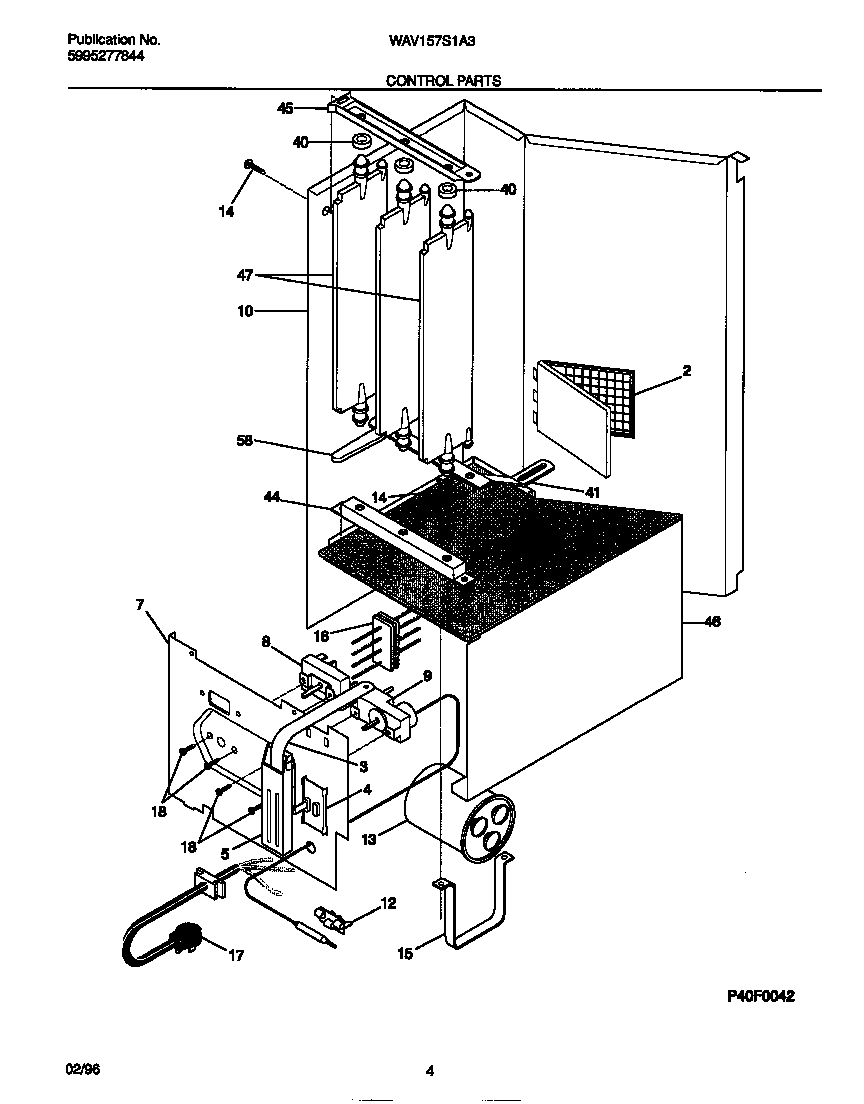

Control parts diagram

Spacer

Part #5303211009

This item is not returnable
In Stock
Room Air Conditioner Power Cord 5303301021
#17

Control parts diagram

Room air conditioner power cord

Part #5303301021

In Stock
Room Air Conditioner Filter Dryer 5300265301
#17

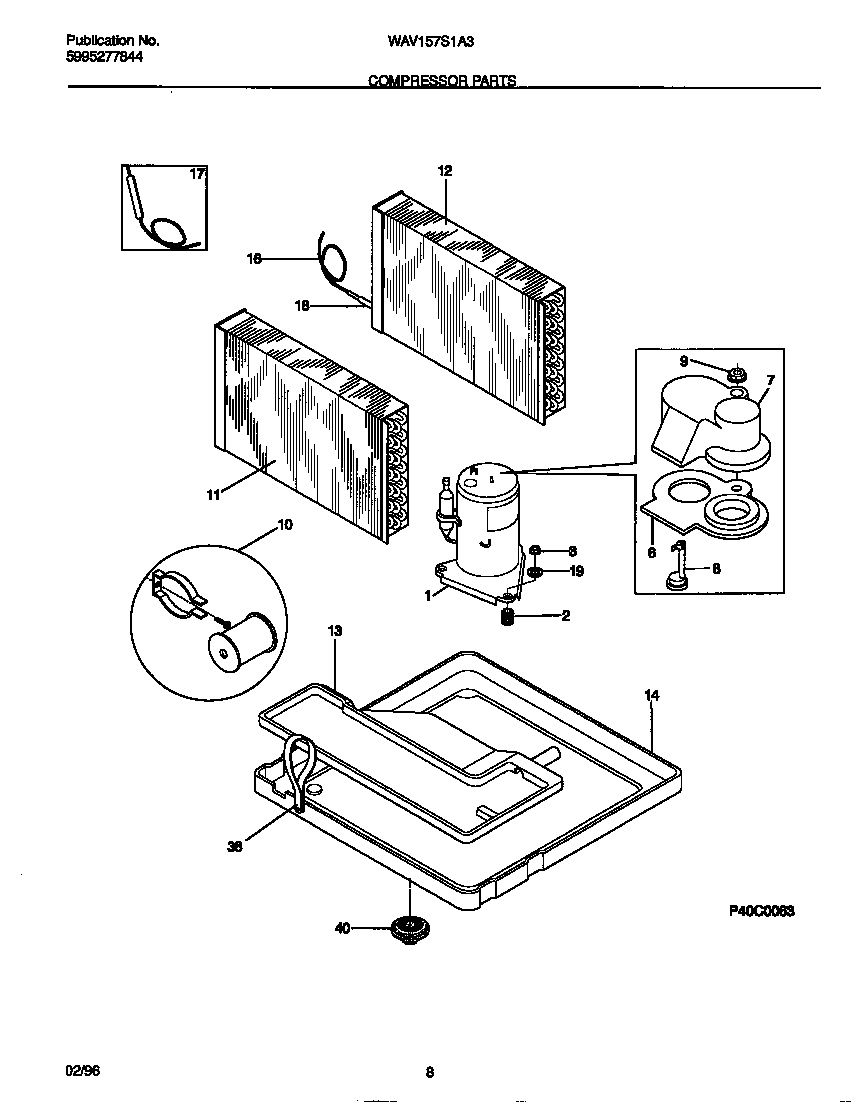

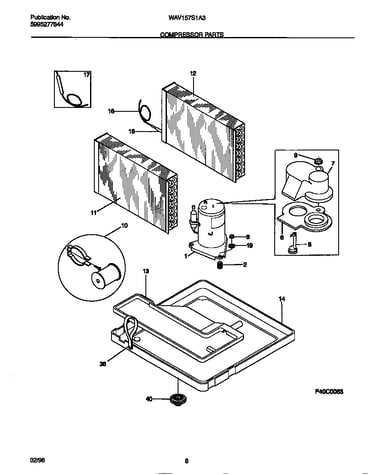

Compressor parts diagram

Room air conditioner filter dryer

Part #5300265301

In Stock
Bracket Screw 3015312
#7

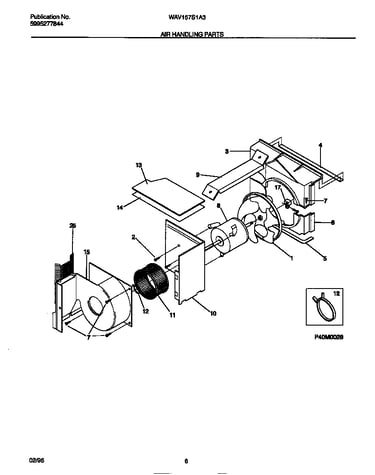

Air handling parts diagram

Bracket screw

Part #3015312

Replaced by #5303293767

?
Manufacturer substitution
This part replaces 3015312. Substitute parts can look different from the original.
This item is not returnable
In Stock
Nut-hex 3017023
#12

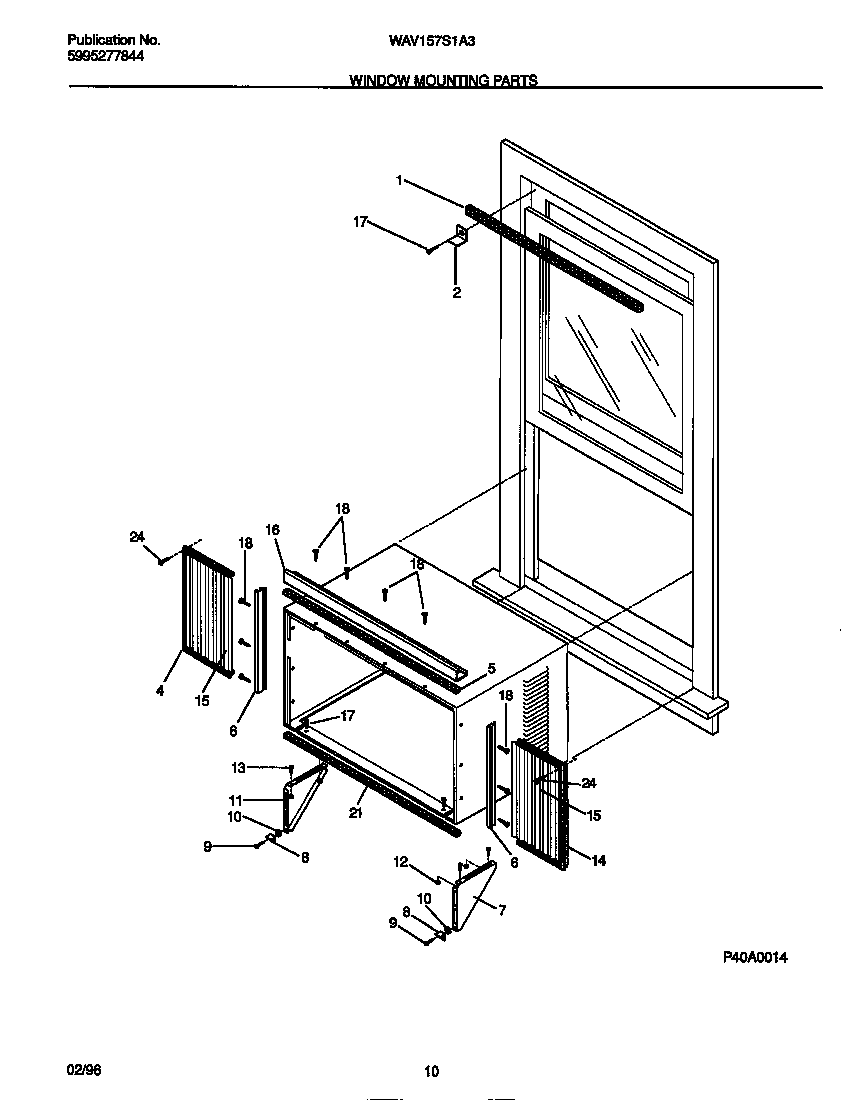

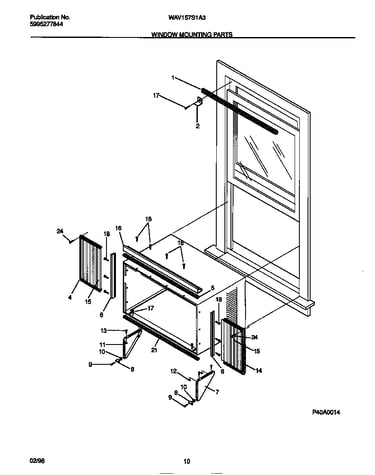

Window mounting parts diagram

Nut-hex

Part #3017023

Replaced by #316205500

?
Manufacturer substitution
This part replaces 3017023. Substitute parts can look different from the original.
This item is not returnable
In Stock
Screw 3202975
#2

Air handling parts diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
In Stock
Room Air Conditioner Screw 5303015427
#14

Control parts diagram

Room air conditioner screw

Part #5303015427

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303015427. Substitute parts can look different from the original.
In Stock
Harness 5303017345
#16

Control parts diagram

Harness

Part #5303017345

The manufacturer no longer makes this part, and there's no substitute part

Louver 5303201850
#8

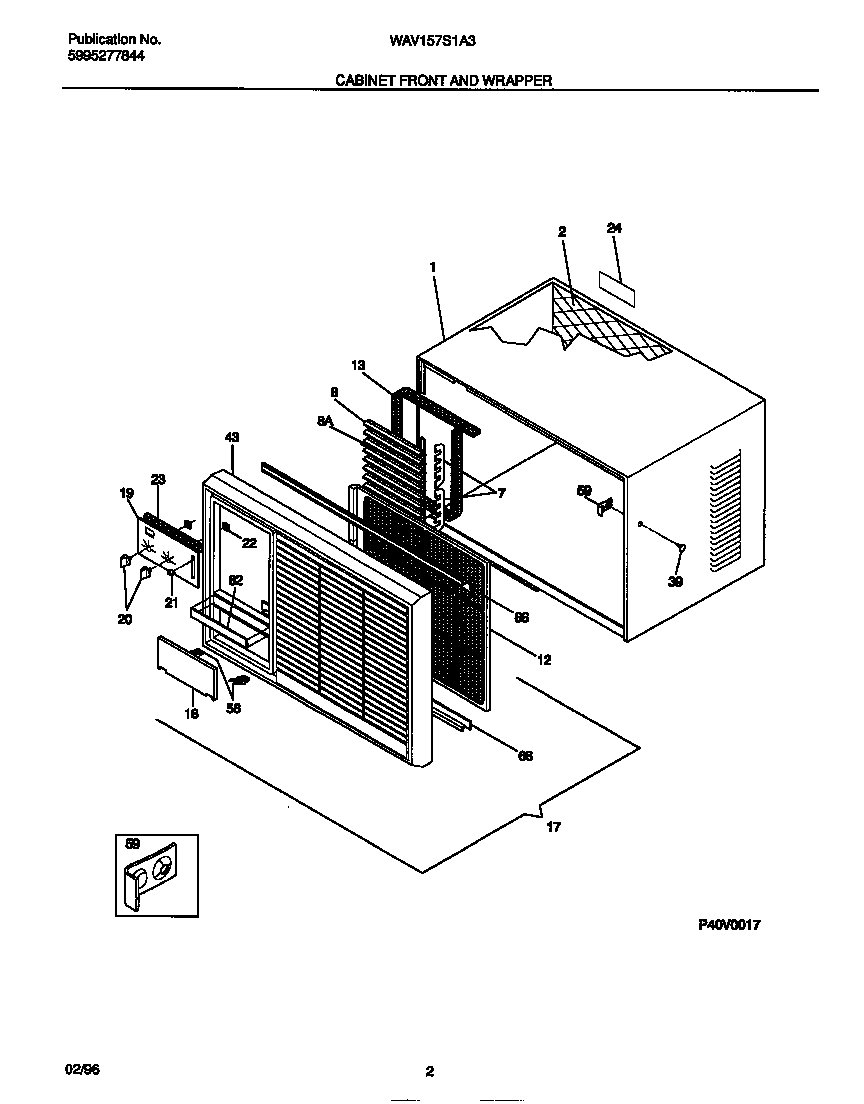

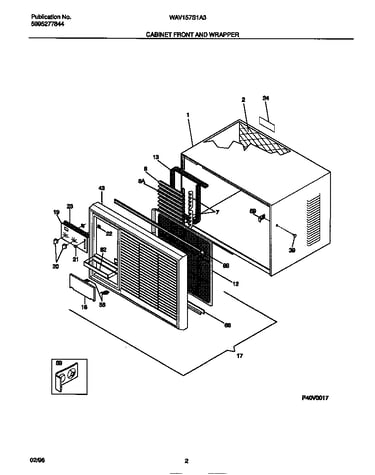

Cabinet front and wrapper diagram

Louver

Part #5303201850

The manufacturer no longer makes this part, and there's no substitute part

Screw 3002801
#24

Window mounting parts diagram

Screw

Part #3002801

The manufacturer no longer makes this part, and there's no substitute part
