Model # 13454 Official Western Tool western replacement mower deck

Here are the diagrams and repair parts for Official Western Tool 13454 western replacement mower deck, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |
Bolt 126216
#65

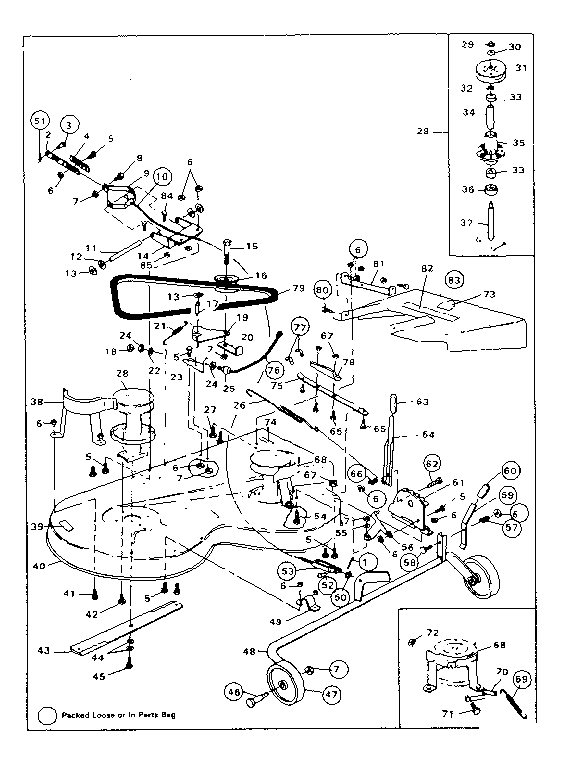

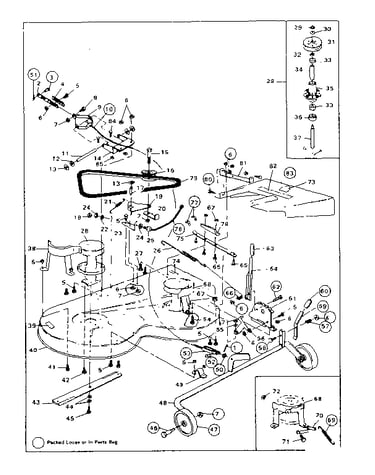

Replacement parts diagram

Bolt

Part #126216

Replaced by #703225

?
Manufacturer substitution
This part replaces 126216. Substitute parts can look different from the original.
This item is not returnable
$6.29 |
14% OFF Phone Price : $7.29
In Stock
Locknut 18 271184
#67

Replacement parts diagram

Locknut 18

Part #271184

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 9413447
#6

Replacement parts diagram

Lock nut

Part #9413447

The manufacturer no longer makes this part, and there's no substitute part

Screw 50634
#42

Replacement parts diagram

Screw

Part #50634

Replaced by #782967MA

?
Manufacturer substitution
This part replaces 50634. Substitute parts can look different from the original.
This item is not returnable
$7.77
In Stock
Screw 180120
#54

Replacement parts diagram

Screw

Part #180120

The manufacturer no longer makes this part, and there's no substitute part

Hex Head Screw 122007
#27

Replacement parts diagram

Hex head screw

Part #122007

The manufacturer no longer makes this part, and there's no substitute part

Keps Nut 271172
#85

Replacement parts diagram

Keps nut

Part #271172

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 997316
#72

Replacement parts diagram

Lock nut

Part #997316

Replaced by #997316MA

?
Manufacturer substitution
This part replaces 997316. Substitute parts can look different from the original.
This item is not returnable
$6.40
In Stock
Shield 50616
#36

Replacement parts diagram

Shield

Part #50616

Replaced by #50616MA

?
Manufacturer substitution
This part replaces 50616. Substitute parts can look different from the original.
$8.77
In Stock
Hairpin 56180
#51

Replacement parts diagram

Hairpin

Part #56180

Replaced by #56180MA

?
Manufacturer substitution
This part replaces 56180. Substitute parts can look different from the original.
This item is not returnable
$14.29
In Stock
