Model #502473010 Official Sears 26" men's cliffhanger atb bicycle

Here are the diagrams and repair parts for Sears 502473010 26" men's cliffhanger atb bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 50 parts

    Nut 8pk#5

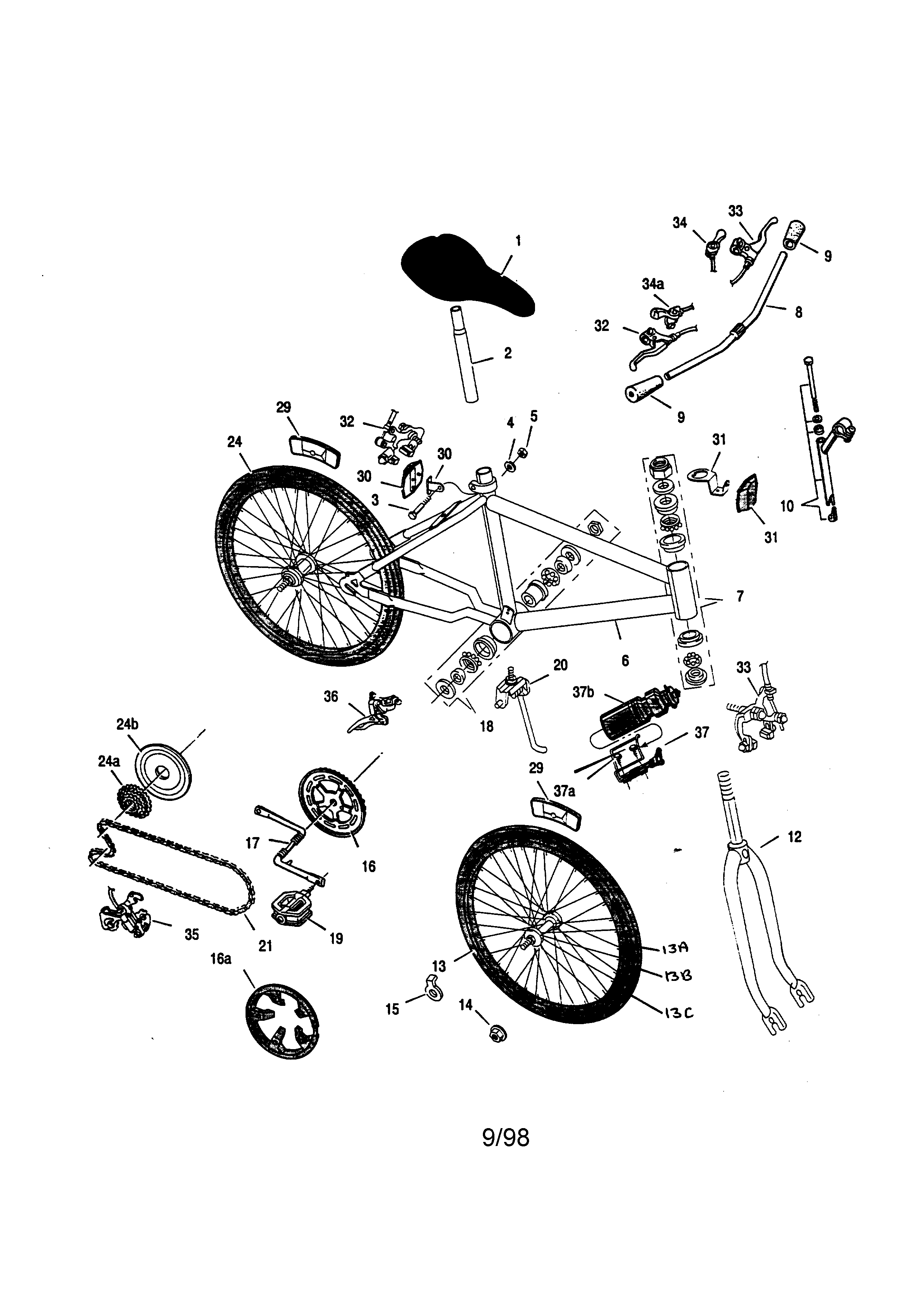

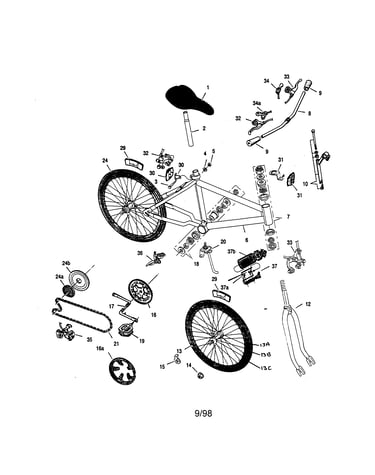

    Mens 26" atb "cliff hanger" Diagram

    Nut 8pk

    Part #015X32

    The manufacturer no longer makes this part, and there's no substitute part

    Kickstand#20

    Mens 26" atb "cliff hanger" Diagram

    Kickstand

    Part #302336

    The manufacturer no longer makes this part, and there's no substitute part

    Washer#4

    Mens 26" atb "cliff hanger" Diagram

    Washer

    Part #017X47Z

    The manufacturer no longer makes this part, and there's no substitute part

    Cable Casing

    #NI

    All parts Diagram

    Cable casing

    Part #308525

    The manufacturer no longer makes this part, and there's no substitute part

    Chain,ug50#21

    Mens 26" atb "cliff hanger" Diagram

    Chain,ug50

    Part #070539

    The manufacturer no longer makes this part, and there's no substitute part

    FRAME BOSSES SCREW

    #NI

    All parts Diagram

    Frame bosses screw

    Part #750852

    The manufacturer no longer makes this part, and there's no substitute part

    Hndbr Stem A#10

    Mens 26" atb "cliff hanger" Diagram

    Hndbr stem a

    Part #40818

    The manufacturer no longer makes this part, and there's no substitute part

    Rh Shftr/cbl#34A

    Mens 26" atb "cliff hanger" Diagram

    Rh shftr/cbl

    Part #50236PA

    The manufacturer no longer makes this part, and there's no substitute part

    Spoke Prot#24B

    Mens 26" atb "cliff hanger" Diagram

    Spoke prot

    Part #750656

    The manufacturer no longer makes this part, and there's no substitute part

    Sprckt,rr#24A

    Mens 26" atb "cliff hanger" Diagram

    Sprckt,rr

    Part #050966

    The manufacturer no longer makes this part, and there's no substitute part
