Model # 7479967511 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 7479967511 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 106 parts  |
Bulb STD372401
#25

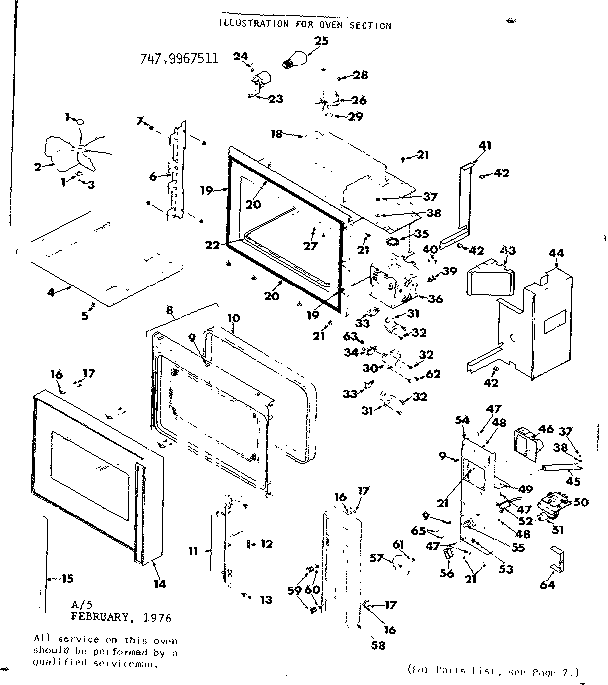

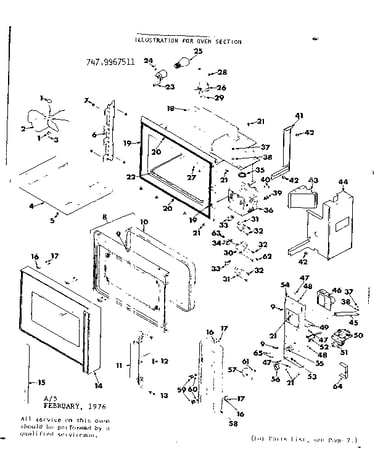

Oven section diagram

Bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$15.39 |
12% OFF Phone Price : $17.39
In Stock
Wht Sealant M13D2
#22B

Oven section diagram

Wht sealant

Part #M13D2

Replaced by #W10841140

?
Manufacturer substitution
This part replaces M13D2. Substitute parts can look different from the original.
BEST SELLER
$14.99 |
46% OFF MSRP : $28.00
In Stock
Screw M1D504
#85

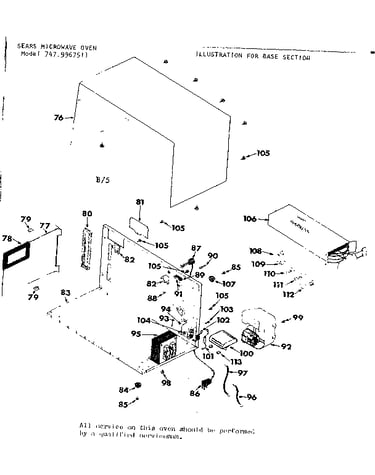

Base section diagram

Screw

Part #M1D504

Replaced by #WP489474

?
Manufacturer substitution
This part replaces M1D504. Substitute parts can look different from the original.
This item is not returnable
$4.79 |
17% OFF Phone Price : $5.79
In Stock
Terminal M1D295
#110

Base section diagram

Terminal

Part #M1D295

The manufacturer no longer makes this part, and there's no substitute part

Terminal M1D297
#109

Base section diagram

Terminal

Part #M1D297

The manufacturer no longer makes this part, and there's no substitute part

Pop Rivet M1D227
#24

Oven section diagram

Pop rivet

Part #M1D227

Replaced by #A4539605

?
Manufacturer substitution
This part replaces M1D227. Substitute parts can look different from the original.
$13.09
In Stock
Tray M50D19
#22

Oven section diagram

Tray

Part #M50D19

The manufacturer no longer makes this part, and there's no substitute part

Resistor M3D24
#101

Base section diagram

Resistor

Part #M3D24

The manufacturer no longer makes this part, and there's no substitute part

Air Duct M65D57
#100

Base section diagram

Air duct

Part #M65D57

The manufacturer no longer makes this part, and there's no substitute part

Connector M1D53
#112

Base section diagram

Connector

Part #M1D53

The manufacturer no longer makes this part, and there's no substitute part
