Kenmore
Carpet Cleaner

Model # 1758690490 Official Kenmore home cleaning system

Here are the diagrams and repair parts for Official Kenmore 1758690490 home cleaning system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 82 parts  |
Screw 968702-007
Screw

Part #968702-007

The manufacturer no longer makes this part, and there's no substitute part

Crevice Tool 641671-022
#26

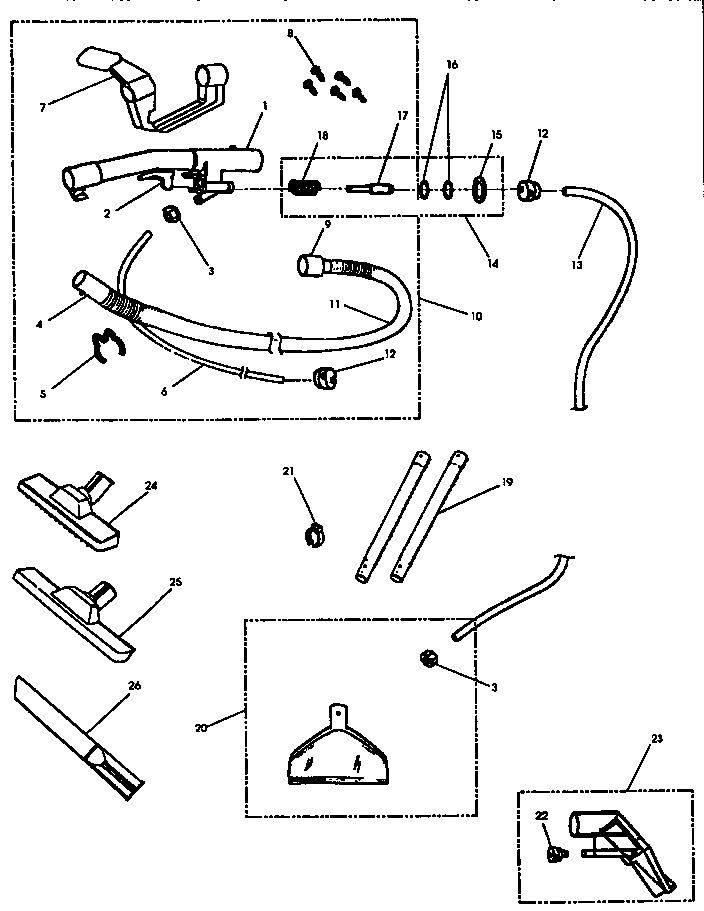

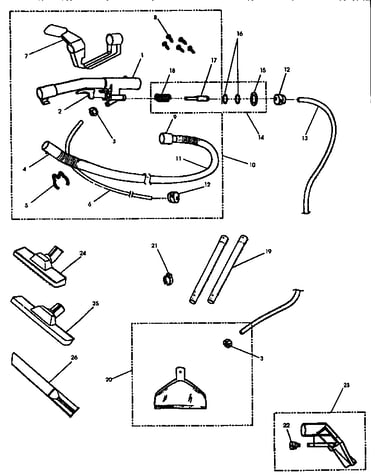

Hose assembly diagram

Crevice tool

Part #641671-022

The manufacturer no longer makes this part, and there's no substitute part

Wand 643186-022
#19

Hose assembly diagram

Wand

Part #643186-022

The manufacturer no longer makes this part, and there's no substitute part

Bag Adapter 662252-002
#24

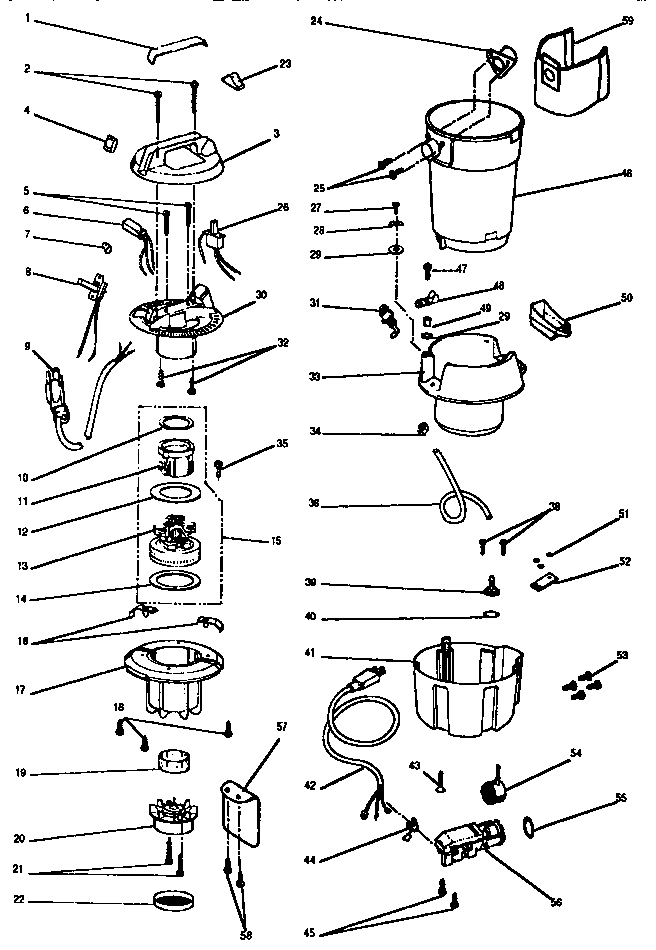

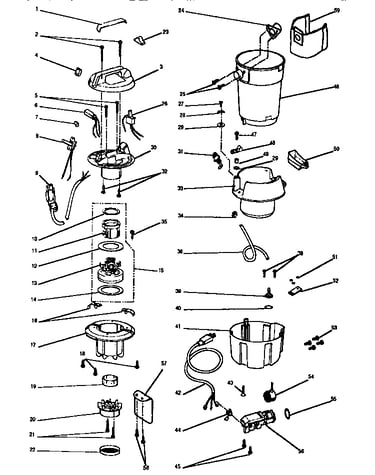

Base assembly diagram

Bag adapter

Part #662252-002

The manufacturer no longer makes this part, and there's no substitute part

Kit W/triggr 643572-008
#14

Hose assembly diagram

Kit w/triggr

Part #643572-008

The manufacturer no longer makes this part, and there's no substitute part

Dust Bags 20-50500
#59

Base assembly diagram

Dust bags

Part #20-50500

The manufacturer no longer makes this part, and there's no substitute part

Cover Assembly 641866-044
#17

Base assembly diagram

Cover assembly

Part #641866-044

The manufacturer no longer makes this part, and there's no substitute part

Floor Tool 662368-002
#25

Hose assembly diagram

Floor tool

Part #662368-002

The manufacturer no longer makes this part, and there's no substitute part

Relief 888493-304
#44

Base assembly diagram

Relief

Part #888493-304

The manufacturer no longer makes this part, and there's no substitute part

Ferrule Nut 644037-004
#3

Hose assembly diagram

Ferrule nut

Part #644037-004

The manufacturer no longer makes this part, and there's no substitute part
