Model # FAX1750 Official Brother fax machine

Here are the diagrams and repair parts for Official Brother FAX1750 fax machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 171 parts  |
Label 2, Tfe/templates/s/t/communications/help Files, For Nb-60/nb-80c Nsp N/P
Label 2, tfe/templates/s/t/communications/help files, for nb-60/nb-80c nsp

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Binder T22687001
#46

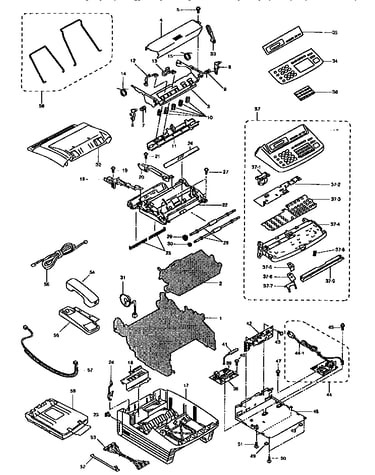

Fax110/1250/1750/1950 plus diagram

Binder

Part #T22687001

The manufacturer no longer makes this part, and there's no substitute part

Harness Pr UF6122001
#52

Fax110/1250/1750/1950 plus diagram

Harness pr

Part #UF6122001

The manufacturer no longer makes this part, and there's no substitute part

Platen UF6051001
#36

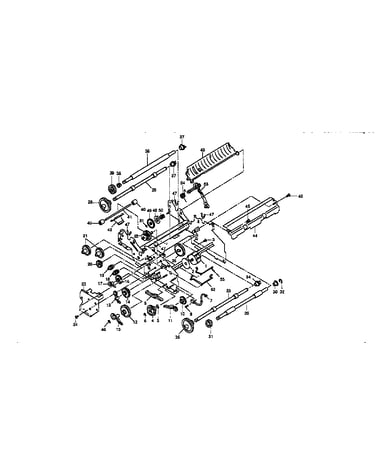

Main frame attachment diagram

Platen

Part #UF6051001

The manufacturer no longer makes this part, and there's no substitute part

Gear UF6055000
#39

Main frame attachment diagram

Gear

Part #UF6055000

The manufacturer no longer makes this part, and there's no substitute part

Pop/fax UF4178001
Pop/fax

Part #UF4178001

The manufacturer no longer makes this part, and there's no substitute part

Sheet UF6176001
#34B

Fax110/1250/1750/1950 plus diagram

Sheet

Part #UF6176001

The manufacturer no longer makes this part, and there's no substitute part

Cover UF6121001
#18

Fax110/1250/1750/1950 plus diagram

Cover

Part #UF6121001

The manufacturer no longer makes this part, and there's no substitute part

Cover UF6107002
#16A

Fax110/1250/1750/1950 plus diagram

Cover

Part #UF6107002

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly UF4181001
#38A

Fax110/1250/1750/1950 plus diagram

Pcb assembly

Part #UF4181001

The manufacturer no longer makes this part, and there's no substitute part
