Model # NCGM075EGA3 Official ICP gas furnace

Here are the diagrams and repair parts for Official ICP NCGM075EGA3 gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |
Cont Fan Tmr 1009838
#25

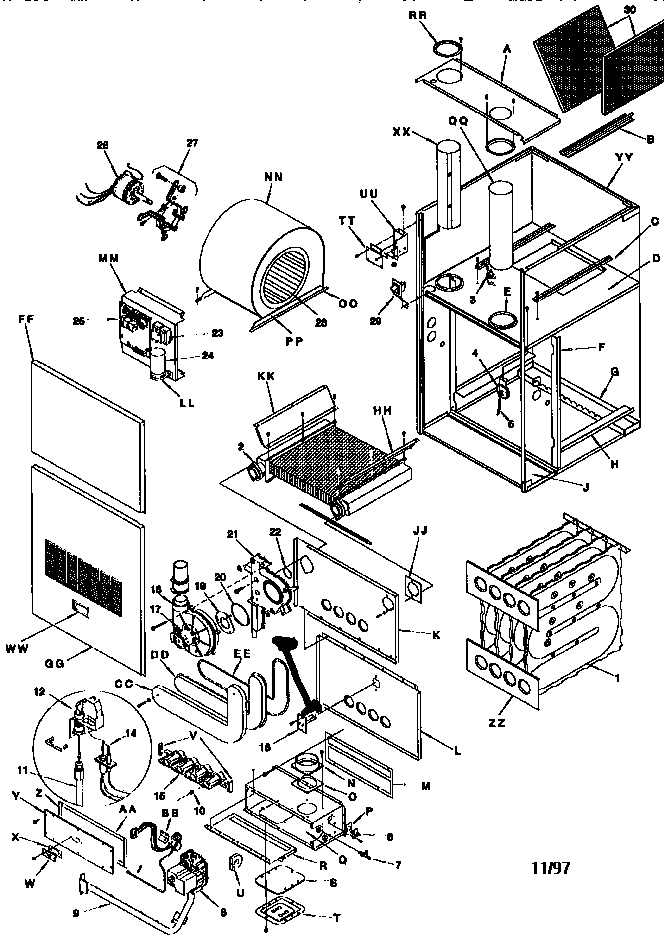

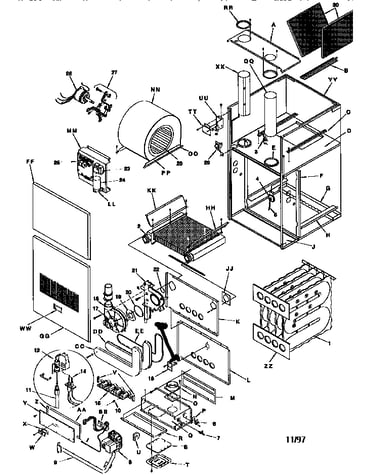

Unit parts diagram

Cont fan tmr

Part #1009838

Replaced by #1170063

?
Manufacturer substitution
This part replaces 1009838. Substitute parts can look different from the original.
$227.07 |
$10.00 OFF Phone Price : $237.07
In Stock
Cap Rnrd 1094239
#24

Unit parts diagram

Cap rnrd

Part #1094239

Replaced by #12907

?
Manufacturer substitution
This part replaces 1094239. Substitute parts can look different from the original.
This item is not returnable
$3.19 |
24% OFF Phone Price : $4.19
In Stock
Motor 1009053
#26

Unit parts diagram

Motor

Part #1009053

Replaced by #1013341

?
Manufacturer substitution
This part replaces 1009053. Substitute parts can look different from the original.
$463.79 |
$10.00 OFF Phone Price : $473.79
In Stock
Valve-nat 1011024
#8

Unit parts diagram

Valve-nat

Part #1011024

Replaced by #1170430

?
Manufacturer substitution
This part replaces 1011024. Substitute parts can look different from the original.
$674.90 |
$10.00 OFF Phone Price : $684.90
In Stock
Furnace Burner (replaces 1012383, 1149463) 1008724
#15

Unit parts diagram

Furnace burner (replaces 1012383, 1149463)

Part #1008724

$78.81 |
6% OFF Phone Price : $83.81
In Stock
Furnace Blower Fan Wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, H600587) 600587
#28

Unit parts diagram

Furnace blower fan wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, h600587)

Part #600587

$130.20 |
7% OFF Phone Price : $140.20
In Stock
Tubing 64930
#11

Unit parts diagram

Tubing

Part #64930

$77.80
In Stock
Furnace Blower Fan Motor Mounting Kit 609227
#27

Unit parts diagram

Furnace blower fan motor mounting kit

Part #609227

$113.60
In Stock
Furnace Pilot Igniter And Sensor (replaces B14010-11s, Q3400a1040) 1009524
#14

Unit parts diagram

Furnace pilot igniter and sensor (replaces b14010-11s, q3400a1040)

Part #1009524

$166.19 |
6% OFF Phone Price : $176.19
In Stock
Gsket Air In 1008746
#O

Unit parts diagram

Gsket air in

Part #1008746

This item is not returnable
$2.16
In Stock
