ICP VG-105AE-1R gas-fired hi-boy furnace - vg series

ICP VG-105AE-1R gas-fired hi-boy furnace - vg series Parts

Here are the diagrams and repair parts for ICP VG-105AE-1R gas-fired hi-boy furnace - vg series, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for VG-105AE-1R Gas-Fired Hi-Boy Furnace - VG Series

  • Baffle for ICP VG-105AE-1R - Part 613082

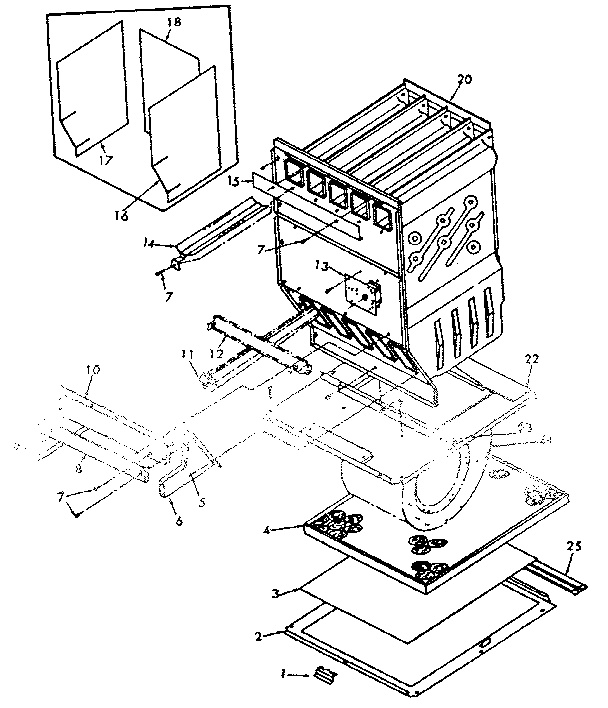

    Heat exchanger diagram

    Flue Bffl

    Part #95071

    Replaced by #613082

    Info Icon
    Manufacturer substitution
    This part replaces 95071. Substitute parts can look different from the original.
    In Stock
    $39.18
    Minus Item
    Qty
    Plus Item
  • Diagram for ICP VG-105AE-1R - Part 96486

    #NI

    All parts diagram

    Diagram

    Part #96486

    Replaced by #96486

    Info Icon
    Manufacturer substitution
    This part replaces 96486. Substitute parts can look different from the original.
    In Stock
    $336.01
    Minus Item
    Qty
    Plus Item
  • Blower Wheel for ICP VG-105AE-1R - Part 600587

    Blower assembly diagram

    Blower Wheel

    Part #600587

    The manufacturer no longer makes this part, and there's no substitute part

  • Block for ICP VG-105AE-1R - Part 96471

    Blower assembly diagram

    Block

    Part #96471

    Replaced by #96471

    Info Icon
    Manufacturer substitution
    This part replaces 96471. Substitute parts can look different from the original.
    In Stock
    $31.97
    Minus Item
    Qty
    Plus Item
  • Housing for ICP VG-105AE-1R - Part 95159

    Blower assembly diagram

    Housing

    Part #95159

    Replaced by #95159

    Info Icon
    Manufacturer substitution
    This part replaces 95159. Substitute parts can look different from the original.
    In Stock
    $407.87
    Minus Item
    Qty
    Plus Item
  • Thermostat for ICP VG-105AE-1R - Part 42-9235

    #NI

    All parts diagram

    Thermostat

    Part #42-9235

    The manufacturer no longer makes this part, and there's no substitute part

  • Transformer for ICP VG-105AE-1R - Part 97298

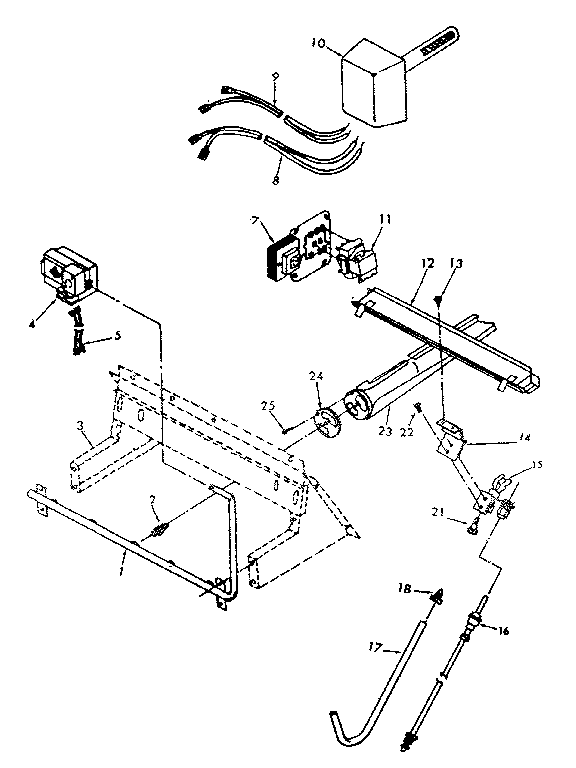

    Gas burners and manifold diagram

    Transformer

    Part #97298

    The manufacturer no longer makes this part, and there's no substitute part

  • Panel for ICP VG-105AE-1R - Part 95319

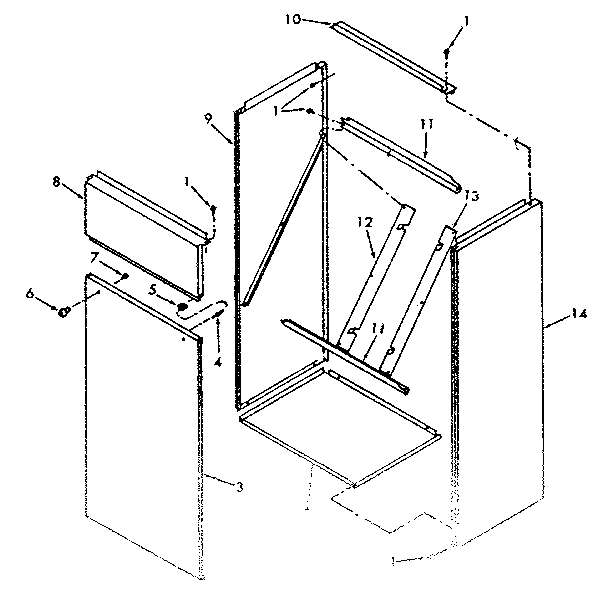

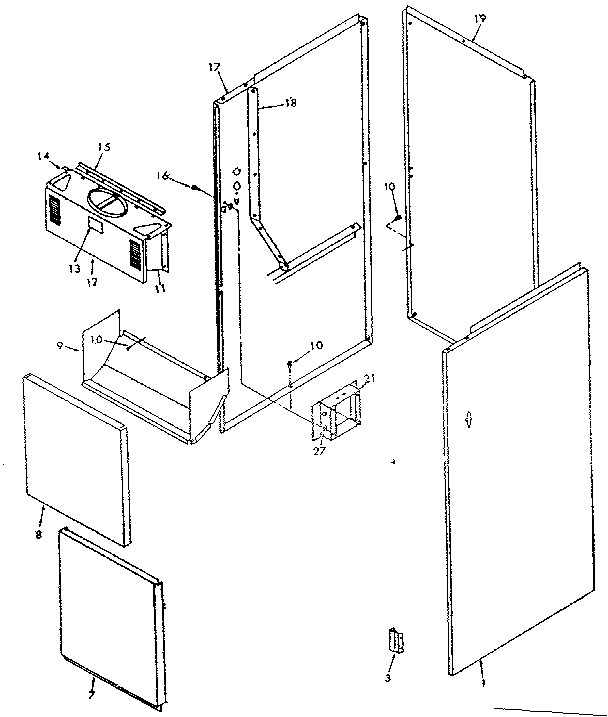

    Cabinet/ 105ae-1r diagram

    Panel

    Part #95319

    Replaced by #95319

    Info Icon
    Manufacturer substitution
    This part replaces 95319. Substitute parts can look different from the original.
    In Stock
    $39.67
    Minus Item
    Qty
    Plus Item
  • Brnr Sheld for ICP VG-105AE-1R - Part 1005784

    Heat exchanger diagram

    Extension

    Part #95085

    Replaced by #1005784

    Info Icon
    Manufacturer substitution
    This part replaces 95085. Substitute parts can look different from the original.
    In Stock
    $753.15
    Minus Item
    Qty
    Plus Item
  • Plate for ICP VG-105AE-1R - Part 602070

    Heat exchanger diagram

    Plate

    Part #602070

    Replaced by #602070

    Info Icon
    Manufacturer substitution
    This part replaces 602070. Substitute parts can look different from the original.
    In Stock
    $150.64
    Minus Item
    Qty
    Plus Item
