Whirlpool
Room Air Conditioner

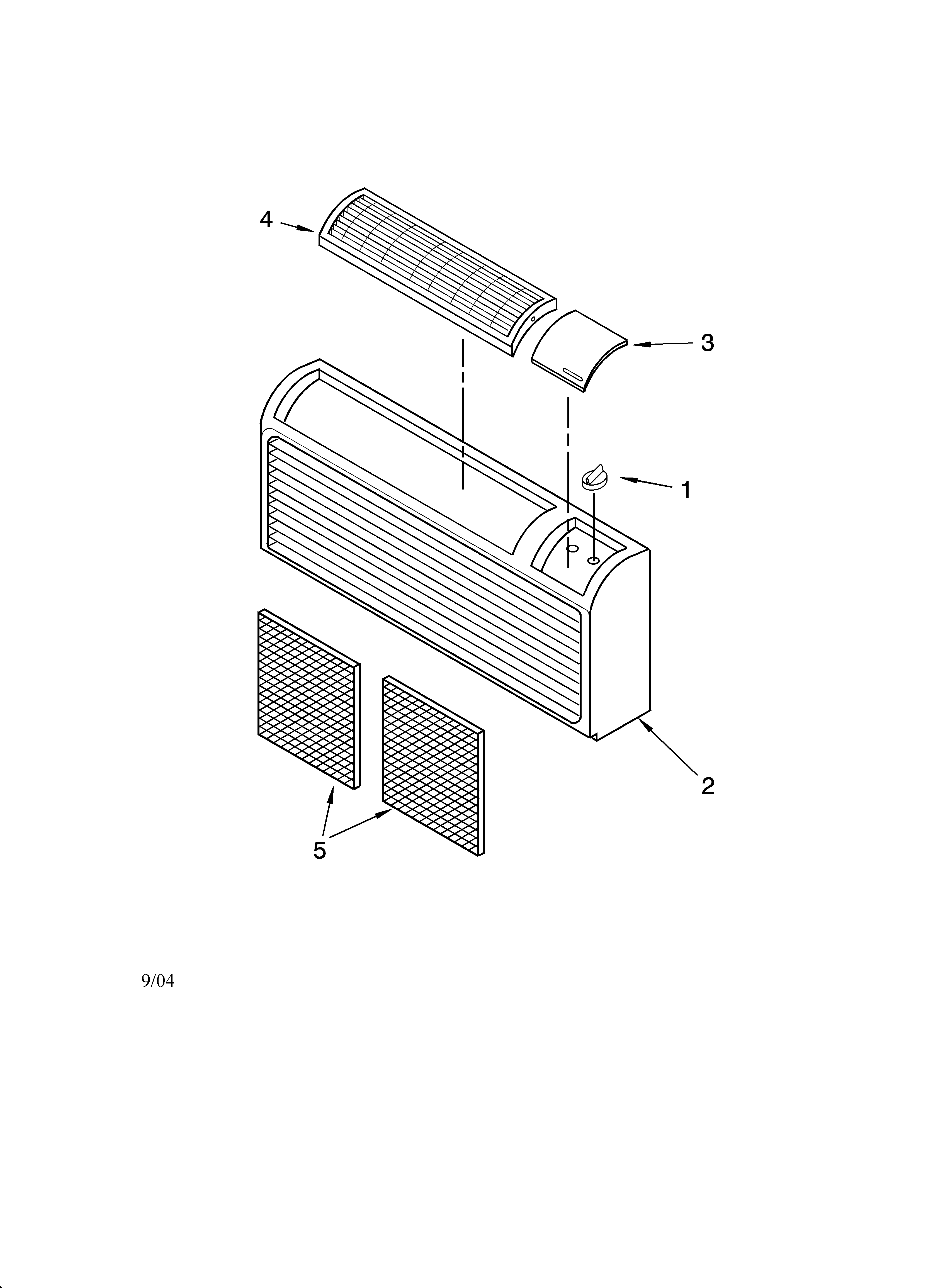

Model #ATR15 Whirlpool air conditioner

Here are the repair parts and diagrams for your Whirlpool ATR15 air conditioner.

The diagram(s) below can help you find the right part.  If you’d like help, we invite you to call our customer service number at the top of the page, or click chat.

On this page, you can also find any manuals, installation guides and error code tables associated with this model.

For advice on diagnosing problems with appliances, lawn & garden equipment and other products, check out the videos, repair guides and articles in our DIY section.

Save to my profile

Showing 10 of 93 parts

Heater

#4A

Airflow and control patrs, optional parts (not include Diagram

Heater

Part #8209972
?
Manufacturer substitution
This part replaces 8209985. Substitute parts can look different from the original.
This part replaces 8209985
$61.23

In Stock

Condenser

#2A

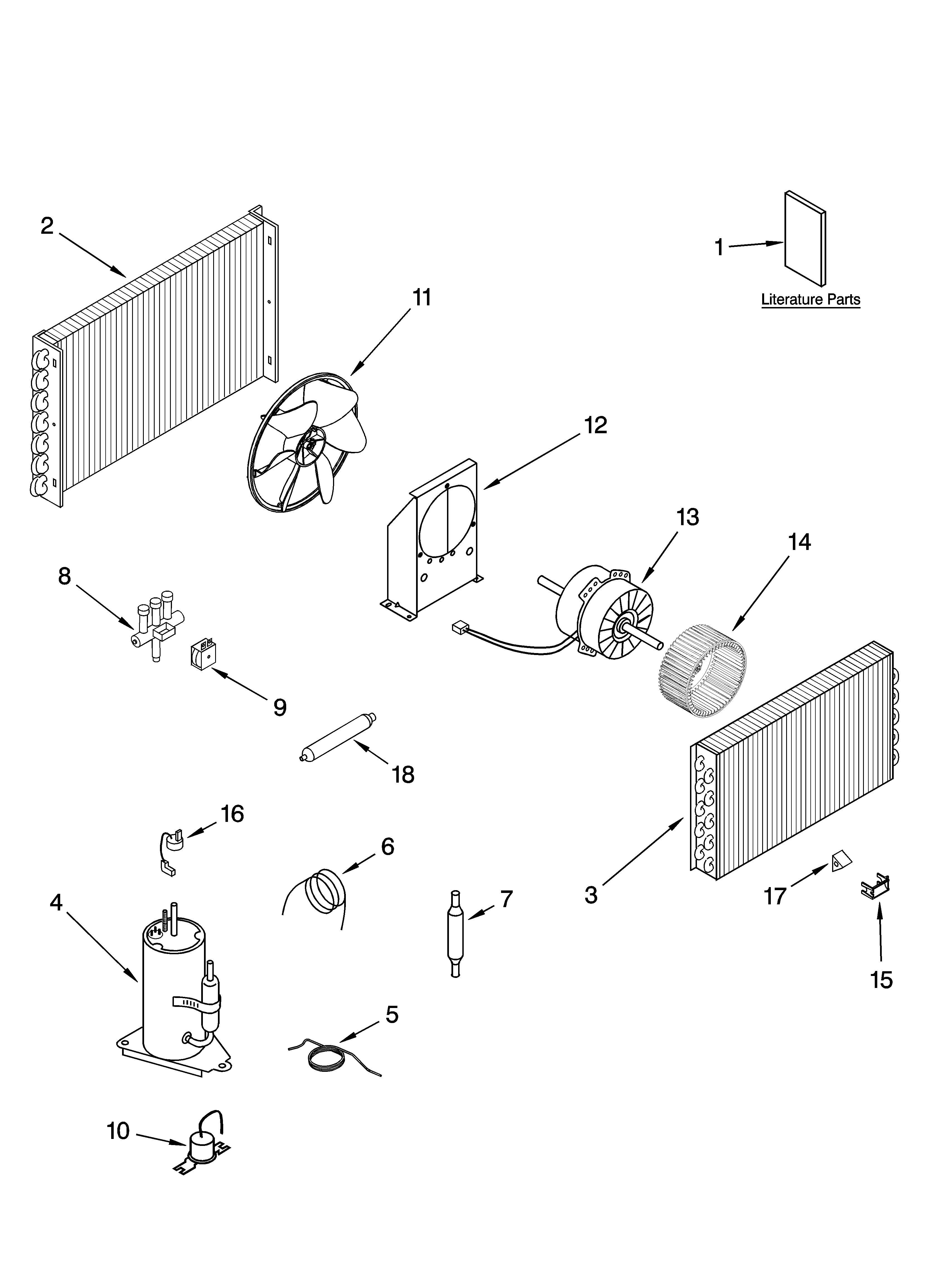

Unit parts Diagram

Condenser

Part #8209954

The manufacturer no longer makes this part, and there's no substitute part

COMPRESSOR (230 VOLT MODELS)

#4

Unit parts Diagram

Compressor (230 volt models)

Part #8209958

The manufacturer no longer makes this part, and there's no substitute part

Reversing Valve

#7

Unit parts Diagram

Reversing valve

Part #8209975

The manufacturer no longer makes this part, and there's no substitute part

Screen

#1

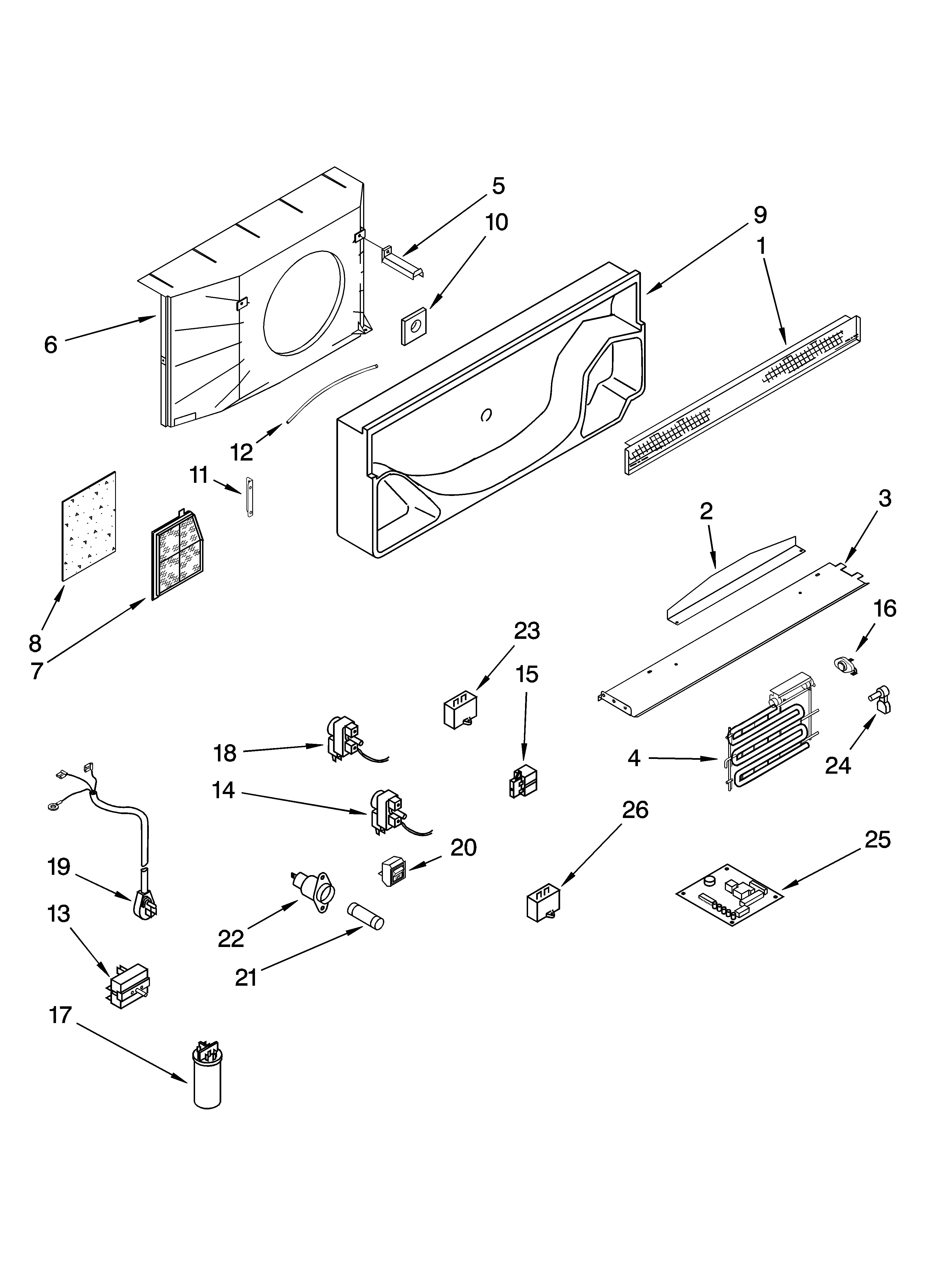

Airflow and control patrs, optional parts (not include Diagram

Screen

Part #8209981

The manufacturer no longer makes this part, and there's no substitute part

Air Baffle

#2

Airflow and control patrs, optional parts (not include Diagram

Air baffle

Part #8209982

The manufacturer no longer makes this part, and there's no substitute part

Cover

#3

Airflow and control patrs, optional parts (not include Diagram

Cover

Part #8209983

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor

#13A

Unit parts Diagram

Fan motor

Part #8209999

The manufacturer no longer makes this part, and there's no substitute part

Capacitor

#17A

Airflow and control patrs, optional parts (not include Diagram

Capacitor

Part #8210013

The manufacturer no longer makes this part, and there's no substitute part

Control Wire

#12

Airflow and control patrs, optional parts (not include Diagram

Control wire

Part #8210037

The manufacturer no longer makes this part, and there's no substitute part
