Model #ACQ058PS4 Whirlpool air conditioner

Here are the diagrams and repair parts for Whirlpool ACQ058PS4 air conditioner, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileOwner’s manual

    Showing 10 of 54 parts

    Grille

    #6

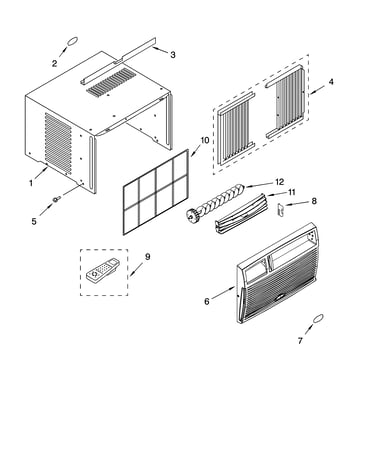

    Cabinet parts Diagram

    Grille

    Part #8209728
    $82.96

    In Stock

    Nameplate

    #2

    Cabinet parts Diagram

    Nameplate

    Part #8209738
    $32.02

    In Stock

    Power Cord

    #10

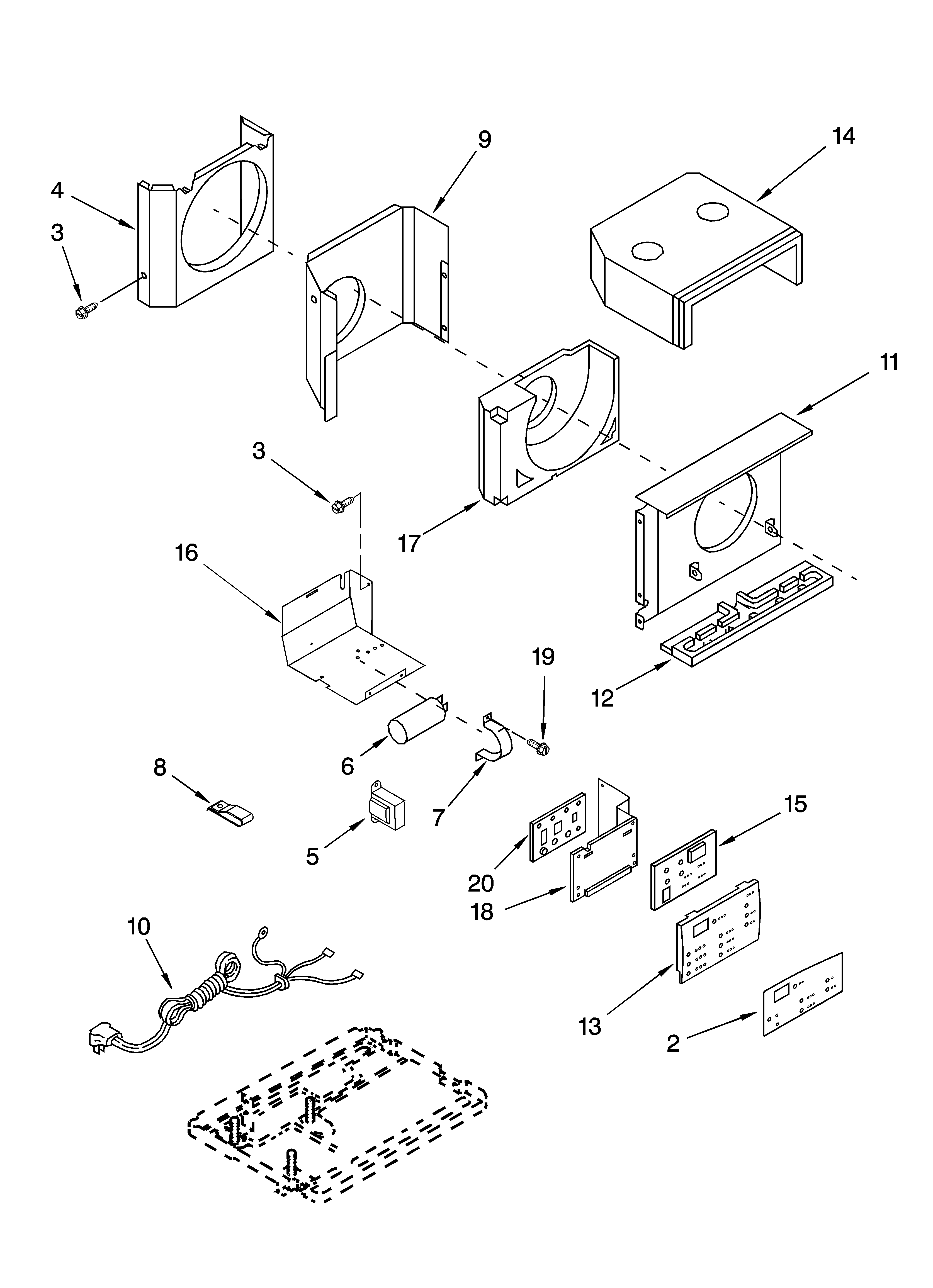

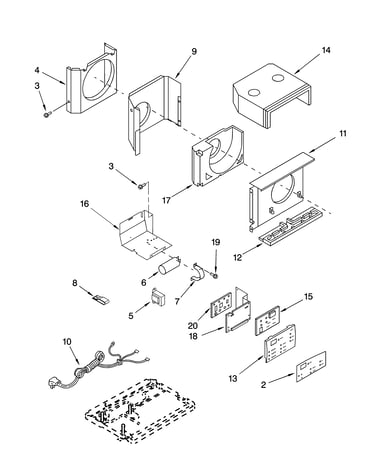

    Air flow and control parts Diagram

    Power cord

    Part #8209817
    $47.73

    In Stock

    Energy Guide

    #1B

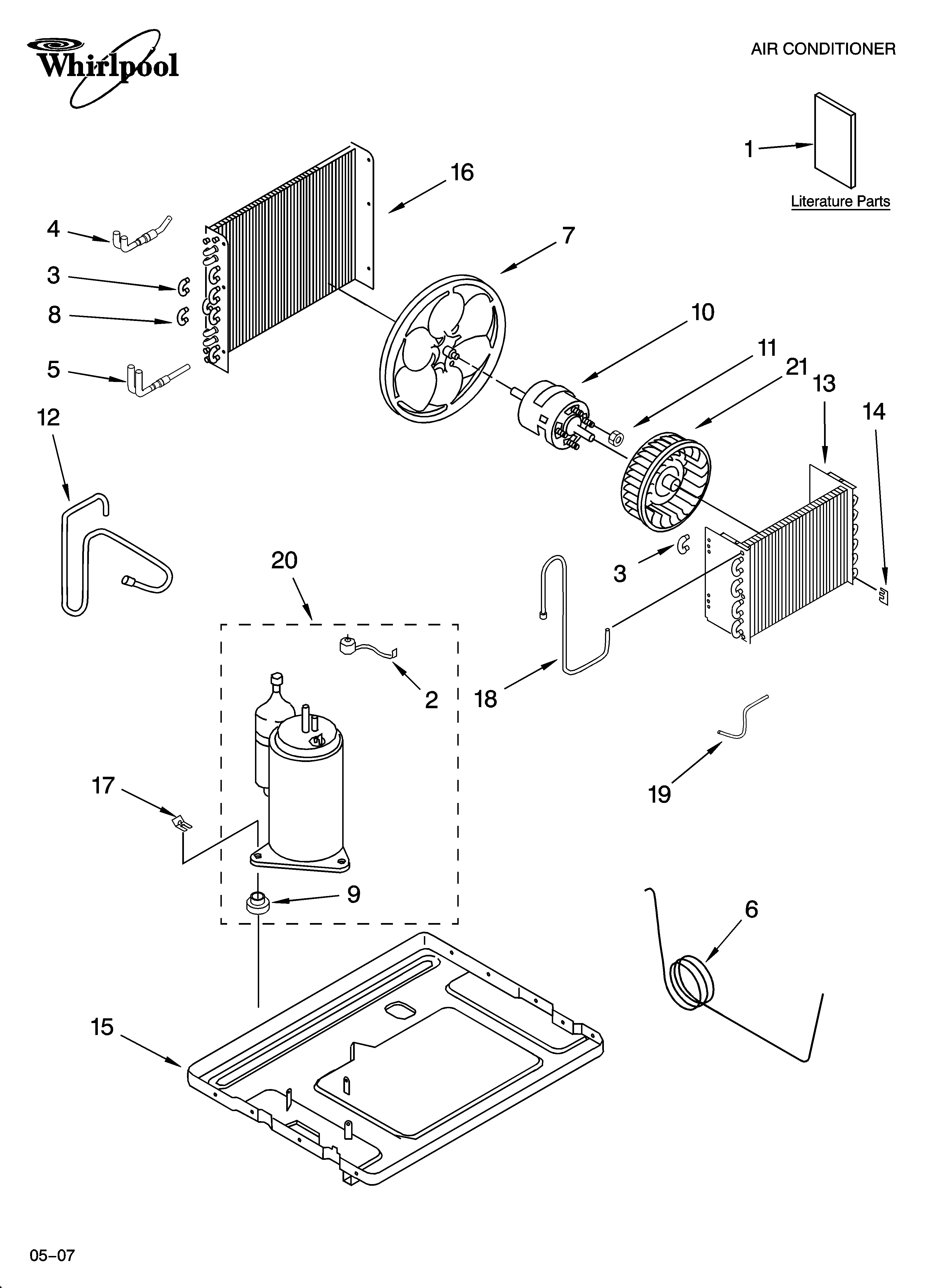

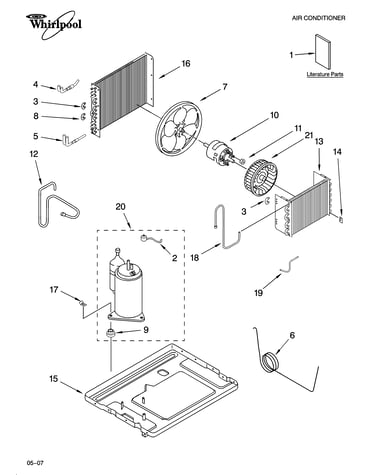

    Unit parts Diagram

    Energy guide

    Part #8209819
    This item is not returnable
    $4.55

    In Stock

    Control Board

    #15

    Air flow and control parts Diagram

    Control board

    Part #8201725
    ?
    Manufacturer substitution
    This part replaces 8209792. Substitute parts can look different from the original.
    This part replaces 8209792
    $49.15

    In Stock

    Control Board

    #20

    Air flow and control parts Diagram

    Control board

    Part #8201725
    ?
    Manufacturer substitution
    This part replaces 8209790. Substitute parts can look different from the original.
    This part replaces 8209790
    $49.15

    In Stock

    Microwave Screw

    #3

    Air flow and control parts Diagram

    Microwave screw

    Part #8169474
    ?
    Manufacturer substitution
    This part replaces 8209674. Substitute parts can look different from the original.
    This part replaces 8209674
    This item is not returnable
    $3.58

    In Stock

    Refrigerator Screw

    #19

    Air flow and control parts Diagram

    Refrigerator screw

    Part #W11245710
    ?
    Manufacturer substitution
    This part replaces 8209688. Substitute parts can look different from the original.
    This part replaces 8209688
    $7.79

    In Stock

    Louver Clip

    #8

    Cabinet parts Diagram

    Louver clip

    Part #8209770

    The manufacturer no longer makes this part, and there's no substitute part

    Clip Tubing

    #14

    Unit parts Diagram

    Clip tubing

    Part #8209771

    The manufacturer no longer makes this part, and there's no substitute part
