Amana
Countertop Microwave

Model # 80/05.501 Official Amana microwave

Here are the diagrams and repair parts for Official Amana 80-05501 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

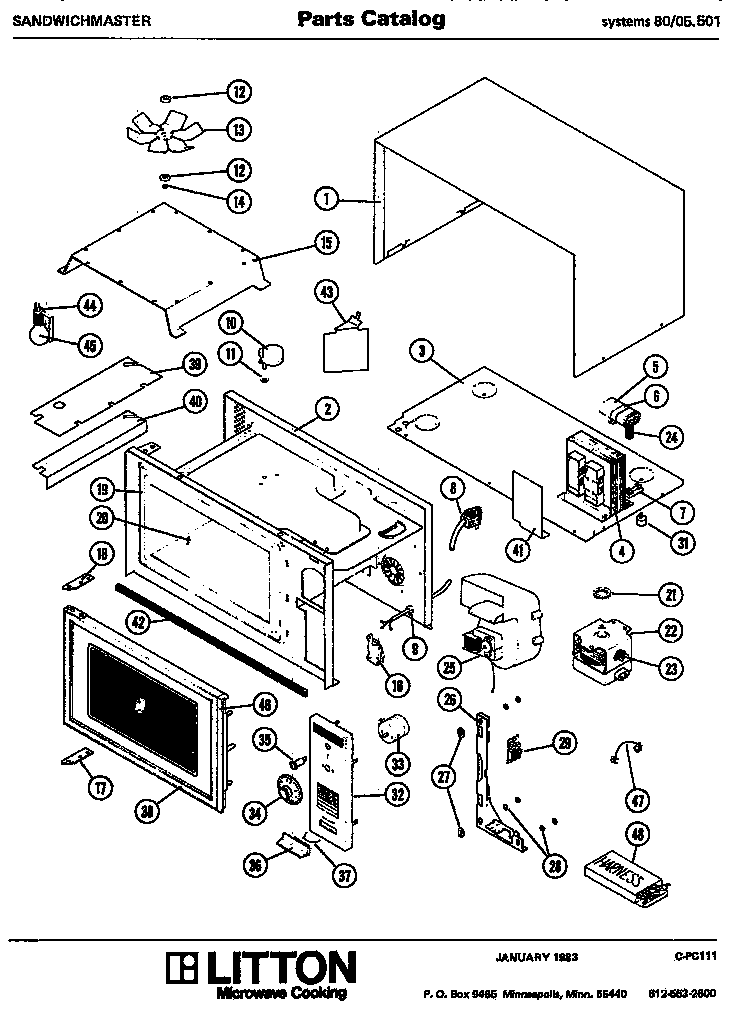

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |
Screw, Case Mtg. M1D358
#3B

(80/05.501) diagram

Screw, case mtg.

Part #M1D358

The manufacturer no longer makes this part, and there's no substitute part

Fuse M4D34
#7D

(80/05.501) diagram

Fuse

Part #M4D34

The manufacturer no longer makes this part, and there's no substitute part

Thermal Protector M4D3
#23A

(80/05.501) diagram

Thermal protector

Part #M4D3

The manufacturer no longer makes this part, and there's no substitute part

Screw, Timer Mtg. M1D442
#33B

(80/05.501) diagram

Screw, timer mtg.

Part #M1D442

The manufacturer no longer makes this part, and there's no substitute part

Handle, Door Release M11D52
#36

(80/05.501) diagram

Handle, door release

Part #M11D52

The manufacturer no longer makes this part, and there's no substitute part

Crow's Foot Screwdriver M95D21
#48I

(80/05.501) diagram

Crow's foot screwdriver

Part #M95D21

The manufacturer no longer makes this part, and there's no substitute part

Capacitor M10D52
#5

(80/05.501) diagram

Capacitor

Part #M10D52

The manufacturer no longer makes this part, and there's no substitute part

Timer, 6 Minute (m3) M30D71
#33A

(80/05.501) diagram

Timer, 6 minute (m3)

Part #M30D71

The manufacturer no longer makes this part, and there's no substitute part

Diode M3D43
#24A

(80/05.501) diagram

Diode

Part #M3D43

The manufacturer no longer makes this part, and there's no substitute part

Interlock Monitor Switch Assembly (s11) M14D76
#16A

(80/05.501) diagram

Interlock monitor switch assembly (s11)

Part #M14D76

The manufacturer no longer makes this part, and there's no substitute part
