Sharp XL-70C micro component system Parts

Here are the diagrams and repair parts for Sharp XL-70C micro component system, as well as links to manuals and error code tables, if available.

Sharp XL-70C micro component system

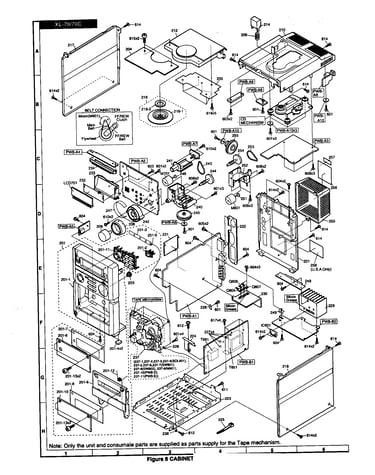

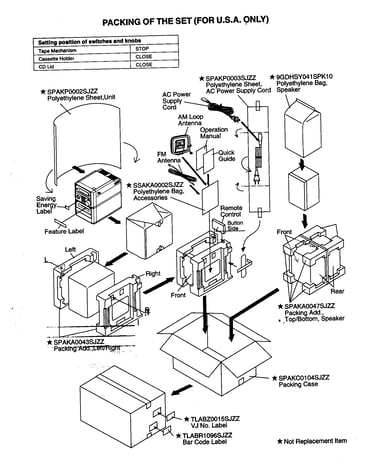

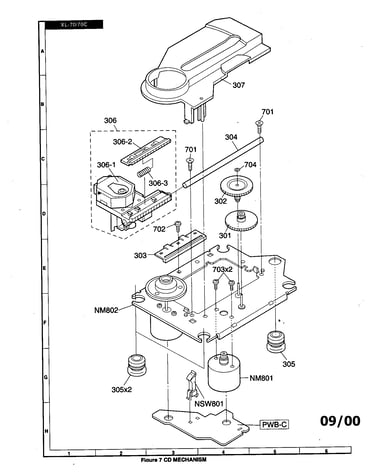

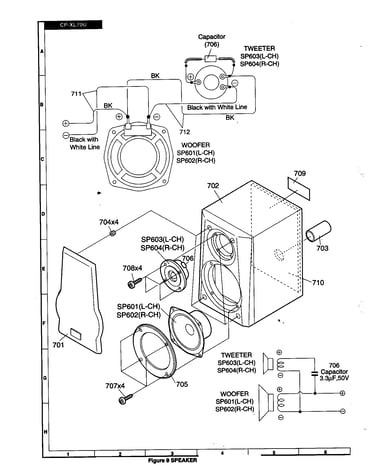

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for XL-70C Audio Equipment

  • Pwb-b1,2 Power, Power Amp. (combined Assembly) for Sharp XL-70C - Part DCEKJ0005SJ09

    #NI

    All parts diagram

    Pwb-b1,2 Power, Power Amp. (combined Assembly)

    Part #DCEKJ0005SJ09

    The manufacturer no longer makes this part, and there's no substitute part

  • 237 Tape Mechanism Assembly for Sharp XL-70C - Part CMECB0004SJ01

    #NI

    All parts diagram

    237 Tape Mechanism Assembly

    Part #CMECB0004SJ01

    The manufacturer no longer makes this part, and there's no substitute part

  • Cnp702 Plug, 13 Pin for Sharp XL-70C - Part QCNCM004NSJZZ

    #NI

    All parts diagram

    Cnp702 Plug, 13 Pin

    Part #QCNCM004NSJZZ

    The manufacturer no longer makes this part, and there's no substitute part

  • 241 Holder, Jog Motor Tray for Sharp XL-70C - Part LHLDZ1024SJZZ

    #NI

    All parts diagram

    241 Holder, Jog Motor Tray

    Part #LHLDZ1024SJZZ

    The manufacturer no longer makes this part, and there's no substitute part

  • Cfw704 Flat Wire, 9 Pin for Sharp XL-70C - Part QCNWN0190SJZZ

    #NI

    All parts diagram

    Cfw704 Flat Wire, 9 Pin

    Part #QCNWN0190SJZZ

    The manufacturer no longer makes this part, and there's no substitute part

  • 242 Holder, Jog Motor Guide for Sharp XL-70C - Part LHLDZ1026SJZZ

    #NI

    All parts diagram

    242 Holder, Jog Motor Guide

    Part #LHLDZ1026SJZZ

    The manufacturer no longer makes this part, and there's no substitute part

  • 605 Screw, 03 X 10 Mm for Sharp XL-70C - Part LX-JZ0001SJFD

    #NI

    All parts diagram

    605 Screw, 03 X 10 Mm

    Part #LX-JZ0001SJFD

    The manufacturer no longer makes this part, and there's no substitute part

  • (#t651) Power, Main for Sharp XL-70C - Part RTRNP0044SJZZ

    #NI

    All parts diagram

    (#t651) Power, Main

    Part #RTRNP0044SJZZ

    The manufacturer no longer makes this part, and there's no substitute part

  • 250 Cover, Heat Sink Power Amp Pwb for Sharp XL-70C - Part PCOVP1001SJSB

    #NI

    All parts diagram

    250 Cover, Heat Sink Power Amp Pwb

    Part #PCOVP1001SJSB

    The manufacturer no longer makes this part, and there's no substitute part

  • 217 Side Panel, Left for Sharp XL-70C - Part GITAS0003SJSB

    #NI

    All parts diagram

    217 Side Panel, Left

    Part #GITAS0003SJSB

    The manufacturer no longer makes this part, and there's no substitute part
