Model # H4H342GKE100 Official ICP split system air conditioner

Here are the diagrams and repair parts for Official ICP H4H342GKE100 split system air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Condensing Unit Defrost Control Board 1173636
#26

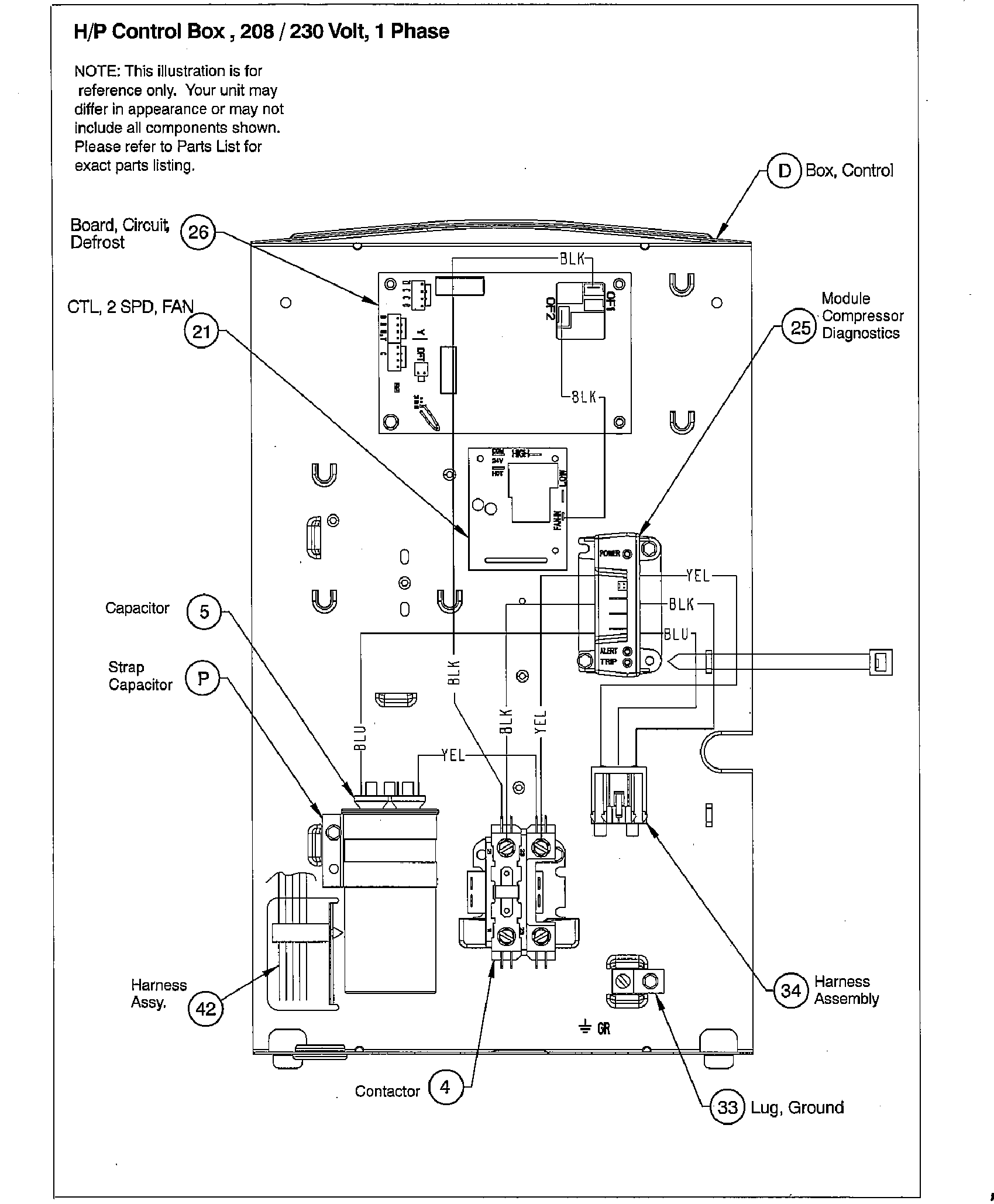

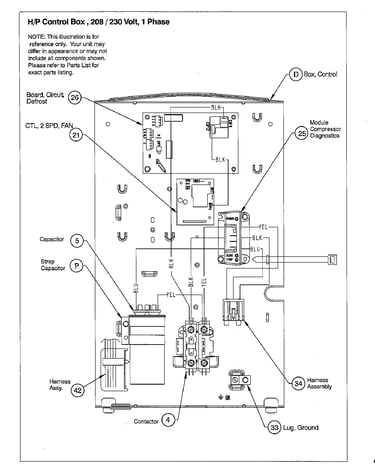

Cabinet diagram

Condensing unit defrost control board

Part #1173636

$179.69 |
5% OFF Phone Price : $189.69
In Stock
Central Air Conditioner Heat Pump Defrost Control 1173637
#22

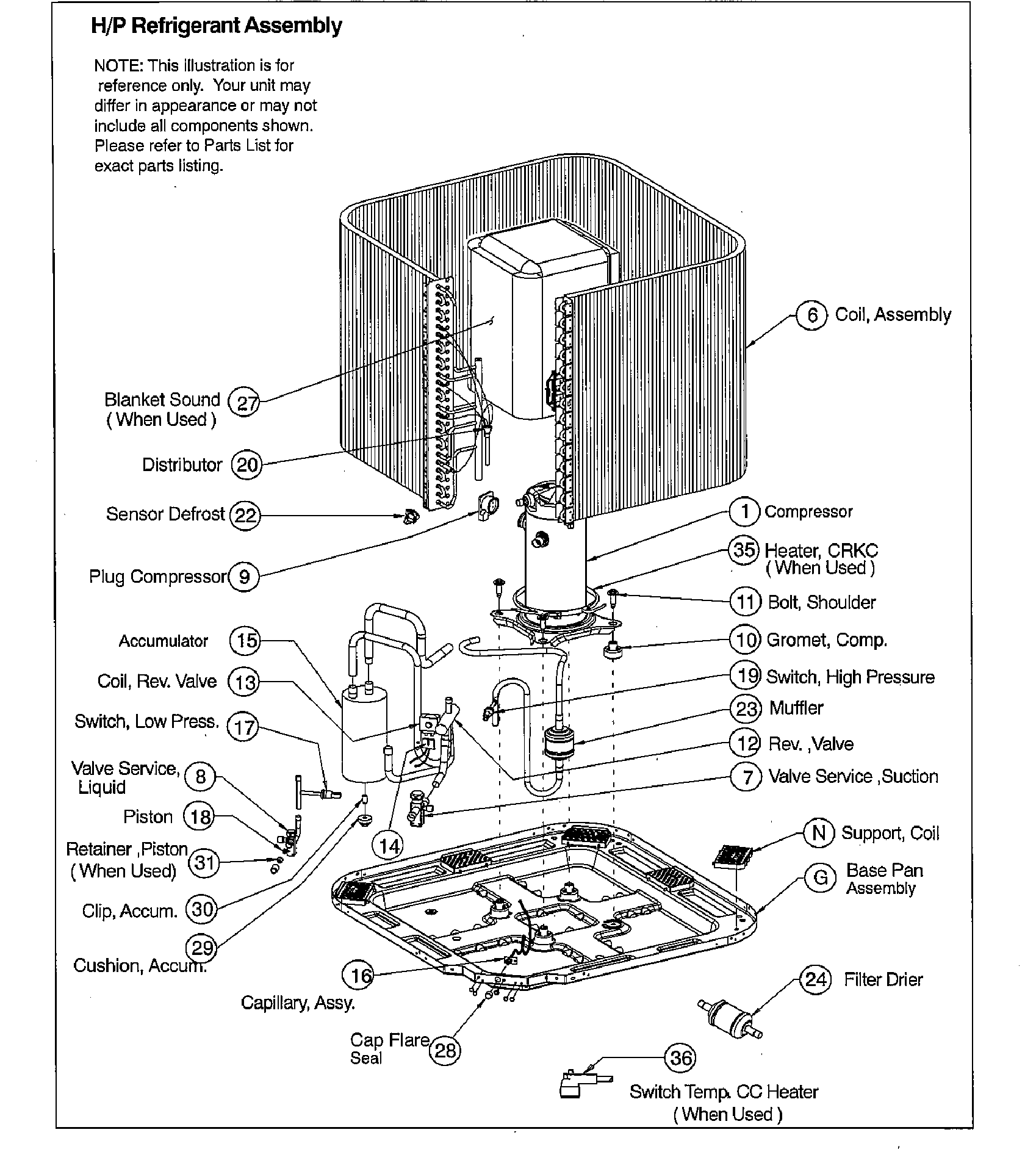

Compressor diagram

Central air conditioner heat pump defrost control

Part #1173637

$34.73
In Stock
Central Air Conditioner Contactor 1172472
#4

Cabinet diagram

Central air conditioner contactor

Part #1172472

$61.35 |
8% OFF Phone Price : $66.35
In Stock
Service Valve 1172727
#7

Compressor diagram

Service valve

Part #1172727

Replaced by #1185863

?
Manufacturer substitution
This part replaces 1172727. Substitute parts can look different from the original.
$93.09
In Stock
Kit 1174192
#NI

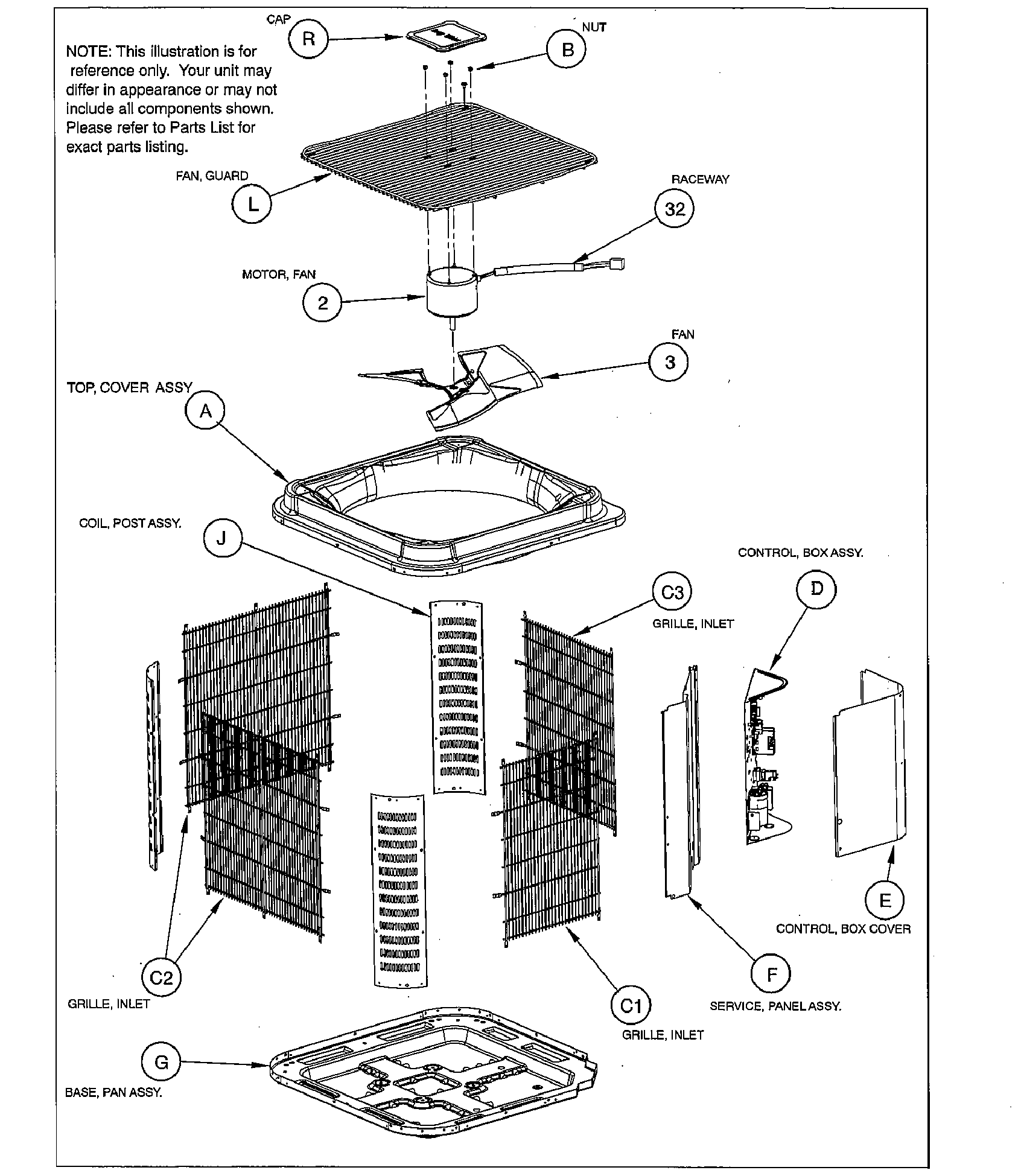

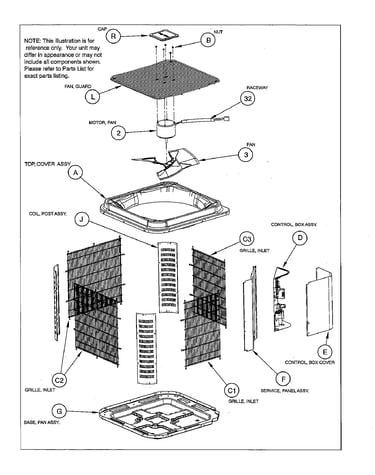

Control panel diagram

Kit

Part #1174192

The manufacturer no longer makes this part, and there's no substitute part

Piston 1173873
#18

Compressor diagram

Piston

Part #1173873

$10.40
In Stock
Valve Rev 1175622
#12

Compressor diagram

Valve rev

Part #1175622

$192.20
In Stock
Muffler 1173668
#23

Compressor diagram

Muffler

Part #1173668

$64.60
In Stock
Switch,low 1177594
#17

Compressor diagram

Switch,low

Part #1177594

The manufacturer no longer makes this part, and there's no substitute part

Switch 1174695
#19

Compressor diagram

Switch

Part #1174695

$52.53 |
9% OFF Phone Price : $57.53
In Stock
