Amana
Range/Microwave Combo

Model # 1890.000 Official Amana range

Here are the diagrams and repair parts for Official Amana 1890000 range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

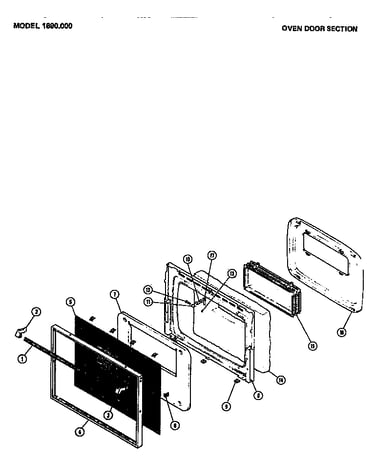

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 273 parts  |
Panel, Hood Exhaust M53D1
#27A

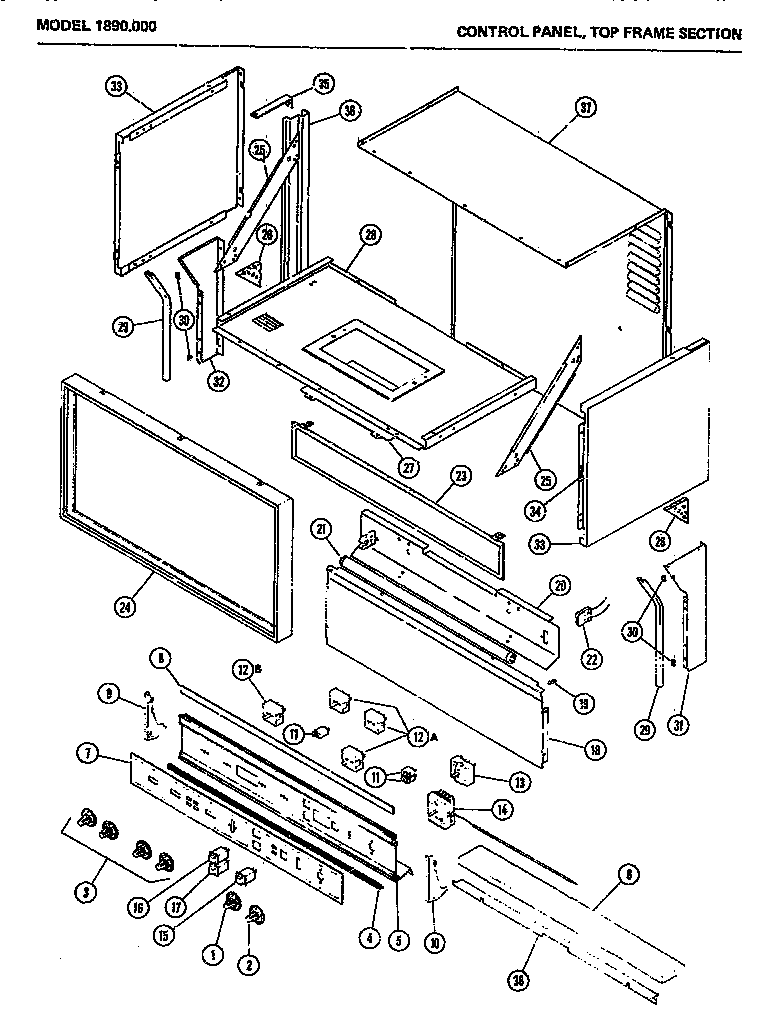

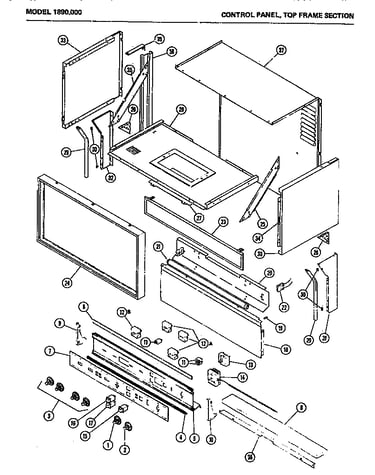

Control panel diagram

Panel, hood exhaust

Part #M53D1

The manufacturer no longer makes this part, and there's no substitute part

Panel, Upper Side (copper) M82D102
#33D

Control panel diagram

Panel, upper side (copper)

Part #M82D102

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Lock Switch M2D391
#11A

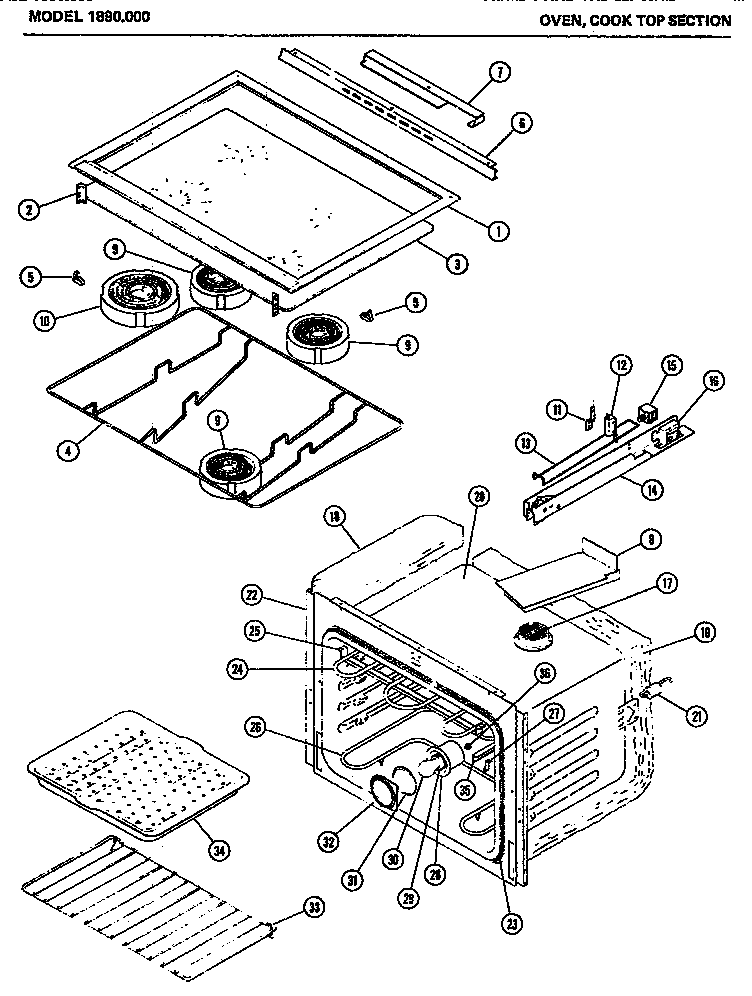

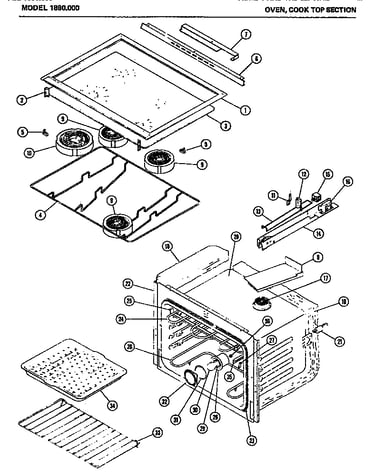

Oven diagram

Bracket, lock switch

Part #M2D391

The manufacturer no longer makes this part, and there's no substitute part

Clip, Module Positioning M1D386
#42C

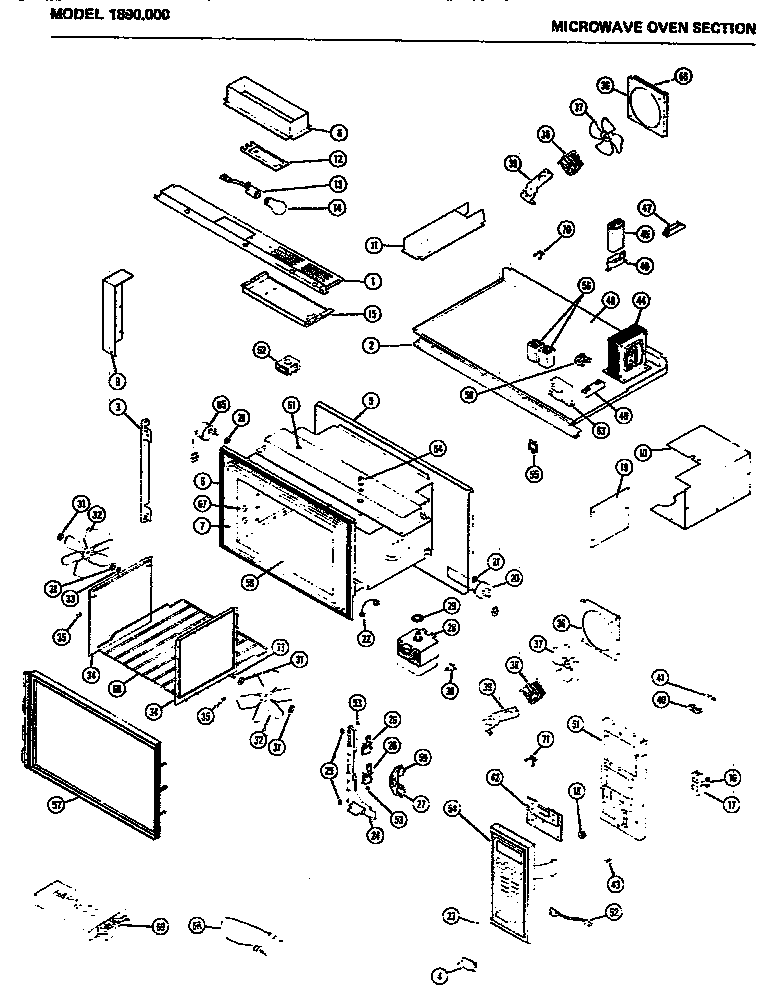

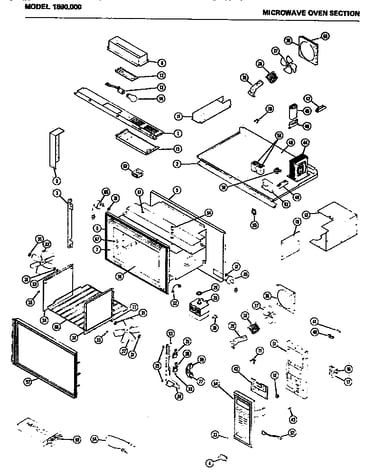

Microwave oven section diagram

Clip, module positioning

Part #M1D386

The manufacturer no longer makes this part, and there's no substitute part

Lower Side Panel (h. Gold) M82D103
#9B

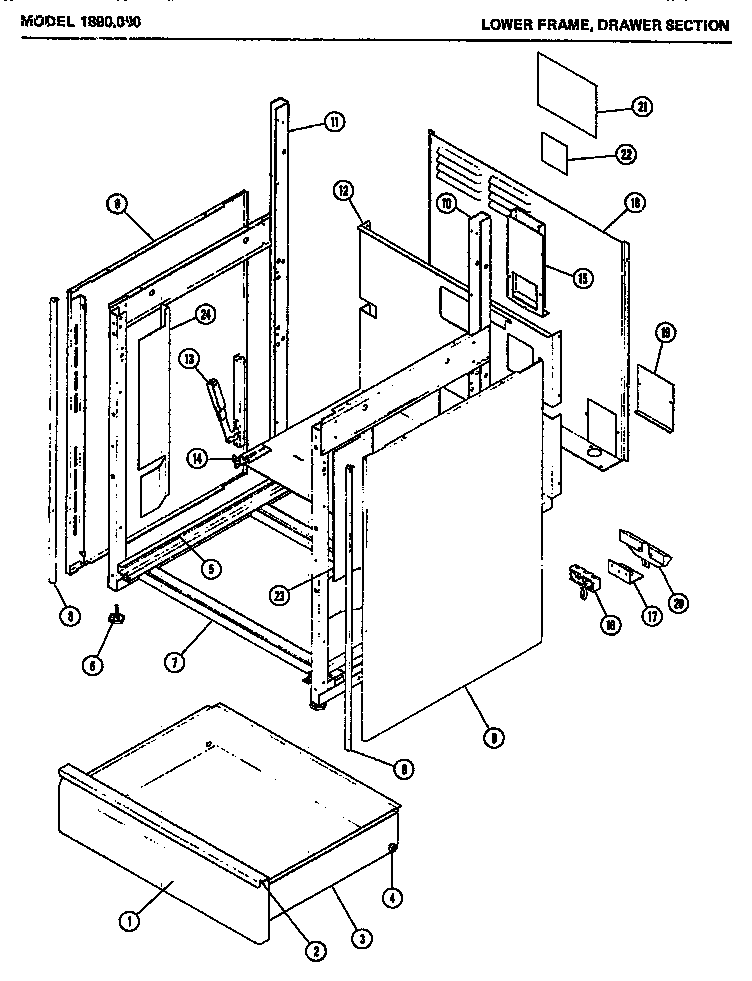

Lower frame diagram

Lower side panel (h. gold)

Part #M82D103

The manufacturer no longer makes this part, and there's no substitute part

Lower Side Panel (copper) M82D105
#9D

Lower frame diagram

Lower side panel (copper)

Part #M82D105

The manufacturer no longer makes this part, and there's no substitute part

Speednut, Switch Mounting M1D779
#12C

Oven diagram

Speednut, switch mounting

Part #M1D779

The manufacturer no longer makes this part, and there's no substitute part

Wire Harness (includes Ref. No. 64) M27D240
#69

Microwave oven section diagram

Wire harness (includes ref. no. 64)

Part #M27D240

The manufacturer no longer makes this part, and there's no substitute part

By-pass Switch M14D142
#59A

Microwave oven section diagram

By-pass switch

Part #M14D142

The manufacturer no longer makes this part, and there's no substitute part

Gasket, R.f. (magnetron) M2D296
#29

Microwave oven section diagram

Gasket, r.f. (magnetron)

Part #M2D296

The manufacturer no longer makes this part, and there's no substitute part
