Model # 4360-7 Official Footedana transaxle

Here are the diagrams and repair parts for Official Footedana 4360-7 transaxle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 100 parts  |
Ring 2267J
#10

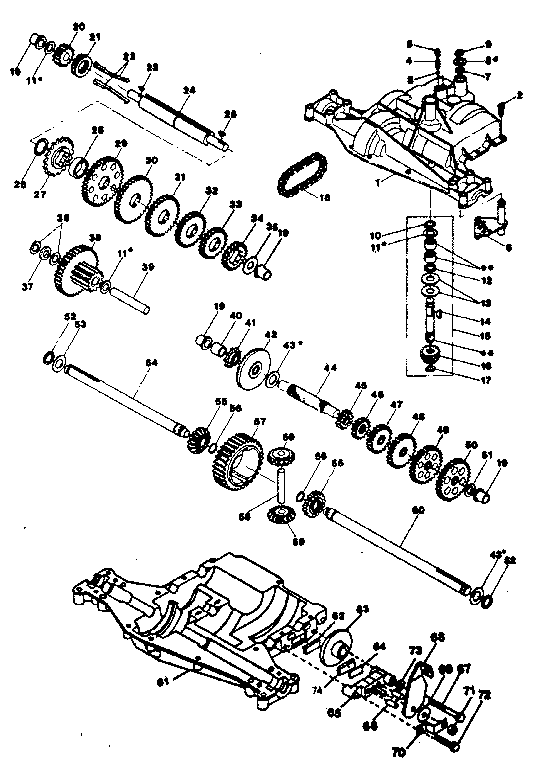

Transaxle diagram

Ring

Part #2267J

This item is not returnable
$3.99
In Stock
Lawn & Garden Equipment Washer 2263J
Lawn & garden equipment washer

Part #2263J

This item is not returnable
$3.99
In Stock
Lock Nut 73810500
#71

Transaxle diagram

Lock nut

Part #73810500

The manufacturer no longer makes this part, and there's no substitute part

Upper Housing 120458X
#1

Transaxle diagram

Upper housing

Part #120458X

Replaced by #582975601

?
Manufacturer substitution
This part replaces 120458X. Substitute parts can look different from the original.
$422.10
In Stock
Bolt 2274J
#2

Transaxle diagram

Bolt

Part #2274J

The manufacturer no longer makes this part, and there's no substitute part

Washer 105906X
#11I

Transaxle diagram

Washer

Part #105906X

Replaced by #583647201

?
Manufacturer substitution
This part replaces 105906X. Substitute parts can look different from the original.
This item is not returnable
$3.44
In Stock
Pinion 110078X
#16

Transaxle diagram

Pinion

Part #110078X

The manufacturer no longer makes this part, and there's no substitute part

Washer 120466X
#8D

Transaxle diagram

Washer

Part #120466X

The manufacturer no longer makes this part, and there's no substitute part

Seal 2272J
#52

Transaxle diagram

Seal

Part #2272J

The manufacturer no longer makes this part, and there's no substitute part

Gear 25t 108980X
#32

Transaxle diagram

Gear 25t

Part #108980X

The manufacturer no longer makes this part, and there's no substitute part
