Model # DSC-WX50/S Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-WX50-S digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |

Screw 442420101
#9

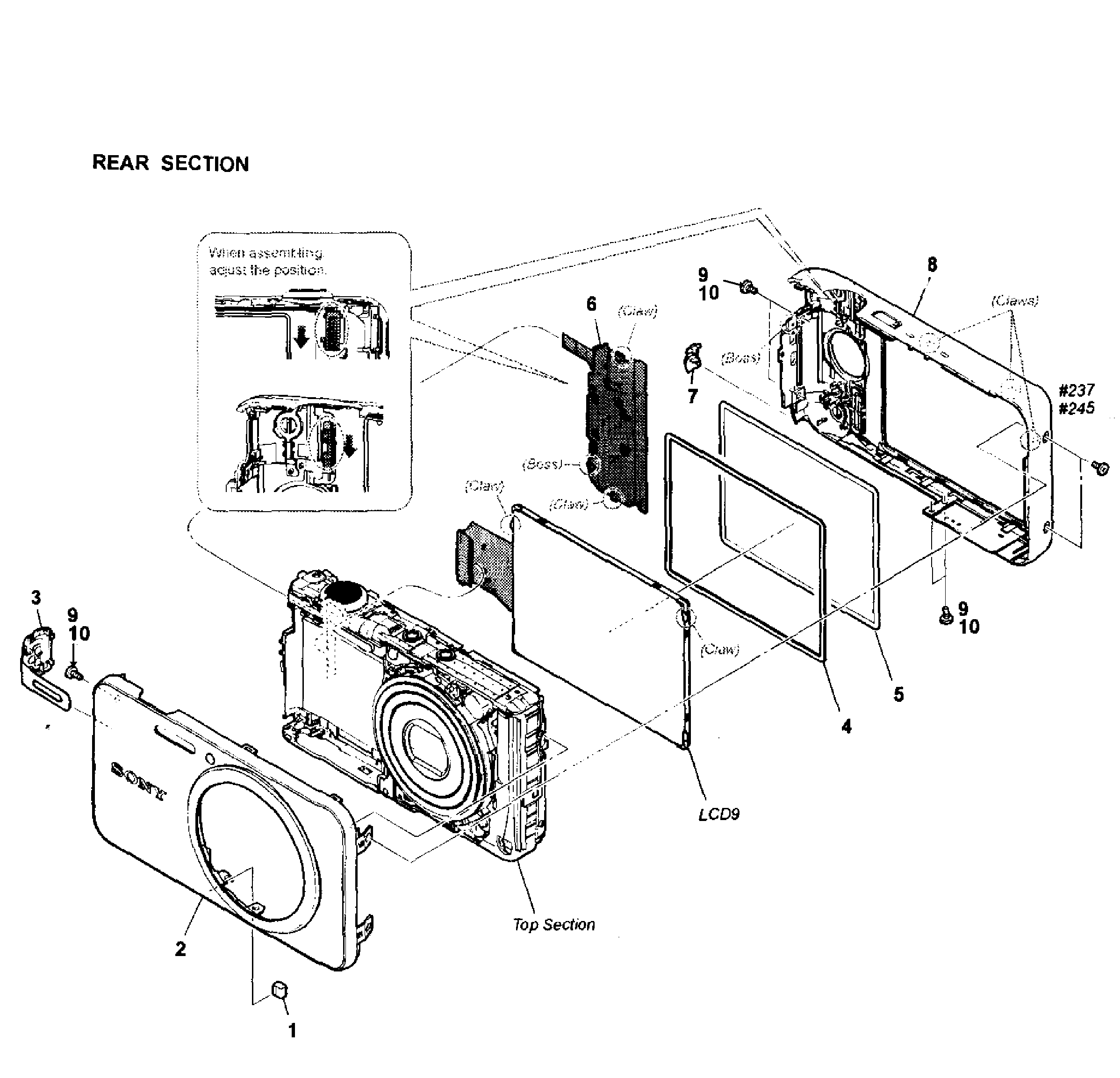

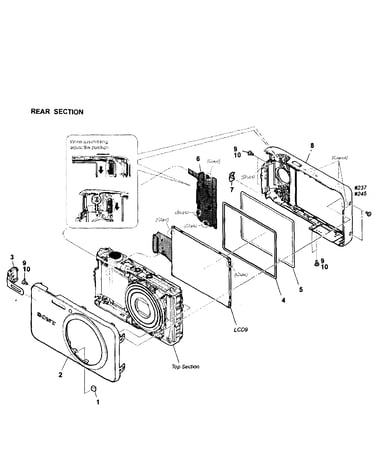

Rear section diagram

Screw

Part #442420101

This item is not returnable
In Stock
Tube A1799617A
#153

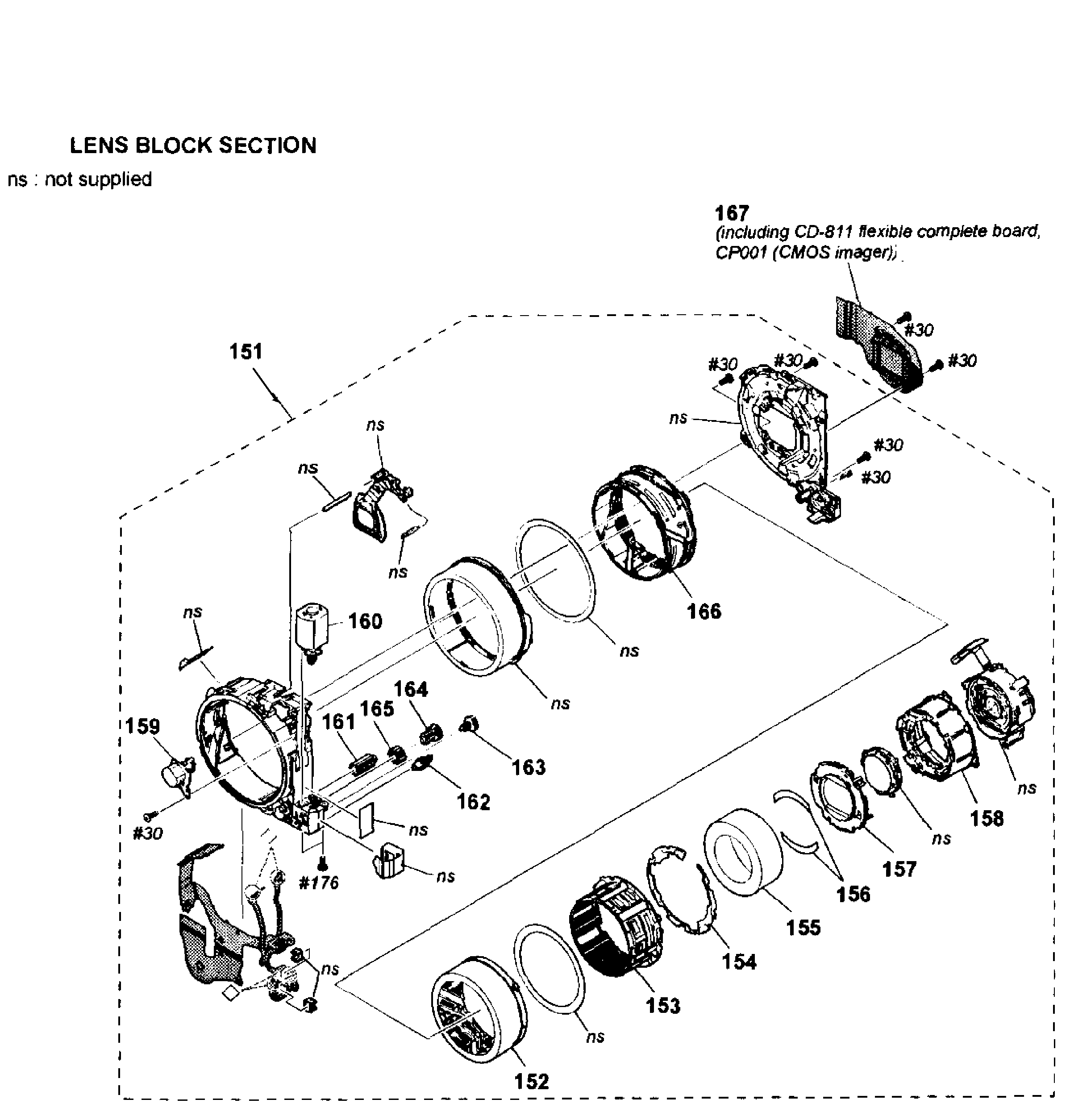

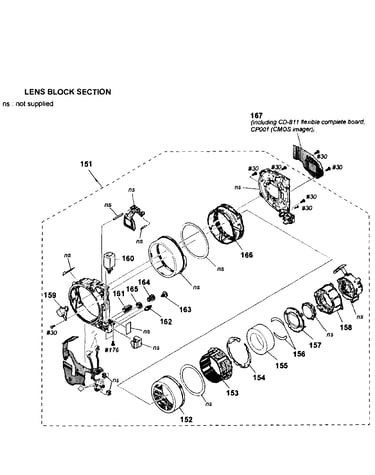

Lens block diagram

Tube

Part #A1799617A

This item is not returnable
In Stock
Plate (h) 441164501
#116

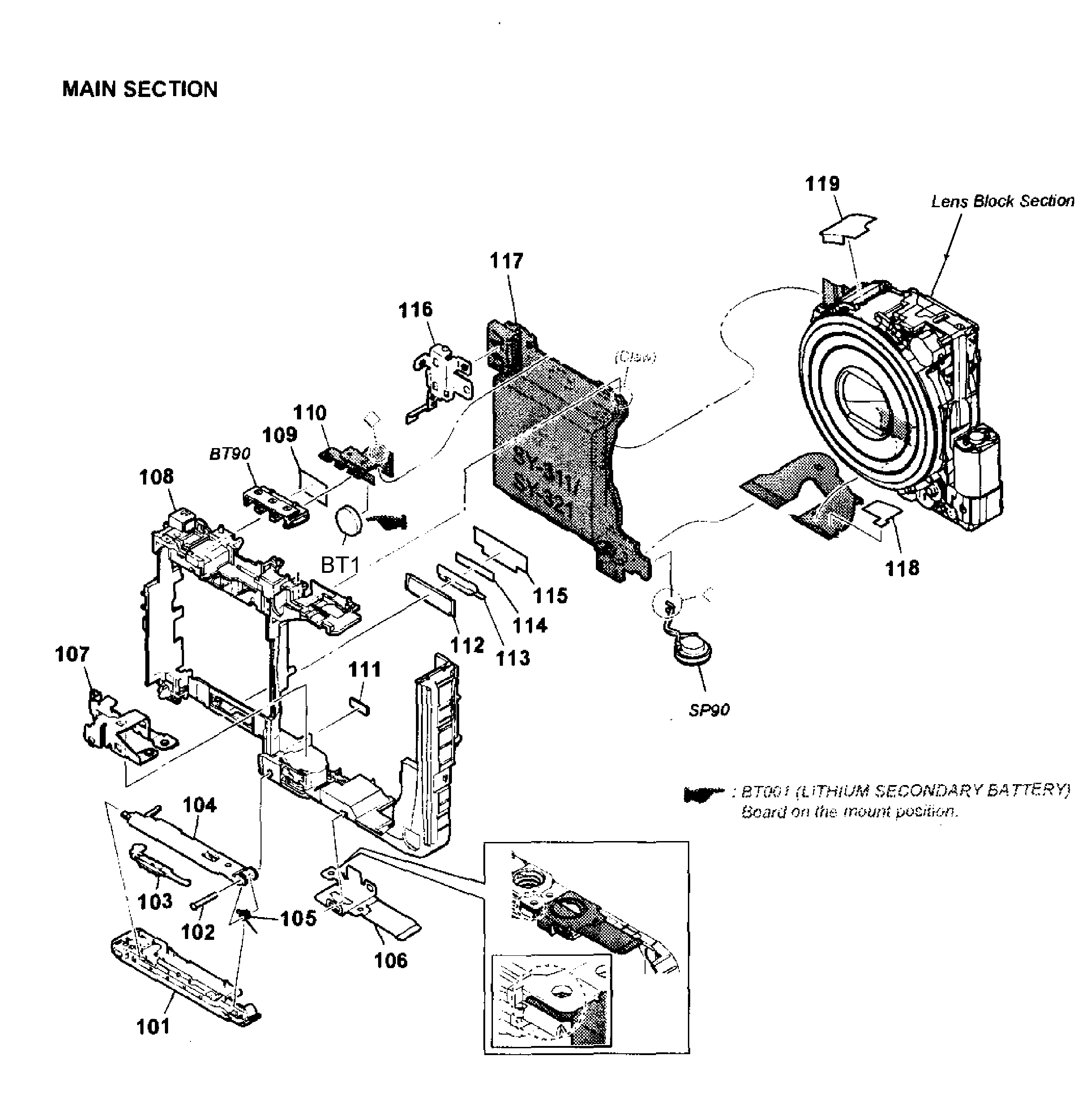

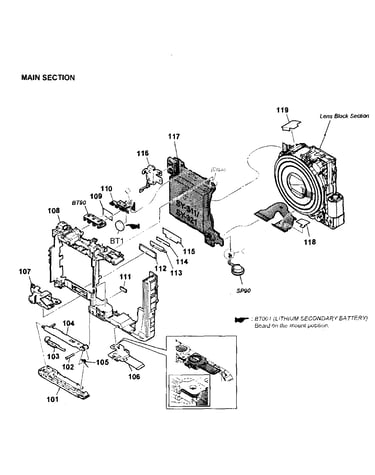

Main section diagram

Plate (h)

Part #441164501

This item is not returnable
In Stock
Step Motor 175799411
#159

Lens block diagram

Step motor

Part #175799411

In Stock
Sheet 427343701
#118

Main section diagram

Sheet

Part #427343701

In Stock
St269 Pcb A1854924A
#55

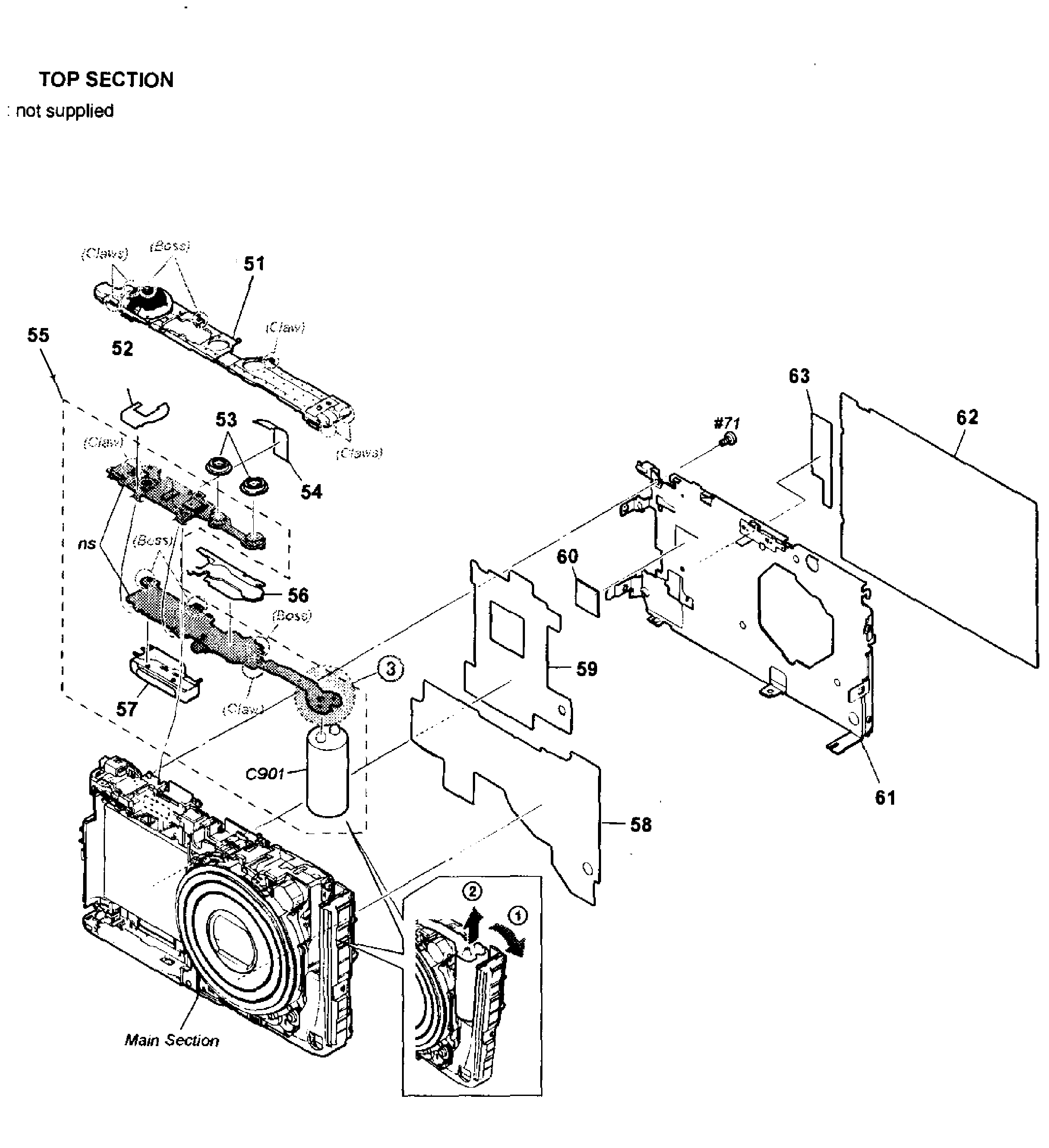

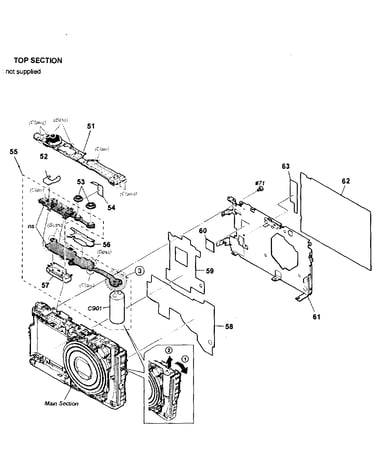

Top section diagram

St269 pcb

Part #A1854924A

In Stock
Lid Spring 426640501
#105

Main section diagram

Lid spring

Part #426640501

In Stock
Cushion (sy) 441165301
#60

Top section diagram

Cushion (sy)

Part #441165301

This item is not returnable
In Stock
Plate (sp) 441164601
#106

Main section diagram

Plate (sp)

Part #441164601

This item is not returnable
In Stock
Screw,red 320853701
#71

Top section diagram

Screw,red

Part #320853701

This item is not returnable
In Stock
