Model # 143296192 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143296192 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

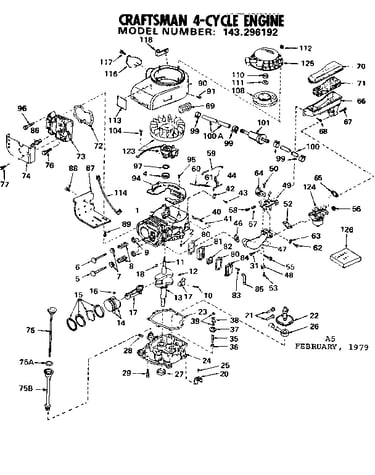

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 170 parts  |
Lawn & Garden Equipment Engine Fuel Line Clamp 26460
#99

Replacement parts diagram

Lawn & garden equipment engine fuel line clamp

Part #26460

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Starter Rope 30971
#9

Rewind starter diagram

Starter rope

Part #30971

Replaced by #590535

?
Manufacturer substitution
This part replaces 30971. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Gasket 27110
#21

Replacement parts diagram

Gasket

Part #27110

Replaced by #27110A

?
Manufacturer substitution
This part replaces 27110. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Float 632019
#14

Replacement parts diagram

Float

Part #632019

Replaced by #632019A

?
Manufacturer substitution
This part replaces 632019. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.89 |
10% OFF Phone Price : $9.89
In Stock
Lawn & Garden Equipment Engine Air Filter (replaces 28424l) 28424
#82

Replacement parts diagram

Lawn & garden equipment engine air filter (replaces 28424l)

Part #28424

BEST SELLER
This item is not returnable
$4.14 |
19% OFF Phone Price : $5.14
In Stock
Gasket 33861
#52

Replacement parts diagram

Gasket

Part #33861

Replaced by #33263

?
Manufacturer substitution
This part replaces 33861. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn & Garden Equipment Engine Carburetor Float Bowl (replaces 631025, 632808) 631867
#16

Replacement parts diagram

Lawn & garden equipment engine carburetor float bowl (replaces 631025, 632808)

Part #631867

This item is not returnable
$3.49 |
22% OFF Phone Price : $4.49
In Stock
Screw 30688
#89

Replacement parts diagram

Screw

Part #30688

Replaced by #30063

?
Manufacturer substitution
This part replaces 30688. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn & Garden Equipment Engine Screw 28942
#62

Replacement parts diagram

Lawn & garden equipment engine screw

Part #28942

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Fuel Fitting 631775
#26

Replacement parts diagram

Fuel fitting

Part #631775

Replaced by #632527

?
Manufacturer substitution
This part replaces 631775. Substitute parts can look different from the original.
This item is not returnable
$9.59 |
9% OFF Phone Price : $10.59
In Stock
