Model # 93420511 Official Craftsman mig welder

Here are the diagrams and repair parts for Official Craftsman 93420511 mig welder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

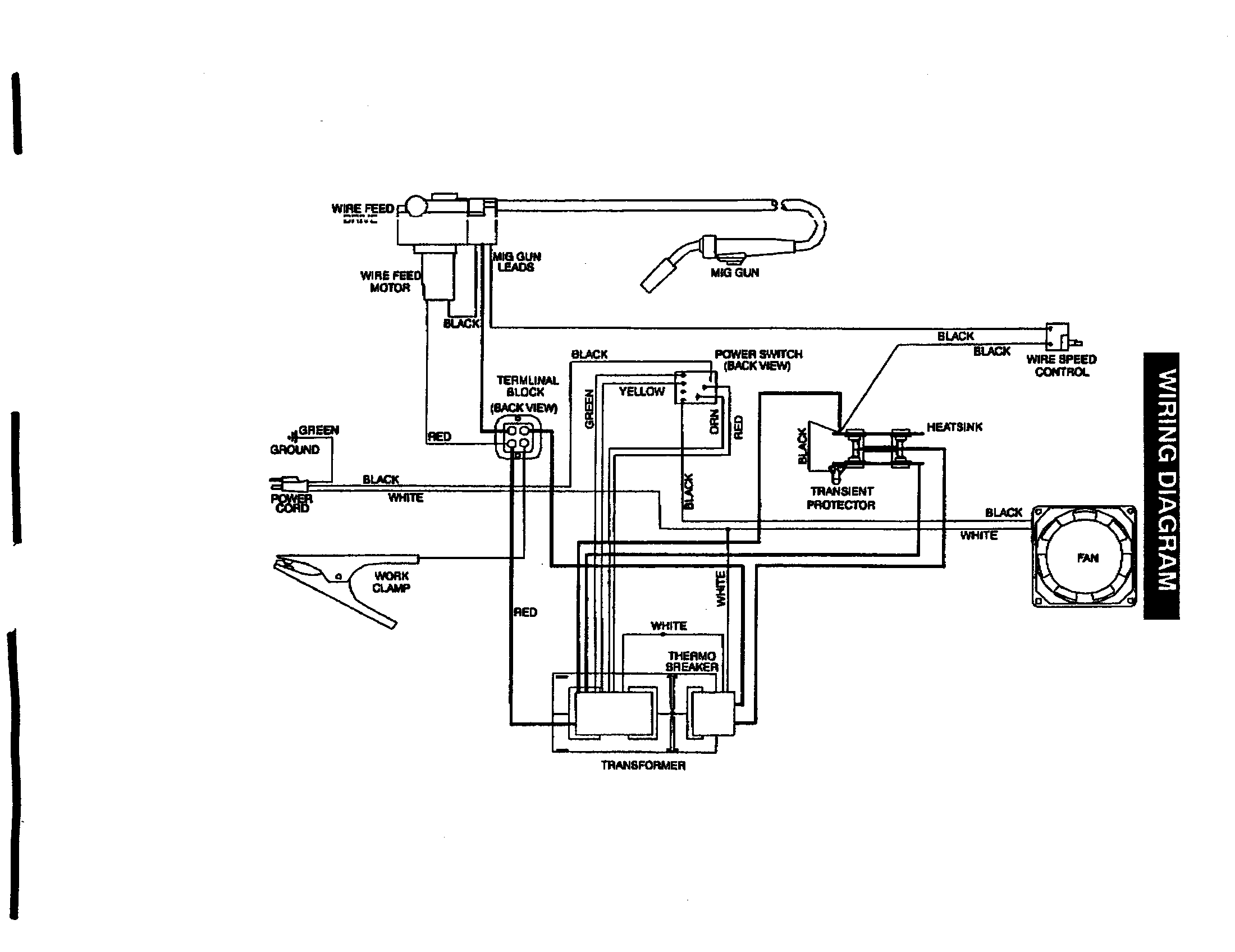

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 44 parts |

#26

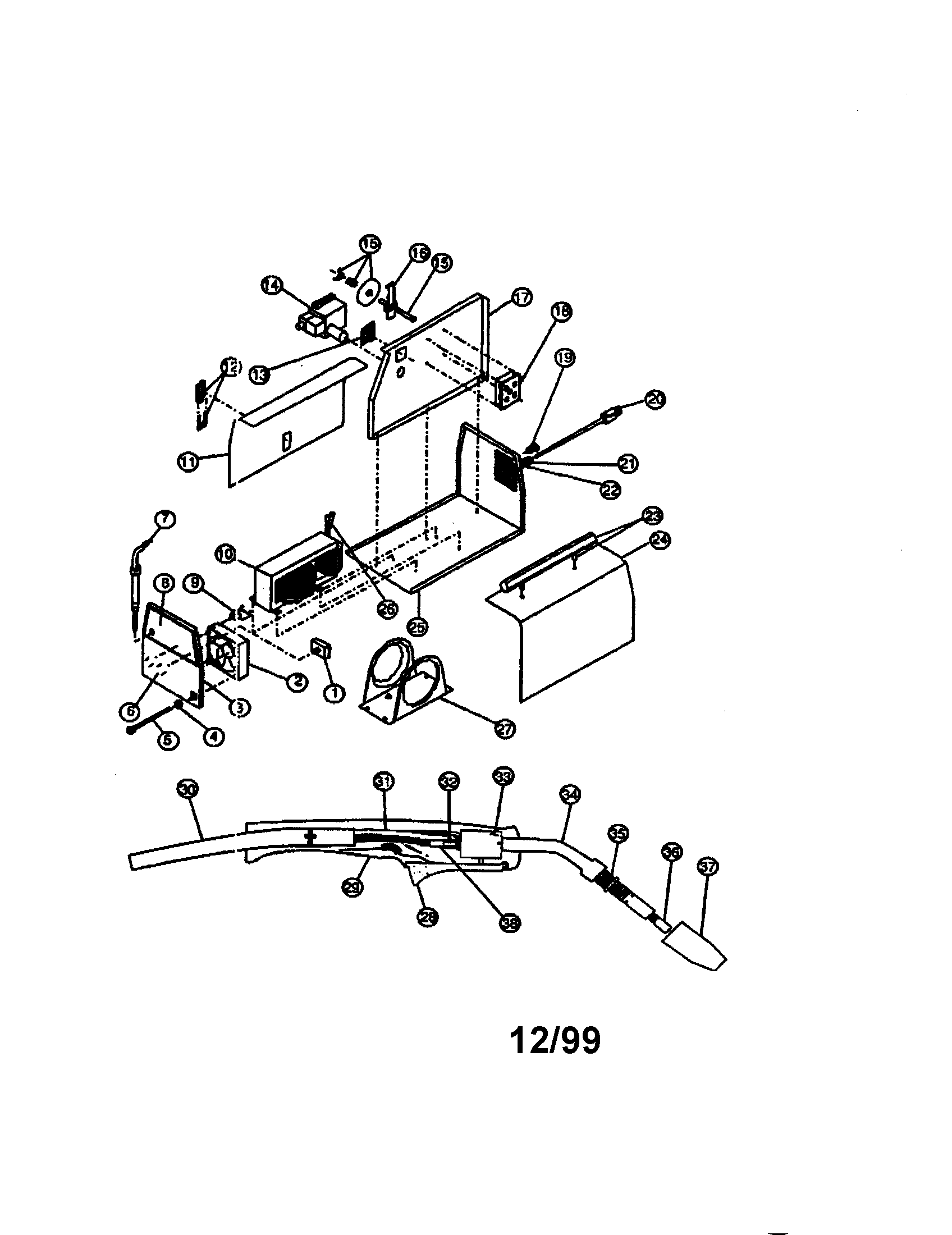

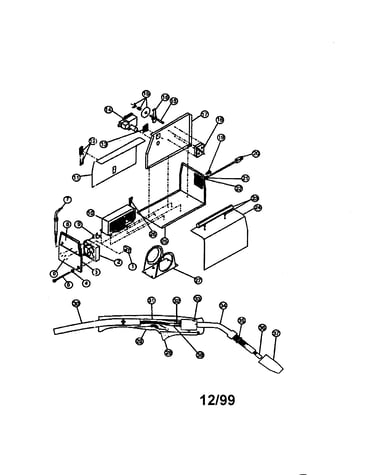

Welder diagram

Breaker

Part #880-415-666

The manufacturer no longer makes this part, and there's no substitute part

Welder diagram

Control panel

Part #410-868-XXX

The manufacturer no longer makes this part, and there's no substitute part

#28

Welder diagram

Handle

Part #334-440-666

The manufacturer no longer makes this part, and there's no substitute part

#34

Welder diagram

Tube,condctr

Part #334-462-000

The manufacturer no longer makes this part, and there's no substitute part

#21

Welder diagram

Bushing

Part #512-215-666

The manufacturer no longer makes this part, and there's no substitute part

#37

Welder diagram

Nozzle

Part #4348

The manufacturer no longer makes this part, and there's no substitute part

#14

Welder diagram

Motor

Part #880-406-666

The manufacturer no longer makes this part, and there's no substitute part

#16

Welder diagram

Welder wire spindle

Part #312-076-666

The manufacturer no longer makes this part, and there's no substitute part

#32

Welder diagram

Connect

Part #334-467-000

The manufacturer no longer makes this part, and there's no substitute part

#25

Welder diagram

Base

Part #410-866-101

The manufacturer no longer makes this part, and there's no substitute part
