Model # 1990.001 Official Amana microwave/range

Here are the diagrams and repair parts for Official Amana 1990001 microwave/range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

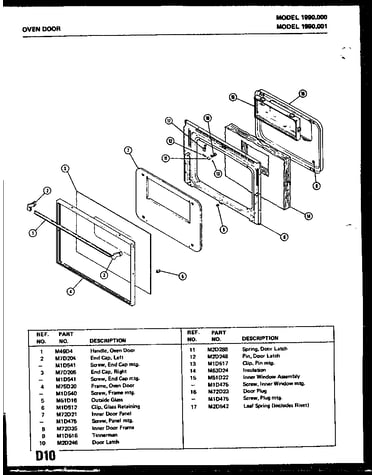

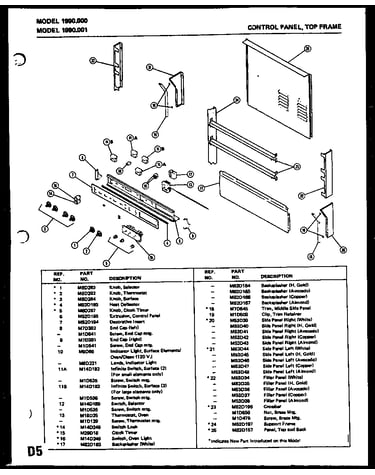

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 337 parts  |
Air Duct Mtg. M65D247
#29A

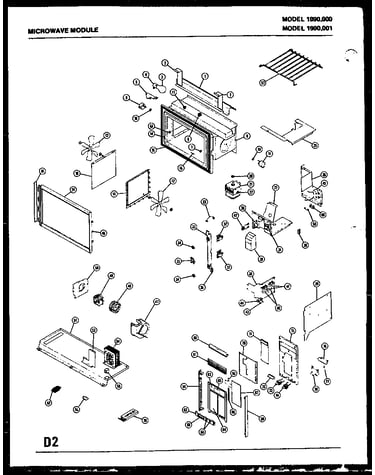

Microwave module diagram

Air duct mtg.

Part #M65D247

The manufacturer no longer makes this part, and there's no substitute part

Air Duct, Top M65D245
#25A

Microwave module diagram

Air duct, top

Part #M65D245

The manufacturer no longer makes this part, and there's no substitute part

Gasket, R.f. (stirrer Motor) M2D492
#10

Microwave module diagram

Gasket, r.f. (stirrer motor)

Part #M2D492

The manufacturer no longer makes this part, and there's no substitute part

Linkage, Lock M20D133
#13

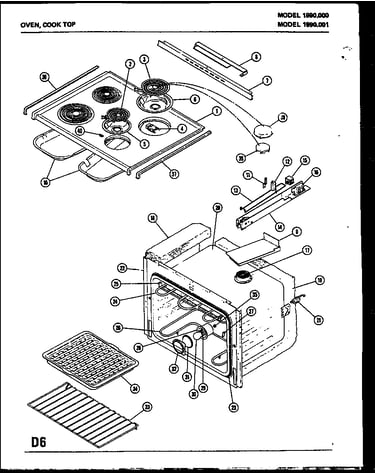

Oven diagram

Linkage, lock

Part #M20D133

The manufacturer no longer makes this part, and there's no substitute part

Frame, Oven Light M7D379
#32A

Oven diagram

Frame, oven light

Part #M7D379

The manufacturer no longer makes this part, and there's no substitute part

Solenoid Assembly M16D65
#15A

Oven diagram

Solenoid assembly

Part #M16D65

The manufacturer no longer makes this part, and there's no substitute part

Screw, Block Mtg M1D527
#16B

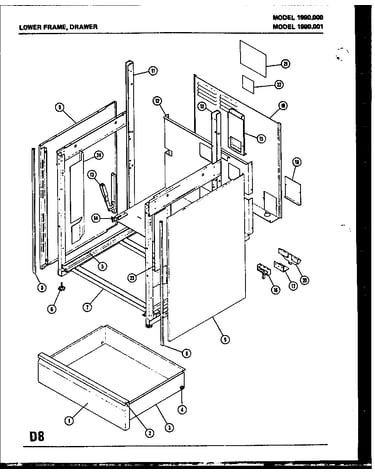

Lower frame diagram

Screw, block mtg

Part #M1D527

The manufacturer no longer makes this part, and there's no substitute part

Reservoir M44D16
#10A

Oven diagram

Reservoir

Part #M44D16

The manufacturer no longer makes this part, and there's no substitute part

Vent, Horizontal M65D188
#9A

Oven diagram

Vent, horizontal

Part #M65D188

The manufacturer no longer makes this part, and there's no substitute part

Filter M48D16
#26A

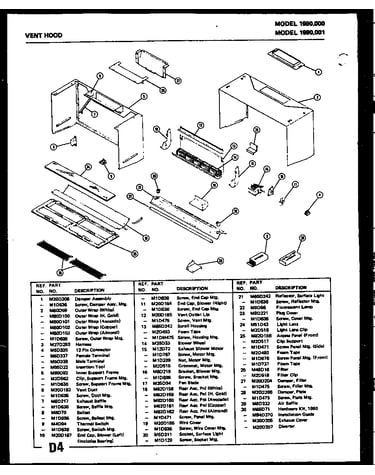

Vent hood diagram

Filter

Part #M48D16

The manufacturer no longer makes this part, and there's no substitute part
