Countertop Microwave

Model # 5658738310 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 5658738310 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

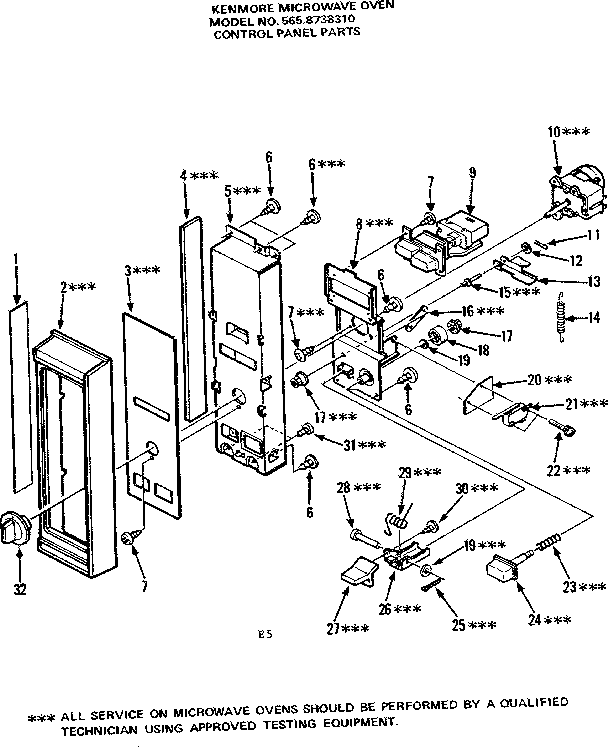

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 125 parts  |
Magnetron 11327
#5

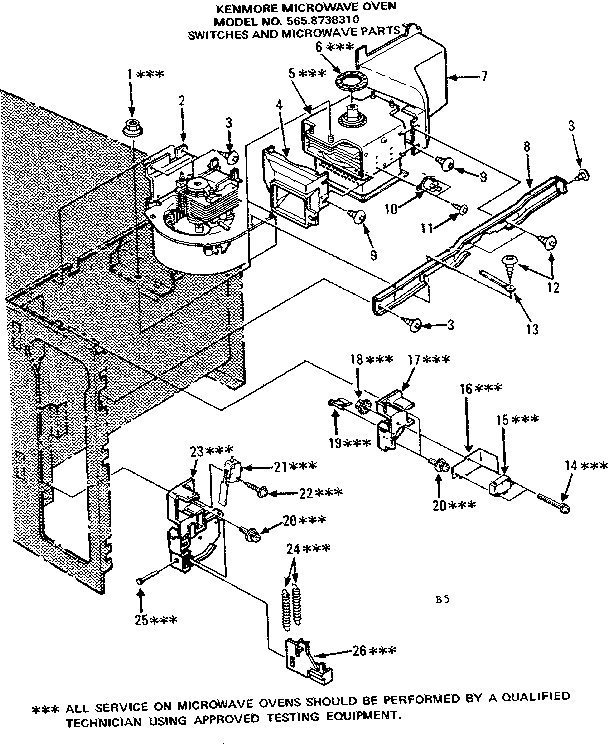

Switches and microwave parts diagram

Magnetron

Part #11327

The manufacturer no longer makes this part, and there's no substitute part

Microwave Door Latch Lever 11090
#19

Switches and microwave parts diagram

Microwave door latch lever

Part #11090

The manufacturer no longer makes this part, and there's no substitute part

Microwave Fuse, 15-amp 11255
#18

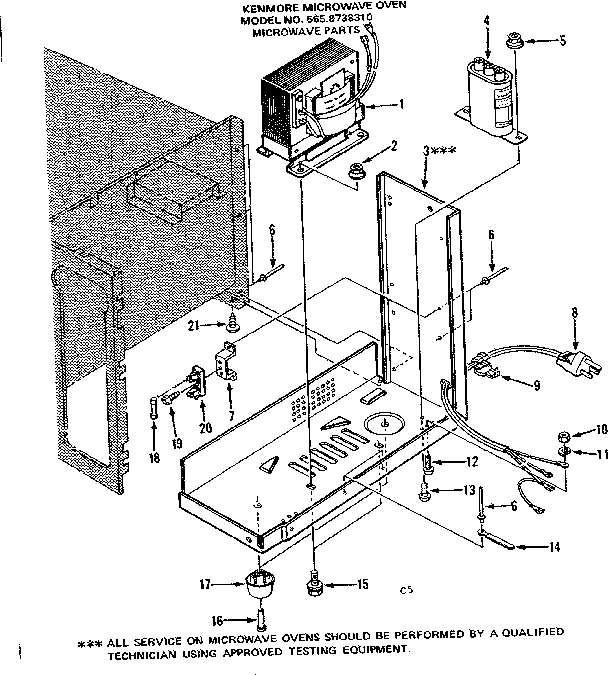

Microwave parts diagram

Microwave fuse, 15-amp

Part #11255

The manufacturer no longer makes this part, and there's no substitute part

Micro-switch 11243
#15

Switches and microwave parts diagram

Micro-switch

Part #11243

The manufacturer no longer makes this part, and there's no substitute part

Screw 10305
#11

Switches and microwave parts diagram

Screw

Part #10305

The manufacturer no longer makes this part, and there's no substitute part

Fuse Holder 11256
#20

Microwave parts diagram

Fuse holder

Part #11256

The manufacturer no longer makes this part, and there's no substitute part

Duct 10541
#4

Switches and microwave parts diagram

Duct

Part #10541

The manufacturer no longer makes this part, and there's no substitute part

Lever 12285
#26

Switches and microwave parts diagram

Lever

Part #12285

The manufacturer no longer makes this part, and there's no substitute part

Stirrer Fan 11409
#18

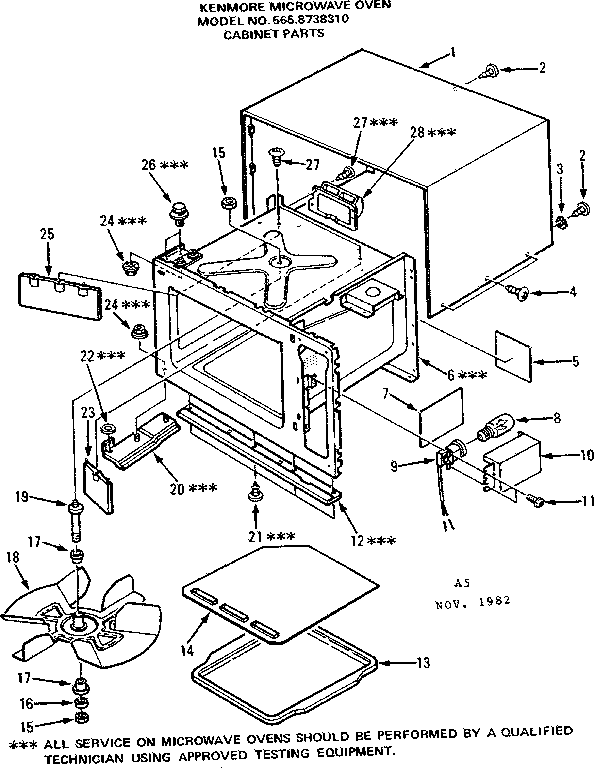

Cabinet parts diagram

Stirrer fan

Part #11409

The manufacturer no longer makes this part, and there's no substitute part

Perforated Screen 11638
#11

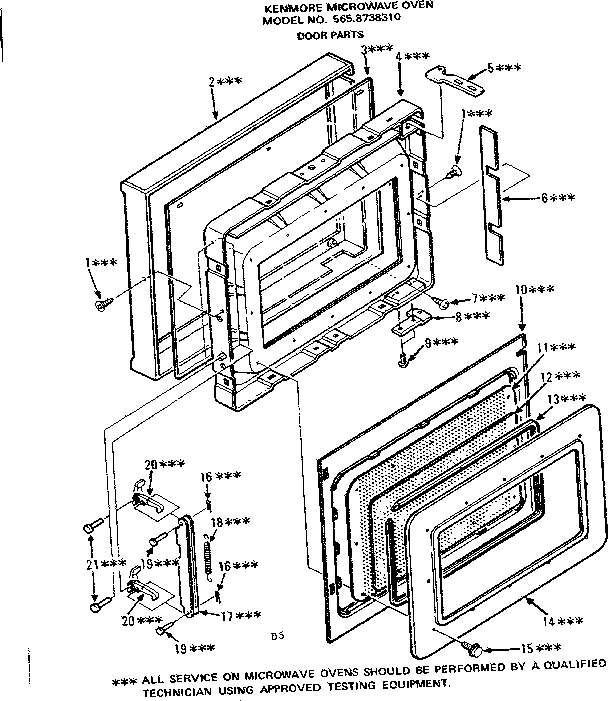

Door parts diagram

Perforated screen

Part #11638

The manufacturer no longer makes this part, and there's no substitute part
