Model # 113206890 Official Craftsman 6-1/8" jointer/planer

Here are the diagrams and repair parts for Official Craftsman 113206890 6-1/8" jointer/planer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

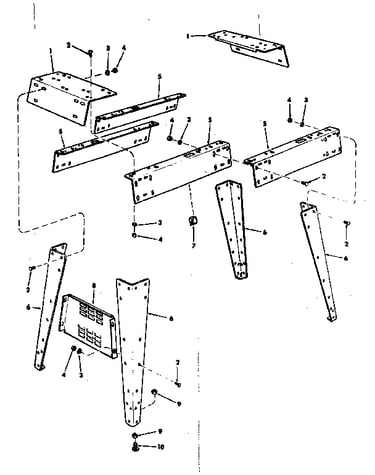

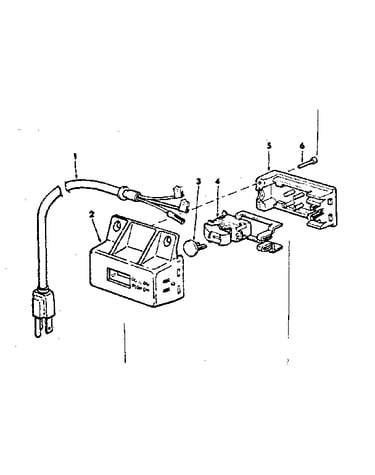

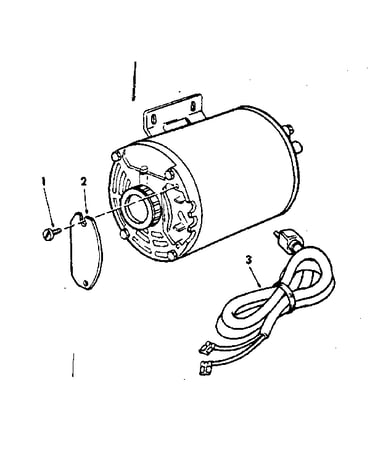

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 115 parts  |
Cotter Pin STD561210
#1

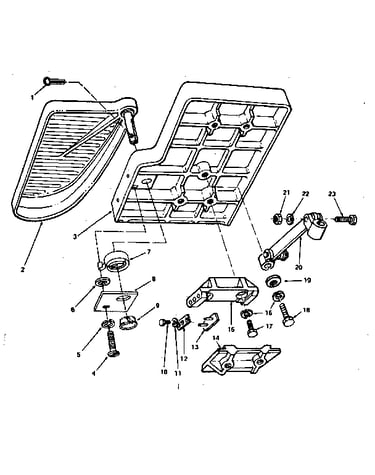

Infeed table diagram

Cotter pin

Part #STD561210

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer, 5/16-in, 8-pack STD551131
Lock washer, 5/16-in, 8-pack

Part #STD551131

The manufacturer no longer makes this part, and there's no substitute part

Jointer/planer Spacer 47624
#16

Fence assembly diagram

Jointer/planer spacer

Part #47624

The manufacturer no longer makes this part, and there's no substitute part

Set Screw 102832
#34

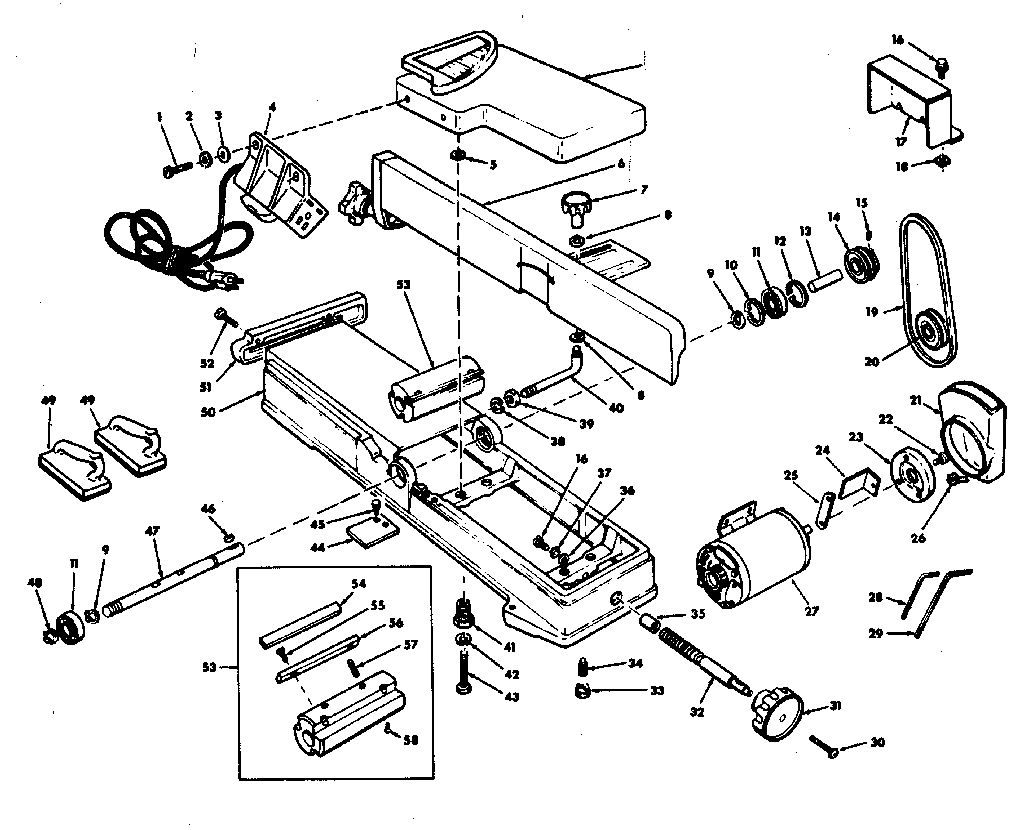

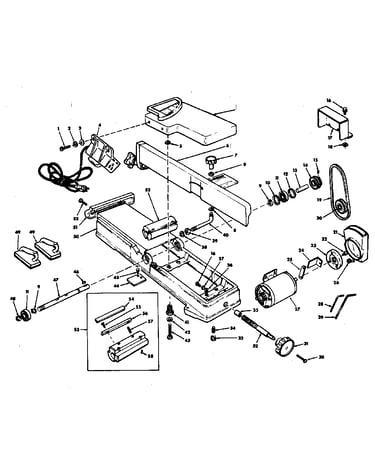

Bed assembly diagram

Set screw

Part #102832

The manufacturer no longer makes this part, and there's no substitute part

Jointer/planer Screw 60116
#55

Bed assembly diagram

Jointer/planer screw

Part #60116

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Screw 60118
#58

Bed assembly diagram

Power tool screw

Part #60118

The manufacturer no longer makes this part, and there's no substitute part

Jointer/planer Retainer Clip 18441
#10

Bed assembly diagram

Jointer/planer retainer clip

Part #18441

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Motor Mounting Bracket 69184
#24

Bed assembly diagram

Power tool motor mounting bracket

Part #69184

The manufacturer no longer makes this part, and there's no substitute part

Planer Knob 67020
#7

Bed assembly diagram

Planer knob

Part #67020

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Bearing 3509
#11

Bed assembly diagram

Power tool bearing

Part #3509

The manufacturer no longer makes this part, and there's no substitute part
