Model # 87153850 Official Sears electric cartridge typewriter

Here are the diagrams and repair parts for Official Sears 87153850 electric cartridge typewriter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

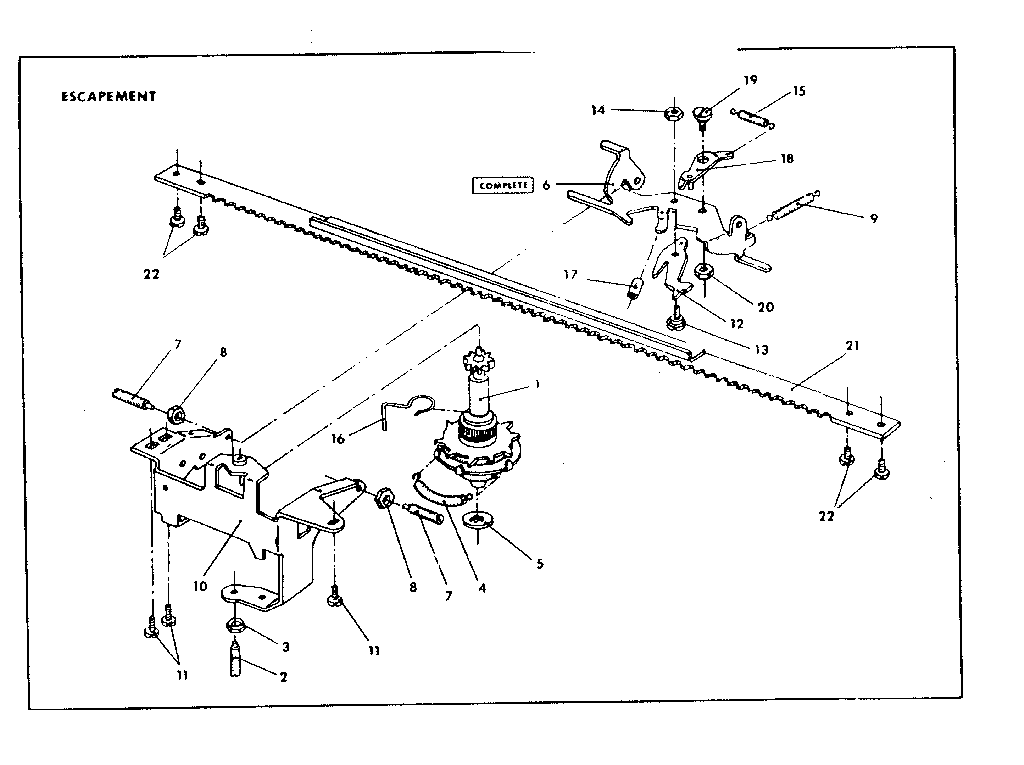

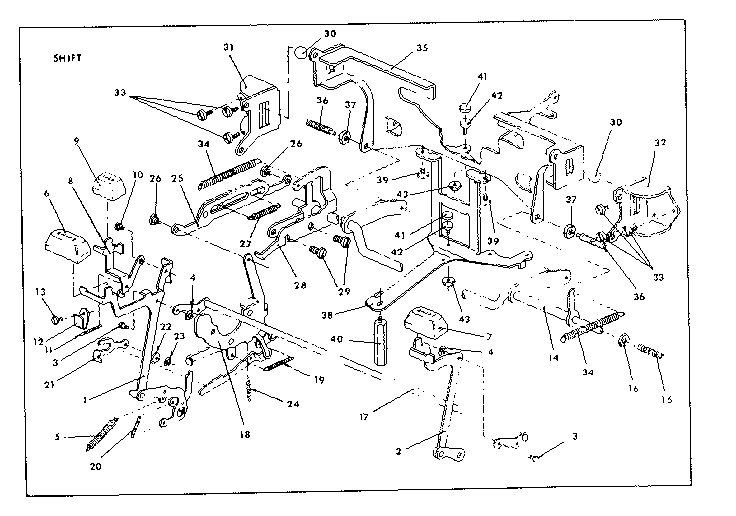

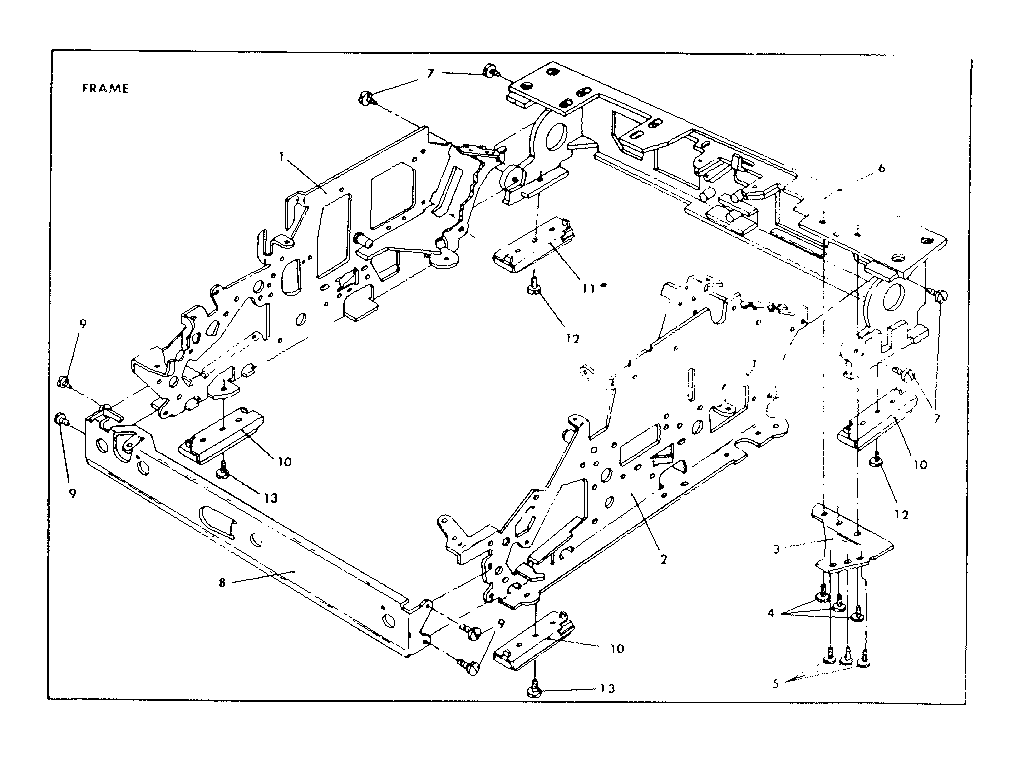

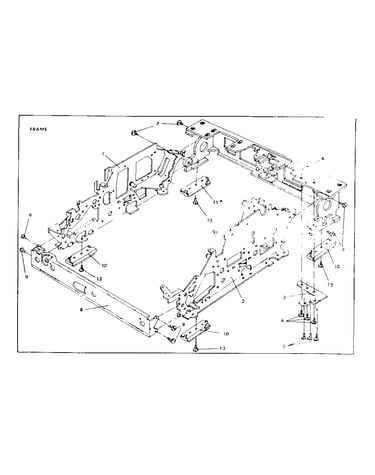

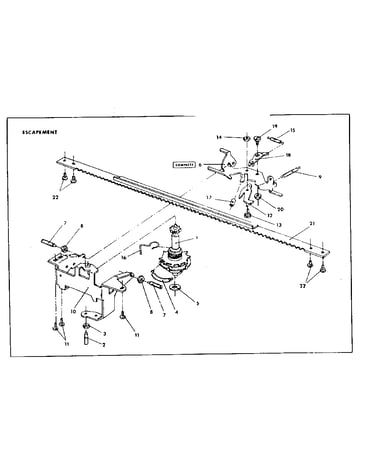

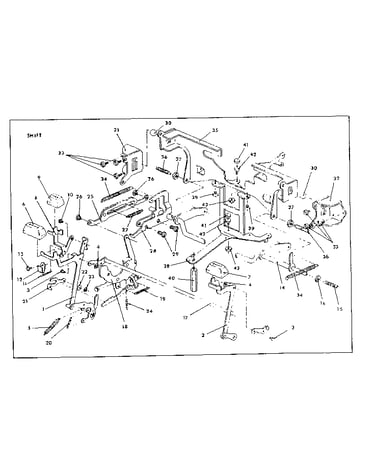

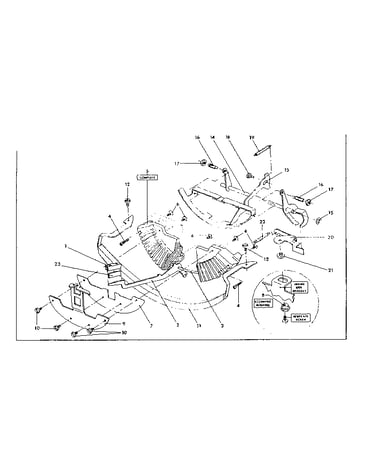

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 321 parts  |

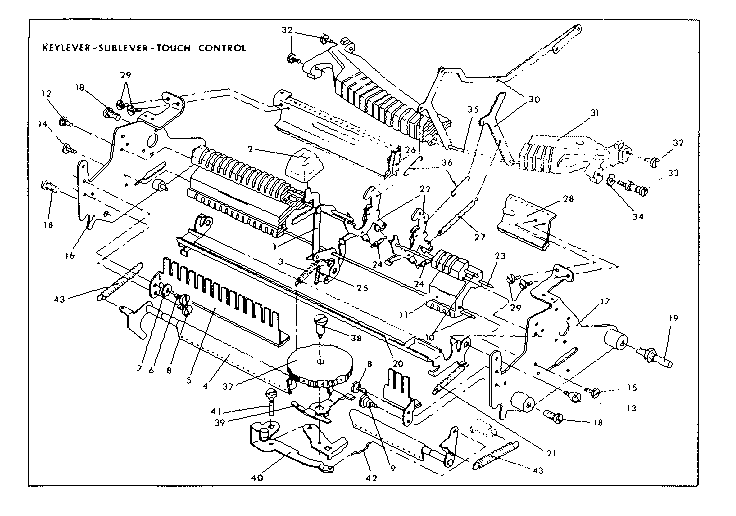

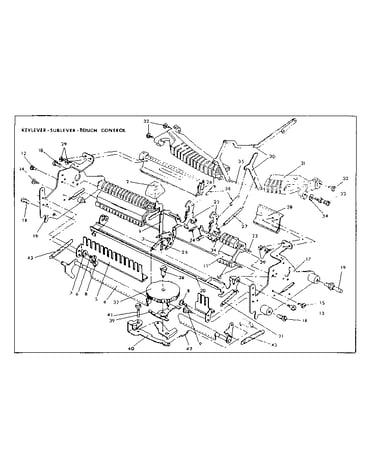

Keylever Ay 525522
Keylever ay

Part #525522

The manufacturer no longer makes this part, and there's no substitute part

Platfrm Ay 580585
#1

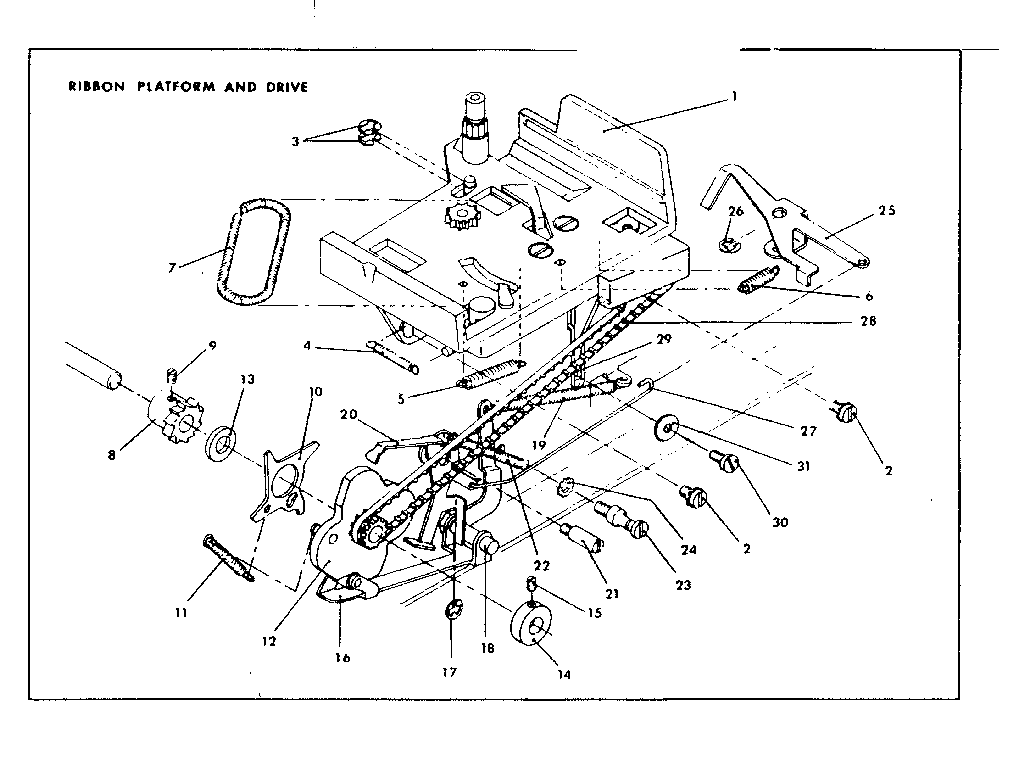

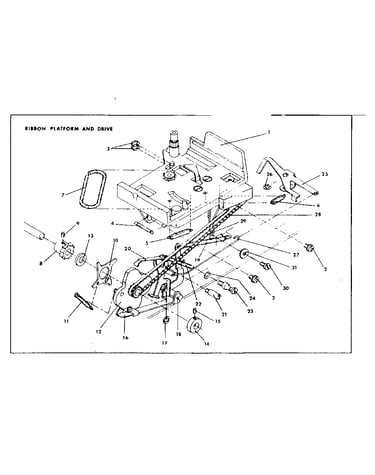

Ribbon platform and drive diagram

Platfrm ay

Part #580585

The manufacturer no longer makes this part, and there's no substitute part

Type, 66dc 804362
#37

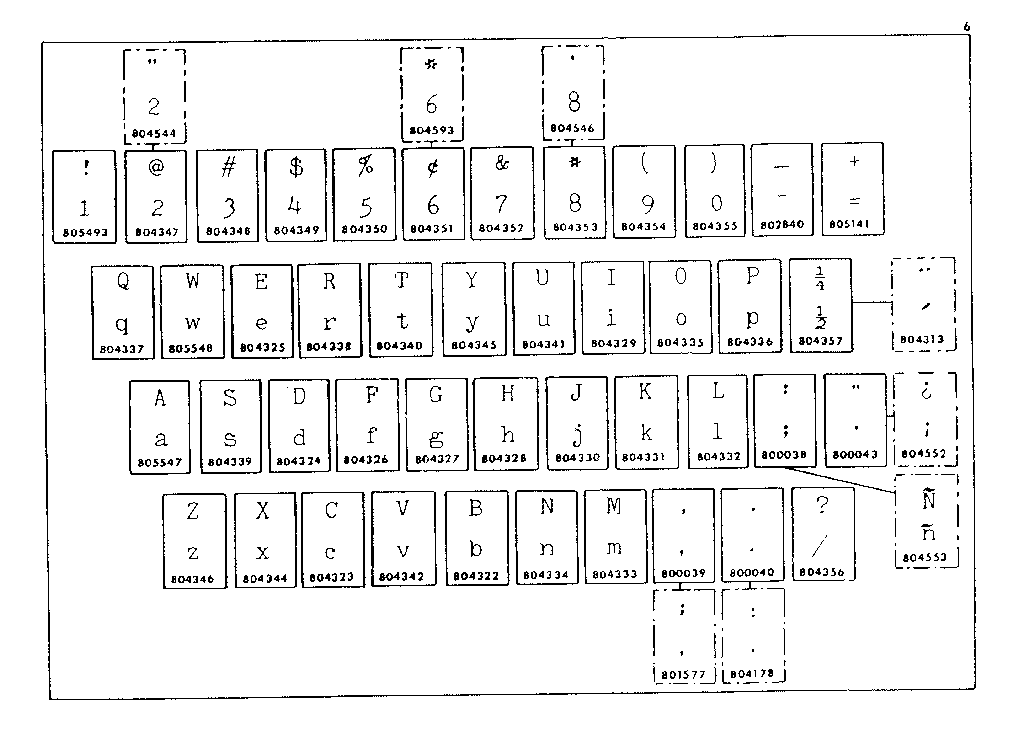

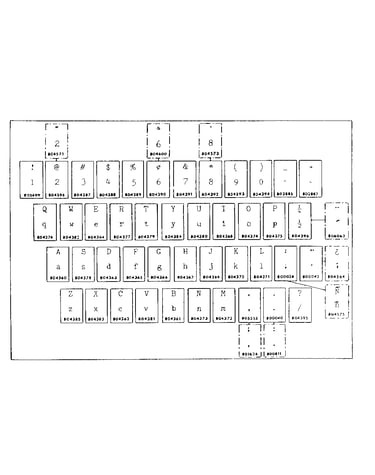

Elite #66 type chart diagram

Type, 66dc

Part #804362

The manufacturer no longer makes this part, and there's no substitute part

Sublever Ay 525534
Sublever ay

Part #525534

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 467870
Lock washer

Part #467870

The manufacturer no longer makes this part, and there's no substitute part

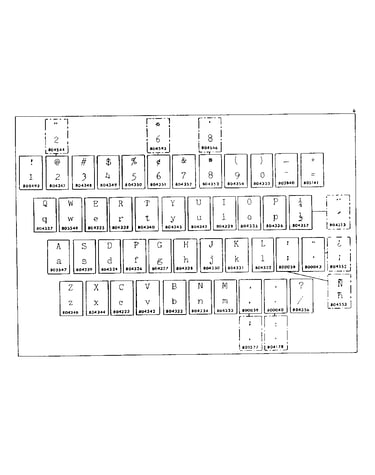

Type Face 800040
Type face

Part #800040

The manufacturer no longer makes this part, and there's no substitute part

Label 525368
#22

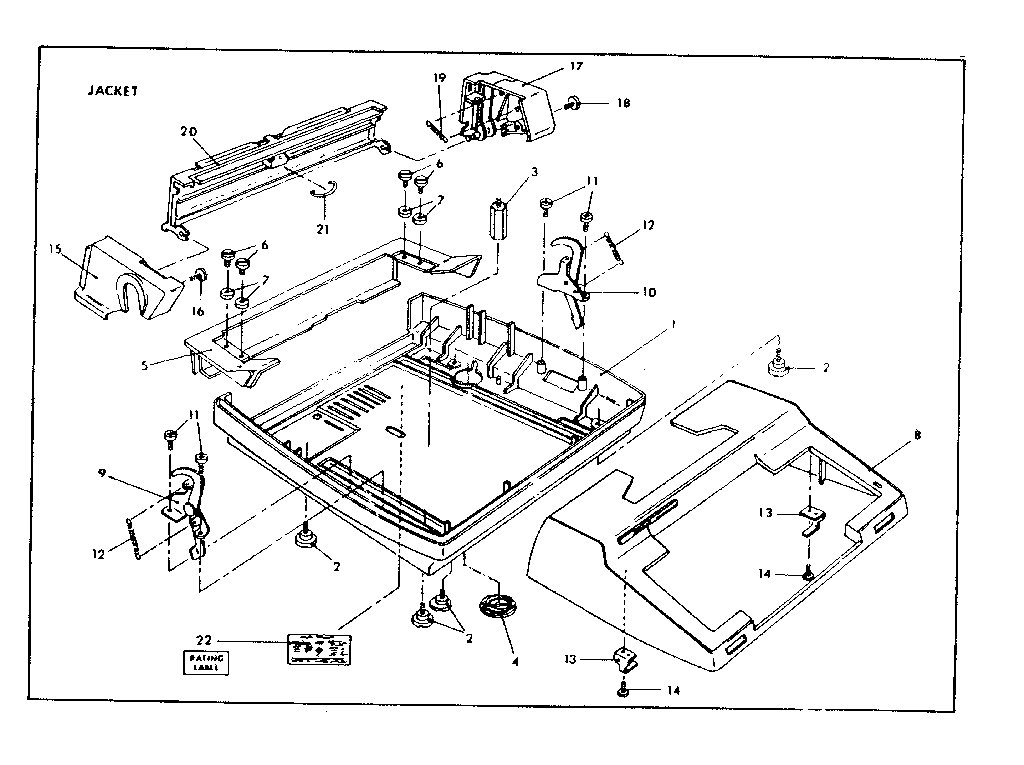

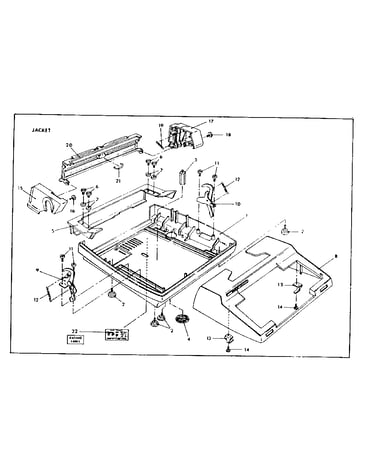

Jacket diagram

Label

Part #525368

The manufacturer no longer makes this part, and there's no substitute part

Sublever Ay 524946
#37D

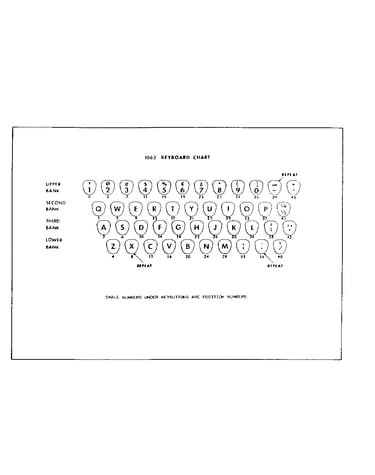

1063 keyboard (key action) chart diagram

Sublever ay

Part #524946

The manufacturer no longer makes this part, and there's no substitute part

Nut 440990
#12

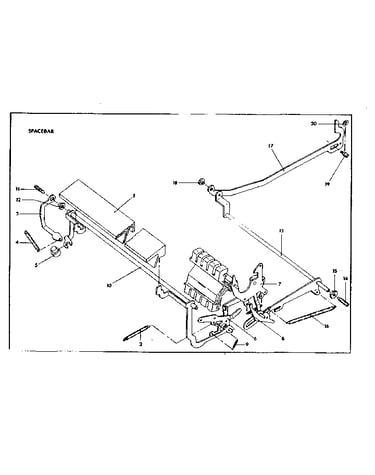

Spacebar diagram

Nut

Part #440990

The manufacturer no longer makes this part, and there's no substitute part

Sublever Ay 525829
#2D

1063 keyboard (key action) chart diagram

Sublever ay

Part #525829

The manufacturer no longer makes this part, and there's no substitute part
