KitchenAid
Countertop Microwave

Model #CM02743BL1 Official KitchenAid microwave

Here are the diagrams and repair parts for KitchenAid CM02743BL1 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

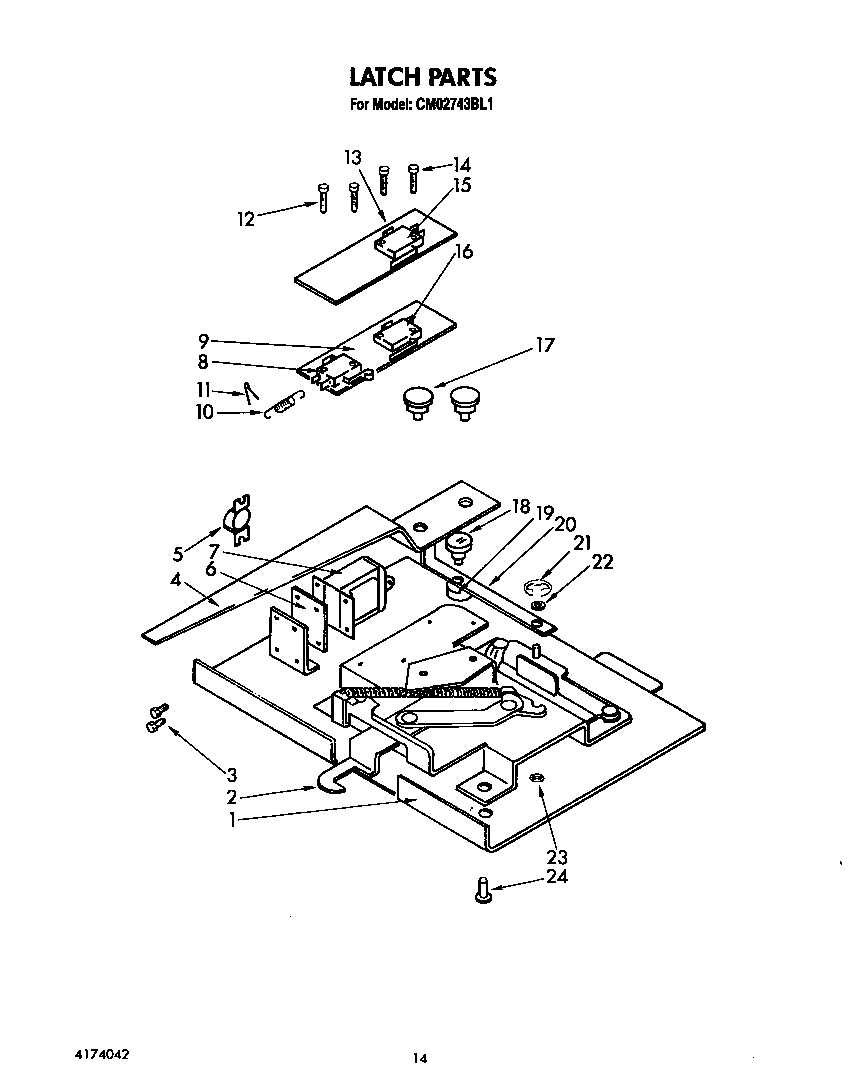

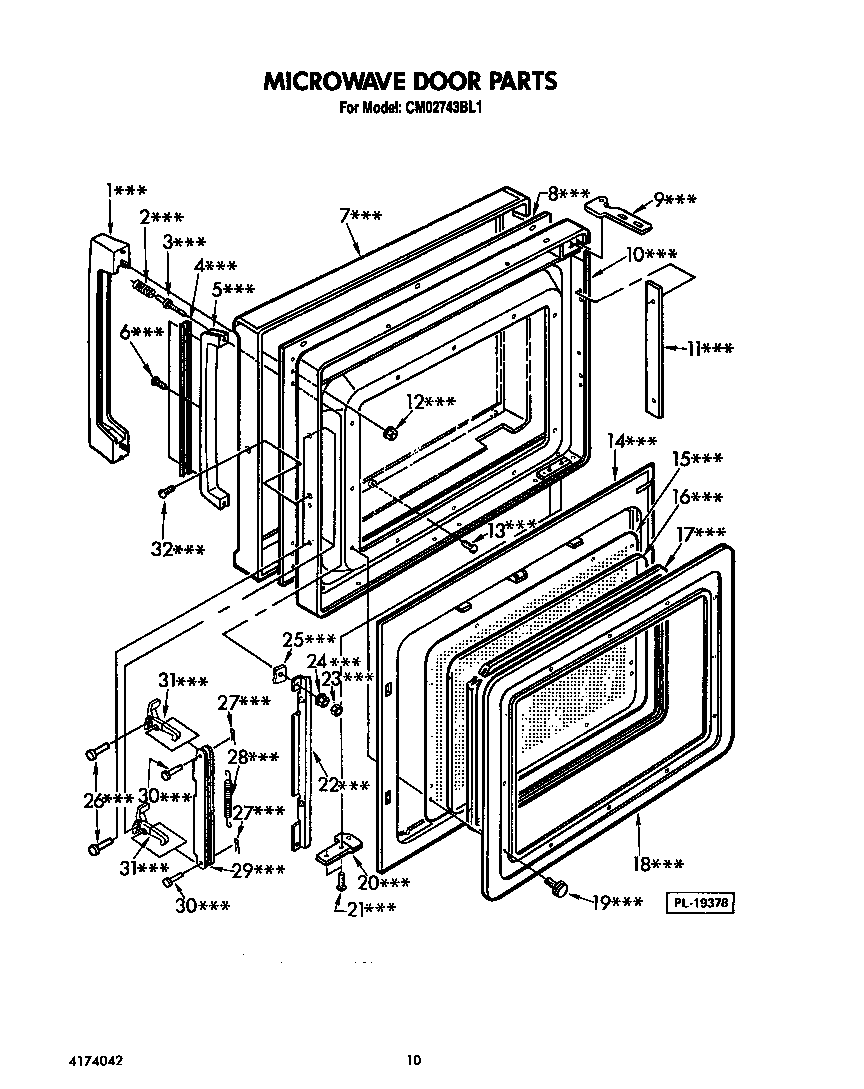

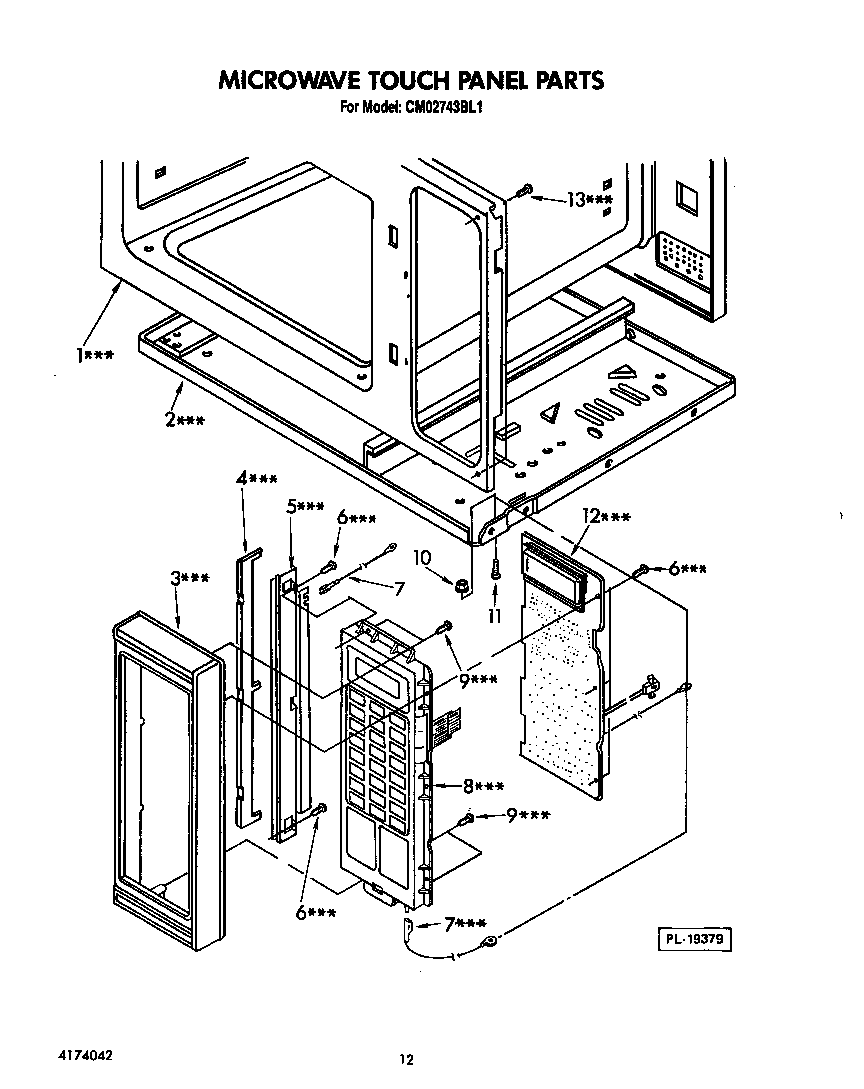

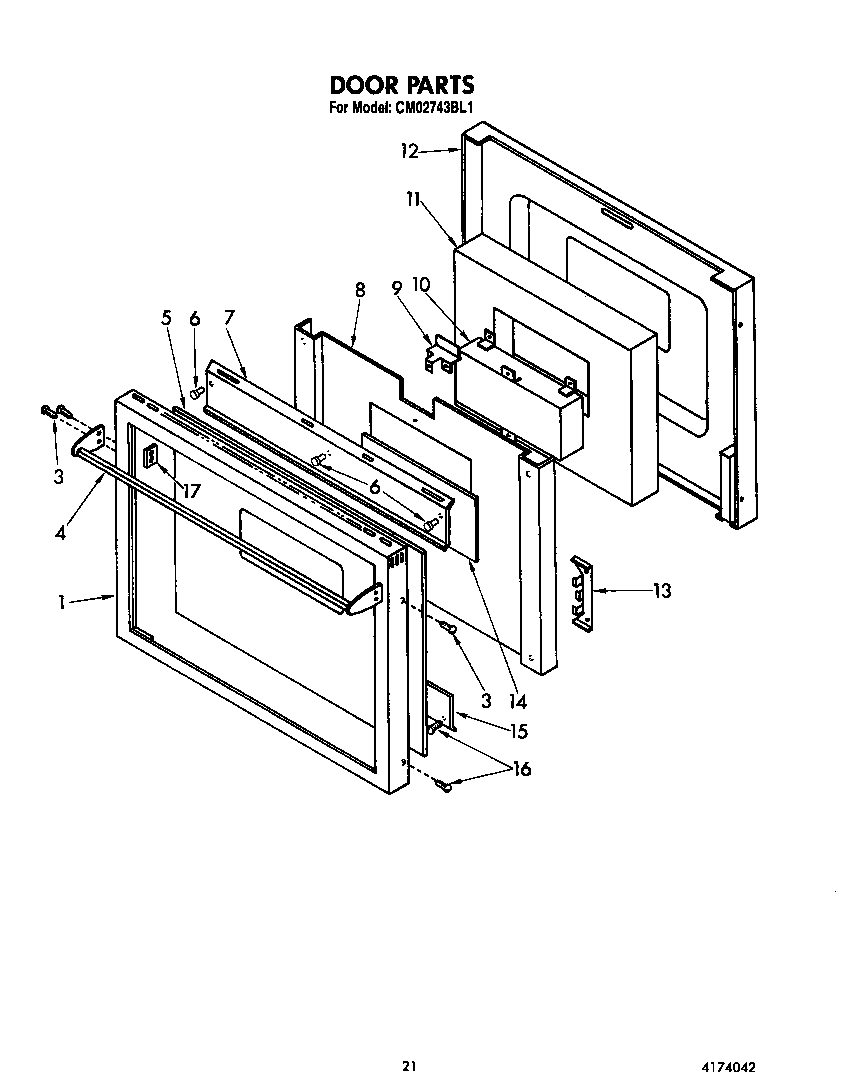

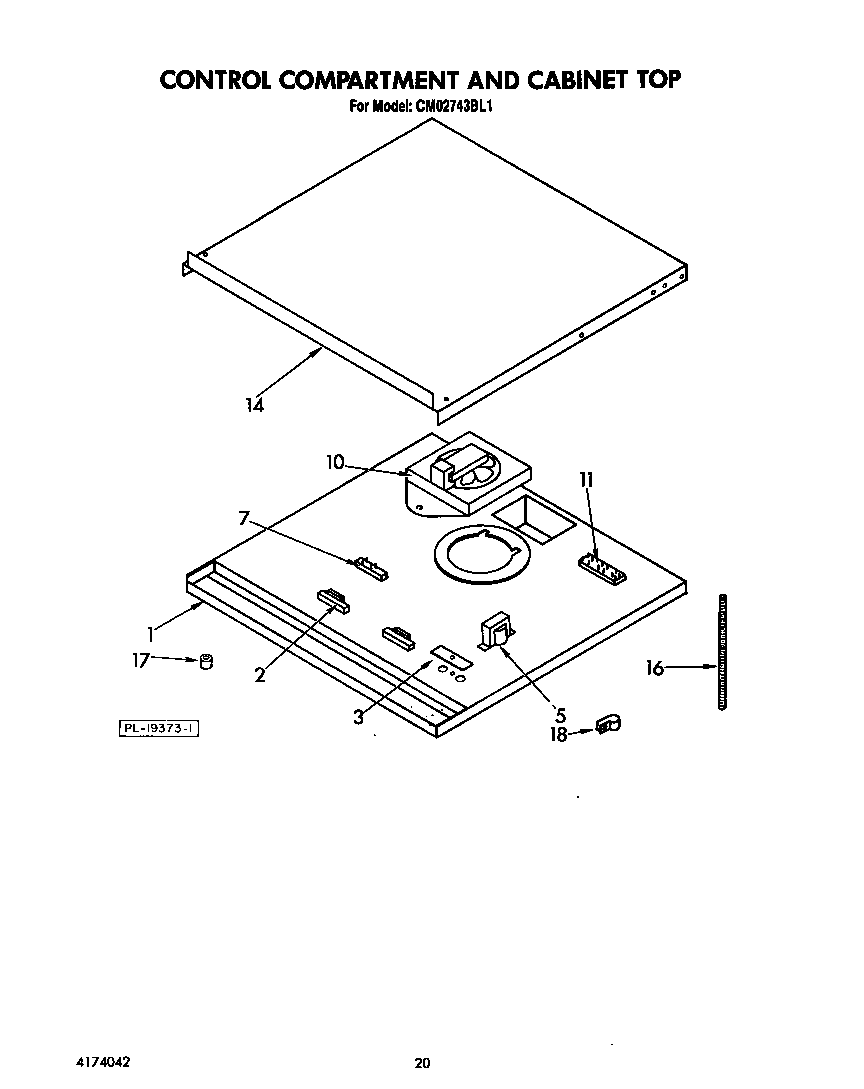

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 289 parts

Appliance Light Bulb, 40-watt (replaces 40A15-2PK, 60A, 60A15RVL, STD398091, WR02X12328, WX12X1510)#47

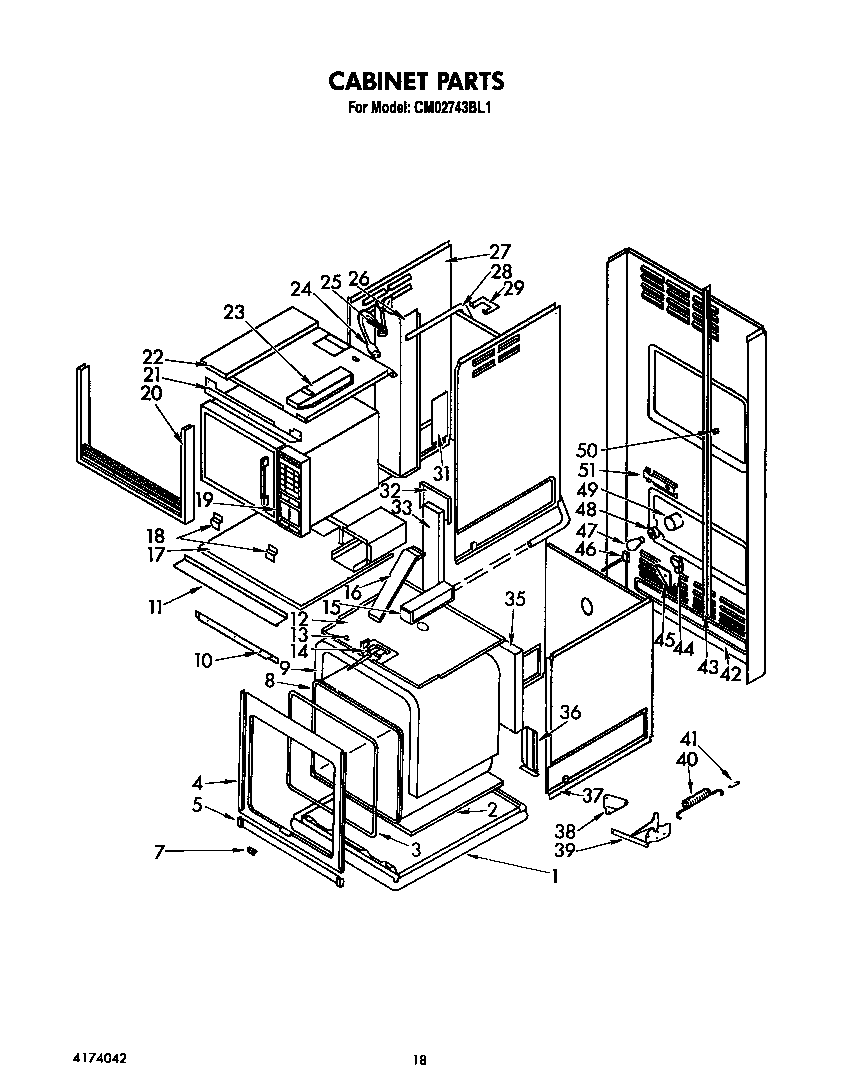

Cabinet Diagram

Light bulb

Part #4173062
Replaced by #40A15
?
Manufacturer substitution
This part replaces 4173062. Substitute parts can look different from the original.
BEST SELLER
In Stock
$7.52 |
12% OFF
Phone Price: $8.52
Microwave Surface Light Bulb, 40-watt (replaces 8183993, 8206232, 8206443)#32

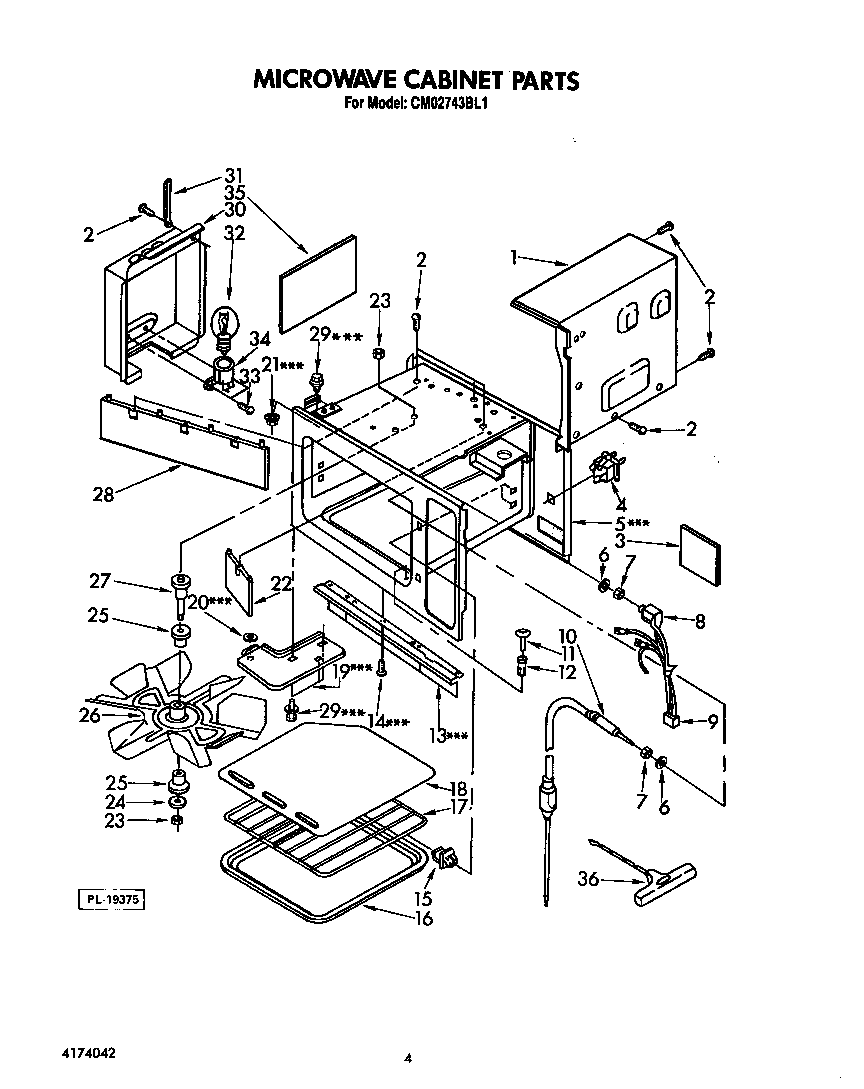

Microwave cabinet Diagram

Light bulb

Part #4164062
Replaced by #8206232A
?
Manufacturer substitution
This part replaces 4164062. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
$5.99 |
14% OFF
Phone Price: $6.99
Range Broil Pan#19

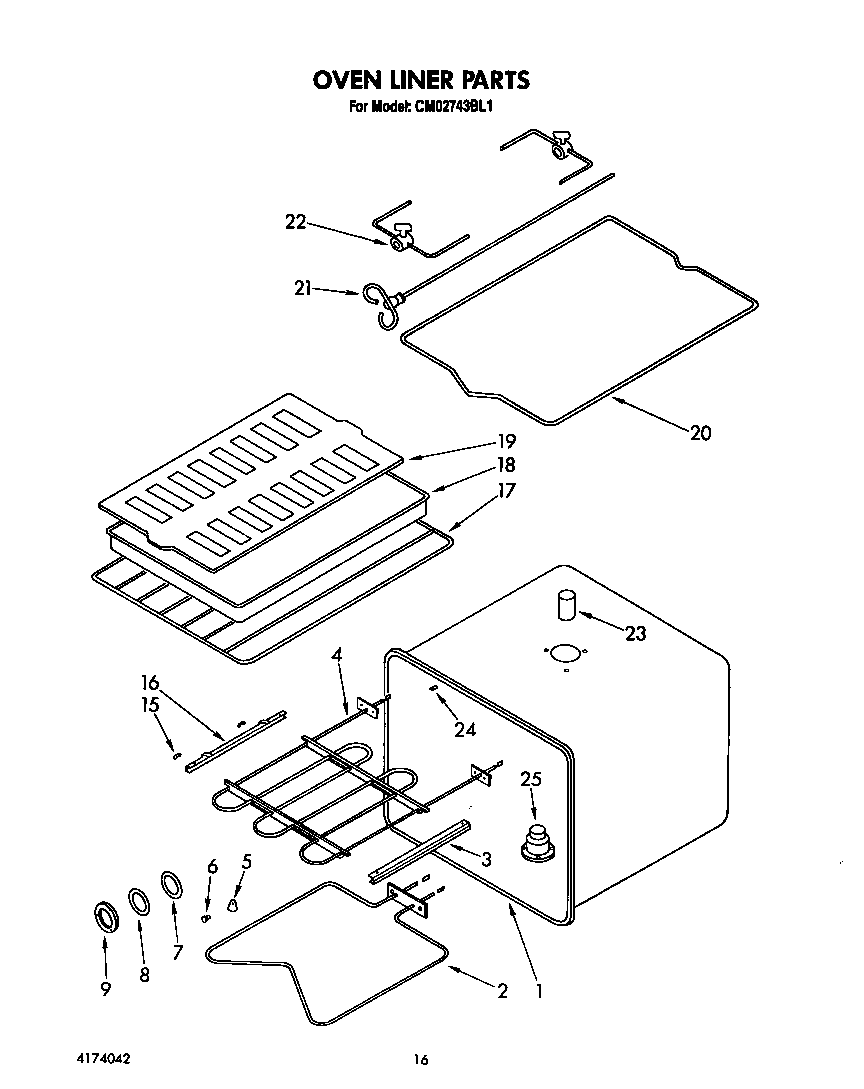

Oven liner Diagram

Grid broil

Part #4164251
Replaced by #4396923
?
Manufacturer substitution
This part replaces 4164251. Substitute parts can look different from the original.
In Stock
$25.33 |
35% OFF
MSRP: $39.00
Range Broil Pan#18

Oven liner Diagram

Broiler pa

Part #4164250
Replaced by #4396923
?
Manufacturer substitution
This part replaces 4164250. Substitute parts can look different from the original.
In Stock
$25.33 |
35% OFF
MSRP: $39.00
Range Bake Element#2

Oven liner Diagram

Bake element

Part #4163990
Replaced by #WP3177420
?
Manufacturer substitution
This part replaces 4163990. Substitute parts can look different from the original.
Back Order
$80.69 |
6% OFF
Phone Price: $85.69
Range Oven Selector Switch

See All Related Diagrams

Range oven selector switch

Part #4168403
Replaced by #WP4168403
?
Manufacturer substitution
This part replaces 4168403. Substitute parts can look different from the original.
This item is not returnable
In Stock
$20.69 |
19% OFF
Phone Price: $25.69
Microwave Door Primary Interlock Switch#18

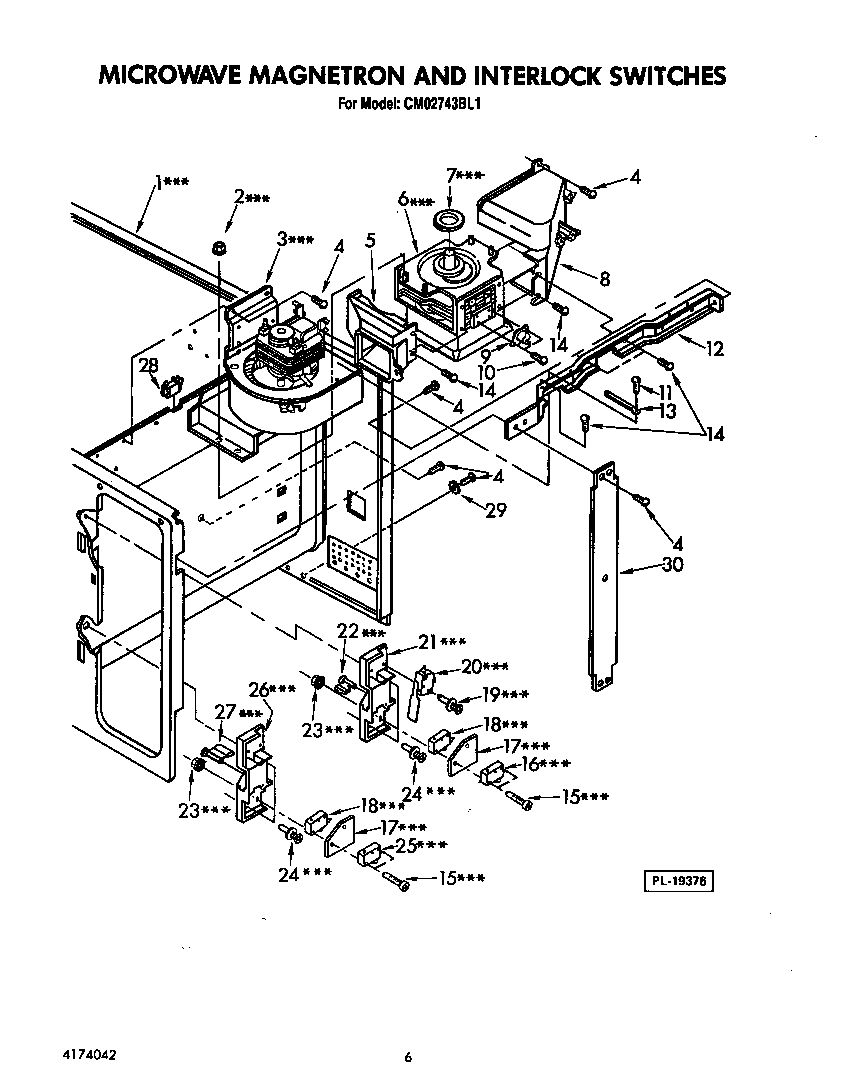

Microwave magnetron and interlock switches Diagram

Switch

Part #4164074
Replaced by #4392027
?
Manufacturer substitution
This part replaces 4164074. Substitute parts can look different from the original.
In Stock
$69.11 |
20% OFF
MSRP: $86.00
Indicator Light#6

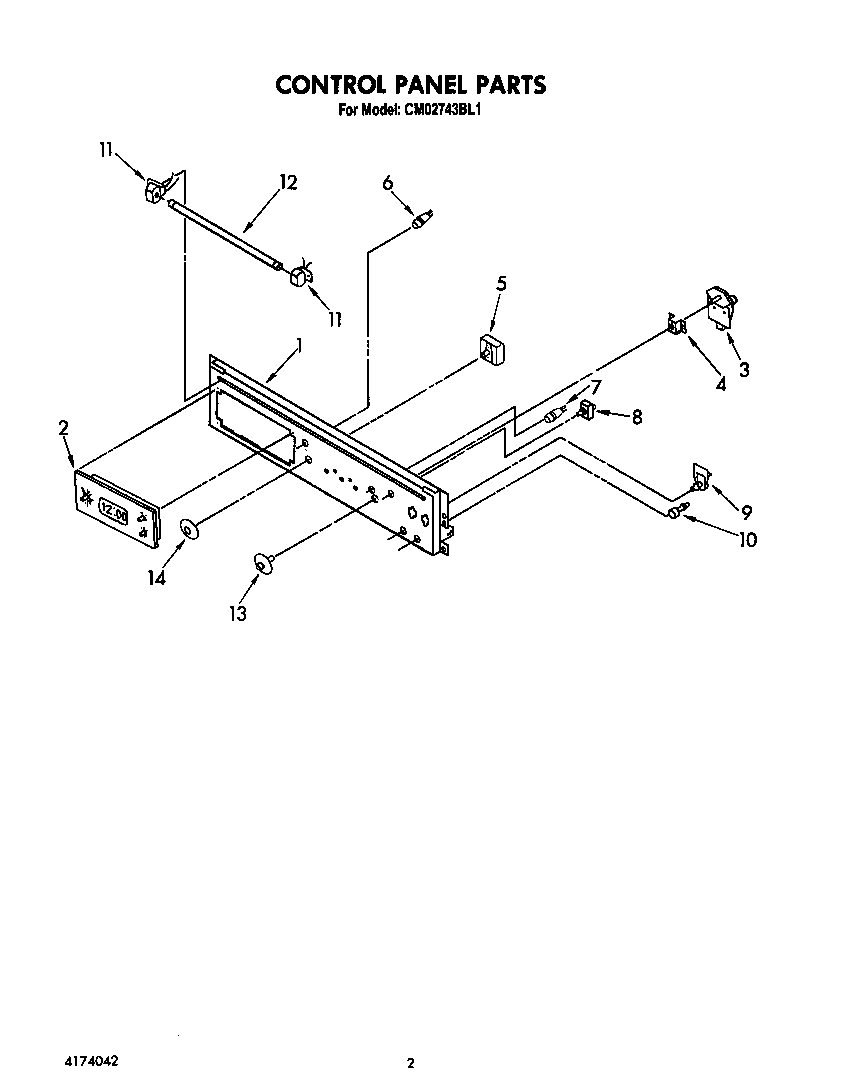

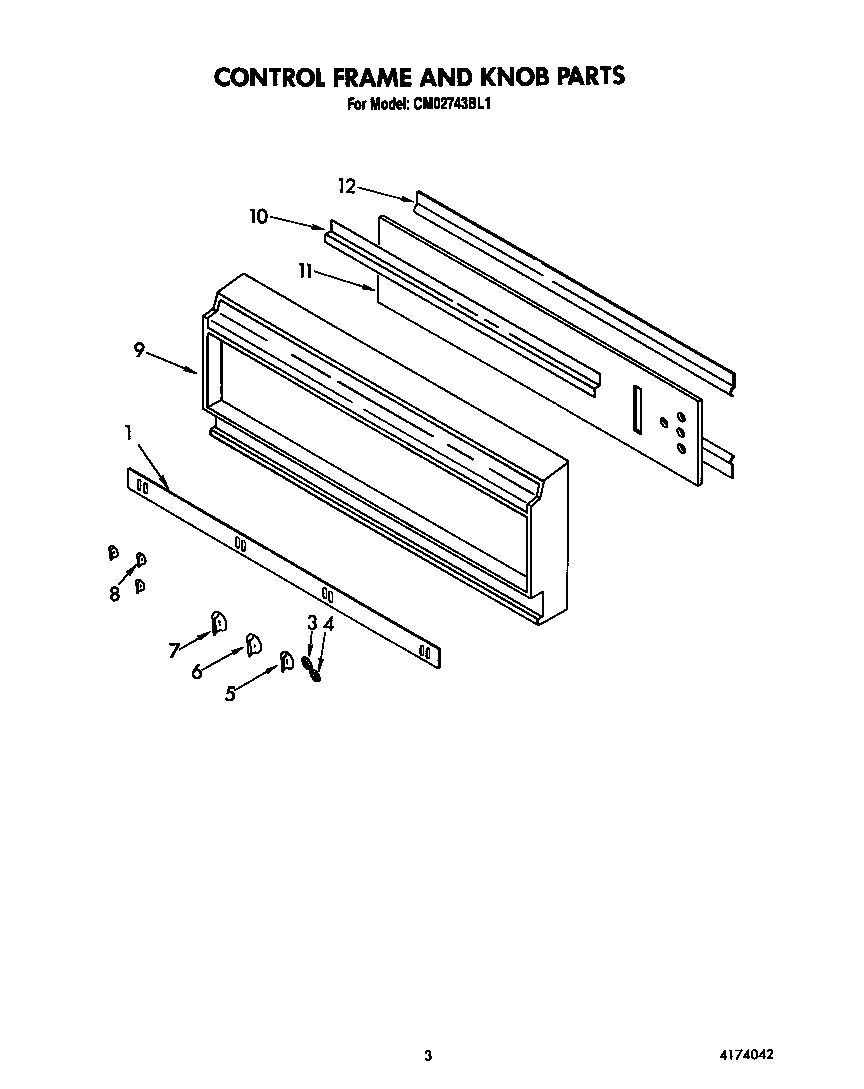

Control panel Diagram

Indicator light

Part #4168598

The manufacturer no longer makes this part, and there's no substitute part

Oven#37

Cabinet Diagram

Oven

Part #4173080

The manufacturer no longer makes this part, and there's no substitute part

TRIAC#2

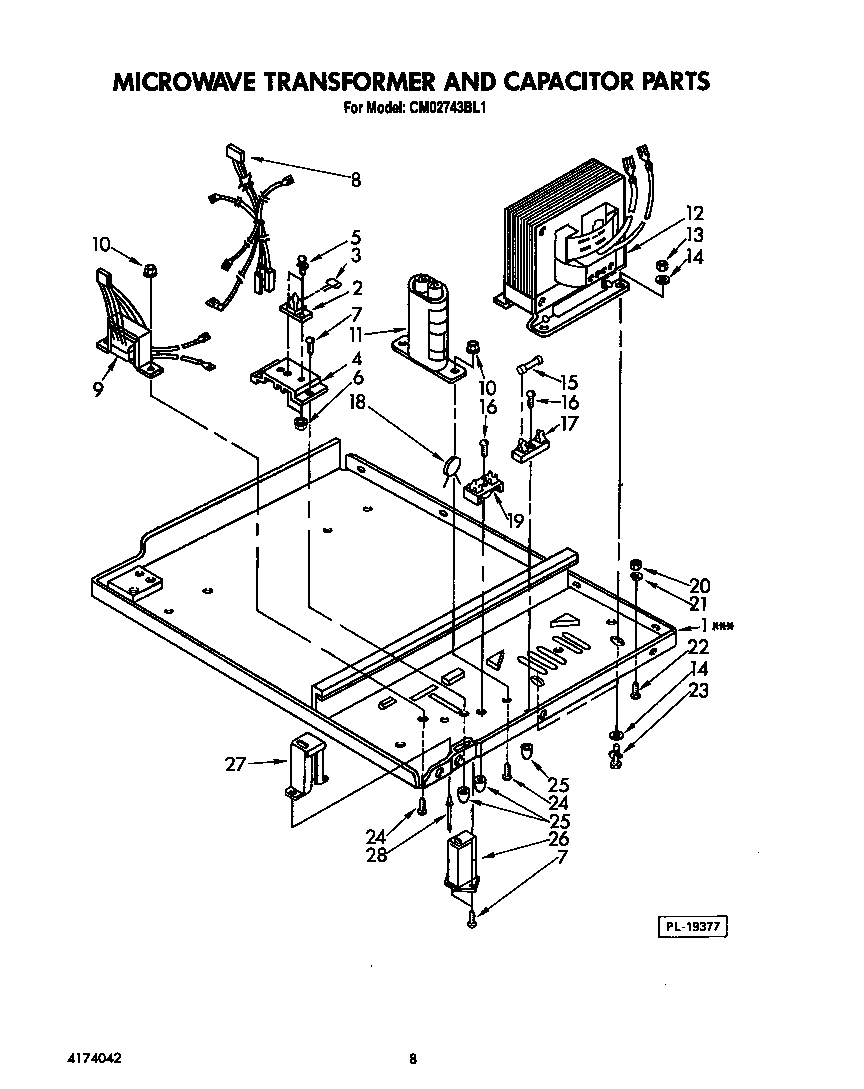

Microwave transformer and capacitor Diagram

Triac

Part #4164081

The manufacturer no longer makes this part, and there's no substitute part
