Whirlpool WMH31017HS12 microwave/hood combo Parts

Common problems we see on Whirlpool microwave/hood combos like model WMH31017HS12 include not heating, dead display or no power, door not latching, sparking/arcing, and turntable or vent fan issues. Many start with simple causes (power, door switches, airflow, or a blown fuse) before a control or high-voltage part is involved.

Most common symptoms and what they usually point to

• Runs but does not heat: high-voltage circuit issue (diode, capacitor, transformer, magnetron) or a door interlock problem.
• Completely dead (no lights, no display): power supply issue, blown fuse, or door switch/interlock not closing.
• Starts then stops, or blows the breaker: shorted high-voltage component, failing door switch, or wiring problem.
• Sparking/arcing inside: food splatter, metal in the cavity, damaged interior coating, or a problem near the waveguide cover.
• Turntable not rotating: turntable motor/driver issue or the tray not seated correctly.

Quick checks we recommend before replacing parts

• Confirm the outlet has power (try a small lamp or another appliance).
• Open and close the door firmly; listen for a solid latch “click” and check for looseness.
• Clean the cavity and remove any metal racks/foil or twist ties.
• If the unit is dead, inspect and test the fuse; see how to tell if a fuse is blown.
• If it is dead or intermittent, the fuse is a common failure point on this model family; see microwave fuse W11707984.

Common parts tied to common failures (examples)

Symptom	Often involved	Example part for WMH31017HS12
No power / dead display	Fuse, door interlock	Microwave Fuse W11707984; Interlock WPW10156813
Not heating	Diode, capacitor, transformer, magnetron	Gaoxin-hvd C W11256462; Capacitor WPW10574736

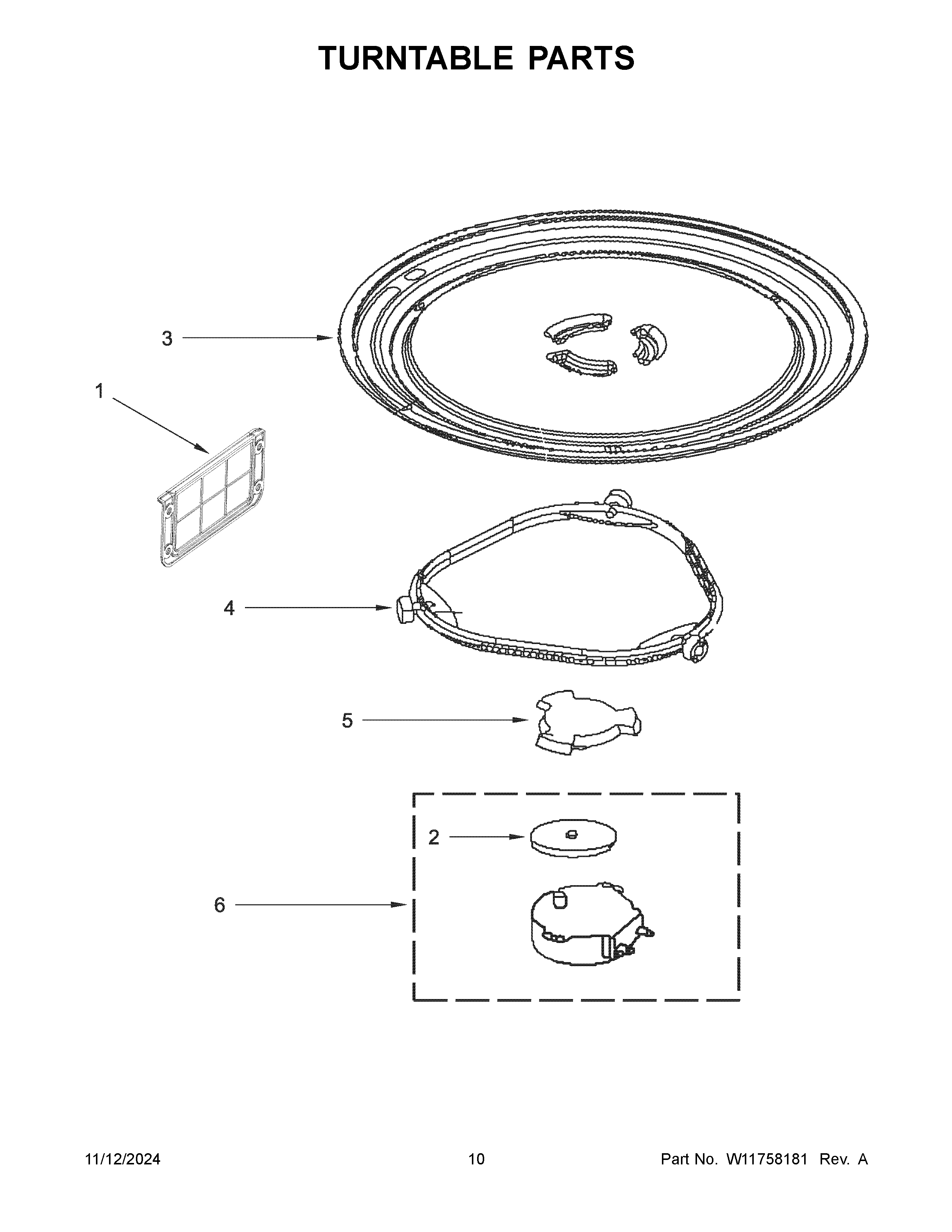

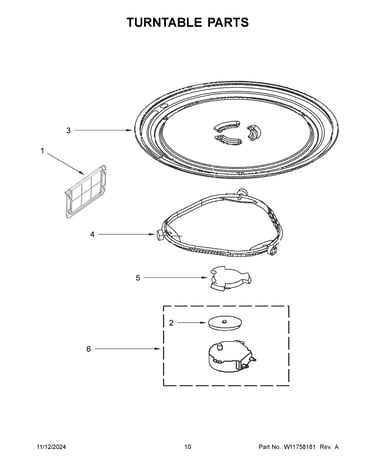

Turntable not turning	Turntable motor/driver	Microwave Turntable Motor W10642989; Driver, Turntable W11245707

Why it matters

Microwaves can appear to “work” (light, fan, timer) even when the heating circuit has failed. Separating “no power” from “no heat” helps you target the right checks and avoid replacing the wrong Whirlpool parts.

Last updated: January 2026

The Whirlpool WMH31017HS12 is a microwave/hood combo, meaning it is an over-the-range microwave that also works as a range hood with a built-in vent fan and grease filtration for your cooktop.

What “microwave/hood combo” means for this model

A microwave/hood combo like WMH31017HS12 combines two functions in one appliance:

• Microwave cooking in the upper cabinet space above the range
• Ventilation to help remove smoke, steam, and cooking odors
• Grease filtering to protect the vent fan and internal ducting
• Cooktop lighting to illuminate the surface below

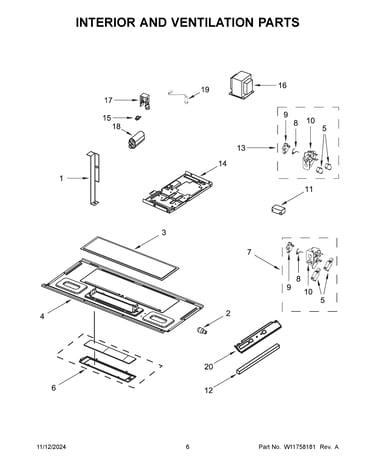

Common parts you will see on a microwave/hood combo

These parts are typical for this appliance type and are also common service items:

• Grease filter (captures grease from cooking vapors)

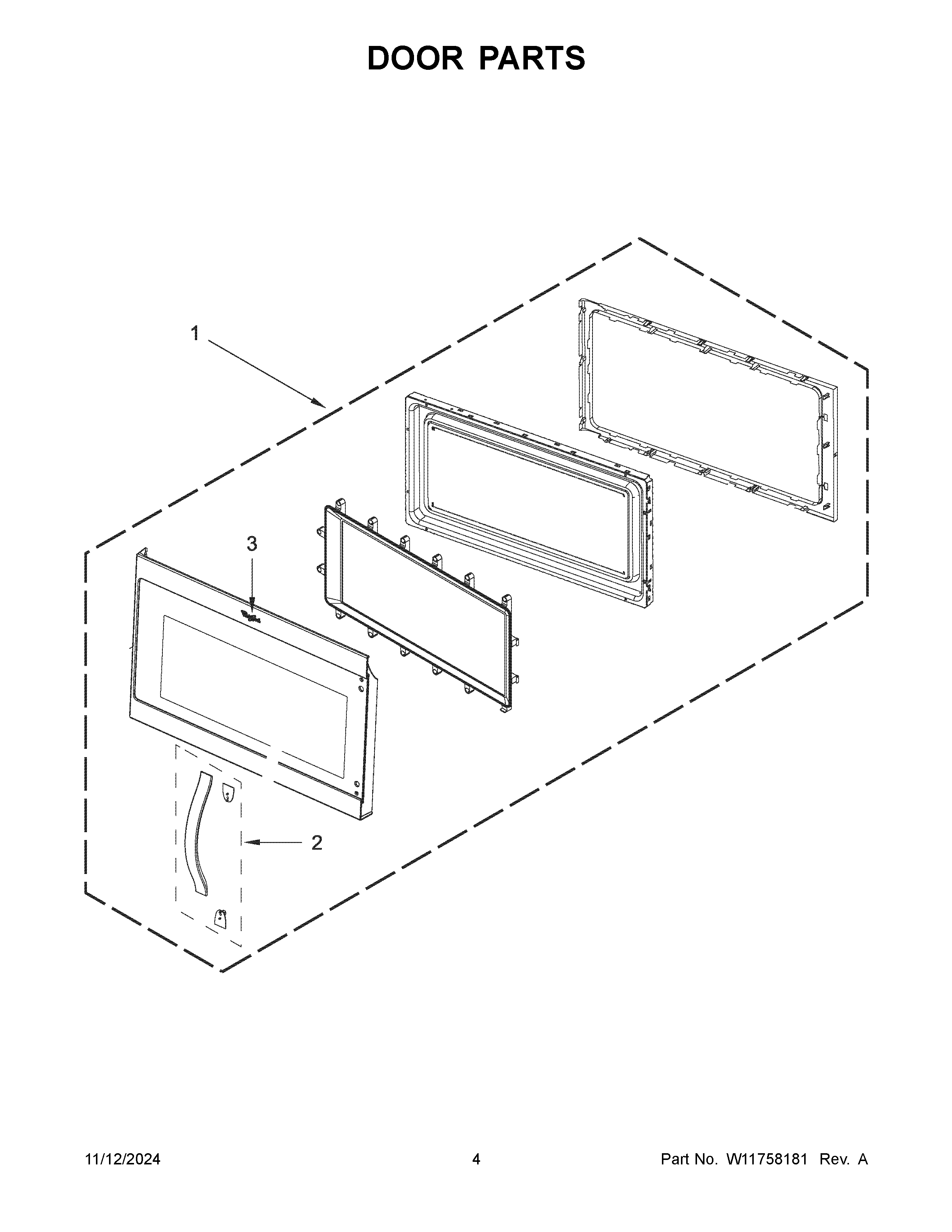

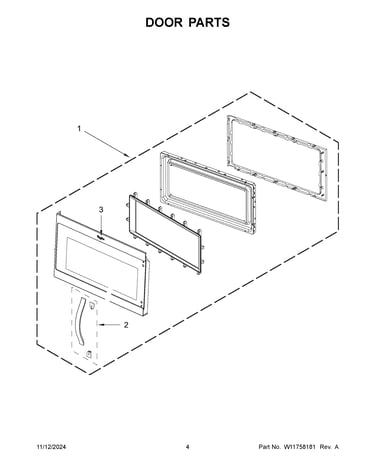

• Door and handle components

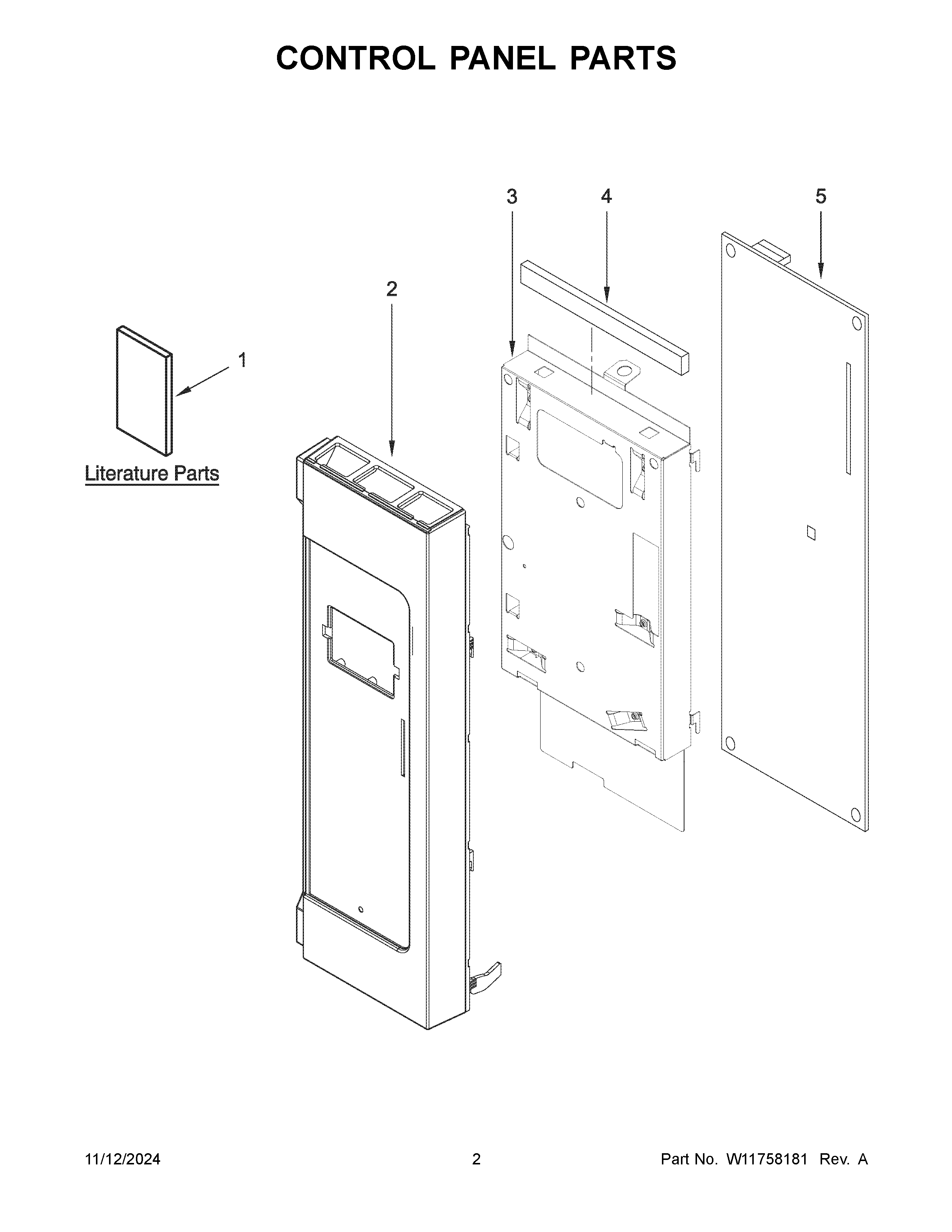

• Control panel and electronic control board
• Safety interlock switches (door switches)
• Vent damper and vent louver components

Quick part examples for WMH31017HS12

Function	Example part for this model	What it affects
Grease filtration	Filter W10208631A	Venting performance and grease capture
Door safety switching	Interlock WPW10156813	Starts and stops cooking safely

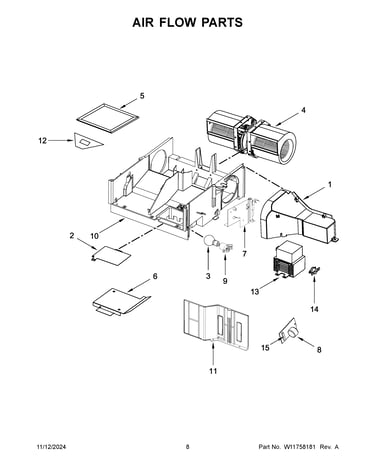

Venting airflow control	Microwave vent damper W10843943	Backdraft prevention and airflow

Why it matters

Knowing WMH31017HS12 is a microwave/hood combo helps you choose the right replacement parts and troubleshooting steps, because symptoms like weak venting, a noisy fan, or poor cooktop lighting are hood-related issues, not just microwave heating issues.

If the microwave runs but does not heat, focus on the high-voltage heating circuit and use a microwave-specific troubleshooting guide like why is my microwave not heating.

Last updated: January 2026

Most Whirlpool microwaves, including the Whirlpool WMH31017HS12 microwave/hood combo, typically last 7 to 10 years with normal household use. Heavy daily use, poor ventilation, and frequent power surges can shorten lifespan; consistent cleaning and proper airflow help it reach the high end of that range.

What affects lifespan the most

• Heat and ventilation: Grease buildup and restricted airflow make internal components run hotter.
• Door use and slamming: Wears door latches and interlock switches faster.
• Power quality: Surges can damage the electronic control.
• Cooking habits: Running the microwave empty or repeated overheating stresses the magnetron circuit.
• Maintenance: Cleaning filters and keeping the cavity clean reduces strain.

Common “end-of-life” symptoms (and parts often involved)

If your WMH31017HS12 is acting up, these are the most common failure patterns we see:

• Runs but does not heat (often in the high-voltage circuit)
• Dead display or random resets (control or fuse related)
• Stops when the door moves or won’t start (door interlock system)
• Loud humming or burning smell (stop using and have it checked)

Helpful model-related parts to know:

• Microwave fuse W11707984
• Electronic control W11552018
• Assembly, lower interlock (includes switches) W11551761

Quick decision guide: repair or replace

What you’re seeing	Typical cause area	Best next step
No power at all	Fuse, control, wiring	Check house power, then inspect fuse/control
Powers on, no heat	High-voltage components	Use a pro for diagnosis due to stored high voltage
Door-related starting issues	Interlock switches/latch	Inspect door alignment and interlock assembly
Weak performance + age 10+ years	Wear and efficiency loss	Compare repair cost vs replacement

Why it matters

A microwave/hood combo like the WMH31017HS12 also handles ventilation. Keeping the grease filter clean helps the hood fan move air properly and reduces heat stress on internal electrical parts, which directly supports longer service life.

For safe-use habits that protect the appliance, follow never do these things with a microwave.

Last updated: January 2026

Whirlpool model WMH31017HS12 is an over-the-range microwave/hood combo used to heat and cook food in the microwave cavity while also venting smoke, steam, and cooking odors from the cooktop below using its built-in hood fan and cooktop light.

What you can do with this microwave/hood combo

Common everyday uses include:

• Reheat leftovers, beverages, and plated meals
• Defrost frozen foods using time or weight-based settings
• Cook simple microwave foods (vegetables, popcorn, frozen entrees)
• Vent the range area while you cook on the stovetop
• Light the cooktop area for better visibility

Parts that support those functions

If your WMH31017HS12 is not heating, not venting well, or has electrical issues, these model-matched parts are commonly involved:

Function	What you notice	Example model-matched part
Heating circuit protection	Microwave goes dead or won’t start	Microwave fuse W11707984
Door safety/starting	Won’t run, runs only with door pressure, or blows fuse	Interlock WPW10156813
Venting airflow control	Vent door/louver doesn’t open or close correctly	Microwave vent louver motor cam plate W10562613
Grease capture for hood fan	Grease buildup, poor airflow, filter damage	Filter W10208631A

Why it matters

Because WMH31017HS12 combines a microwave and a range hood, a single symptom can point to either the cooking side (heating, turntable, door switches) or the ventilation side (fan, damper, grease filter). Matching the symptom to the correct system helps you choose the right repair path and parts.

Quick safety and care tips

• Keep the hood grease filter clean to maintain airflow and reduce odors
• Never run the microwave empty; it can damage internal components
• If you see arcing or burn marks, stop using it until the cause is corrected
• Use microwave-safe containers and covers to reduce splatter and cleanup

For additional guidance on common heating problems, use our why is my microwave not heating article.

Last updated: January 2026
