Kenmore
Space Heater

Model # 34471481 Official Kenmore radiant quartz electric heater

Here are the diagrams and repair parts for Official Kenmore 34471481 radiant quartz electric heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 35 parts  |

Screw 1003562
#29

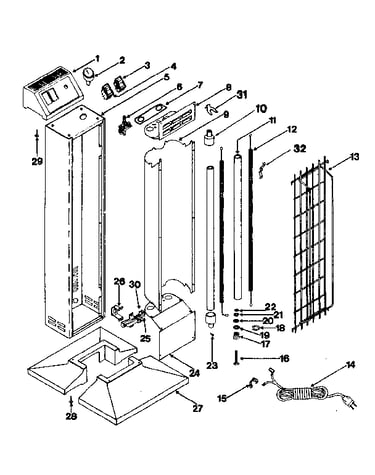

Replacement parts diagram

Screw

Part #1003562

The manufacturer no longer makes this part, and there's no substitute part

Knob 1002485-006
#2

Replacement parts diagram

Knob

Part #1002485-006

The manufacturer no longer makes this part, and there's no substitute part

Nut 2491056

#NI

All parts diagram

Nut

Part #2491056

The manufacturer no longer makes this part, and there's no substitute part

Screw 457645
#16

Replacement parts diagram

Screw

Part #457645

The manufacturer no longer makes this part, and there's no substitute part

Case Assembly 10225-003
#5

Replacement parts diagram

Case assembly

Part #10225-003

The manufacturer no longer makes this part, and there's no substitute part

Heyco 1003612
#15

Replacement parts diagram

Heyco

Part #1003612

The manufacturer no longer makes this part, and there's no substitute part

Retainer 25681-001
#18

Replacement parts diagram

Retainer

Part #25681-001

The manufacturer no longer makes this part, and there's no substitute part

Washer 2490548
#21

Replacement parts diagram

Washer

Part #2490548

The manufacturer no longer makes this part, and there's no substitute part

Grille 1003502
#13

Replacement parts diagram

Grille

Part #1003502

The manufacturer no longer makes this part, and there's no substitute part

Tube Clip 1003633
#31

Replacement parts diagram

Tube clip

Part #1003633

The manufacturer no longer makes this part, and there's no substitute part
