Kenmore
Coffee Maker

Model # 87467410 Official Kenmore 30-cup stainless steel coffee urn

Here are the diagrams and repair parts for Official Kenmore 87467410 30-cup stainless steel coffee urn, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

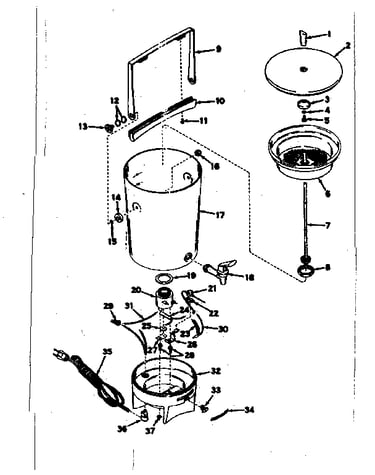

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |
Bracket 43-8-54

#NI

All parts diagram

Bracket

Part #43-8-54

The manufacturer no longer makes this part, and there's no substitute part

Washer M551-806
#12

Replacement parts diagram

Washer

Part #M551-806

The manufacturer no longer makes this part, and there's no substitute part

Stud SP-961B
#28

Replacement parts diagram

Stud

Part #SP-961B

The manufacturer no longer makes this part, and there's no substitute part

Lens M551-805B
#33

Replacement parts diagram

Lens

Part #M551-805B

The manufacturer no longer makes this part, and there's no substitute part

Bail Asm M551-A40
#9

Replacement parts diagram

Bail asm

Part #M551-A40

The manufacturer no longer makes this part, and there's no substitute part

Faucet M551-A2
#18

Replacement parts diagram

Faucet

Part #M551-A2

The manufacturer no longer makes this part, and there's no substitute part

Pump Assembly 43106-A15
#7

Replacement parts diagram

Pump assembly

Part #43106-A15

The manufacturer no longer makes this part, and there's no substitute part

Washer 43-18-3
#22

Replacement parts diagram

Washer

Part #43-18-3

The manufacturer no longer makes this part, and there's no substitute part

Keep Warm M551-A65
#23

Replacement parts diagram

Keep warm

Part #M551-A65

The manufacturer no longer makes this part, and there's no substitute part

Washer M551-313
#15

Replacement parts diagram

Washer

Part #M551-313

The manufacturer no longer makes this part, and there's no substitute part
