Kelvinator
Room Air Conditioner

Model # M208F1QA Official Kelvinator room air conditioner - lk34088030

Here are the diagrams and repair parts for Official Kelvinator M208F1QA room air conditioner - lk34088030, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

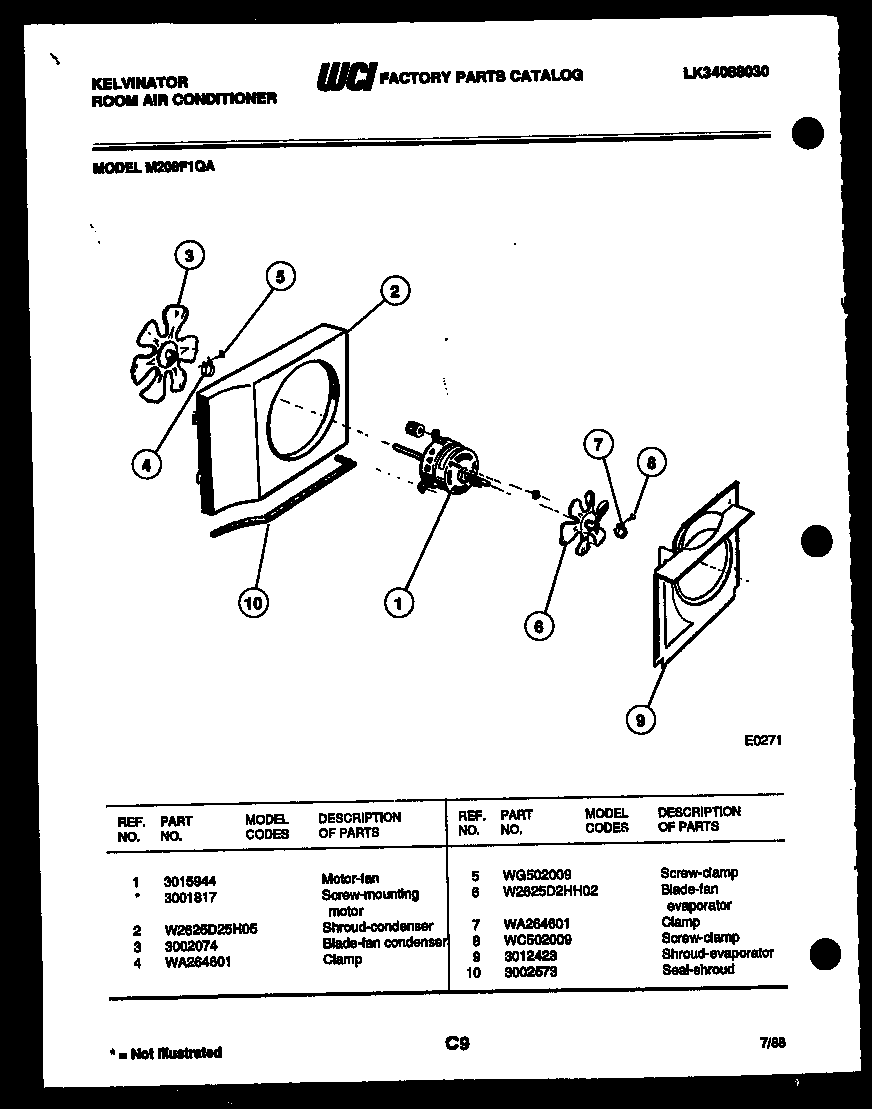

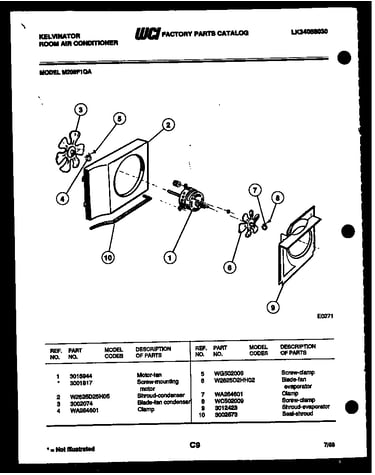

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |
Filter Drier 3015622
#1

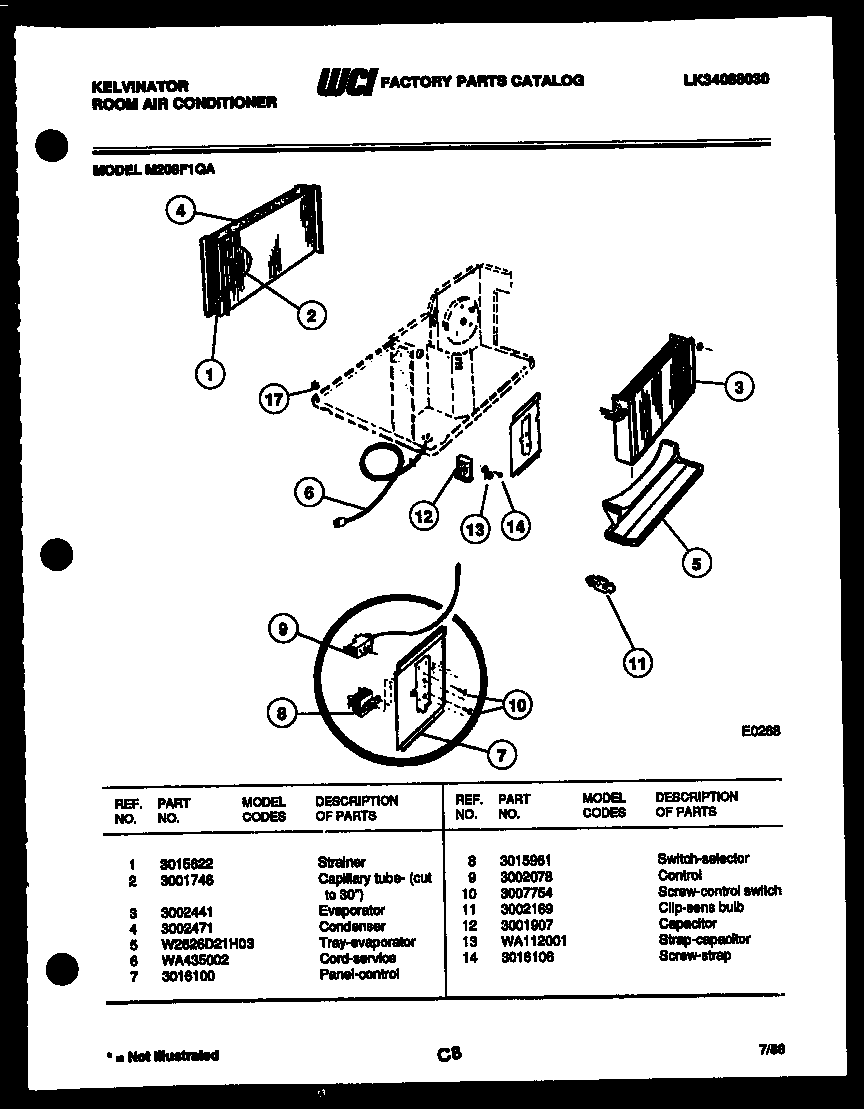

Electrical parts diagram

Filter drier

Part #3015622

Replaced by #5300265301

?
Manufacturer substitution
This part replaces 3015622. Substitute parts can look different from the original.
$110.08
In Stock
Washer 3007766
#18

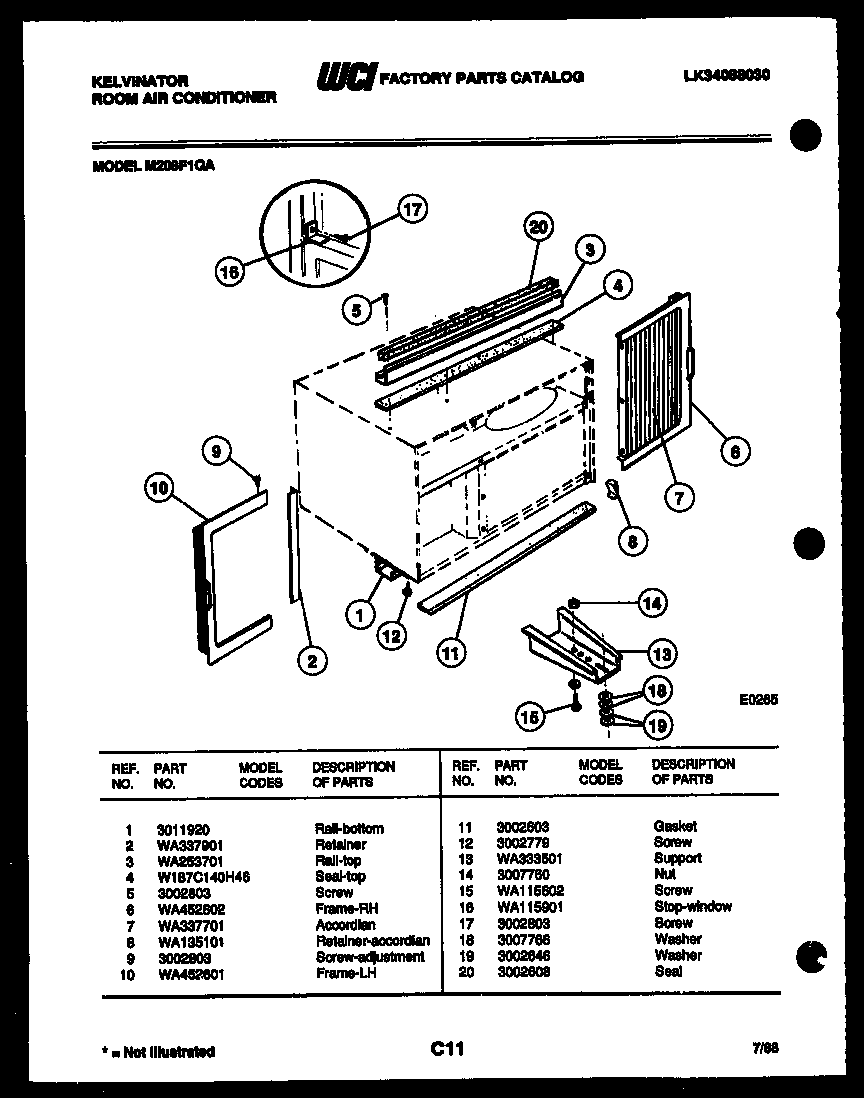

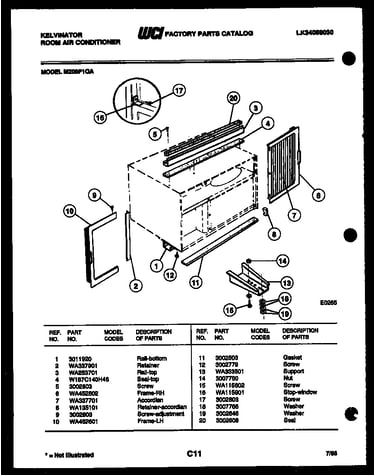

Cabinet and installation parts diagram

Washer

Part #3007766

This item is not returnable
$2.29
In Stock
Gasket 3002603
#11

Cabinet and installation parts diagram

Gasket

Part #3002603

Replaced by #5304407729

?
Manufacturer substitution
This part replaces 3002603. Substitute parts can look different from the original.
$25.17
In Stock
Support WA253701
#3

Cabinet and installation parts diagram

Support

Part #WA253701

Replaced by #08007493

?
Manufacturer substitution
This part replaces WA253701. Substitute parts can look different from the original.
$12.99
In Stock
Filter 3001808
#9

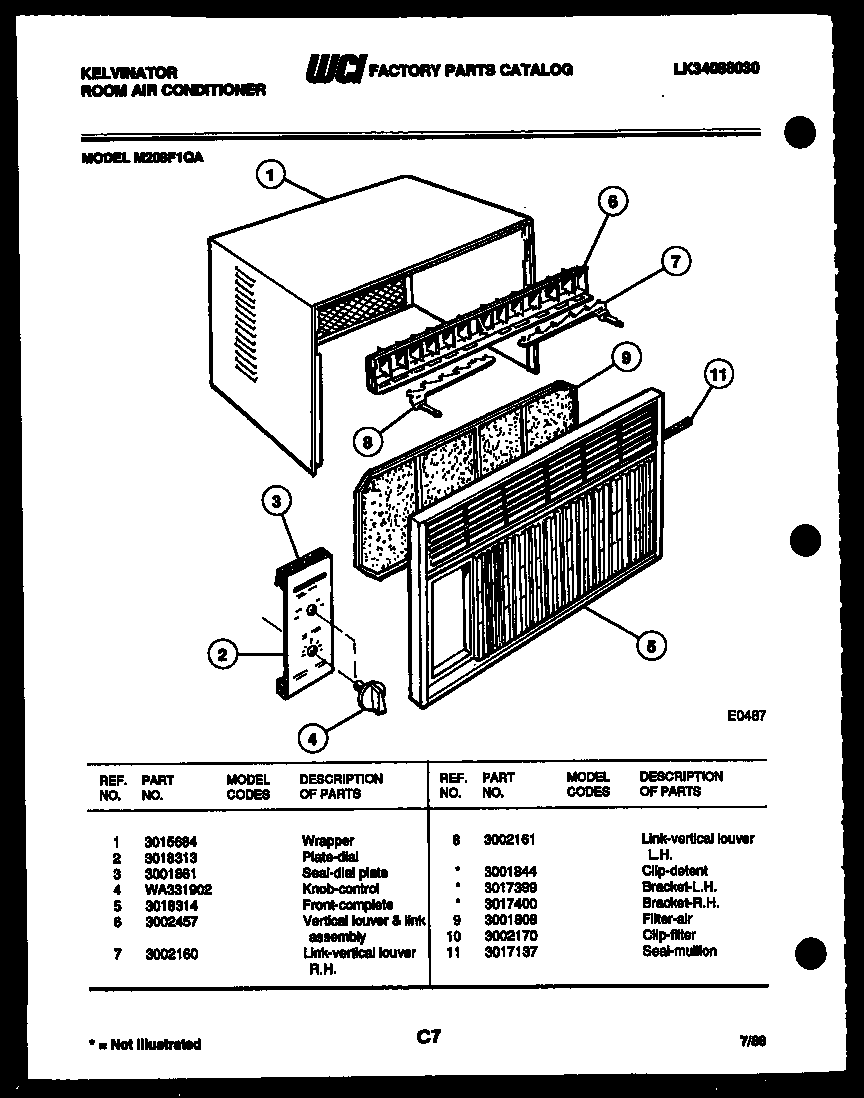

Cabinet parts diagram

Filter

Part #3001808

The manufacturer no longer makes this part, and there's no substitute part

Gasket Seal 3002056
#5

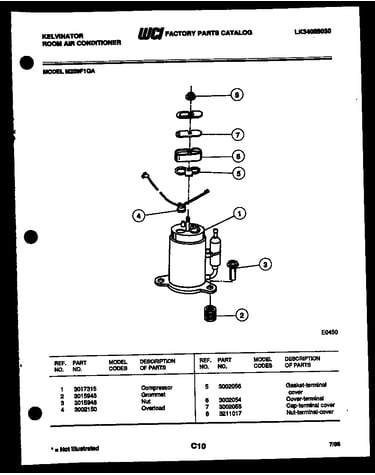

Compressor diagram

Gasket seal

Part #3002056

The manufacturer no longer makes this part, and there's no substitute part

Rail-bottom 3011920
#1

Cabinet and installation parts diagram

Rail-bottom

Part #3011920

The manufacturer no longer makes this part, and there's no substitute part

Clip 3001844
#8A

Cabinet parts diagram

Clip

Part #3001844

The manufacturer no longer makes this part, and there's no substitute part

Bracket WA115901
#16

Cabinet and installation parts diagram

Bracket

Part #WA115901

The manufacturer no longer makes this part, and there's no substitute part

Retainer WA337901
#2

Cabinet and installation parts diagram

Retainer

Part #WA337901

The manufacturer no longer makes this part, and there's no substitute part
