Model # 13291633600 Official LXI am/fm stereo system with 8-track player & recorder

Here are the diagrams and repair parts for Official LXI 13291633600 am/fm stereo system with 8-track player & recorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

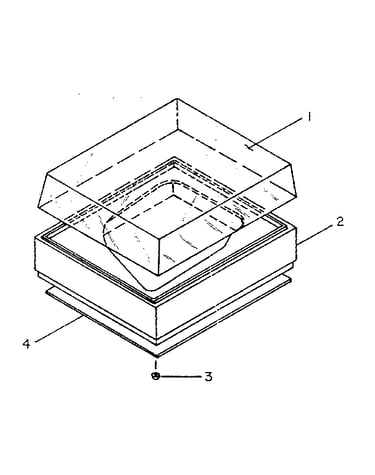

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 242 parts  |

E-ring 2013019-127
#73

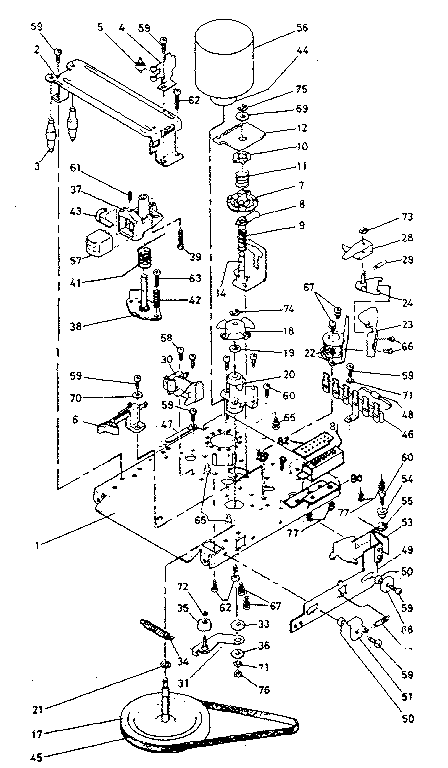

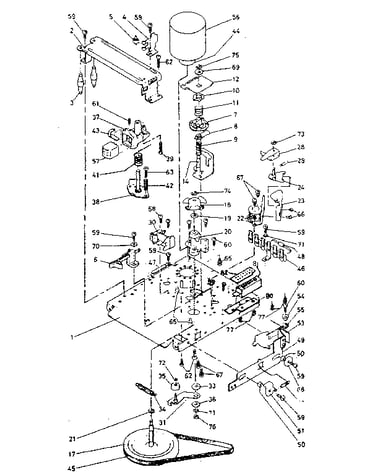

Tape mechanism diagram

E-ring

Part #2013019-127

Replaced by #2013019-127

?
Manufacturer substitution
This part replaces 2013019-127. Substitute parts can look different from the original.
This item is not returnable
In Stock
Cable 95701-38

#NI

All parts diagram

Cable

Part #95701-38

Replaced by #38-158

?
Manufacturer substitution
This part replaces 95701-38. Substitute parts can look different from the original.
This item is not returnable
In Stock
E-ring 2013019-64
#74

Tape mechanism diagram

E-ring

Part #2013019-64

Replaced by #2016636-34

?
Manufacturer substitution
This part replaces 2013019-64. Substitute parts can look different from the original.
This item is not returnable
In Stock
Insert - Turntable 36072-B
#202A

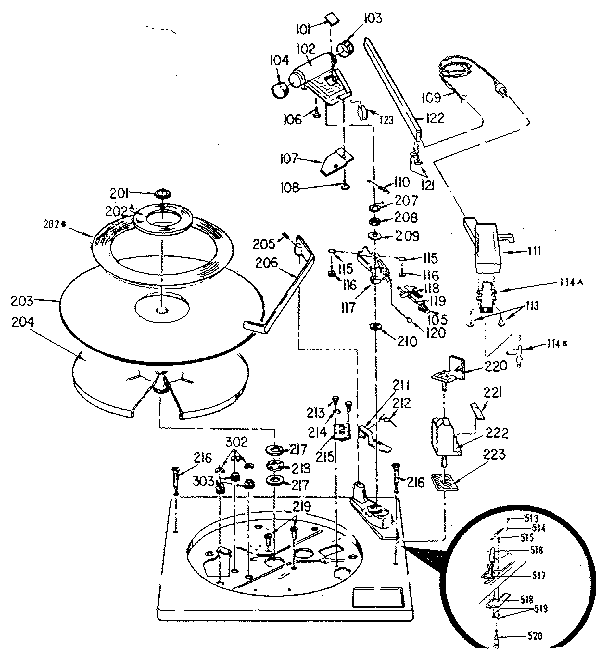

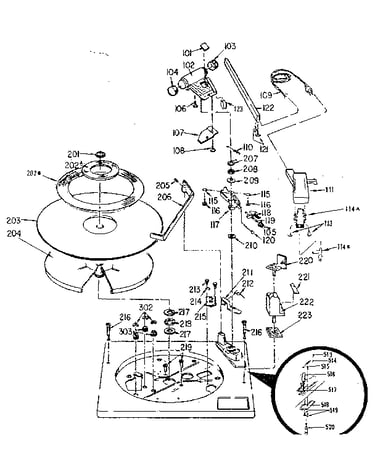

Record changer - above baseplate diagram

Insert - turntable

Part #36072-B

The manufacturer no longer makes this part, and there's no substitute part

Washer 26792
Washer

Part #26792

The manufacturer no longer makes this part, and there's no substitute part

Gear Assembly 45549
#412

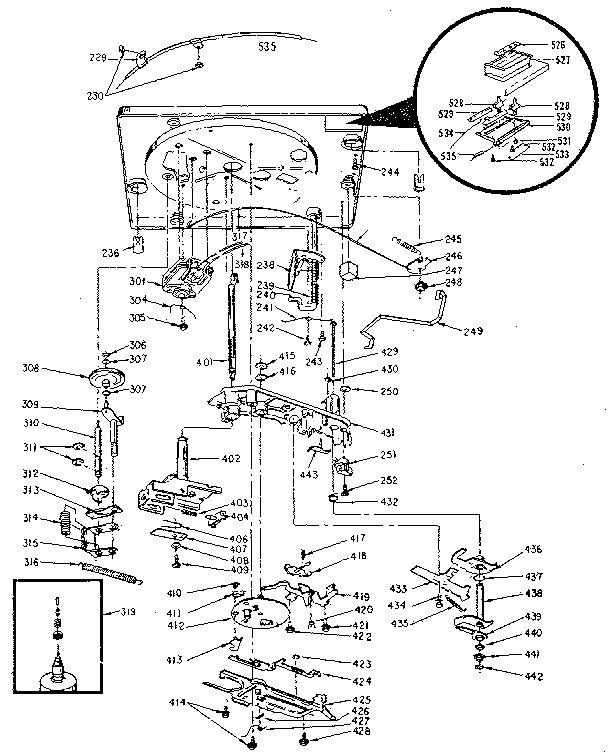

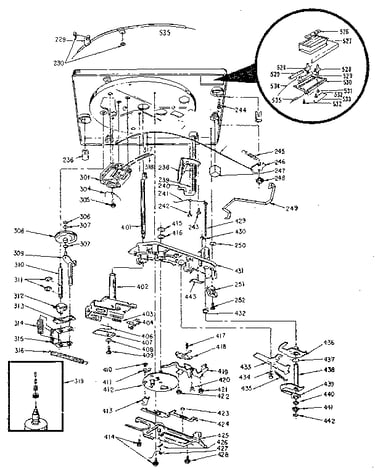

Reocrd changer - below baseplate diagram

Gear assembly

Part #45549

The manufacturer no longer makes this part, and there's no substitute part

Knob 2012738-4
#11

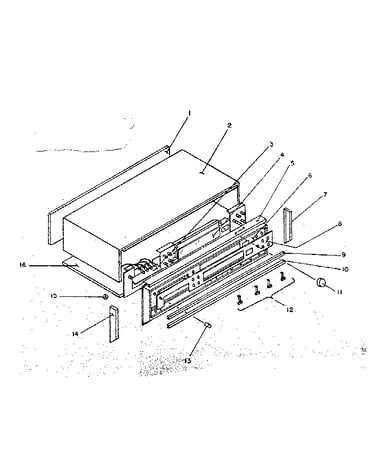

Component cabinet diagram

Knob

Part #2012738-4

The manufacturer no longer makes this part, and there's no substitute part

Bracket 2013019-12
#20

Tape mechanism diagram

Bracket

Part #2013019-12

The manufacturer no longer makes this part, and there's no substitute part

Spring 9509
#441

Reocrd changer - below baseplate diagram

Spring

Part #9509

The manufacturer no longer makes this part, and there's no substitute part

Spring 2013019-108
#11

Tape mechanism diagram

Spring

Part #2013019-108

The manufacturer no longer makes this part, and there's no substitute part
