Model # NTVM050FFA1 Official ICP gas furnace

Here are the diagrams and repair parts for Official ICP NTVM050FFA1 gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 93 parts  |
Tubing 64930
#21

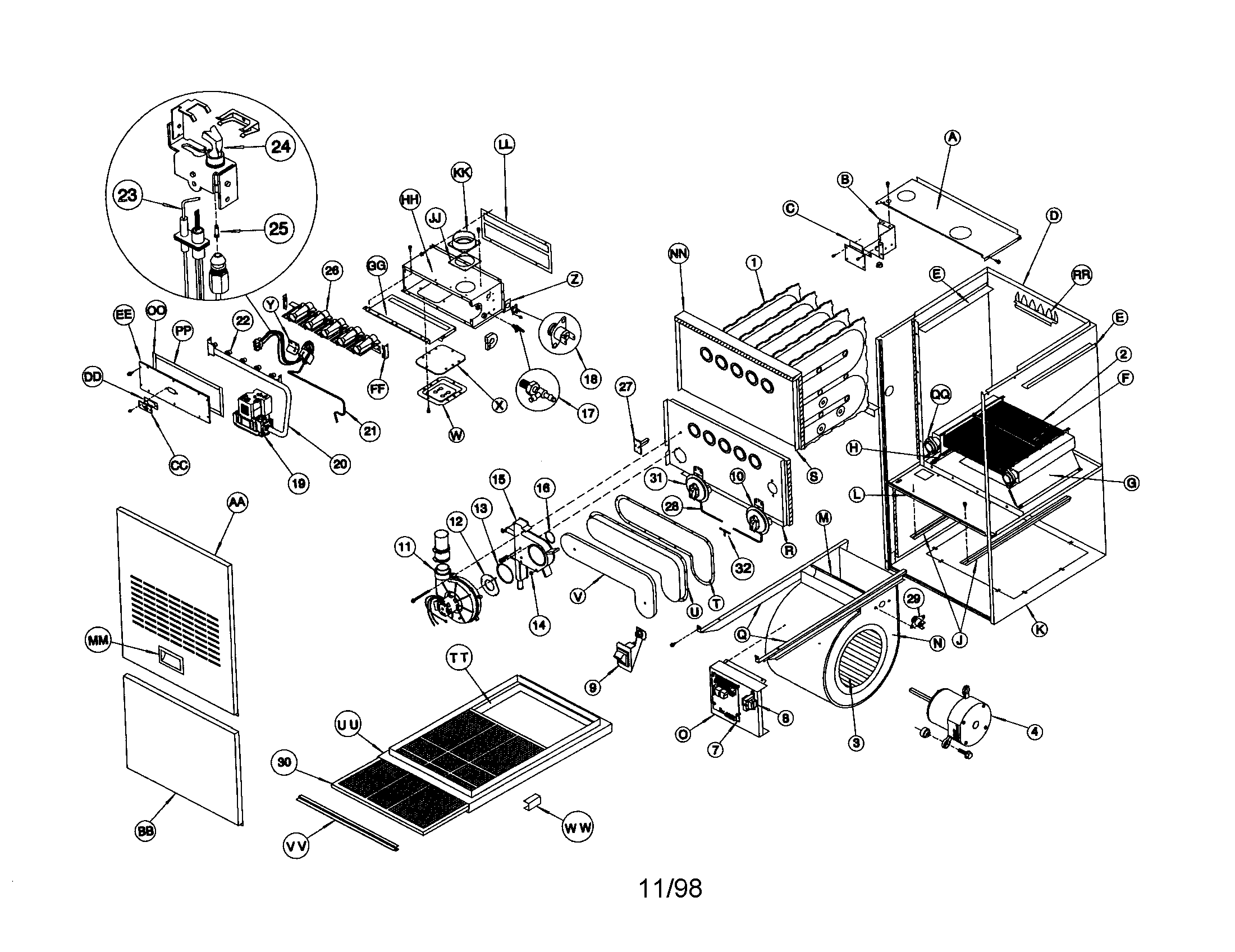

Replacement parts diagram

Tubing

Part #64930

$77.80
In Stock
Furnace Blower Fan Wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, H600587) 600587
#3

Replacement parts diagram

Furnace blower fan wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, h600587)

Part #600587

$130.20 |
7% OFF Phone Price : $140.20
In Stock
Switch 1005548
#18

Replacement parts diagram

Switch

Part #1005548

Replaced by #1013101

?
Manufacturer substitution
This part replaces 1005548. Substitute parts can look different from the original.
$19.09
In Stock
Tube Sensor 1006298
#28

Replacement parts diagram

Tube sensor

Part #1006298

$23.69
In Stock
Rail Galv Bl 57059
#J

Replacement parts diagram

Rail galv bl

Part #57059

$952.55
In Stock
Box Collecto 1008670
#U

Replacement parts diagram

Box collecto

Part #1008670

$154.61 |
6% OFF Phone Price : $164.61
In Stock
Coupling 1002522

#NI

All parts diagram

Coupling

Part #1002522

$12.97
In Stock
Restr Blwr M 1008696
#12

Replacement parts diagram

Restr blwr m

Part #1008696

$25.26
In Stock
Board Insul 1008682
#V

Replacement parts diagram

Board insul

Part #1008682

$172.96
In Stock
Furnace Pilot Burner 1149856
#24

Replacement parts diagram

Furnace pilot burner

Part #1149856

$314.91 |
$10.00 OFF Phone Price : $324.91
In Stock
