Hampton Bay HAW-10CR1FD air conditioner Parts

Here are the diagrams and repair parts for Hampton Bay HAW-10CR1FD air conditioner, as well as links to manuals and error code tables, if available.

Hampton Bay HAW-10CR1FD air conditioner

By Schematic

SELECT DIAGRAM

Browse Parts for HAW-10CR1FD Air Conditioner

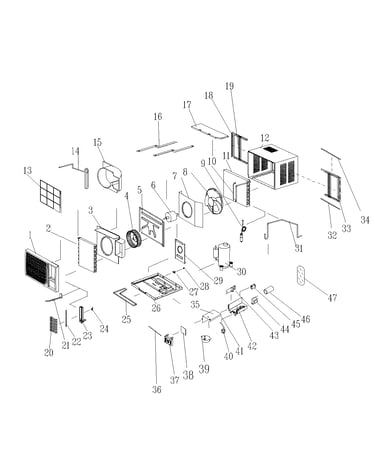

Cabinet parts diagram
Hisense Plate
Part #1201141
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Hisense Pipe
Part #13032136
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Hisense Plate
Part #1108125
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Hisense Power Cord
Part #1501672
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Hisense Panel Frame
Part #100467
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Hisense Electronic Box
Part #1006183
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Hisense Power Pcb
Part #81409145
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Hisense Thermistor
Part #814071
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Hisense Link Piece
Part #1201110
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Hisense Horizontal Vane
Part #1402100
The manufacturer no longer makes this part, and there's no substitute part
