Jenn-Air JMDFS24HM0 built-in microwave Parts

Here are the diagrams and repair parts for Jenn-Air JMDFS24HM0 built-in microwave, as well as links to manuals and error code tables, if available.

Jenn-Air JMDFS24HM0 built-in microwave
By Schematic
By Part

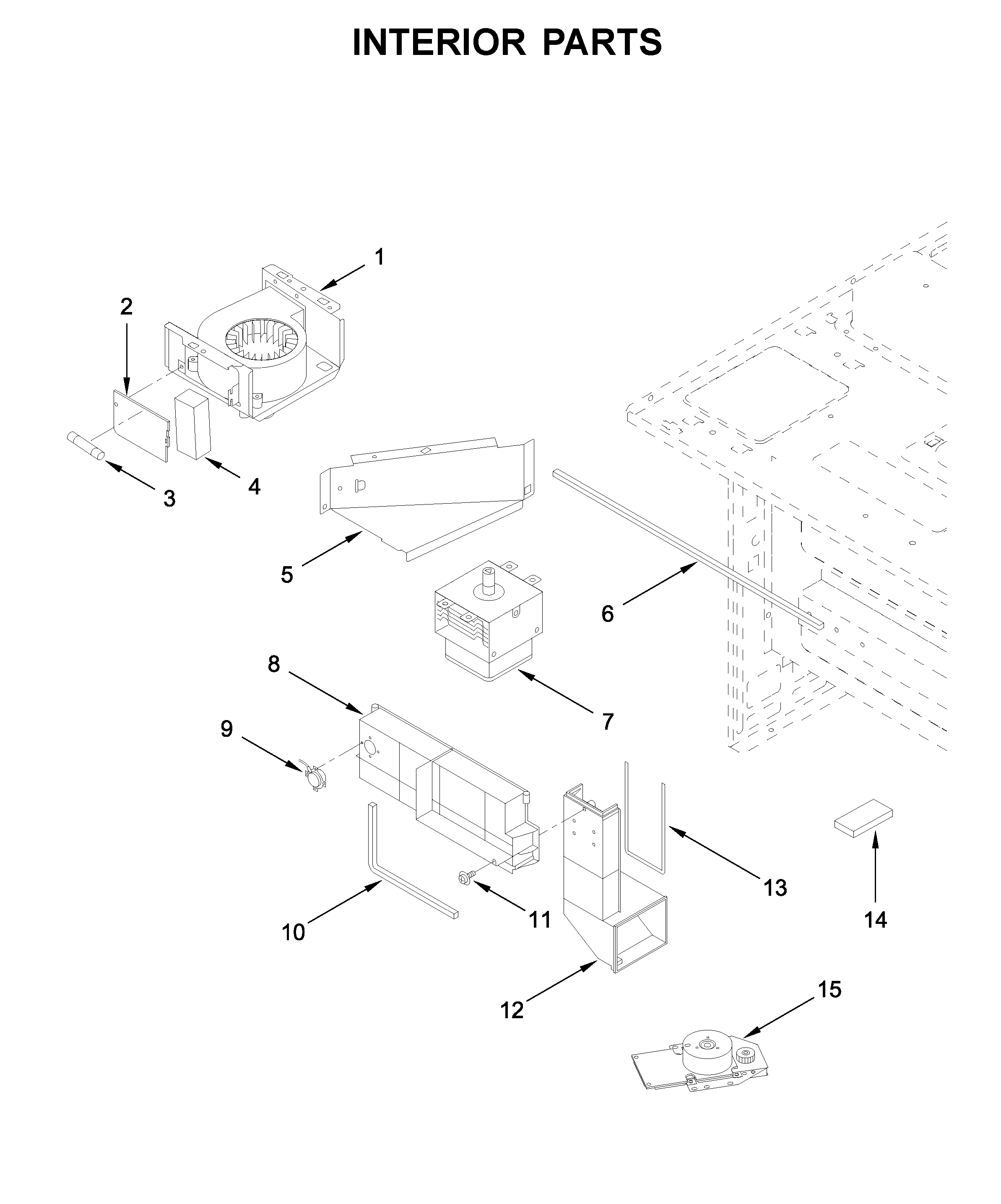

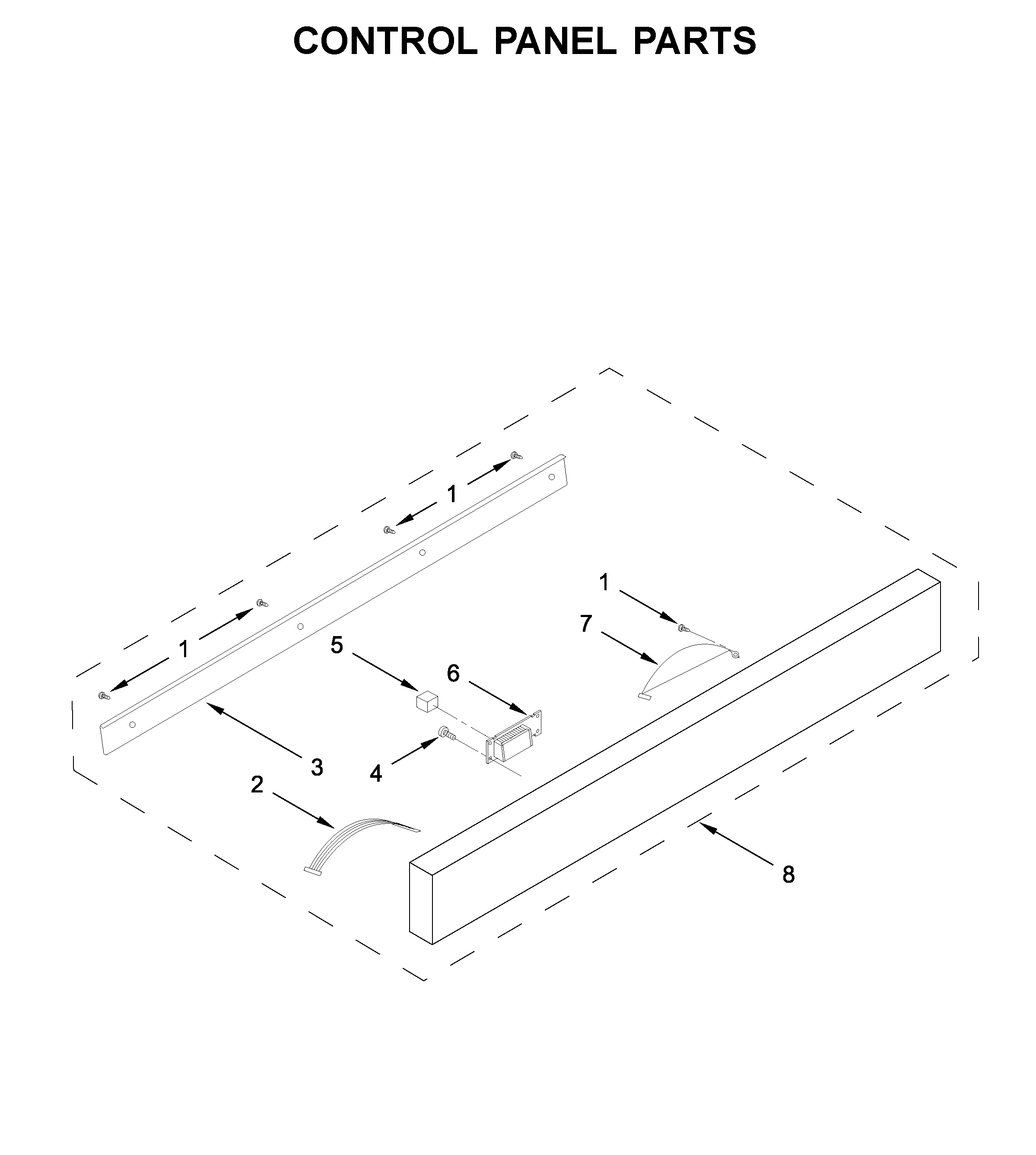

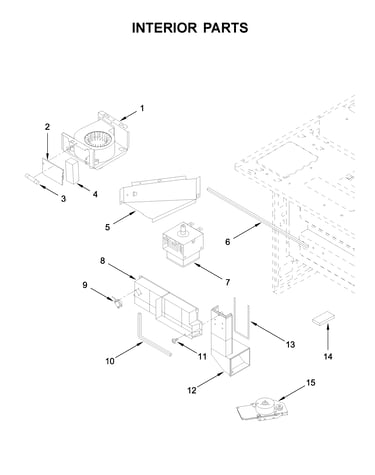

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for JMDFS24HM0 Microwaves

  • Latch-door for Jenn-Air JMDFS24HM0 - Part W11610131

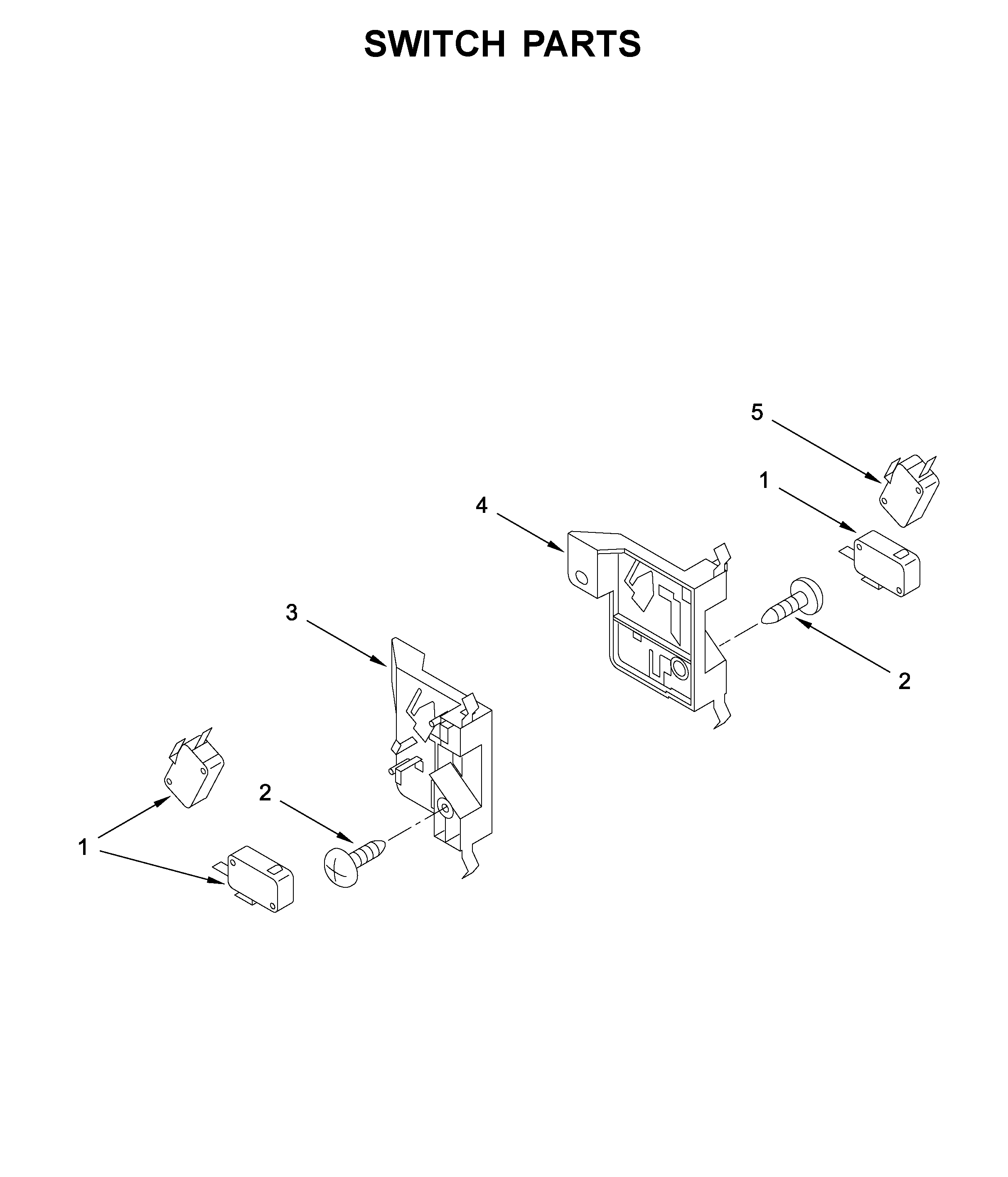

    Switch parts diagram

    Microwave Door Latch

    Part #W11201858

    Replaced by #W11610131

    Info Icon
    Manufacturer substitution
    This part replaces W11201858. Substitute parts can look different from the original.
    In Stock
    $40.29
    Minus Item
    Qty
    Plus Item
  • Switch for Jenn-Air JMDFS24HM0 - Part W11397156

    Switch parts diagram

    Switch

    Part #W11199805

    Replaced by #W11397156

    Info Icon
    Manufacturer substitution
    This part replaces W11199805. Substitute parts can look different from the original.
    In Stock
    $63.23
    Minus Item
    Qty
    Plus Item
  • Door/mw for Jenn-Air JMDFS24HM0 - Part W11690866

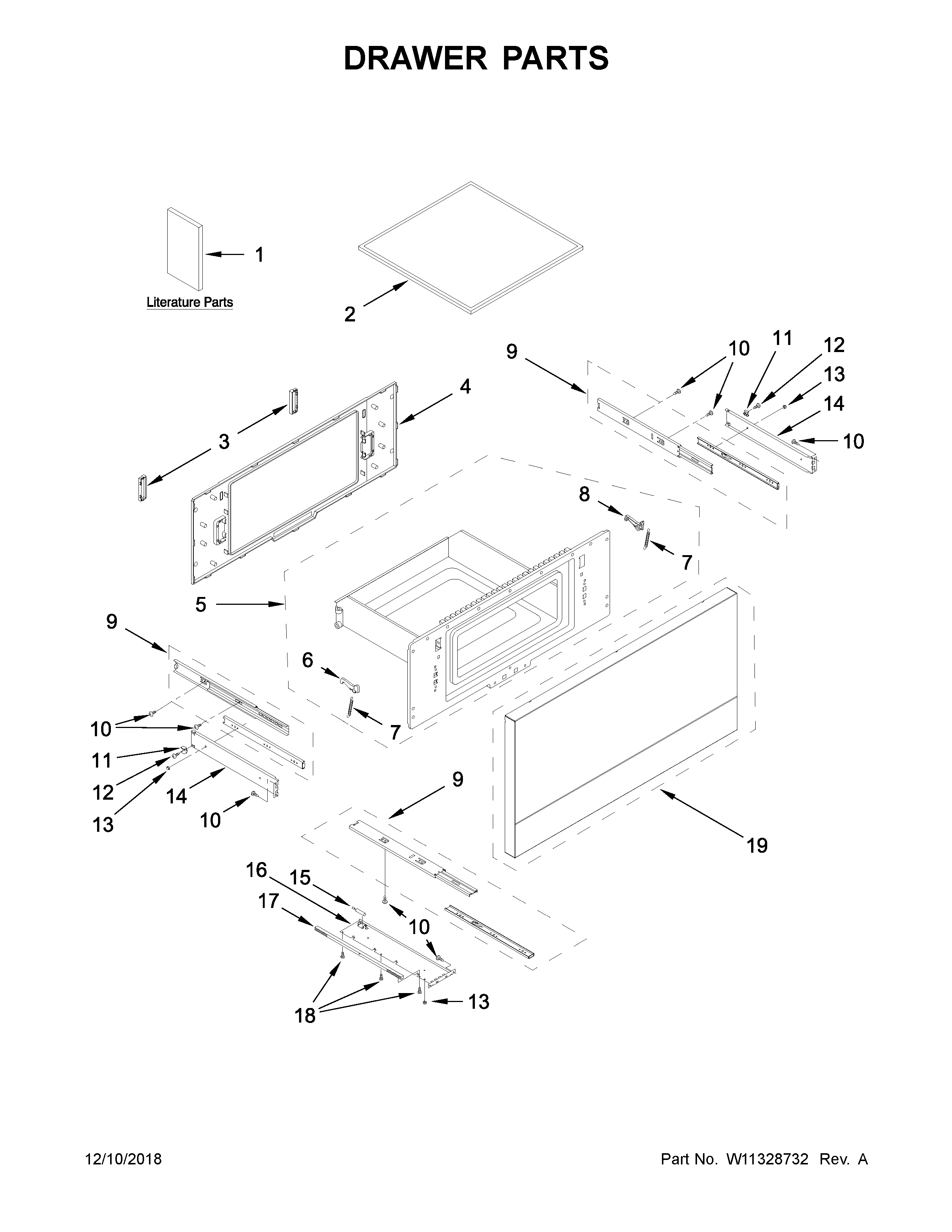

    Drawer parts diagram

    Kitchenaid Microwave Drawer Assembly

    Part #W11315618

    Replaced by #W11690866

    Info Icon
    Manufacturer substitution
    This part replaces W11315618. Substitute parts can look different from the original.
    In Stock
    $297.33
    Minus Item
    Qty
    Plus Item
  • Svc - Psu- D for Jenn-Air JMDFS24HM0 - Part W11486781

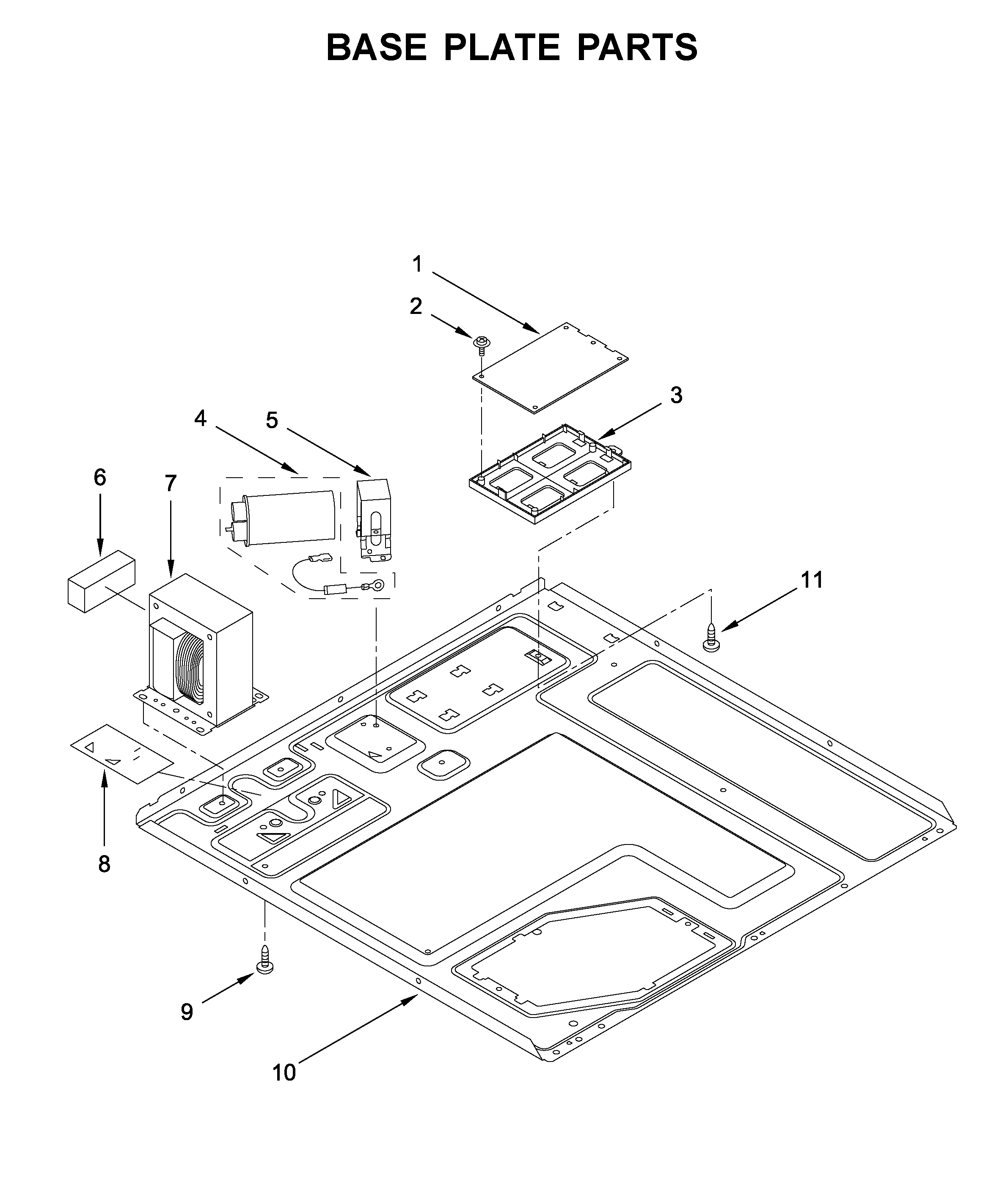

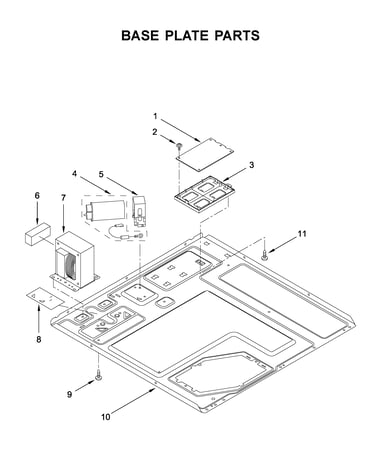

    Base plate parts diagram

    Electronic Control

    Part #W11199538

    Replaced by #W11486781

    Info Icon
    Manufacturer substitution
    This part replaces W11199538. Substitute parts can look different from the original.
    In Stock
    $268.81
    Minus Item
    Qty
    Plus Item
  • Capactr-mg for Jenn-Air JMDFS24HM0 - Part W11316904

    Base plate parts diagram

    Capacitor, High Voltage

    Part #W11305897

    Replaced by #W11316904

    Info Icon
    Manufacturer substitution
    This part replaces W11305897. Substitute parts can look different from the original.
    In Stock
    $137.26
    Minus Item
    Qty
    Plus Item
  • Covr-choke for Jenn-Air JMDFS24HM0 - Part W11201870

    Drawer parts diagram

    Covr-choke

    Part #W11201870
    In Stock
    $114.80
    Minus Item
    Qty
    Plus Item
  • Thermostat for Jenn-Air JMDFS24HM0 - Part W11199547

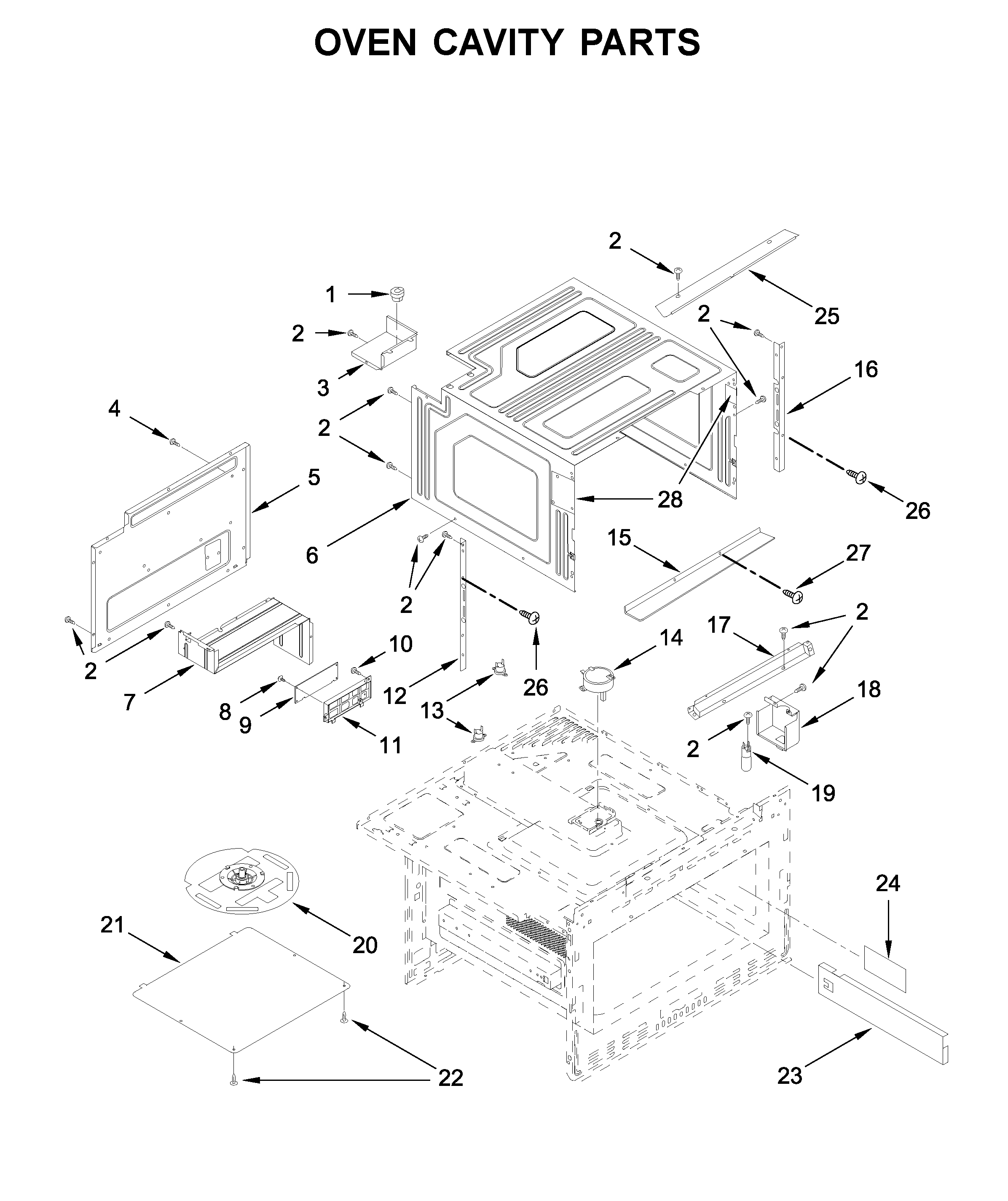

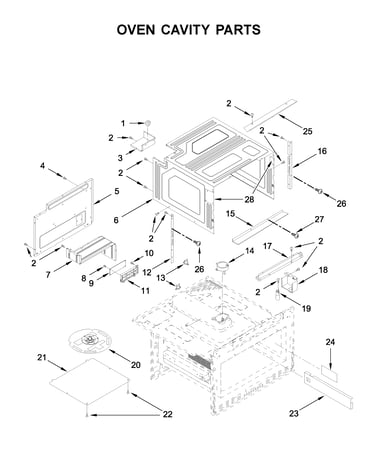

    Oven cavity parts diagram

    Thermostat

    Part #W11199547
    In Stock
    $100.39
    Minus Item
    Qty
    Plus Item
  • Screw for Jenn-Air JMDFS24HM0 - Part 8185369

    Screw

    Part #8185369
    In Stock
    $96.64
    Minus Item
    Qty
    Plus Item
  • Motor-stir for Jenn-Air JMDFS24HM0 - Part W11199546

    Oven cavity parts diagram

    Motor-stir

    Part #W11199546
    In Stock
    $133.20
    Minus Item
    Qty
    Plus Item
  • Base for Jenn-Air JMDFS24HM0 - Part W11201391

    Base plate parts diagram

    Base

    Part #W11201391
    In Stock
    $163.08
    Minus Item
    Qty
    Plus Item
