Model # DCR-DVD103 Official Sony digital camcorder

Here are the diagrams and repair parts for Official Sony DCR-DVD103 digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

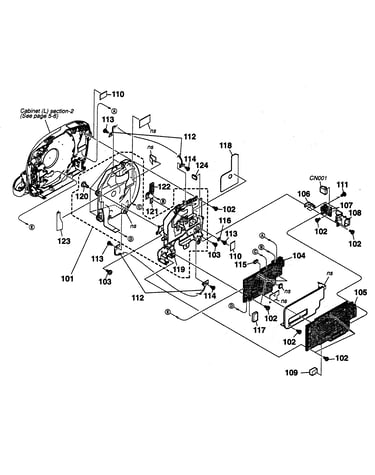

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |
Termnl Brd 178006421
#NI

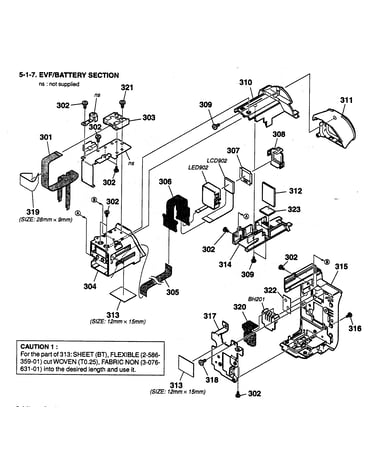

Evf/battery section diagram

Termnl brd

Part #178006421

The manufacturer no longer makes this part, and there's no substitute part

Remote Control 147849621
#NI

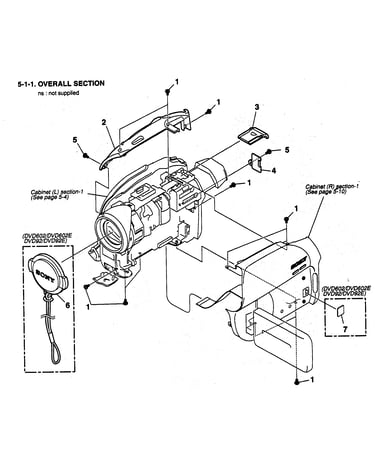

Cabinet parts diagram

Remote control

Part #147849621

The manufacturer no longer makes this part, and there's no substitute part

Guide Light 147907911
#NI

Cabinet r section 2 diagram

Guide light

Part #147907911

Replaced by #147907911

?
Manufacturer substitution
This part replaces 147907911. Substitute parts can look different from the original.
$97.10
In Stock
Motor 178723711
#153

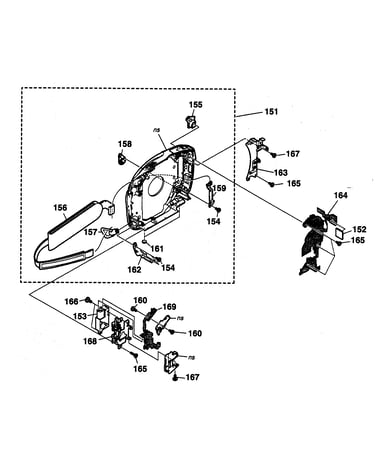

Cabinet l section diagram

Motor

Part #178723711

The manufacturer no longer makes this part, and there's no substitute part

Key Block 147906321
#409

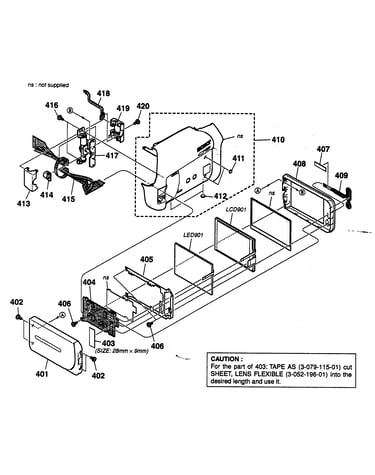

Cabinet r section 2 diagram

Key block

Part #147906321

The manufacturer no longer makes this part, and there's no substitute part

Ck-148 Pcb A1104069A
#354

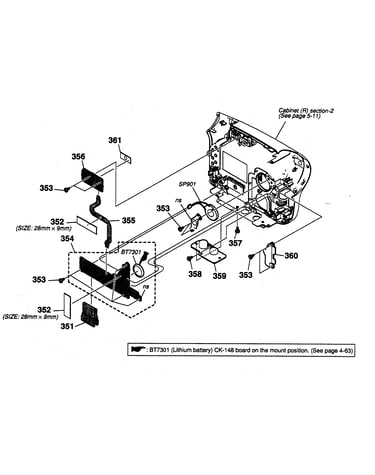

Cabinet r section diagram

Ck-148 pcb

Part #A1104069A

The manufacturer no longer makes this part, and there's no substitute part

Jack Cover 258635401
#211A

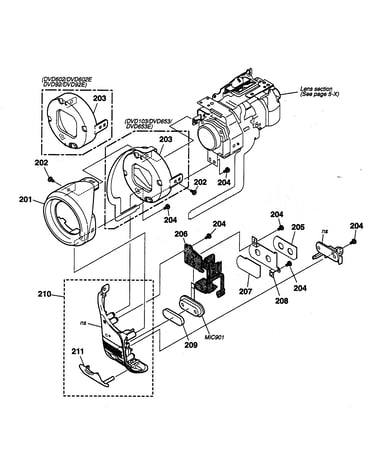

Lens f panel section diagram

Jack cover

Part #258635401

Replaced by #258635401

?
Manufacturer substitution
This part replaces 258635401. Substitute parts can look different from the original.
$14.79
In Stock
Flex Cable 186378711
#305

Evf/battery section diagram

Flex cable

Part #186378711

The manufacturer no longer makes this part, and there's no substitute part

Ac Cord 179010722
#NI

Cabinet parts diagram

Ac cord

Part #179010722

The manufacturer no longer makes this part, and there's no substitute part

Frame X20504331
#252

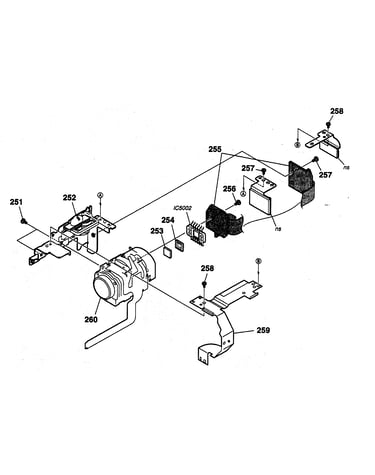

Lens section diagram

Frame

Part #X20504331

Replaced by #X20504331

?
Manufacturer substitution
This part replaces X20504331. Substitute parts can look different from the original.
$27.54
In Stock
