Sharp AF-S80DX air conditioner Parts

Here are the diagrams and repair parts for Sharp AF-S80DX air conditioner, as well as links to manuals and error code tables, if available.

Sharp AF-S80DX air conditioner

By Schematic

SELECT DIAGRAM

Browse Parts for AF-S80DX Air Conditioner

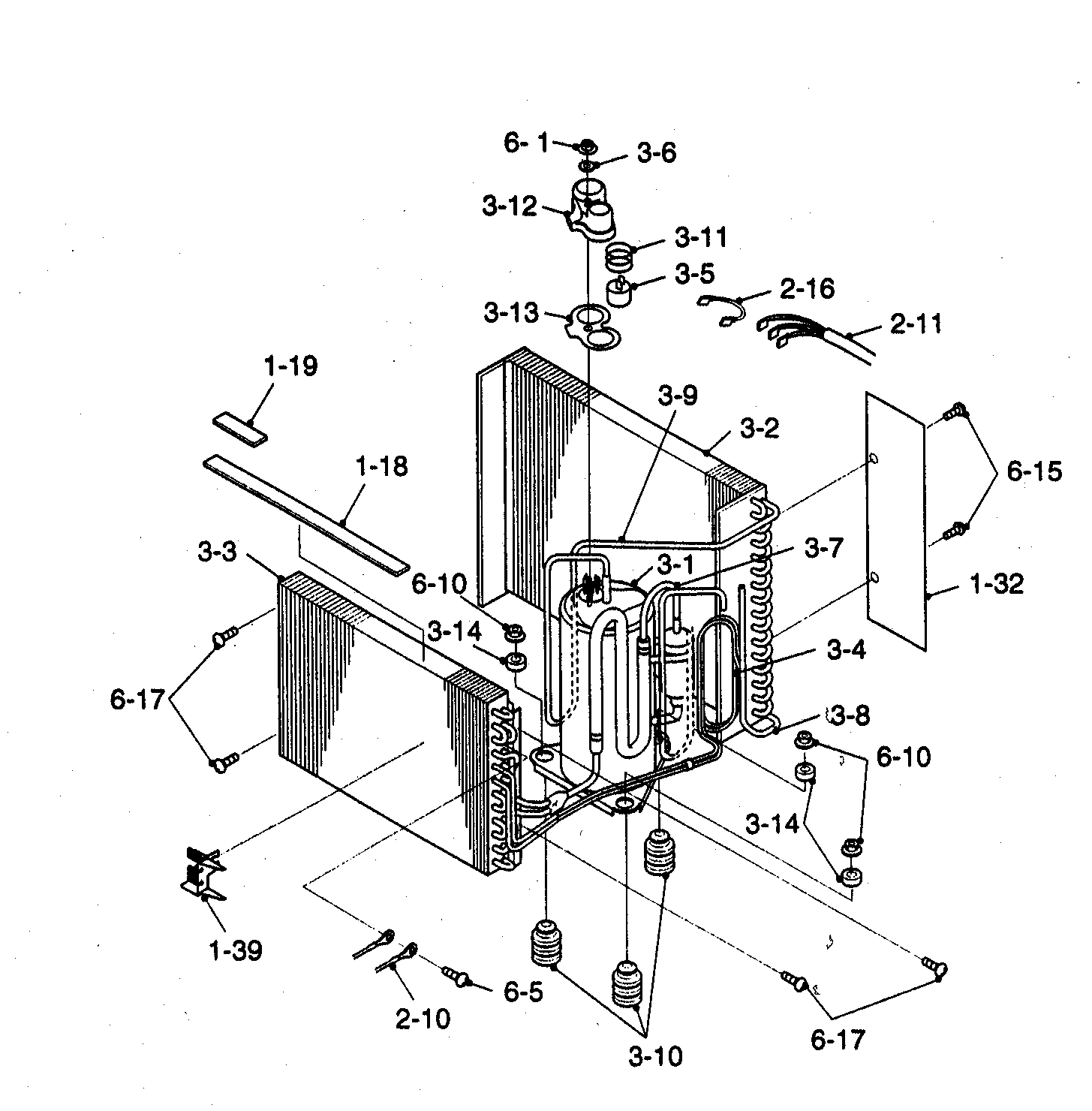

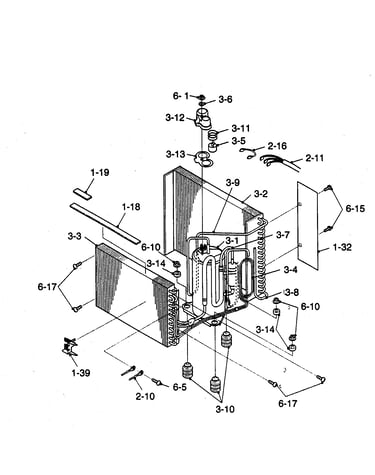

Cycle parts diagram
Condenser
Part #PCON-A436JBEZ
The manufacturer no longer makes this part, and there's no substitute part

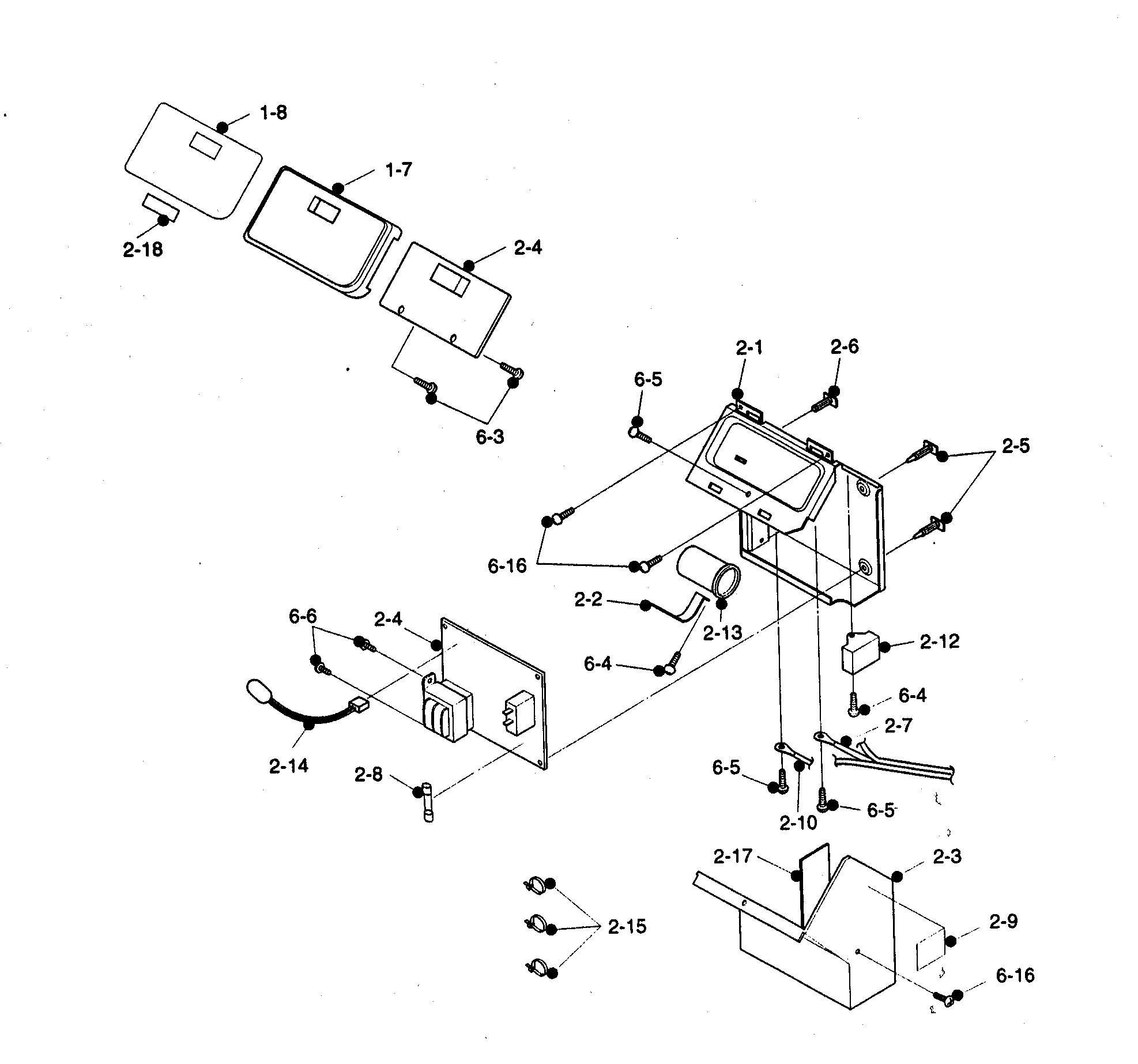

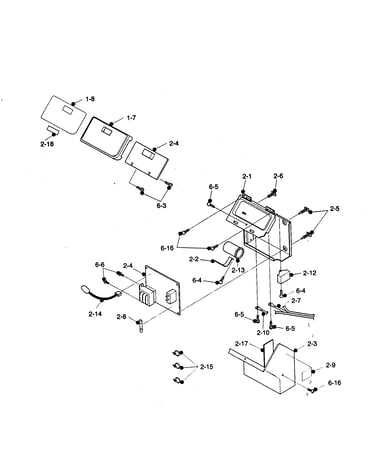

Control box diagram
Insulating Sheet
Part #PPLT-A300JBEZ
The manufacturer no longer makes this part, and there's no substitute part

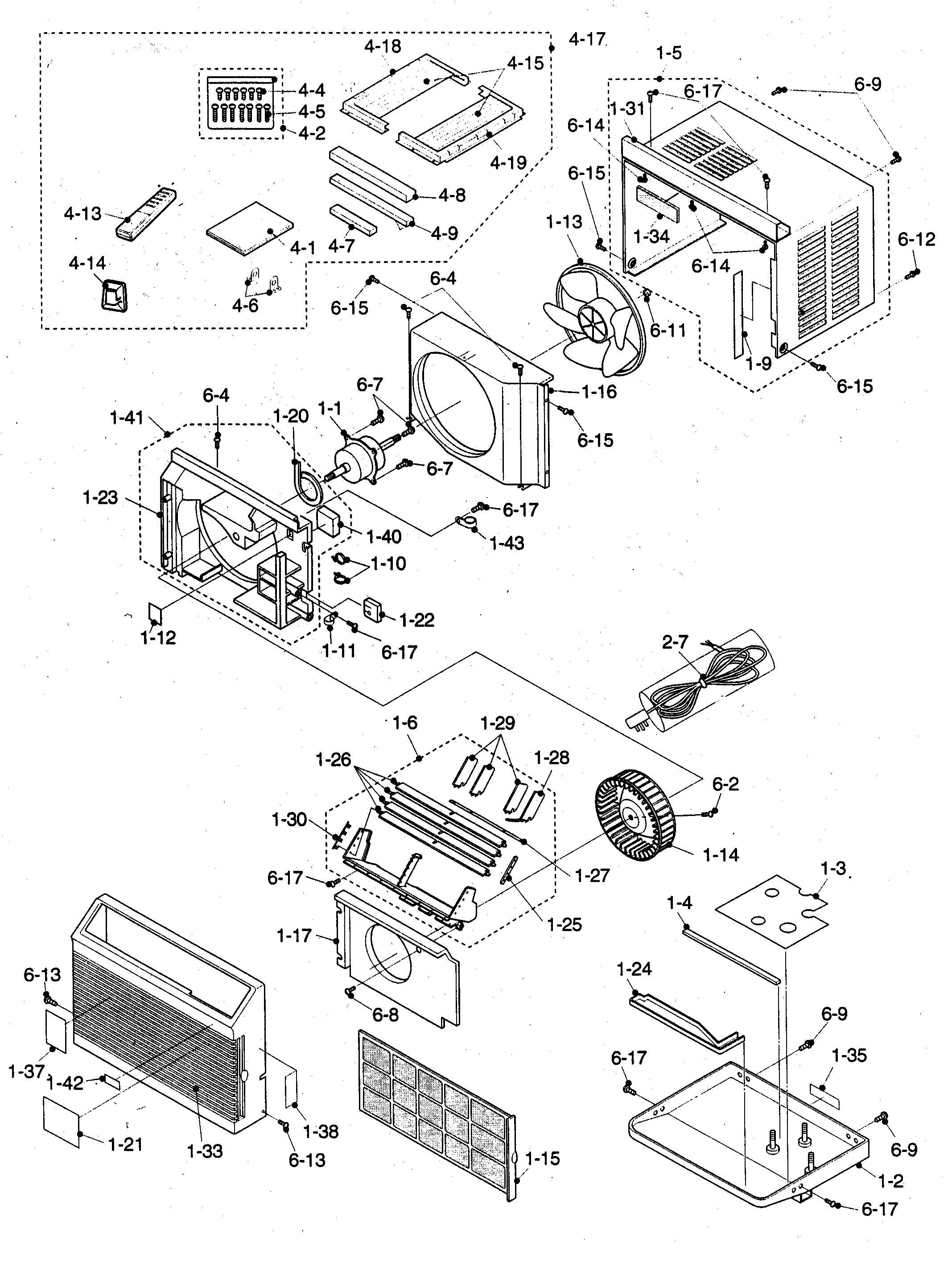

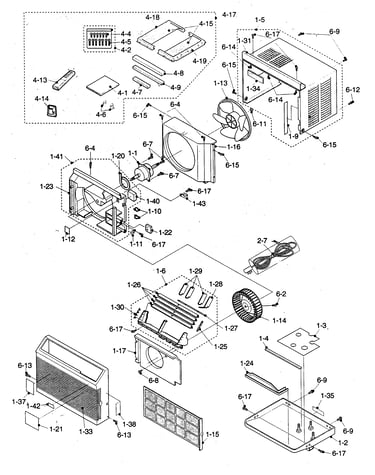

Cabinet parts diagram
Insulator
Part #PSEL-B845JBE0
The manufacturer no longer makes this part, and there's no substitute part
Control box diagram
Spacer
Part #PSPA-A085JBE0
The manufacturer no longer makes this part, and there's no substitute part
Cycle parts diagram
Suction Tube Assembly
Part #CPIP-A020JBKZ
The manufacturer no longer makes this part, and there's no substitute part
Control box diagram
Control Panel
Part #HPNLCA805JBFE
The manufacturer no longer makes this part, and there's no substitute part
Cycle parts diagram
Seal
Part #PSEL-A994JBE0
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Front Panel
Part #GWAKPA151JBFC
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Bulkhead Assembly
Part #DSKR-A124JBKZ
The manufacturer no longer makes this part, and there's no substitute part
Control box diagram
Plate
Part #DPLT-A038JBW0
