Model # 580327321 Official Craftsman portable alternator

Here are the diagrams and repair parts for Official Craftsman 580327321 portable alternator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

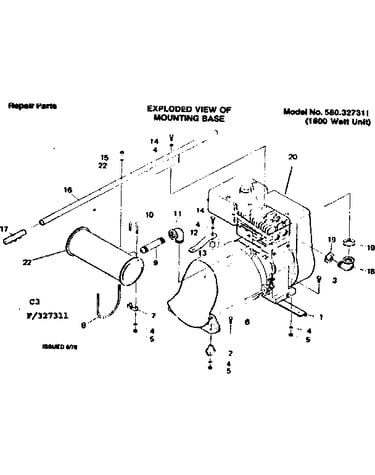

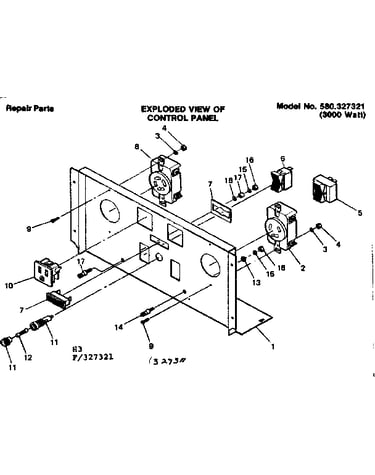

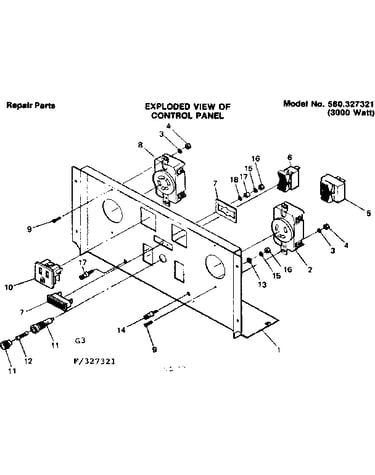

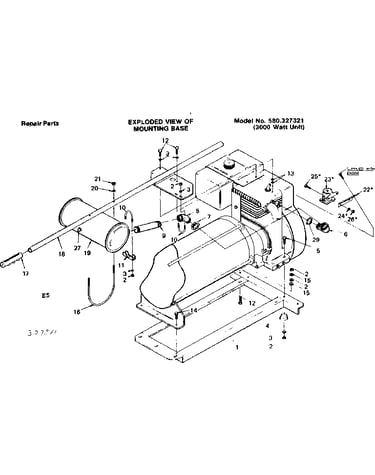

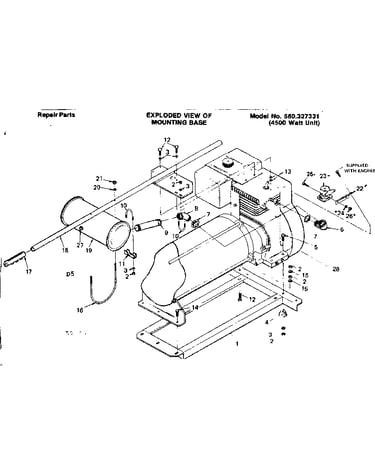

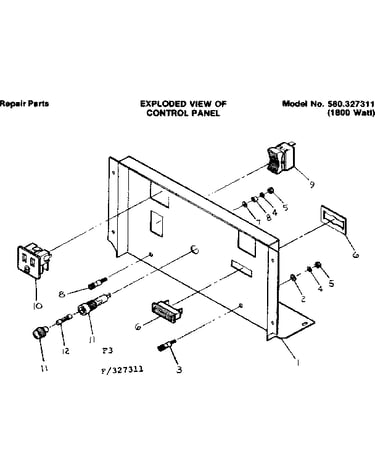

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 110 parts  |

Plug 43483

#NI

All parts diagram

Plug

Part #43483

Replaced by #100522GS

?
Manufacturer substitution
This part replaces 43483. Substitute parts can look different from the original.
This item is not returnable
$35.79
12% OFF Phone Price : $40.79
In Stock
Washer 22145
Washer

Part #22145

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 22129
Lock washer

Part #22129

The manufacturer no longer makes this part, and there's no substitute part

Screw 24421
#16A

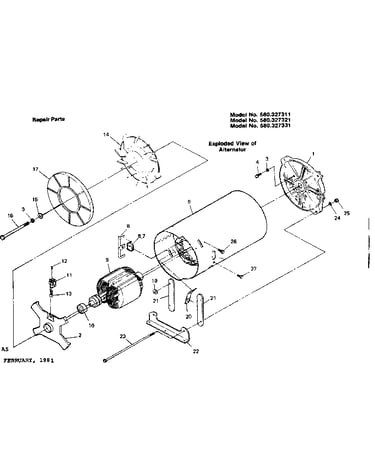

Alternator diagram

Screw

Part #24421

Replaced by #24421GS

?
Manufacturer substitution
This part replaces 24421. Substitute parts can look different from the original.
In Stock
Fan Cover 44357
#17

Alternator diagram

Fan cover

Part #44357

Replaced by #44357GS

?
Manufacturer substitution
This part replaces 44357. Substitute parts can look different from the original.
$25.51
16% OFF Phone Price : $30.51
In Stock
Housing 22694
#7

Alternator diagram

Housing

Part #22694

Replaced by #22694GS

?
Manufacturer substitution
This part replaces 22694. Substitute parts can look different from the original.
$9.99
9% OFF Phone Price : $10.99
In Stock
Outlet 37807
Outlet

Part #37807

Replaced by #705932

?
Manufacturer substitution
This part replaces 37807. Substitute parts can look different from the original.
In Stock
Binding Post 25367
Binding post

Part #25367

Replaced by #25367GS

?
Manufacturer substitution
This part replaces 25367. Substitute parts can look different from the original.
In Stock
Cap Screw 22142
Cap screw

Part #22142

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 26772
Lock nut

Part #26772

Replaced by #691808

?
Manufacturer substitution
This part replaces 26772. Substitute parts can look different from the original.
This item is not returnable
In Stock
