Model # TC-P55UT50 Official Panasonic plasma television

Here are the diagrams and repair parts for Official Panasonic TC-P55UT50 plasma television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

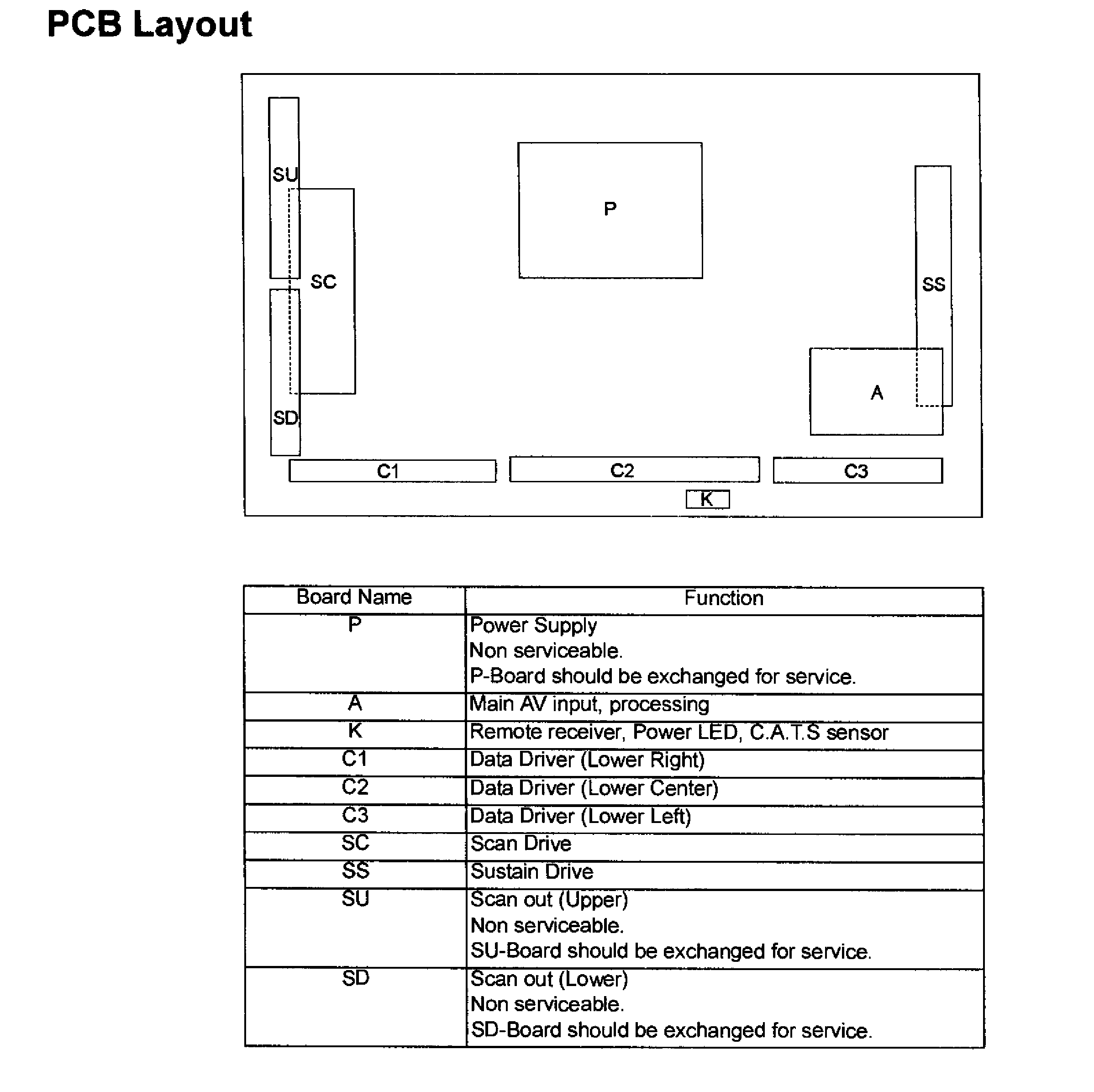

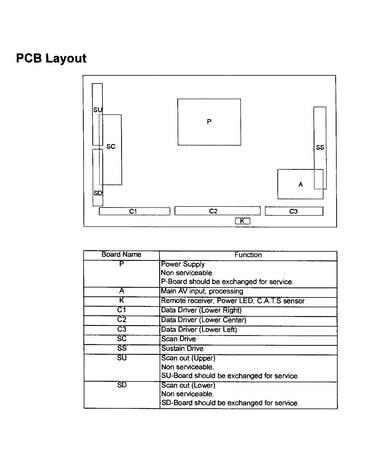

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |
Remote N2QAYB000704
#43

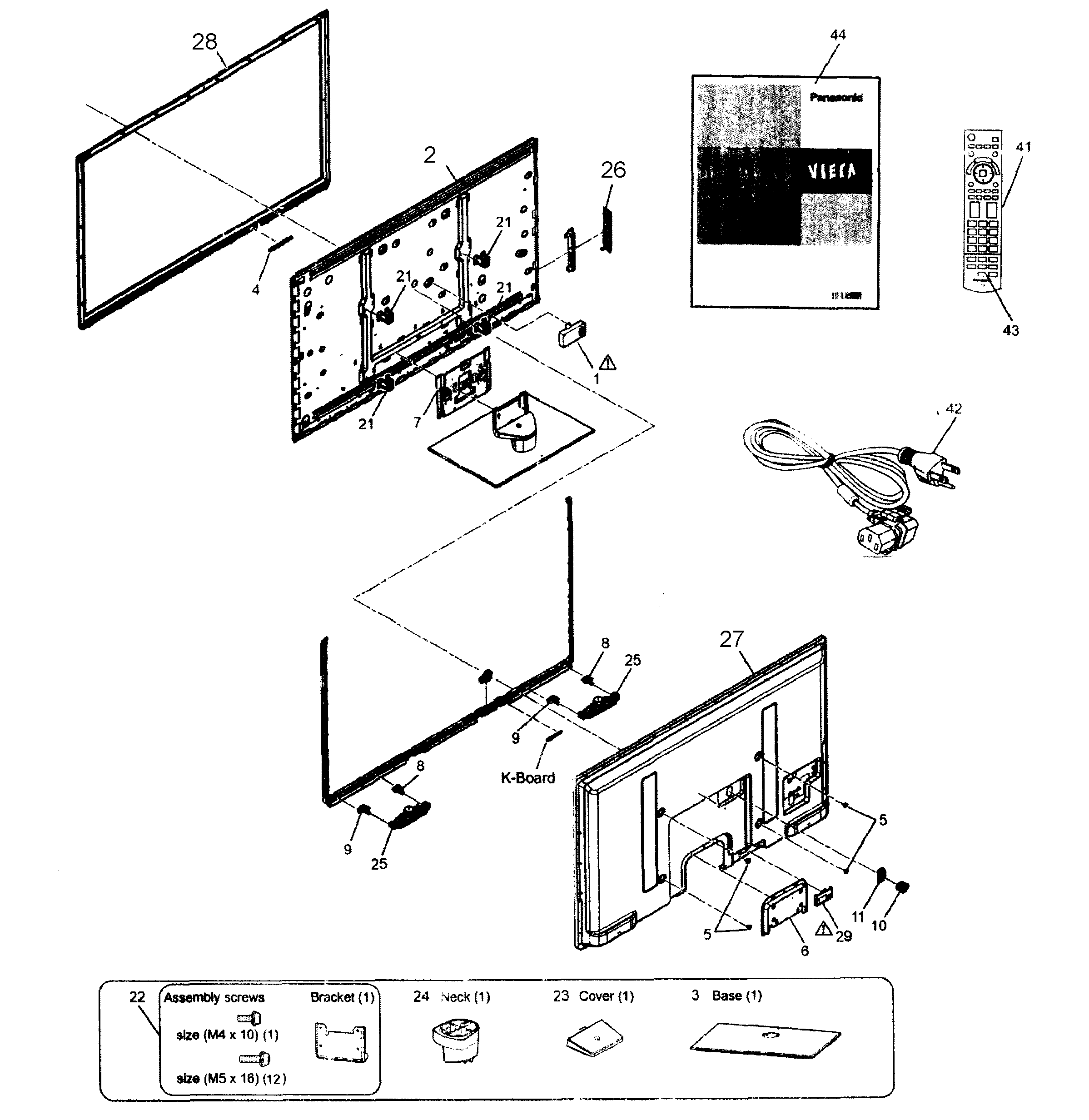

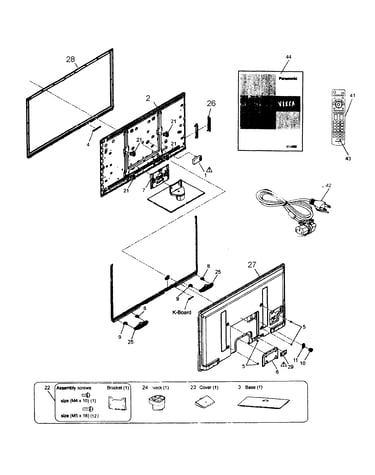

Cabinet parts diagram

Remote

Part #N2QAYB000704

The manufacturer no longer makes this part, and there's no substitute part

Speaker Bracket TMW2AA003
#8

Cabinet parts diagram

Speaker bracket

Part #TMW2AA003

The manufacturer no longer makes this part, and there's no substitute part

Clamp TMXX073
#10

Cabinet parts diagram

Clamp

Part #TMXX073

The manufacturer no longer makes this part, and there's no substitute part

Rr Cabinet TXFKU3512SER
#27

Cabinet parts diagram

Rr cabinet

Part #TXFKU3512SER

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit C3ABUY000022
#NI

Cabinet parts diagram

Integrated circuit

Part #C3ABUY000022

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit C0DBZYY00541
#NI

Cabinet parts diagram

Integrated circuit

Part #C0DBZYY00541

The manufacturer no longer makes this part, and there's no substitute part

Cable (c10 TSCLZ0010016
#34

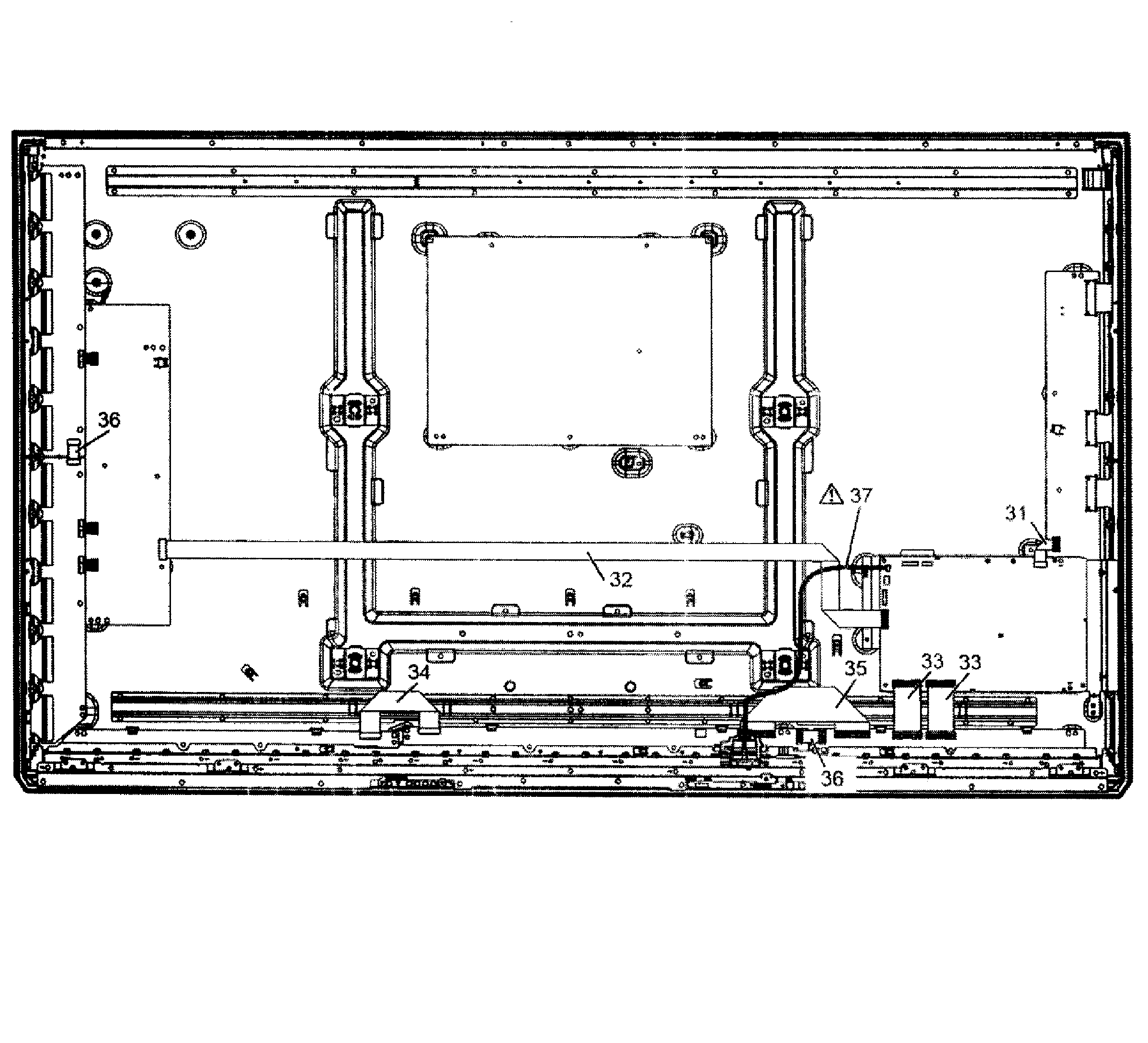

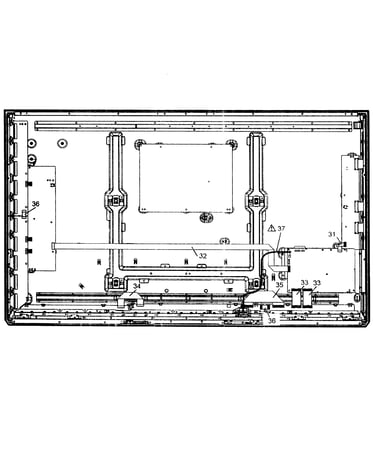

Cables assy diagram

Cable (c10

Part #TSCLZ0010016

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit B3PBE0000060
#NI

Cabinet parts diagram

Integrated circuit

Part #B3PBE0000060

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit C0DBAYY01299
#NI

Cabinet parts diagram

Integrated circuit

Part #C0DBAYY01299

The manufacturer no longer makes this part, and there's no substitute part

Cable TSXM217
#36

Cables assy diagram

Cable

Part #TSXM217

The manufacturer no longer makes this part, and there's no substitute part
