Model # 70221957 Official Sears single handle kitchen faucet

Here are the diagrams and repair parts for Official Sears 70221957 single handle kitchen faucet, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 30 parts |

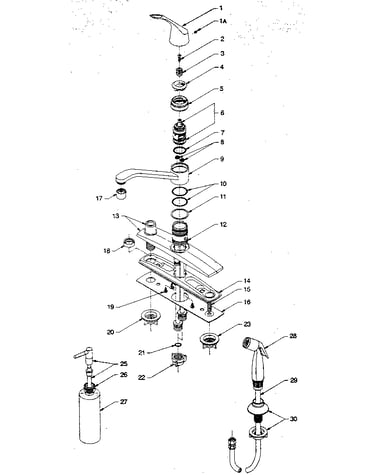

Unit parts diagram

Repair kit

Part #VP2197

The manufacturer no longer makes this part, and there's no substitute part

Unit parts diagram

Handle screw

Part #VP1929

The manufacturer no longer makes this part, and there's no substitute part

#1A

Unit parts diagram

Faucet set screw

Part #V7719

The manufacturer no longer makes this part, and there's no substitute part

#17

Unit parts diagram

Faucet aerator

Part #V7068

The manufacturer no longer makes this part, and there's no substitute part

#15

Unit parts diagram

Bolt

Part #V1282

The manufacturer no longer makes this part, and there's no substitute part

#19

Unit parts diagram

Handle screw

Part #V1818

The manufacturer no longer makes this part, and there's no substitute part

#23

Unit parts diagram

Mounting nut

Part #V1349

The manufacturer no longer makes this part, and there's no substitute part

#25

Unit parts diagram

Pump assembly

Part #V6670

The manufacturer no longer makes this part, and there's no substitute part

#11

Unit parts diagram

Hub bearing

Part #VP1910

The manufacturer no longer makes this part, and there's no substitute part

#31

Unit parts diagram

Manual (not shown)

Part #V7341

The manufacturer no longer makes this part, and there's no substitute part
