York H4TS030S06A h4ts stealth condensing unit Parts
Here are the diagrams and repair parts for York H4TS030S06A h4ts stealth condensing unit, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for H4TS030S06A H4TS Stealth Condensing Unit

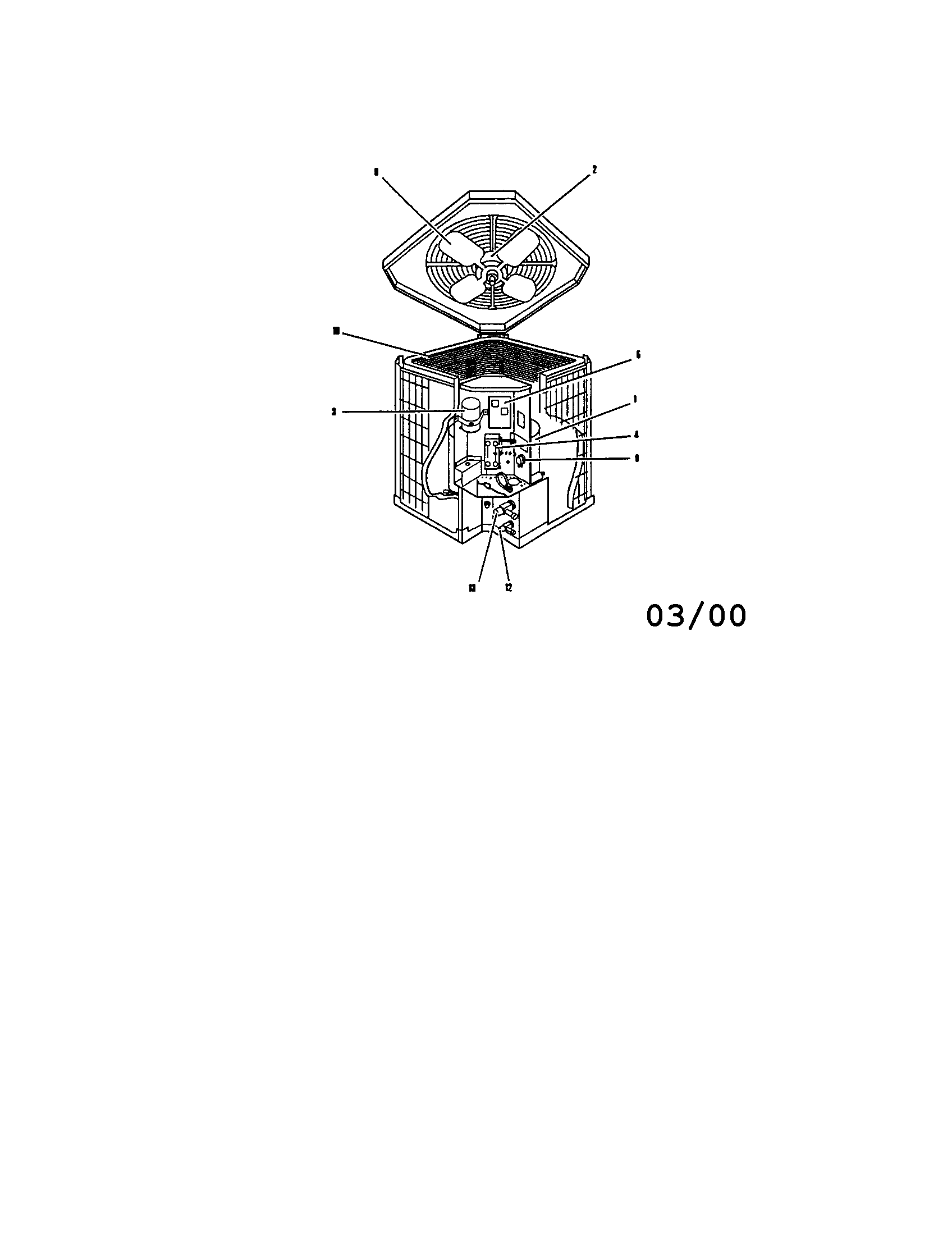

Condensing unit-fig. 1 diagram
Contactor
Part #024-27531-000
The manufacturer no longer makes this part, and there's no substitute part

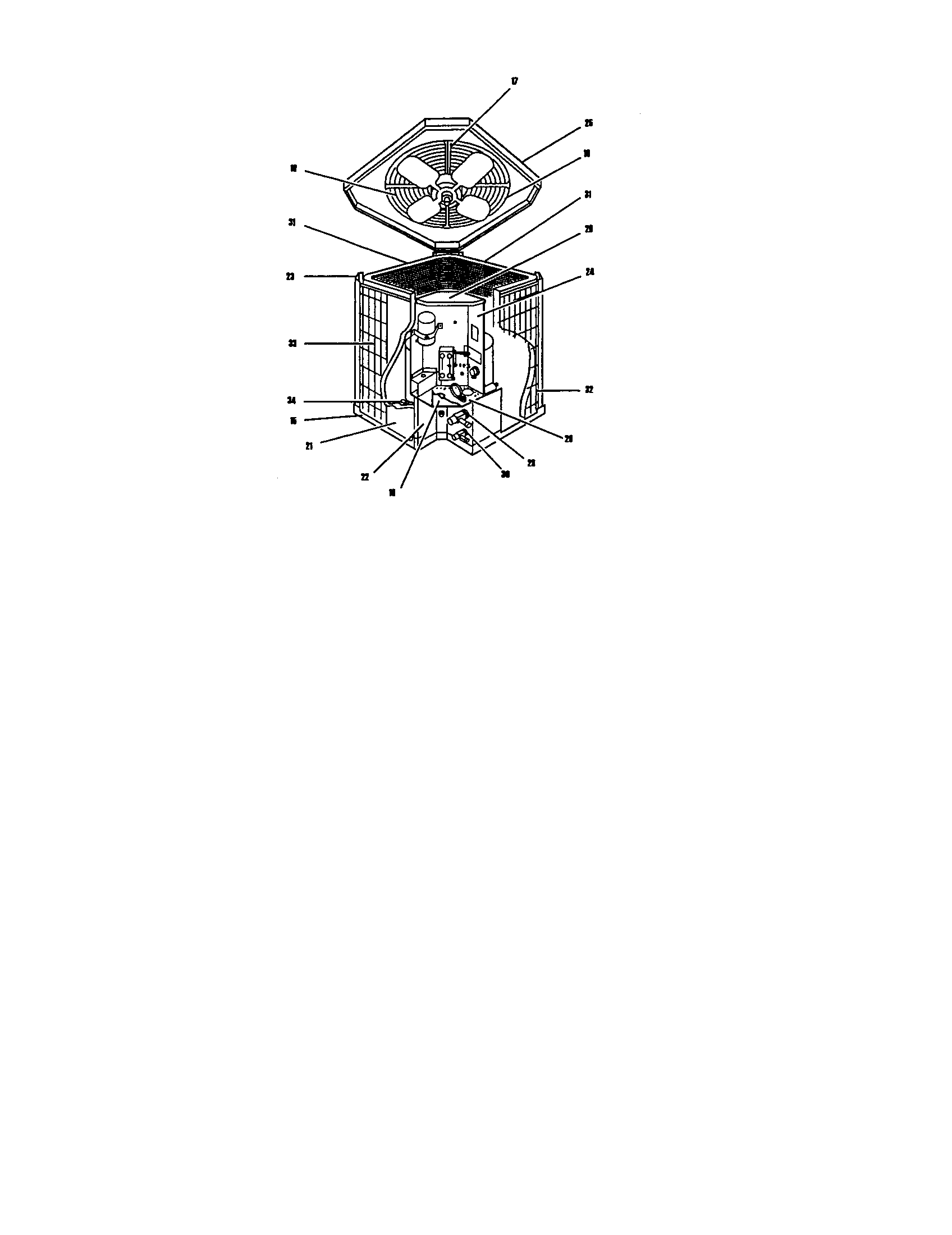

Condensing unit-fig.2 diagram
Pnl Top
Part #063-92845-000
The manufacturer no longer makes this part, and there's no substitute part
Condensing unit-fig.2 diagram
Panel, Electic Box
Part #073-15565-000
The manufacturer no longer makes this part, and there's no substitute part
Condensing unit-fig.2 diagram
Grille Fan
Part #026-24759-003
The manufacturer no longer makes this part, and there's no substitute part
Condensing unit-fig. 1 diagram
Control Board
Part #031-01913-000
The manufacturer no longer makes this part, and there's no substitute part
Accumulator
Part #N/P
The manufacturer no longer makes this part, and there's no substitute part
Condensing unit-fig.2 diagram
Mtd Kit
Part #363-90117-000
The manufacturer no longer makes this part, and there's no substitute part
Condensing unit-fig. 1 diagram
Muffler, Discharge
Part #026-35574-000
The manufacturer no longer makes this part, and there's no substitute part
Condensing unit-fig.2 diagram
Guard, Coil (30 X 15)
Part #026-35559-000
The manufacturer no longer makes this part, and there's no substitute part
Condensing unit-fig.2 diagram
Blanket Compressor
Part #010-06230-000
The manufacturer no longer makes this part, and there's no substitute part
