Model # P3UCB30N12206 Official York upflow furnace

Here are the diagrams and repair parts for Official York P3UCB30N12206 upflow furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |

Gas Valve 025-25437-000
#14

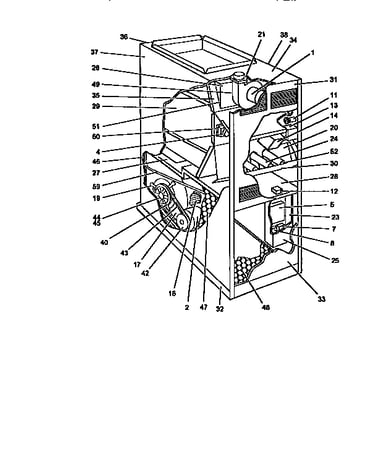

Hot surface ignition diagram

Gas valve

Part #025-25437-000

The manufacturer no longer makes this part, and there's no substitute part

Kit-ignito 473-12509-001
#6

Hot surface ignition diagram

Kit-ignito

Part #473-12509-001

The manufacturer no longer makes this part, and there's no substitute part

Furnace Blower Fan Wheel 026-23831-700
#18

Hot surface ignition diagram

Furnace blower fan wheel

Part #026-23831-700

The manufacturer no longer makes this part, and there's no substitute part

Term Electr 025-20919-900
#61

Hot surface ignition diagram

Term electr

Part #025-20919-900

The manufacturer no longer makes this part, and there's no substitute part

Top Panel 073-02366-007
#34

Hot surface ignition diagram

Top panel

Part #073-02366-007

The manufacturer no longer makes this part, and there's no substitute part

Bearing, Ball (2-req'd) 029-08623-700
#44

Hot surface ignition diagram

Bearing, ball (2-req'd)

Part #029-08623-700

The manufacturer no longer makes this part, and there's no substitute part

Air Filter 026-28048-005
#48

Hot surface ignition diagram

Air filter

Part #026-28048-005

The manufacturer no longer makes this part, and there's no substitute part

Fan 026-32067-700
#1

Hot surface ignition diagram

Fan

Part #026-32067-700

The manufacturer no longer makes this part, and there's no substitute part

Reducer 026-31243-000
#63

Hot surface ignition diagram

Reducer

Part #026-31243-000

The manufacturer no longer makes this part, and there's no substitute part

Tubing 028-11957-000
#64

Hot surface ignition diagram

Tubing

Part #028-11957-000

The manufacturer no longer makes this part, and there's no substitute part
