Model # SLT-A65VK Official Sony digital camera

Here are the diagrams and repair parts for Official Sony SLT-A65VK digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

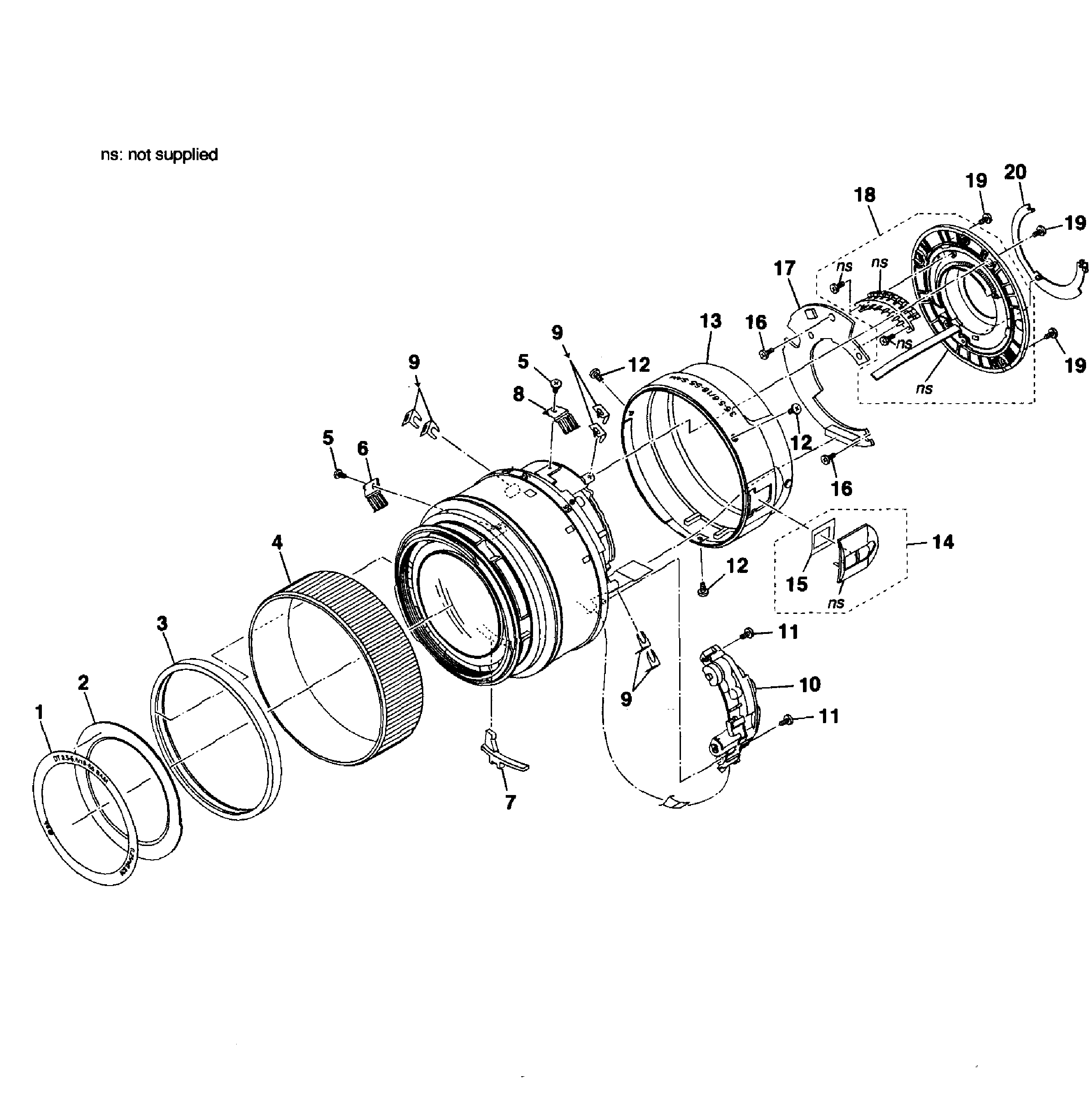

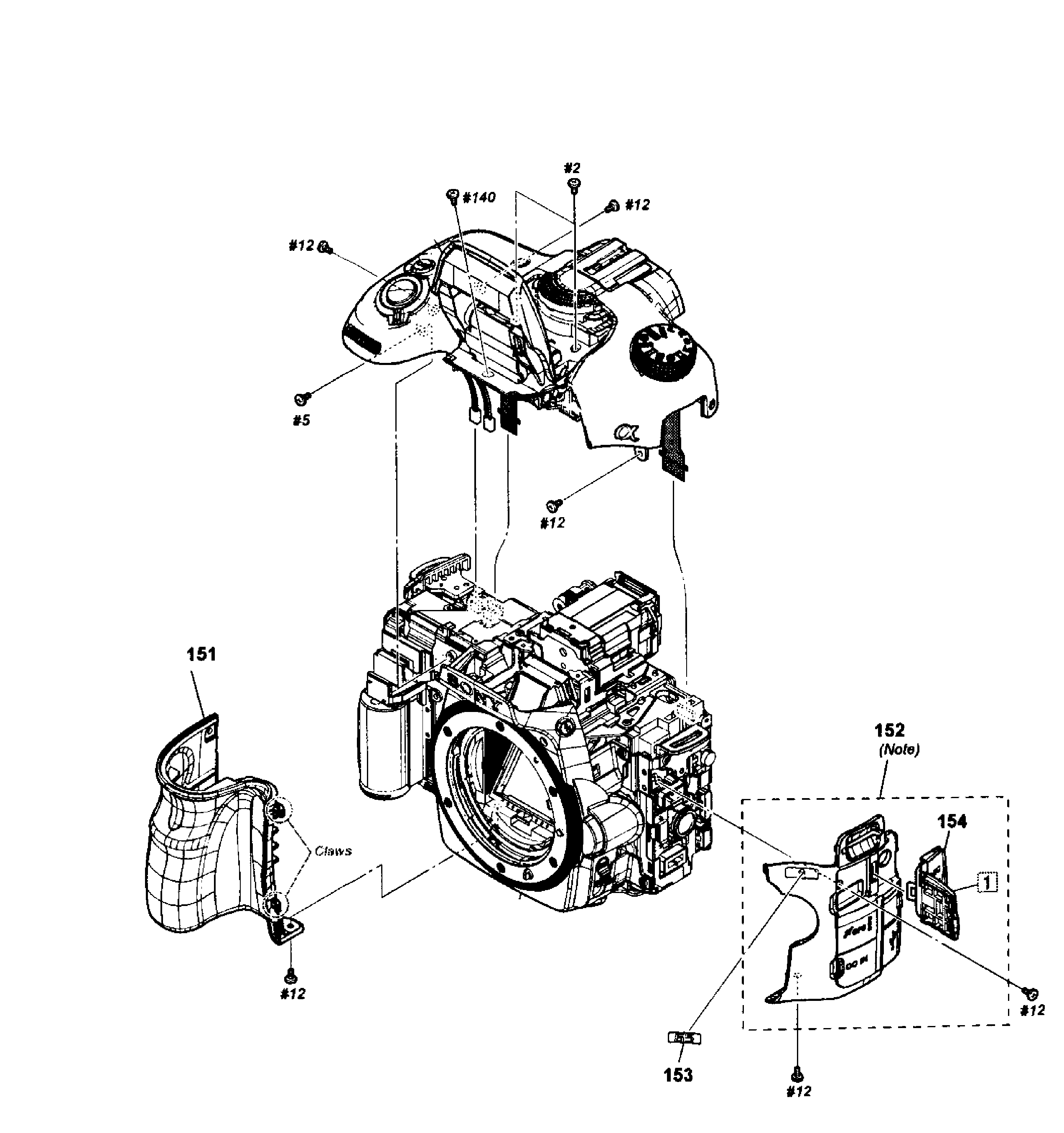

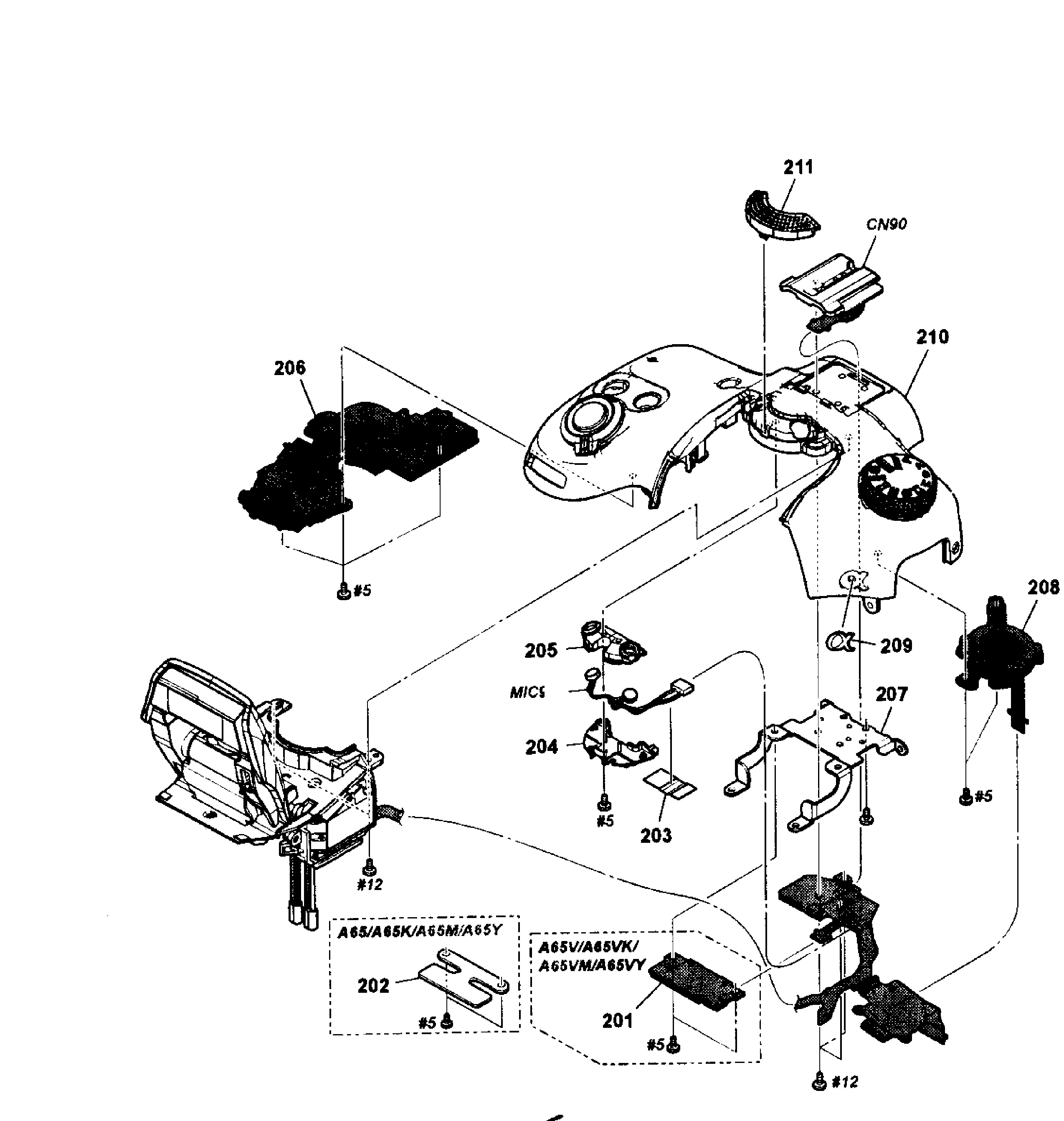

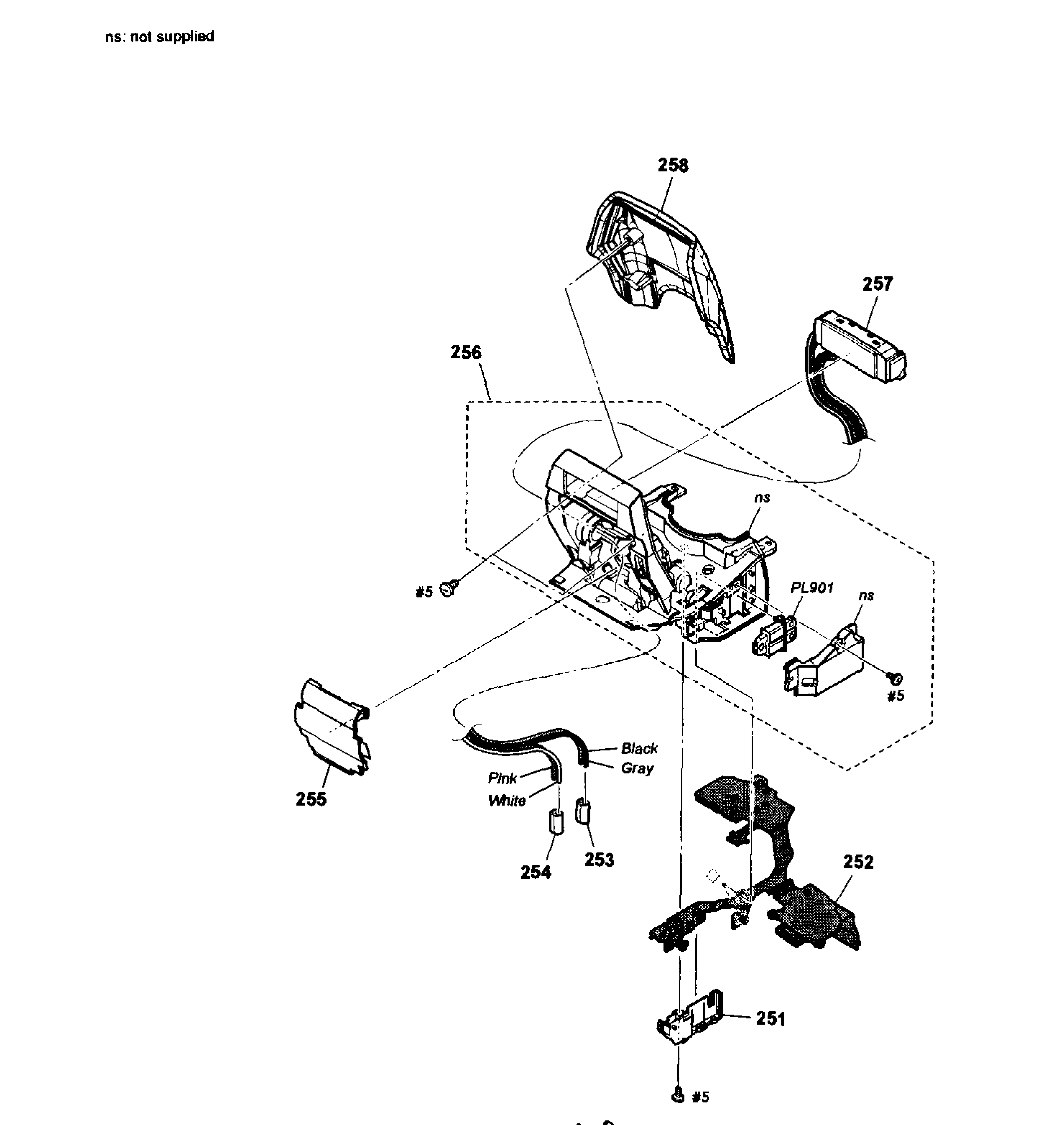

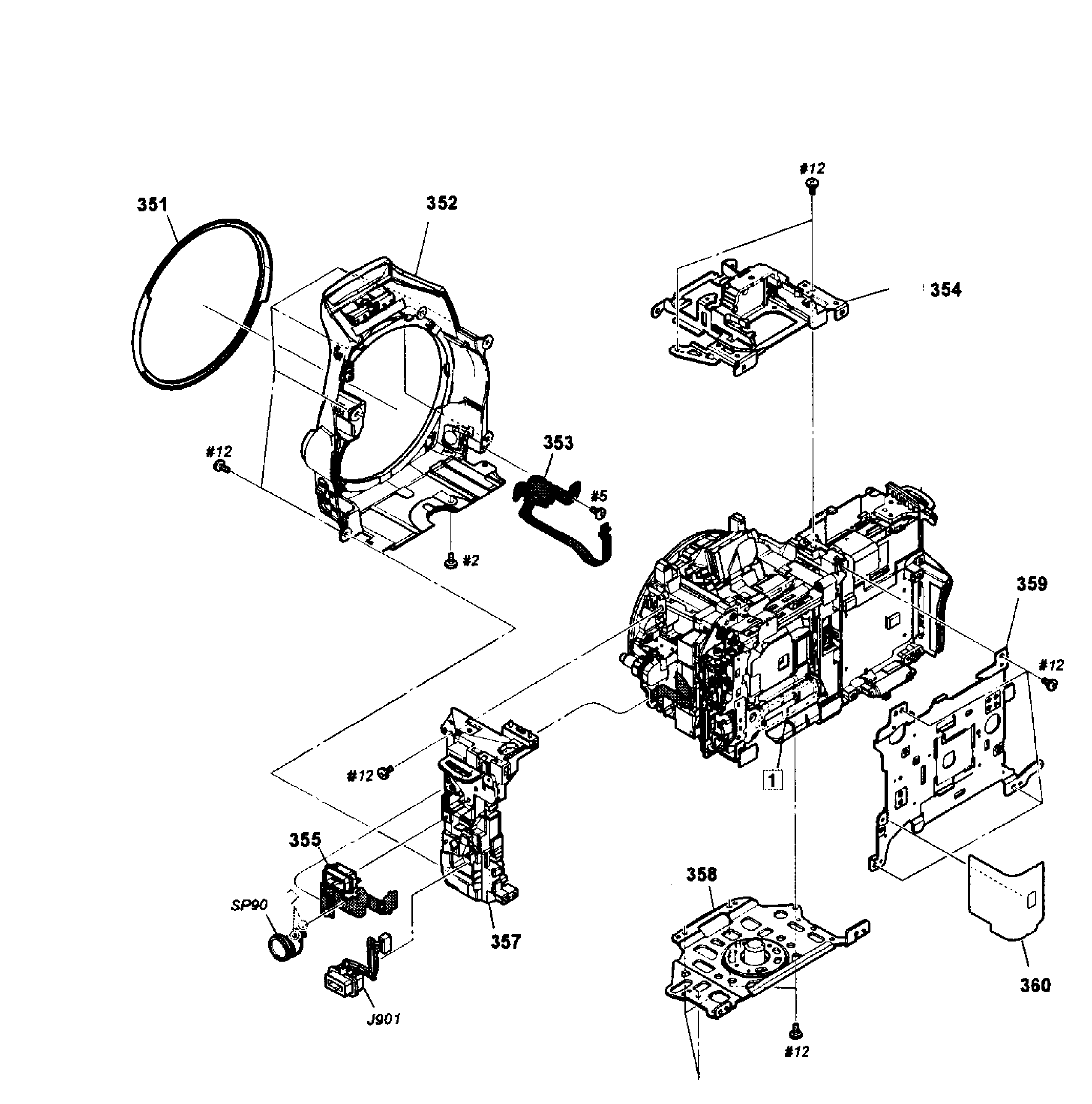

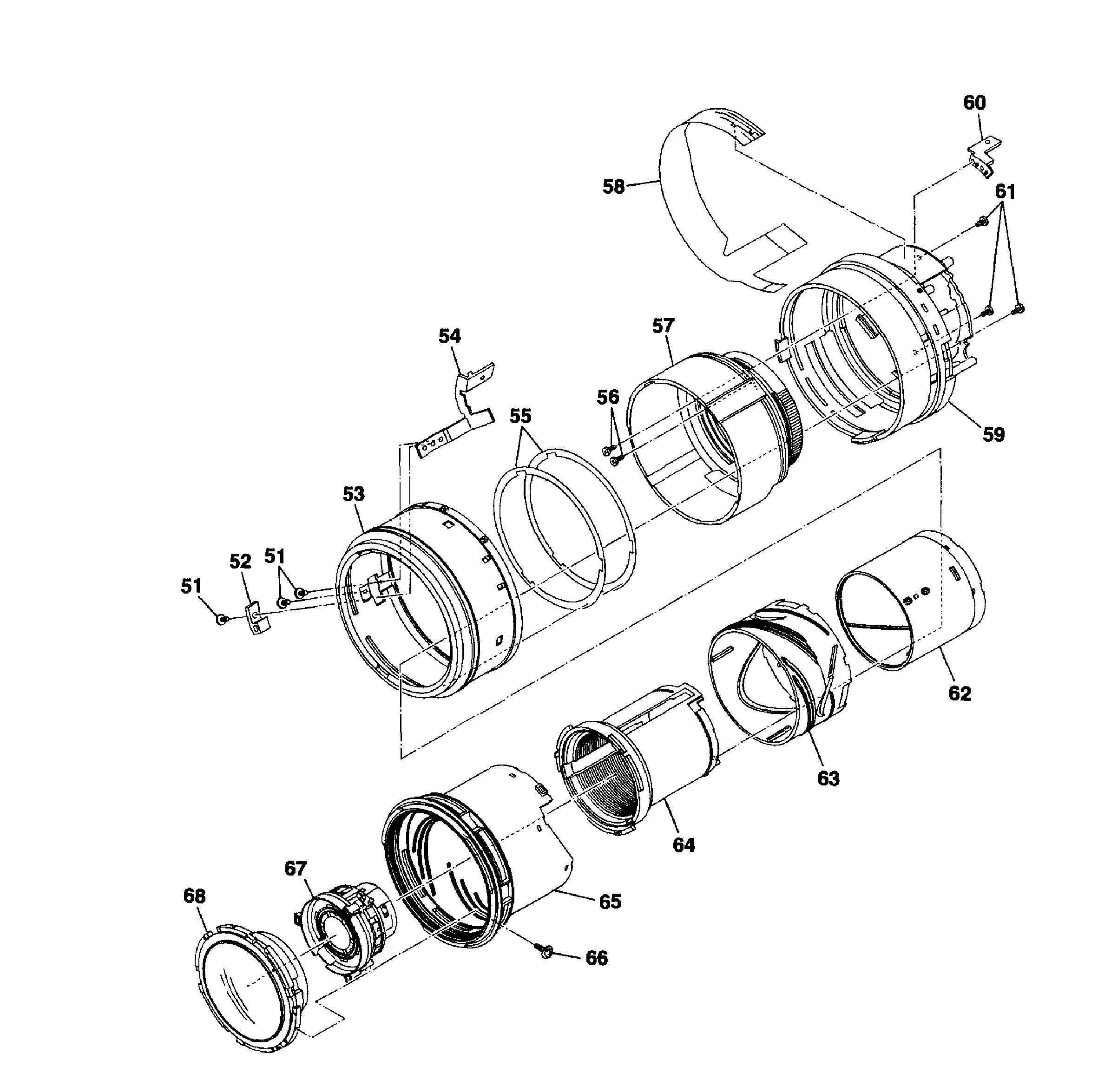

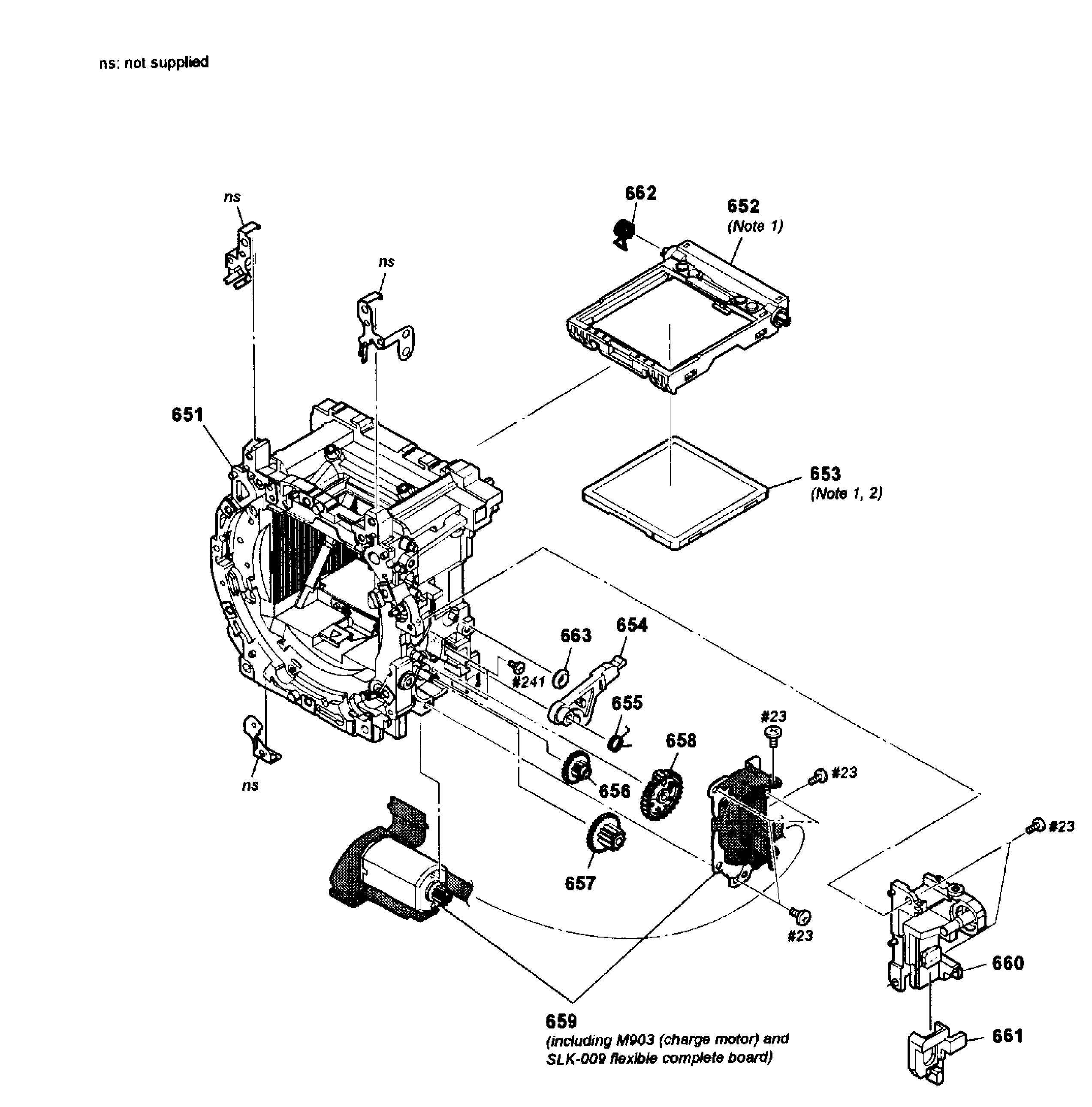

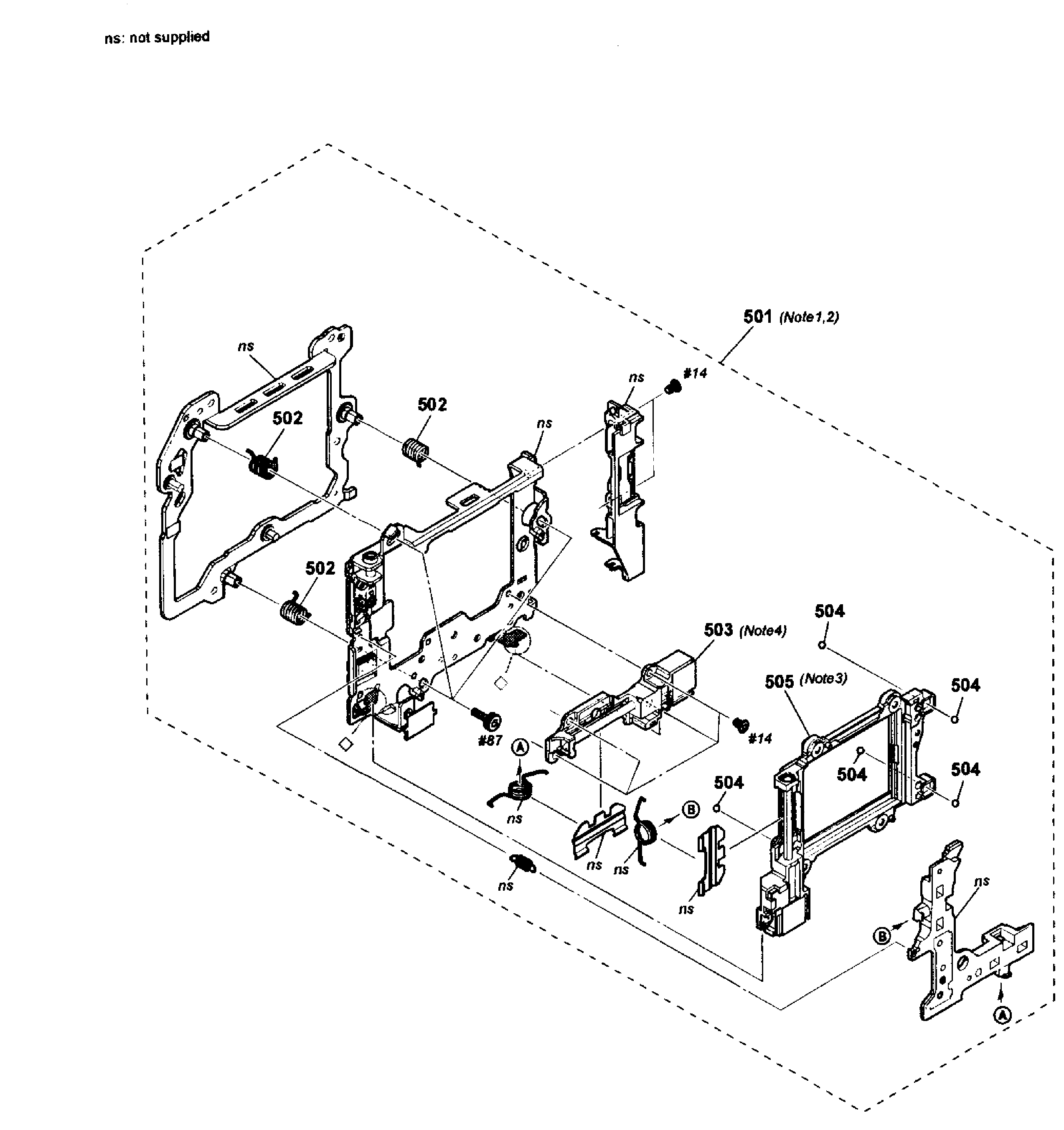

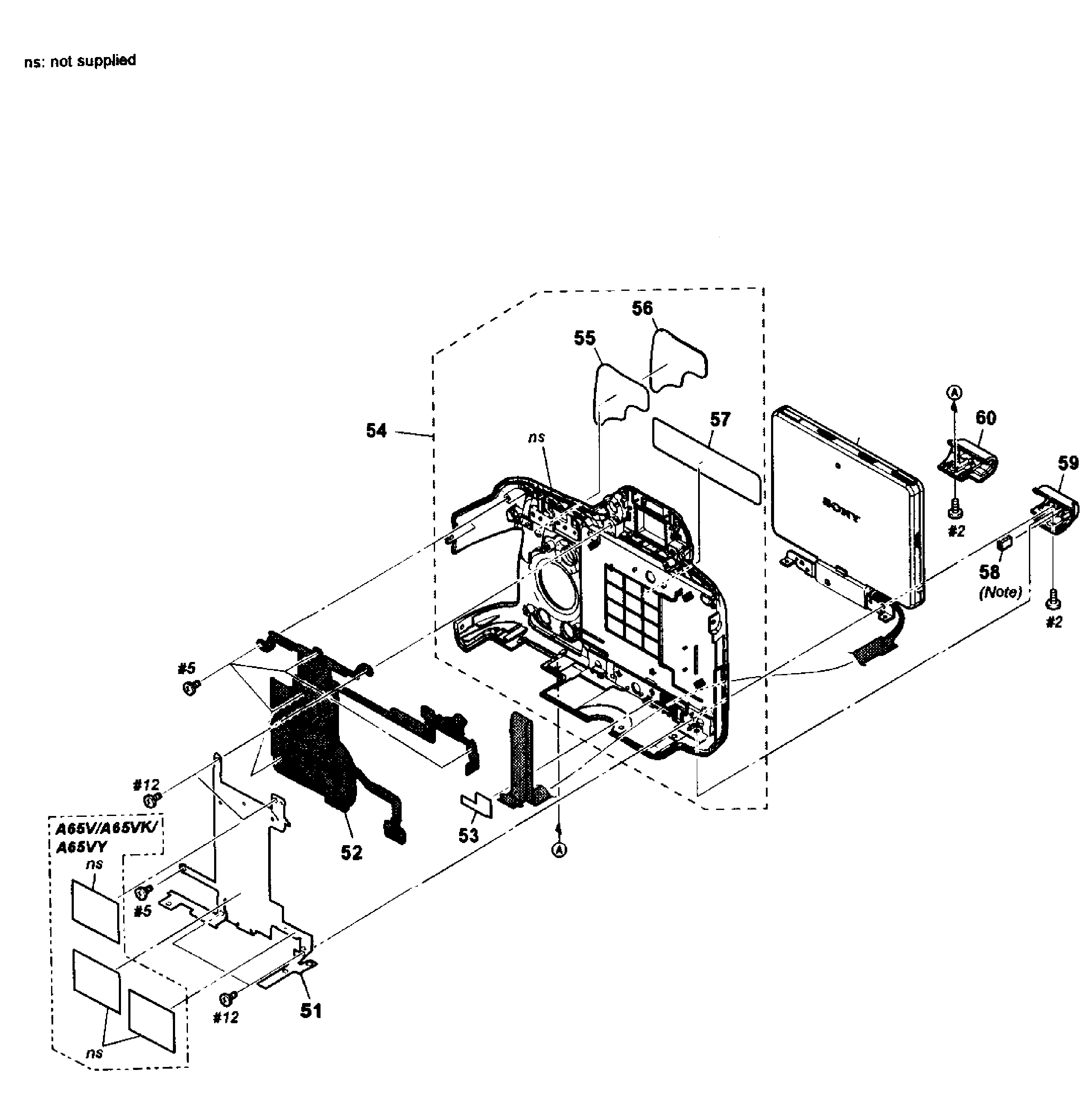

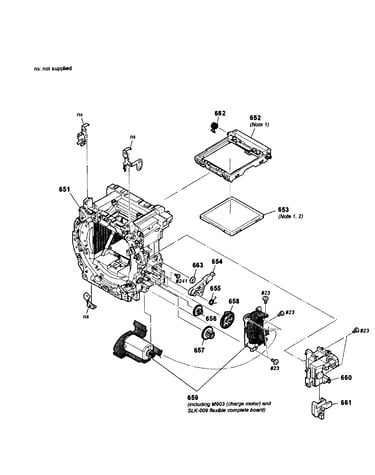

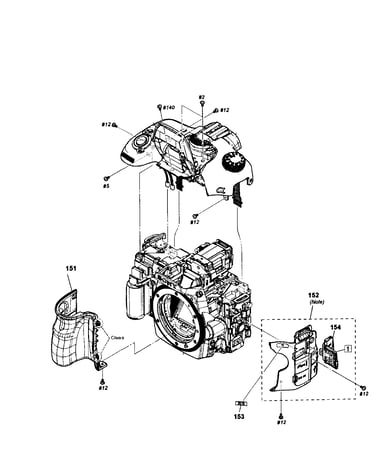

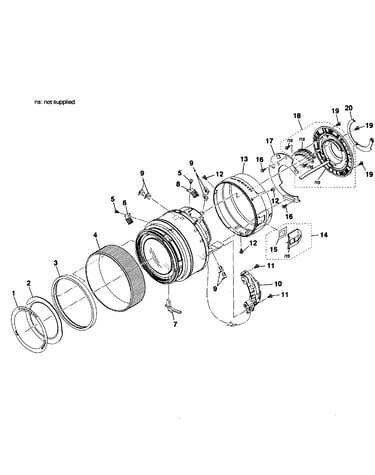

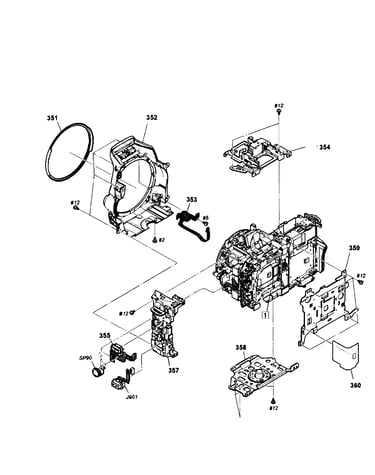

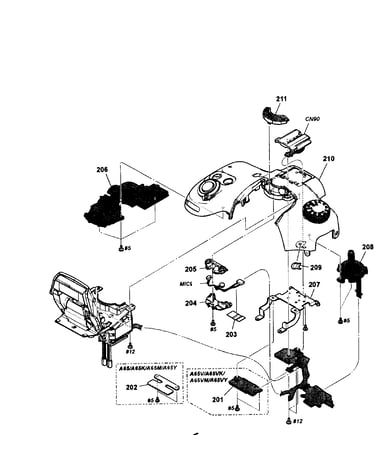

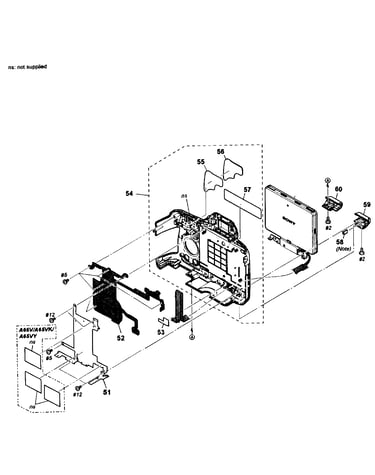

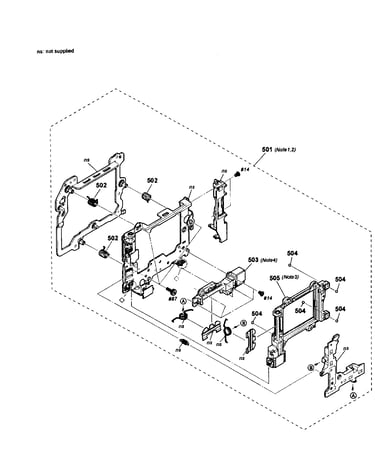

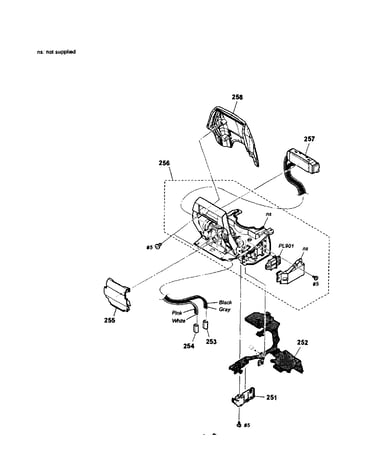

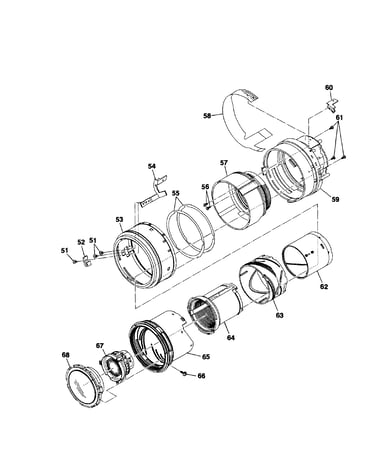

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 204 parts  |

Im Imager A1842096A
#452

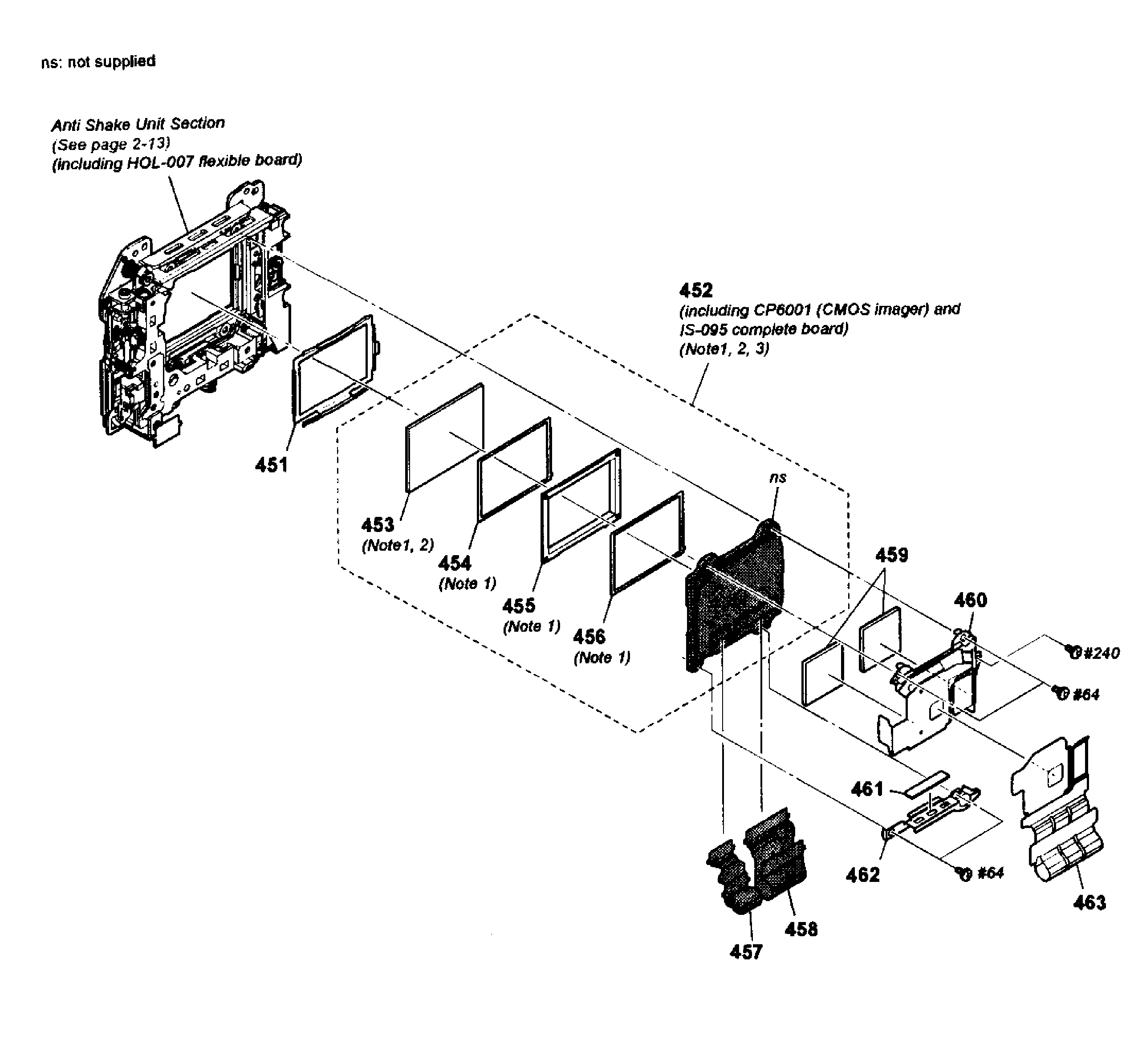

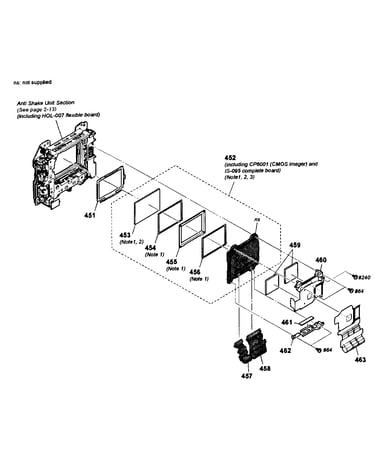

Imager diagram

Im imager

Part #A1842096A

In Stock
Lcd Hinge X25824061
#104

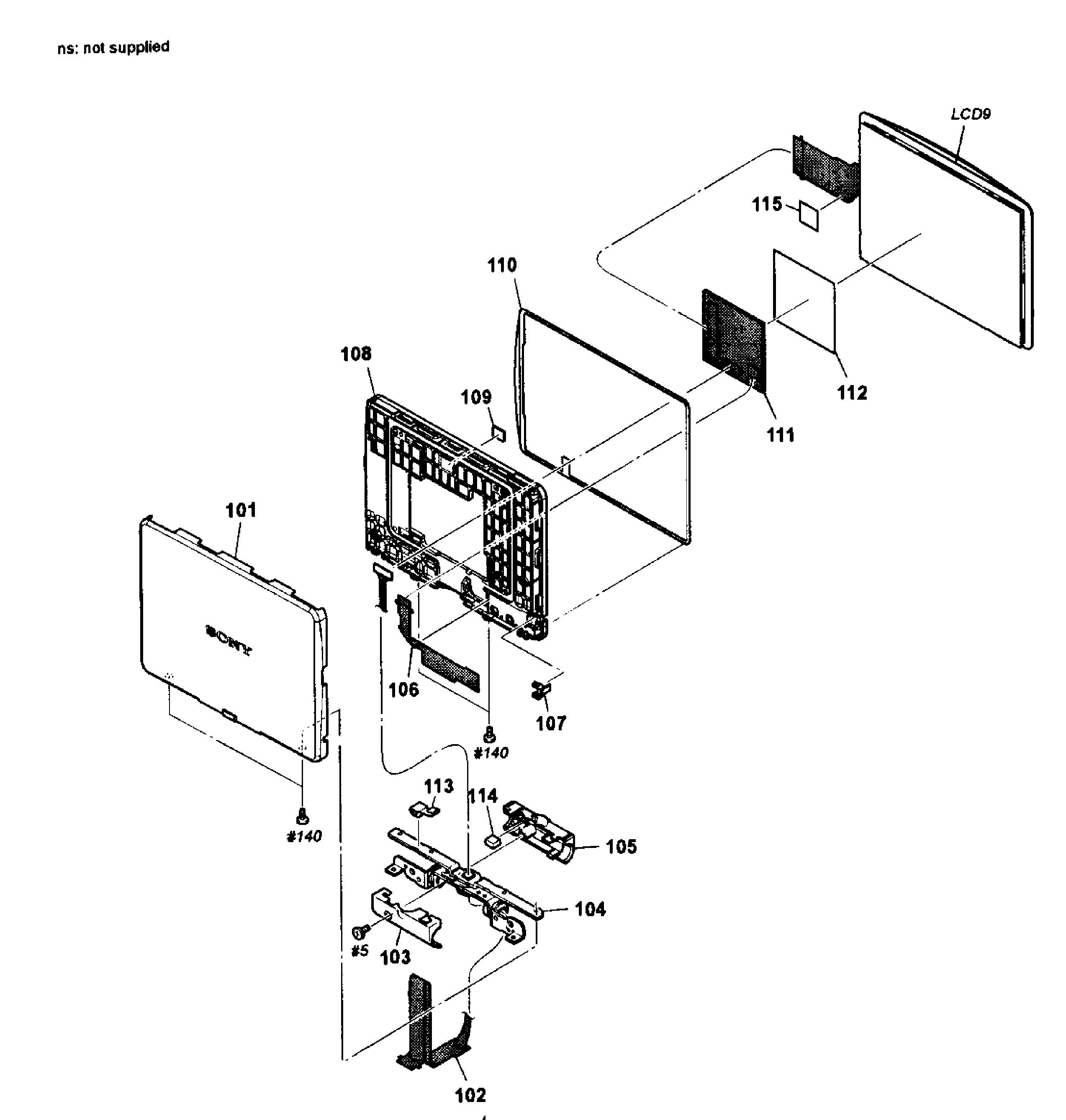

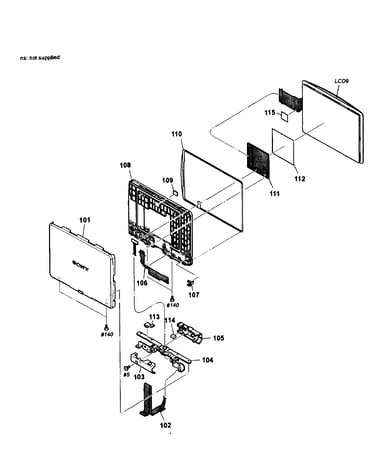

Lcd assy diagram

Lcd hinge

Part #X25824061

In Stock
Mount Spacer 414110901
#603

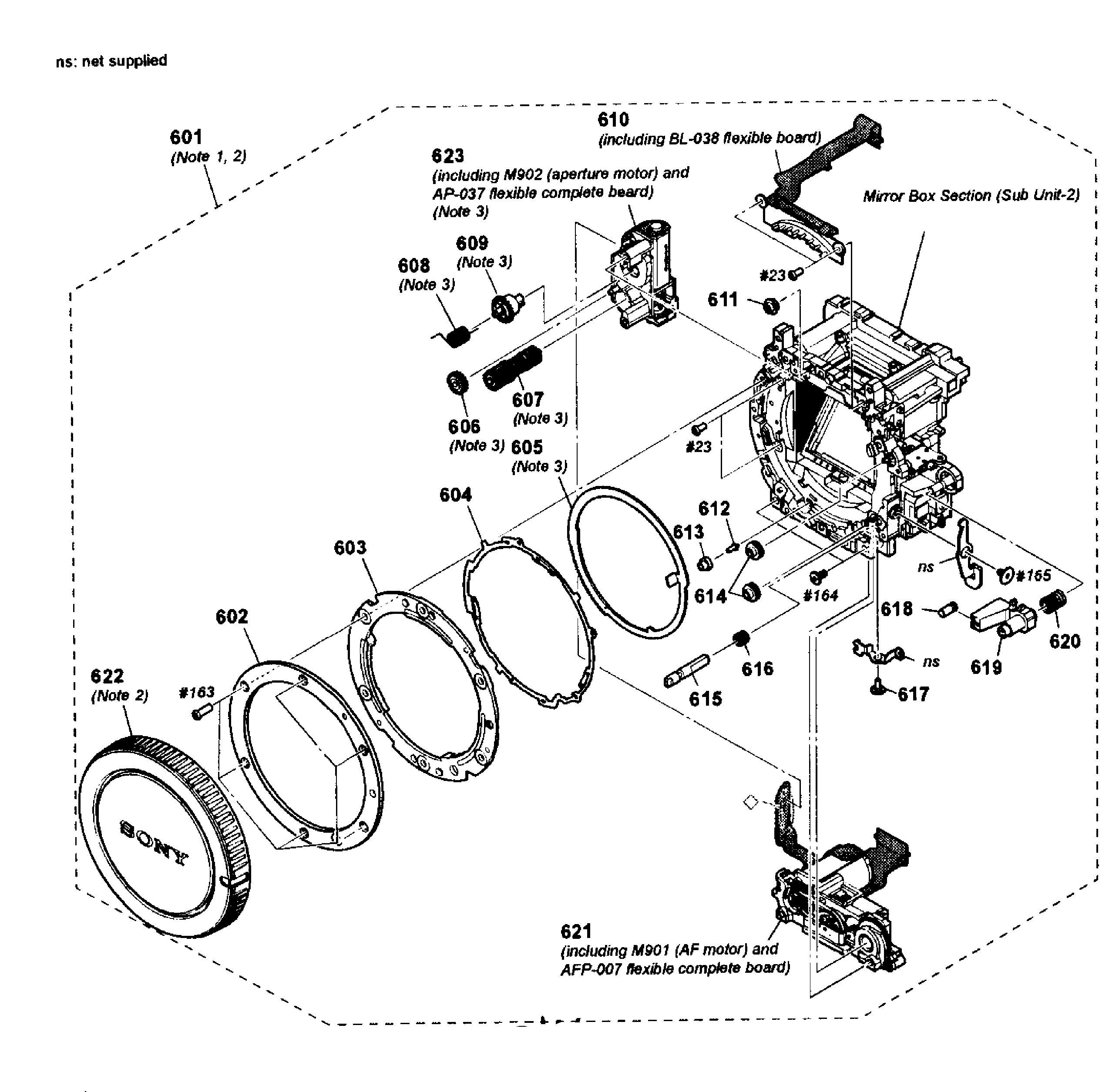

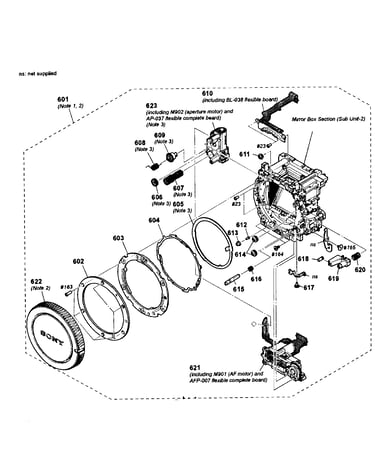

Mirror box 1 diagram

Mount spacer

Part #414110901

In Stock
Cabinet Cover 429376701
#101

Lcd assy diagram

Cabinet cover

Part #429376701

In Stock
Ring Roller Shaft 326895101
#612

Mirror box 1 diagram

Ring roller shaft

Part #326895101

This item is not returnable
In Stock
Socket,bat 125192821
#BH31

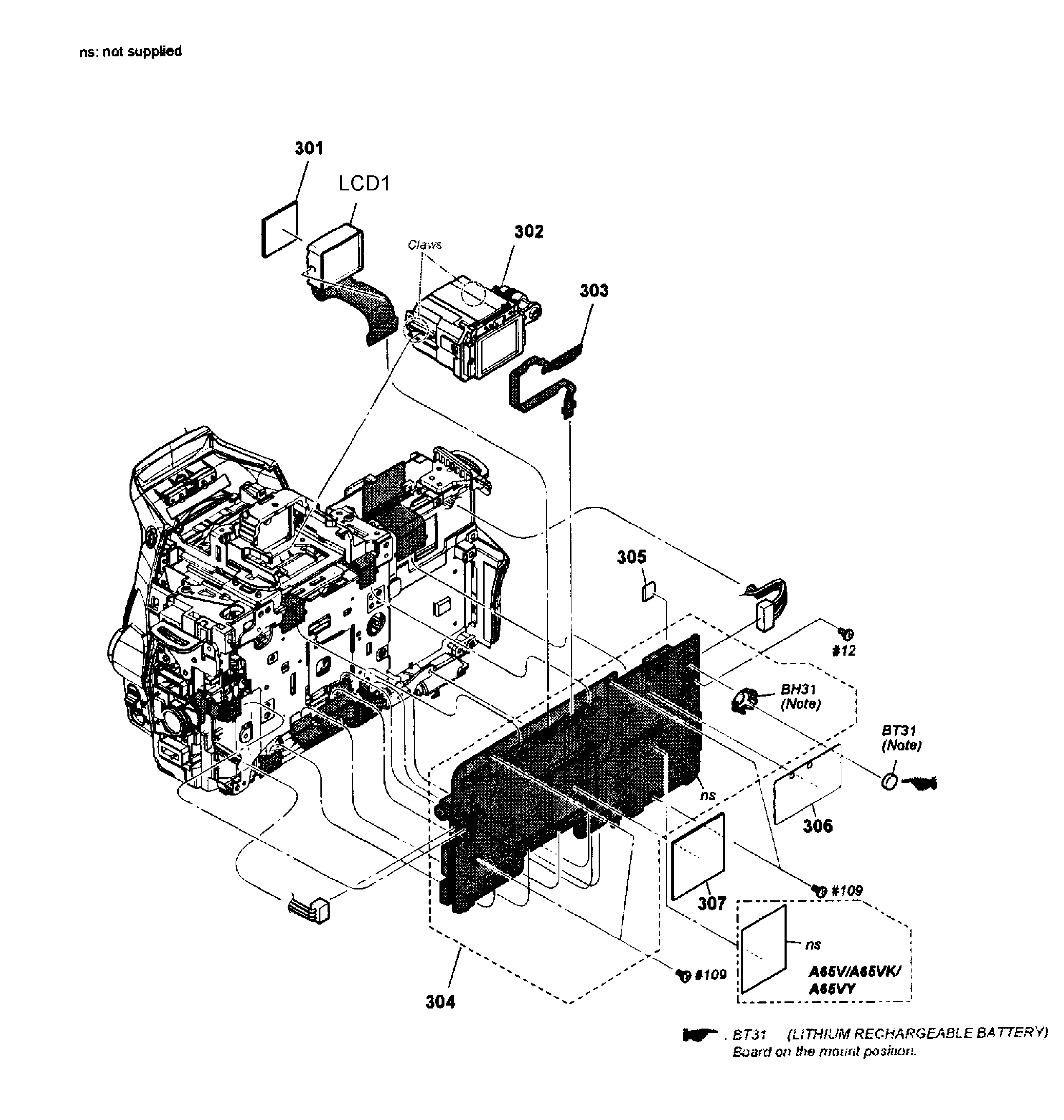

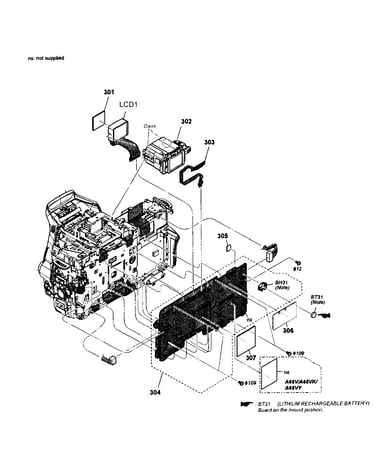

Main pcb diagram

Socket,bat

Part #125192821

This item is not returnable
In Stock
Battery Lock 429365201
#561

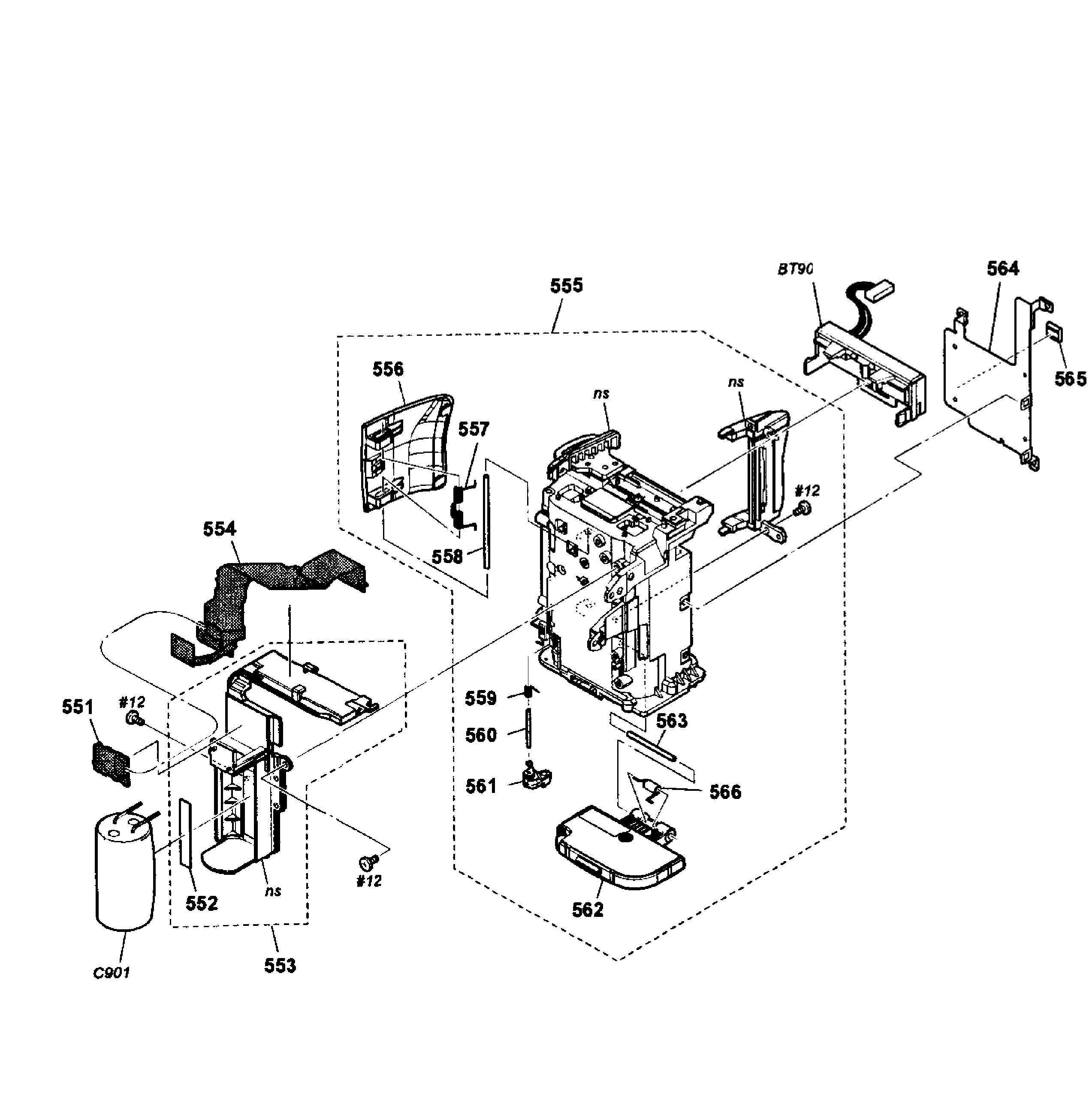

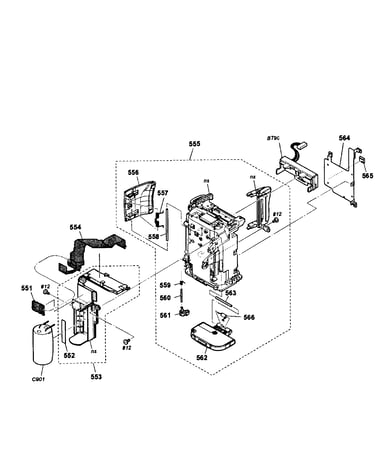

Battery holder diagram

Battery lock

Part #429365201

This item is not returnable
In Stock
Capacitor Seal 289438701
#NI

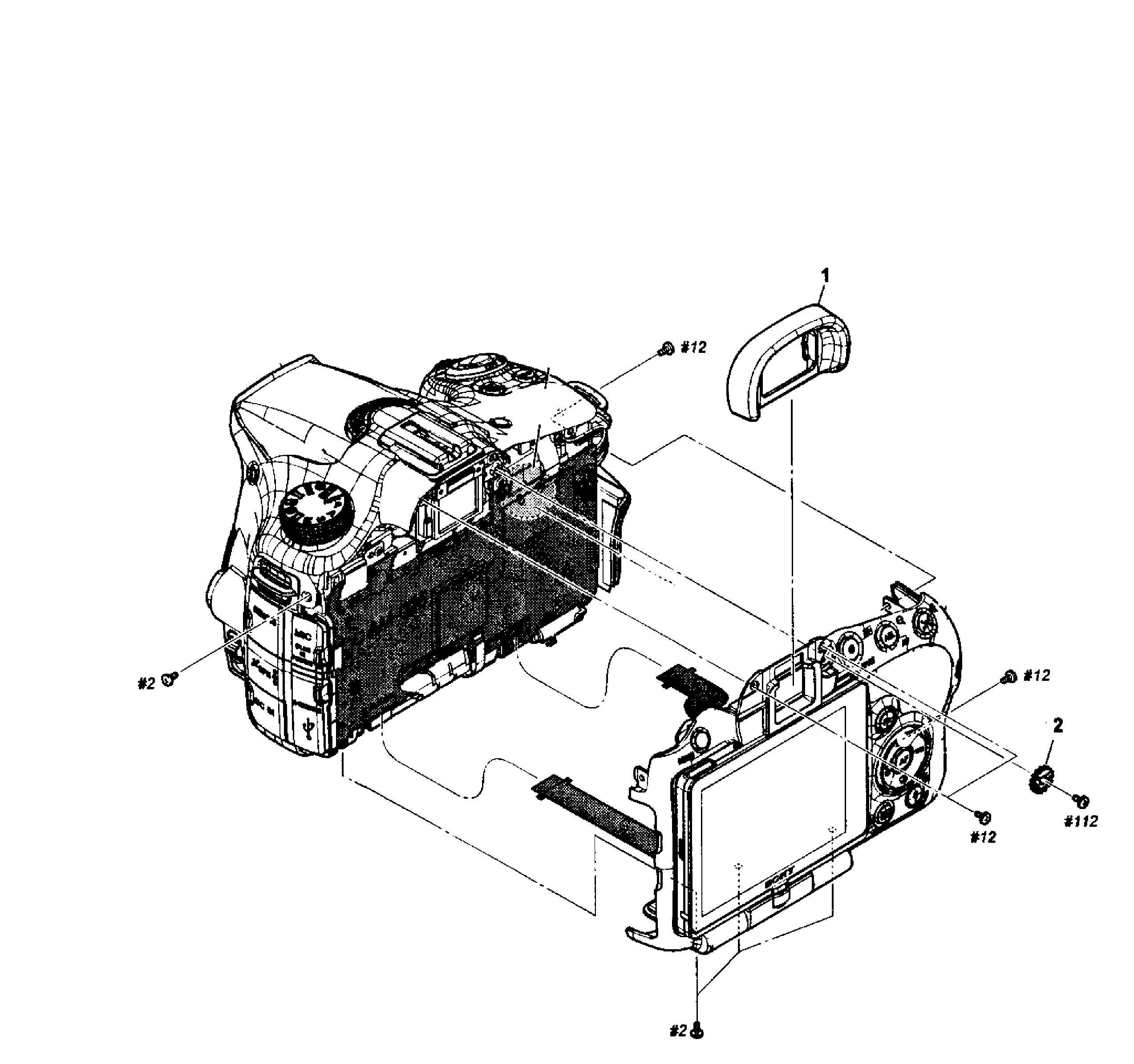

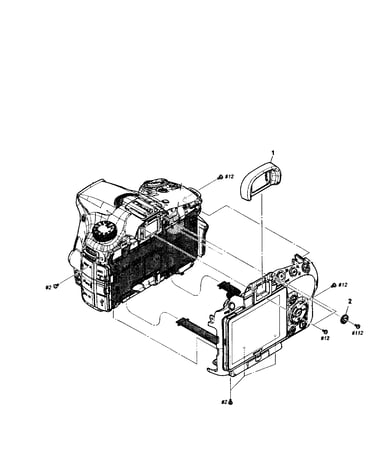

Main assy diagram

Capacitor seal

Part #289438701

In Stock
Adjustment 269342001
#402

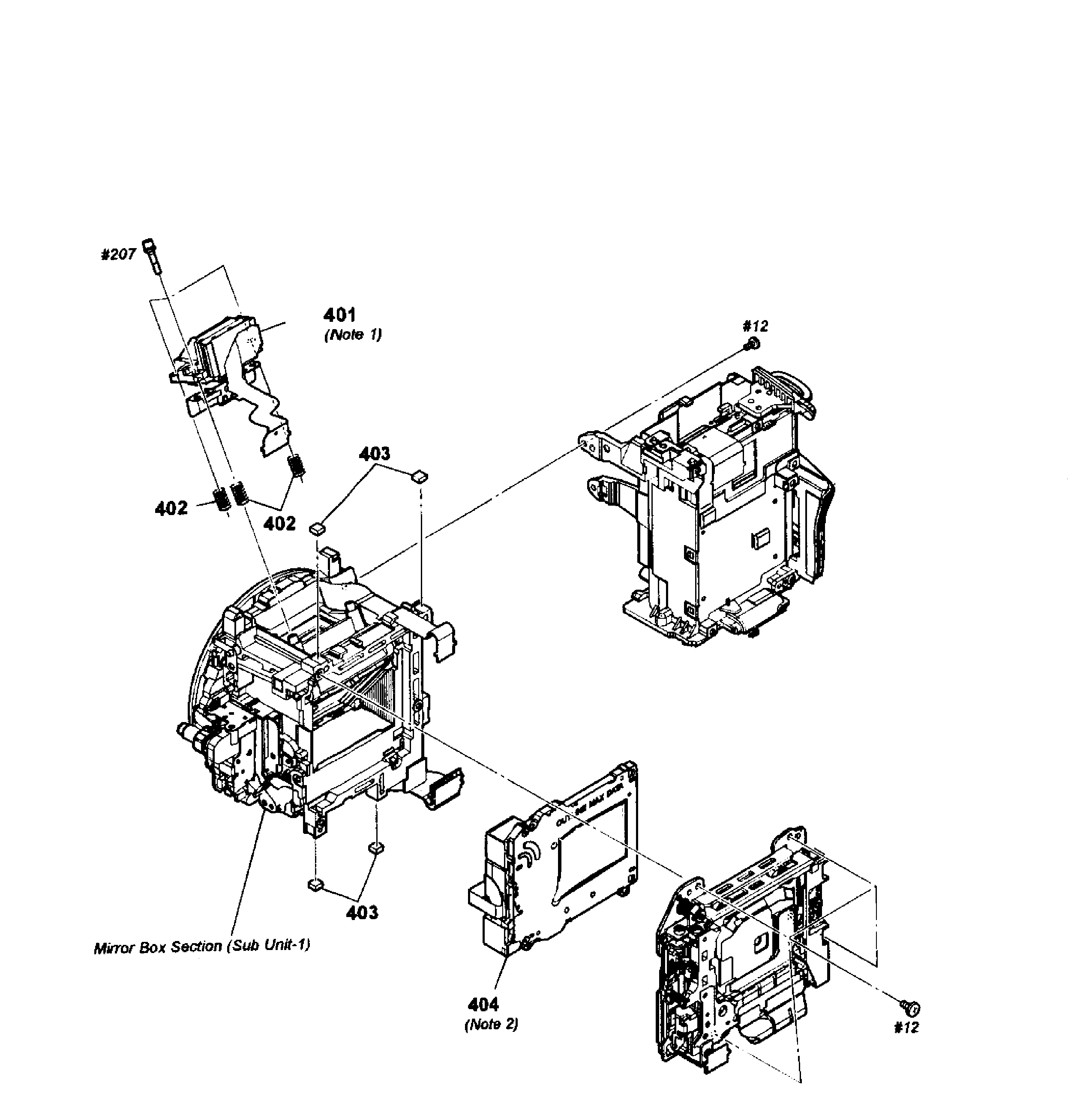

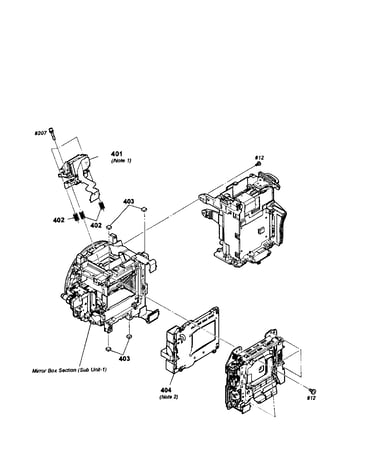

Shutter diagram

Adjustment

Part #269342001

In Stock
Contact Un A1837336A
#610

Mirror box 1 diagram

Contact un

Part #A1837336A

In Stock
