GE NP14X30S05401 hvac-packaged Parts
Here are the diagrams and repair parts for GE NP14X30S05401 hvac-packaged, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM

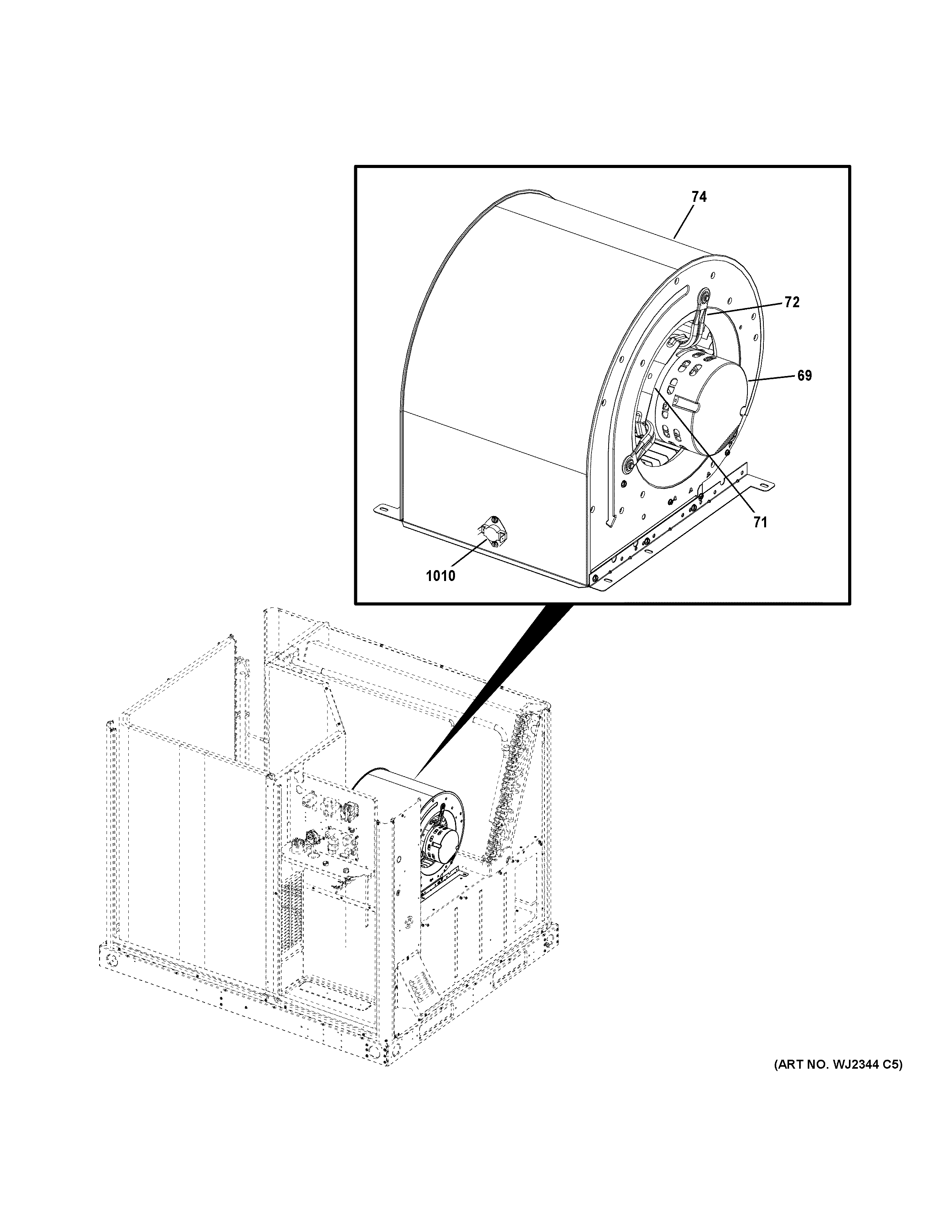

Browse Parts for NP14X30S05401 HVAC-Packaged

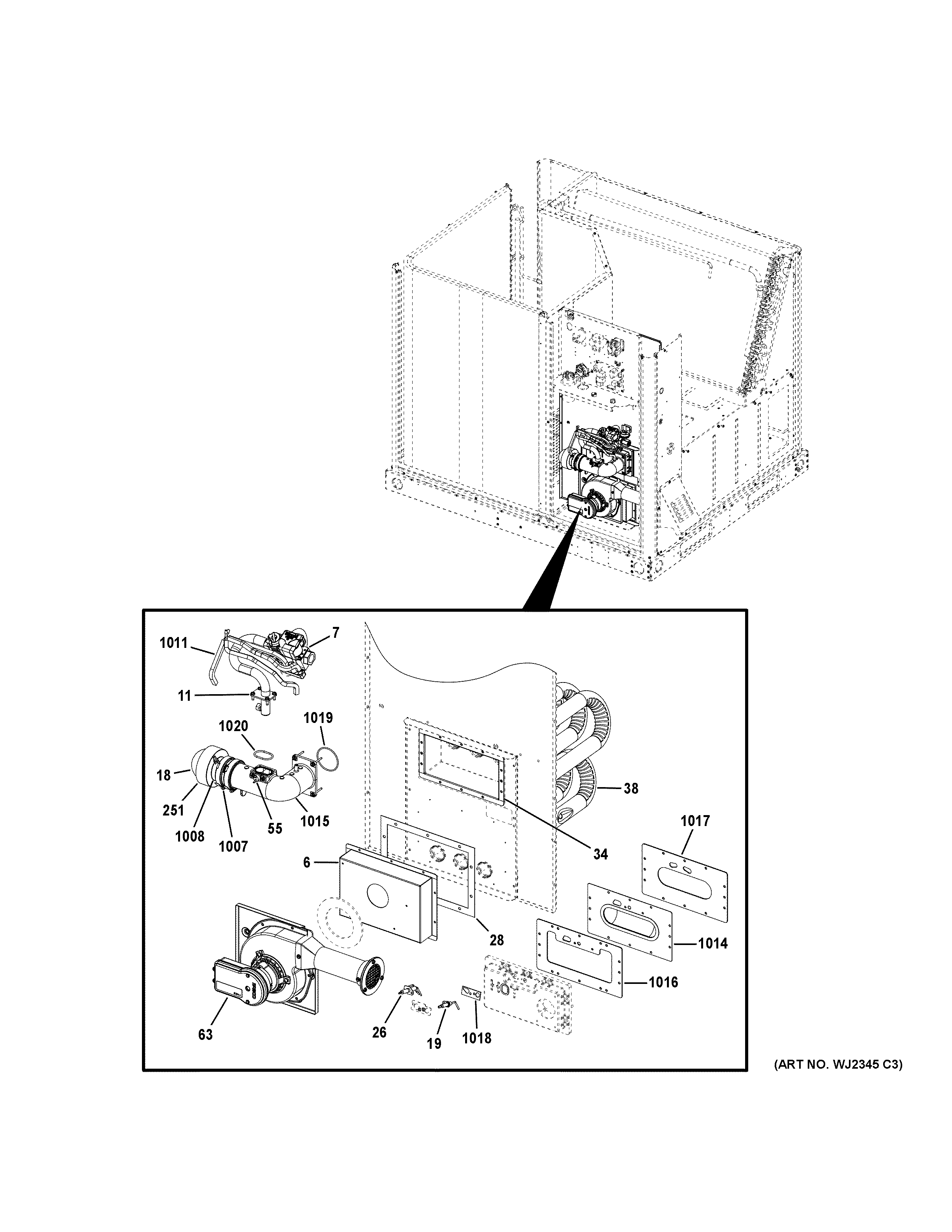

Gas valve & burner assembly diagram
O-ring,manifold/elbow-(cto)
Part #15V45
The manufacturer no longer makes this part, and there's no substitute part
Gas valve & burner assembly diagram
Box-flue Collector-(cto)
Part #20K67
The manufacturer no longer makes this part, and there's no substitute part

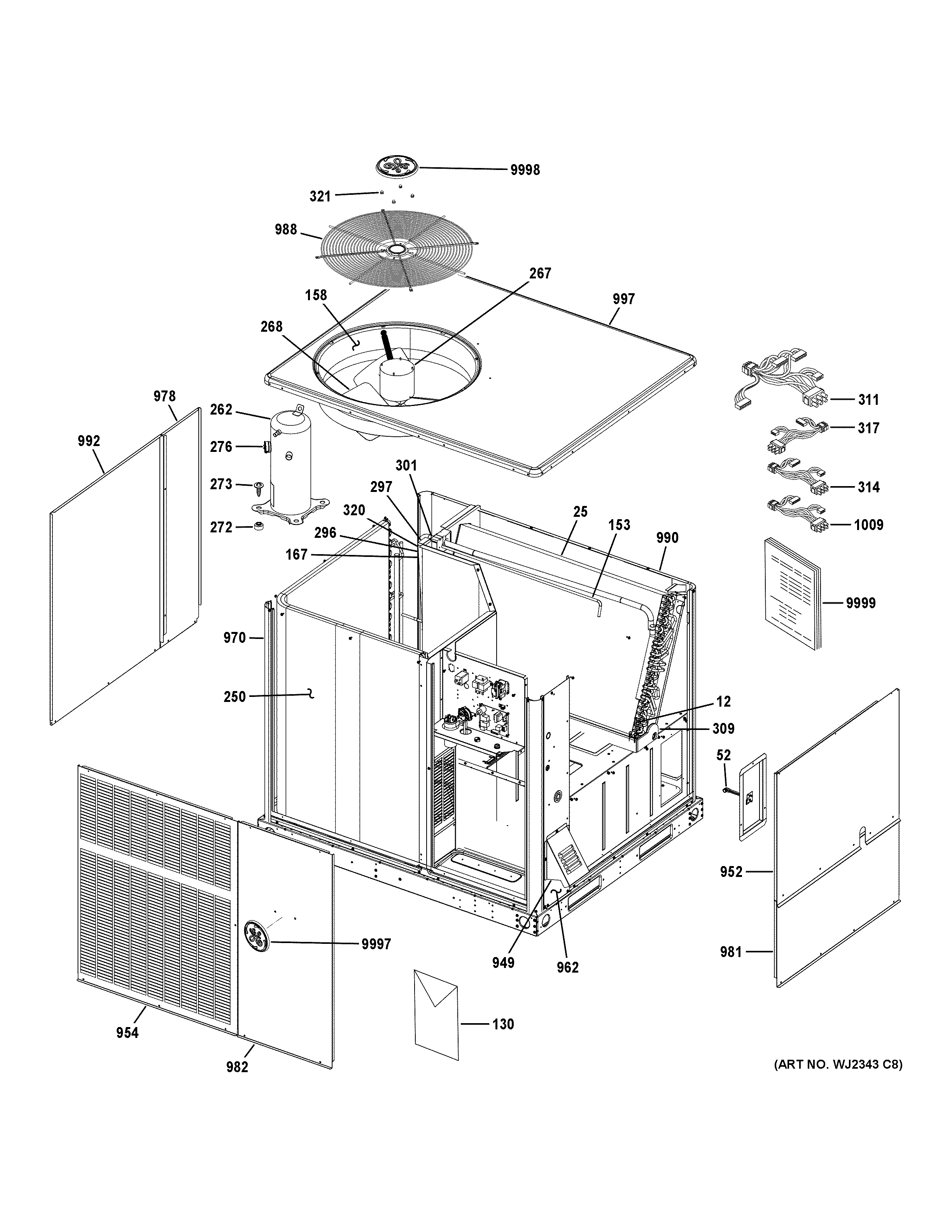

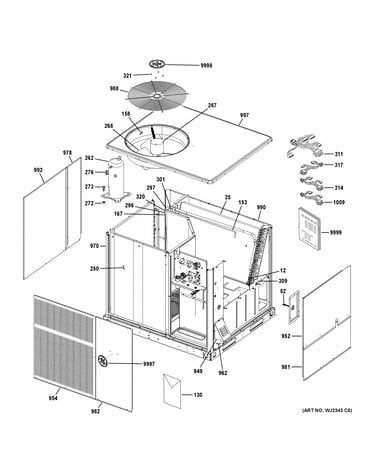

Body parts diagram
Switch-interlock Level Sensor Nc
Part #R104326-02
The manufacturer no longer makes this part, and there's no substitute part
Body parts diagram
Harness-wiring Secondary Limit-(cto)
Part #22U28
The manufacturer no longer makes this part, and there's no substitute part

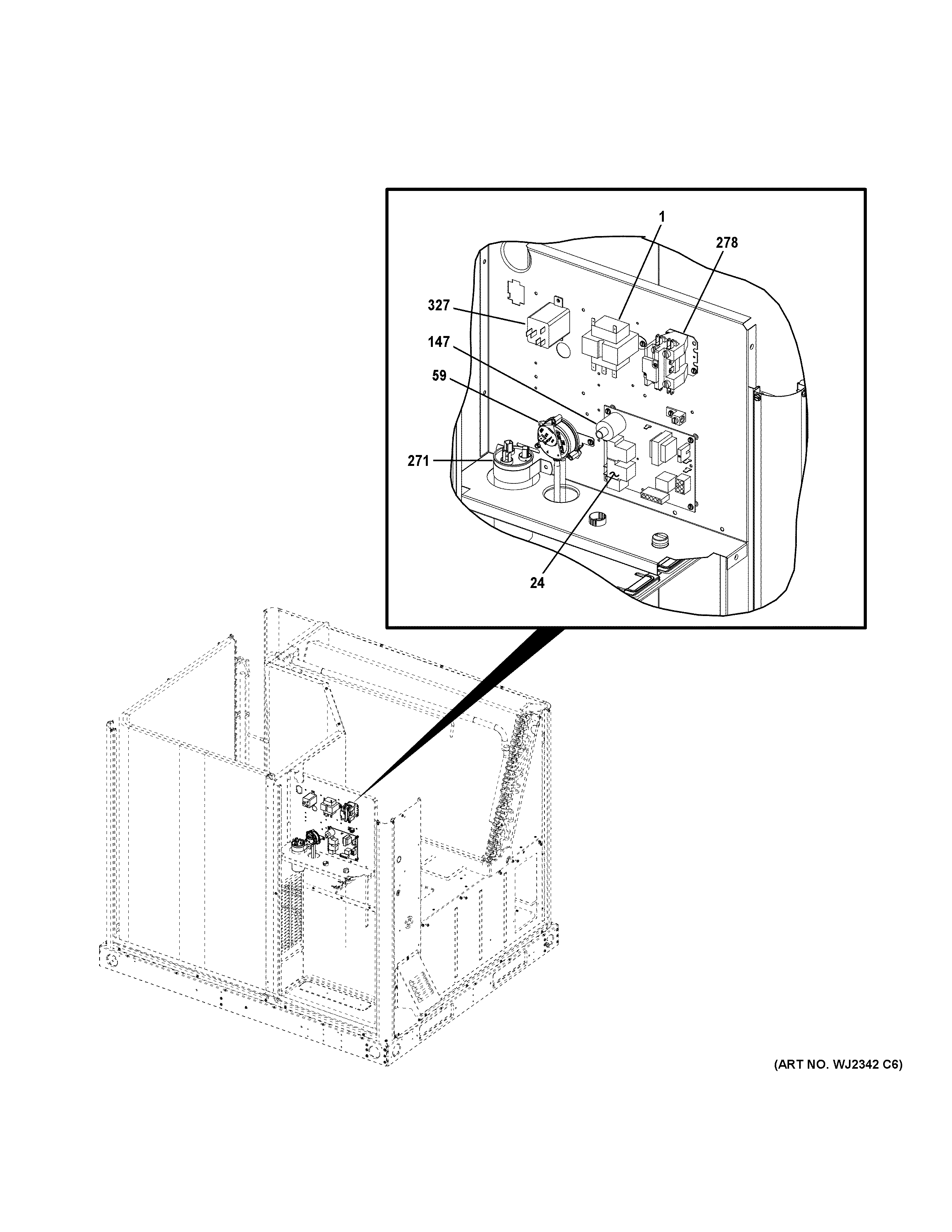

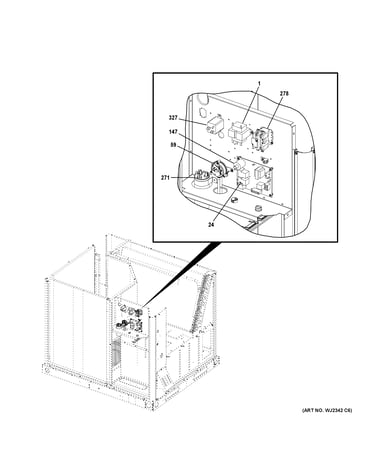

Control parts diagram
105078-04 Switch-press Single Stage Uln
Part #22U24
The manufacturer no longer makes this part, and there's no substitute part
Body parts diagram
Harness-wiring Limit-(cto)
Part #22U27
The manufacturer no longer makes this part, and there's no substitute part
Body parts diagram
Top Gea Badge
Part #107213-06
The manufacturer no longer makes this part, and there's no substitute part
Gas valve & burner assembly diagram
Gasket-burner Box (low Ht)-(cto)
Part #20U83
The manufacturer no longer makes this part, and there's no substitute part
Control parts diagram
Lead Electrode 21"-(cto)
Part #22U21
The manufacturer no longer makes this part, and there's no substitute part
Control parts diagram
Relay Fan Spdt-(cto)
Part #25J38
The manufacturer no longer makes this part, and there's no substitute part
