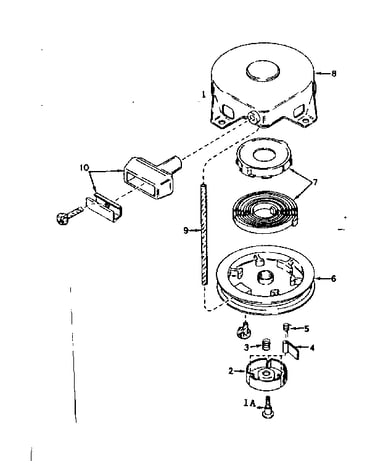

Model #143577032 Craftsman 4-cycle engine

Here are the diagrams and repair parts for Craftsman 143577032 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 187 parts

    Spring Retainer

    #2

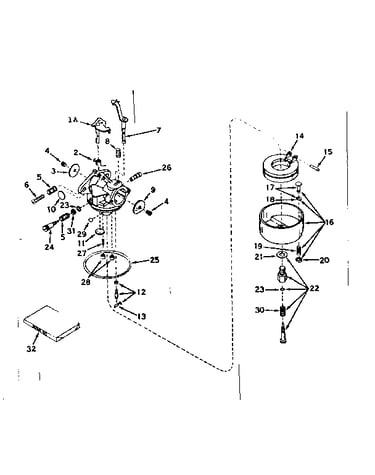

    Carburetor no. 631063a Diagram

    Spring retainer

    Part #630731

    The manufacturer no longer makes this part, and there's no substitute part

    Gasket

    #18

    Carburetor no. 631063a Diagram

    Gasket

    Part #27554

    The manufacturer no longer makes this part, and there's no substitute part

    Shutter

    #9

    Carburetor no. 631063a Diagram

    Shutter

    Part #31837

    The manufacturer no longer makes this part, and there's no substitute part

    Shaft/levr

    #1A

    Carburetor no. 631063a Diagram

    Shaft/levr

    Part #31834

    The manufacturer no longer makes this part, and there's no substitute part

    Retain Ring

    #16

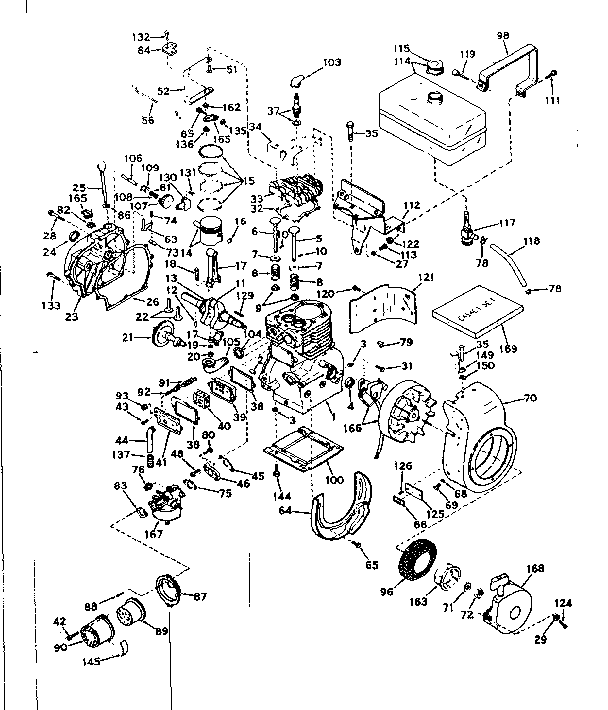

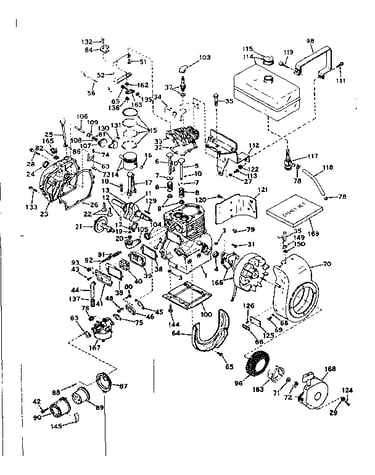

    Basic engine Diagram

    Retain ring

    Part #27888

    The manufacturer no longer makes this part, and there's no substitute part

    Coil/wire

    #13

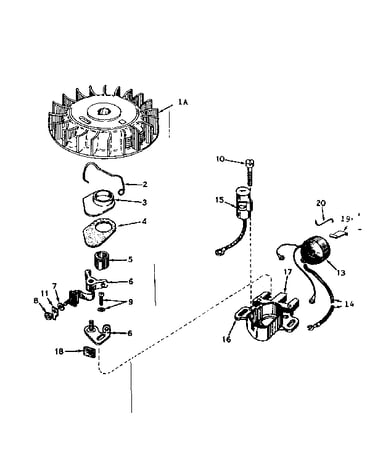

    Magneto no. 610689a Diagram

    Coil/wire

    Part #30560

    The manufacturer no longer makes this part, and there's no substitute part

    Cap

    #7

    Basic engine Diagram

    Cap

    Part #27882

    The manufacturer no longer makes this part, and there's no substitute part

    Stem Retainr

    #20

    Carburetor no. 631063a Diagram

    Stem retainr

    Part #27138

    The manufacturer no longer makes this part, and there's no substitute part

    Screw Assembly

    #22

    Carburetor no. 631063a Diagram

    Screw assembly

    Part #31839

    The manufacturer no longer makes this part, and there's no substitute part

    Spring

    #5

    Carburetor no. 631063a Diagram

    Spring

    Part #630766

    The manufacturer no longer makes this part, and there's no substitute part
