Hoover
Steam Cleaner

Model # F5837900 Official Hoover steam cleaner with fix & rot brush

Here are the diagrams and repair parts for Official Hoover F5837900 steam cleaner with fix & rot brush, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 132 parts  |

Carpet Cleaner Screw 23149002
#3

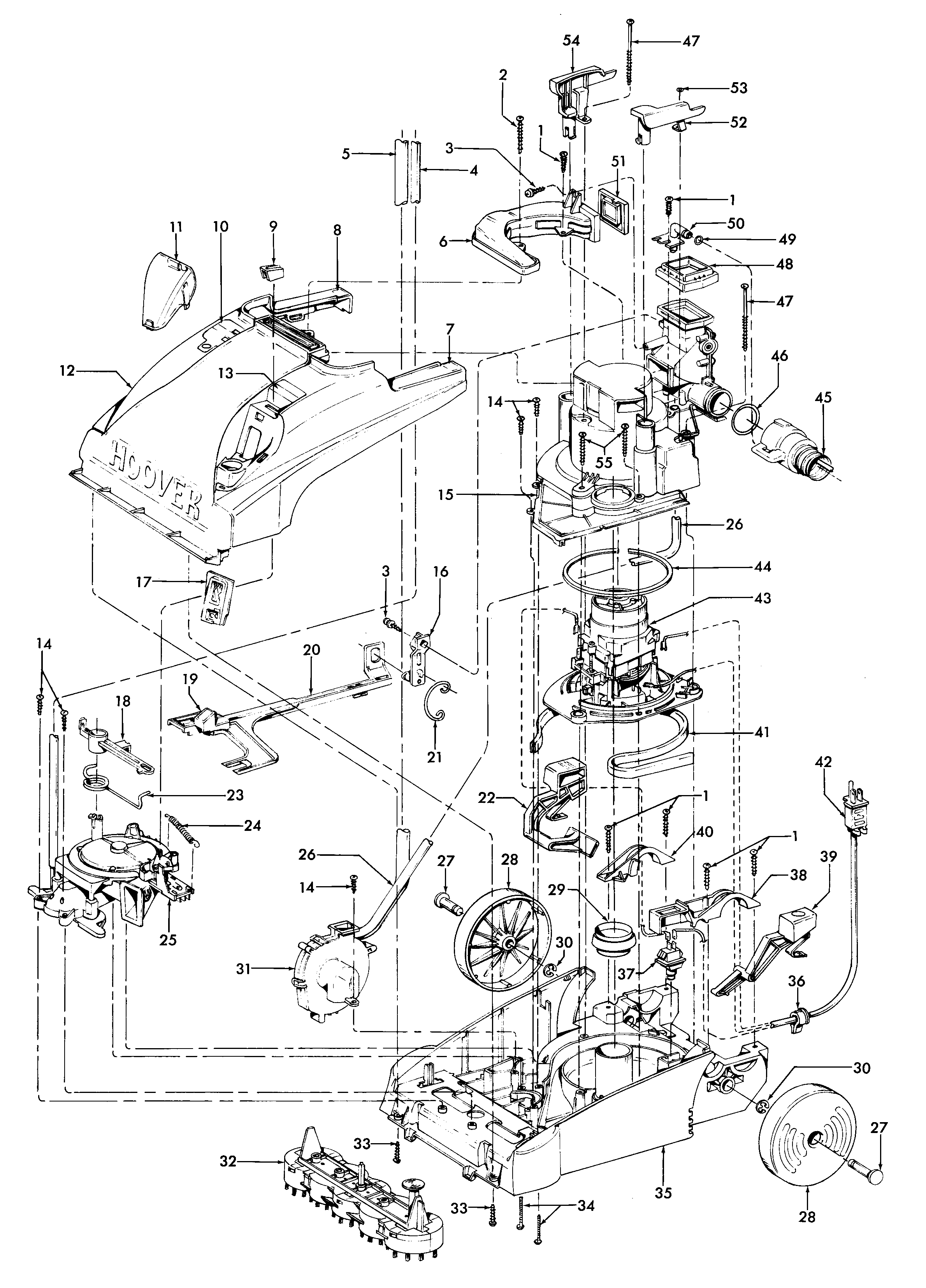

Motor assembly, hood, switch diagram

Carpet cleaner screw

Part #23149002

The manufacturer no longer makes this part, and there's no substitute part

Screen 43613009
#17

Motor assembly, hood, switch diagram

Screen

Part #43613009

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Screw 21479438
#34

Motor assembly, hood, switch diagram

Carpet cleaner screw

Part #21479438

The manufacturer no longer makes this part, and there's no substitute part

Label 51865024
#7

Motor assembly, hood, switch diagram

Label

Part #51865024

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Float Retainer Seal 38784070
#25

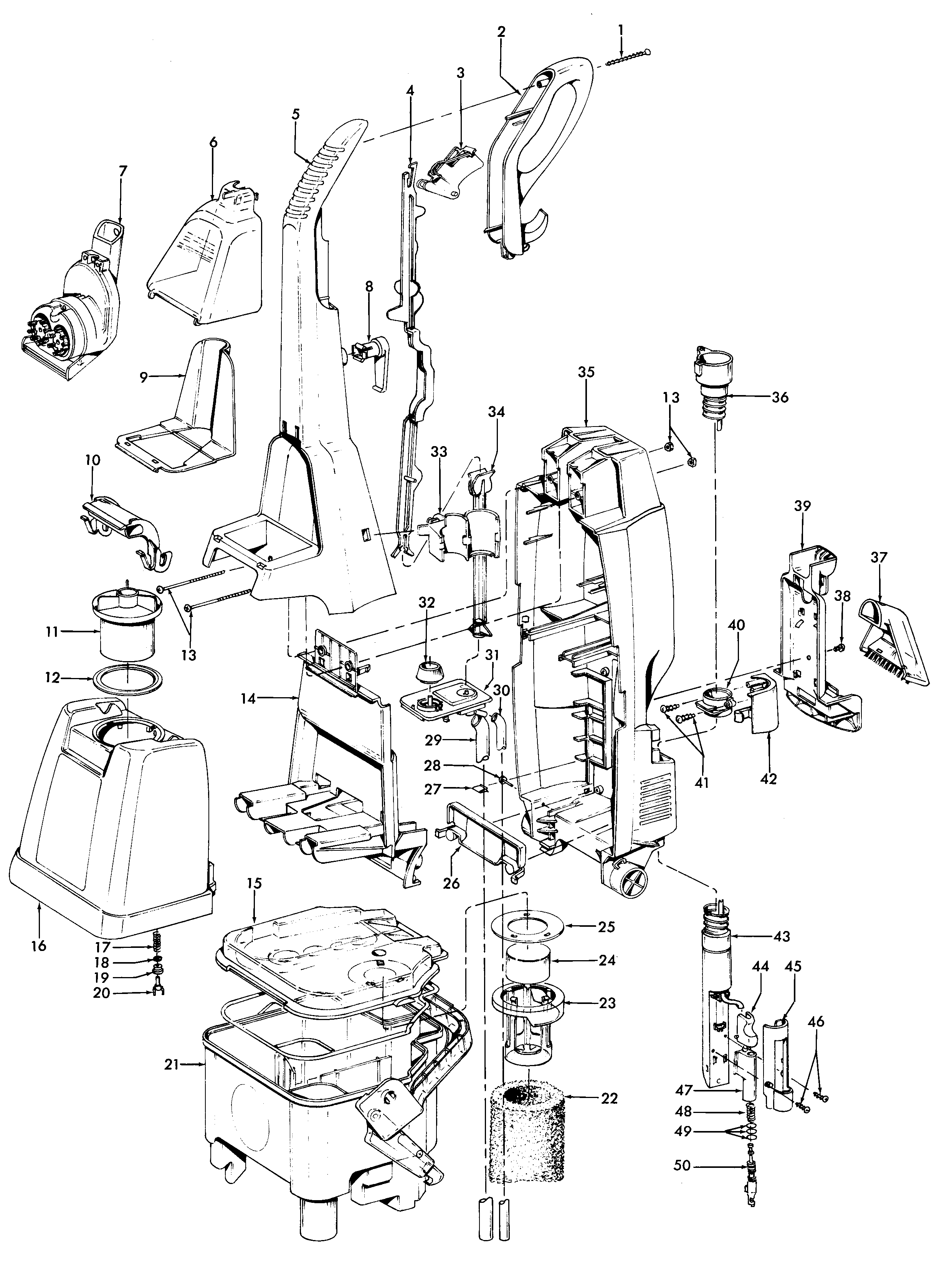

Cleaningtools, handle, tank diagram

Carpet cleaner float retainer seal

Part #38784070

The manufacturer no longer makes this part, and there's no substitute part

Duct Cover 38769028
#9B

Motor assembly, hood, switch diagram

Duct cover

Part #38769028

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Hose Valve Trigger 38433074
#44

Cleaningtools, handle, tank diagram

Carpet cleaner hose valve trigger

Part #38433074

The manufacturer no longer makes this part, and there's no substitute part

Lead Wire 49811039
#56A

Motor assembly, hood, switch diagram

Lead wire

Part #49811039

The manufacturer no longer makes this part, and there's no substitute part

Label 51638055
#8

Motor assembly, hood, switch diagram

Label

Part #51638055

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 21447217
#14

Motor assembly, hood, switch diagram

Vacuum screw

Part #21447217

The manufacturer no longer makes this part, and there's no substitute part
