Model # 13181290 Official Craftsman rotary power mower

Here are the diagrams and repair parts for Official Craftsman 13181290 rotary power mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
Wheel 50920
#14

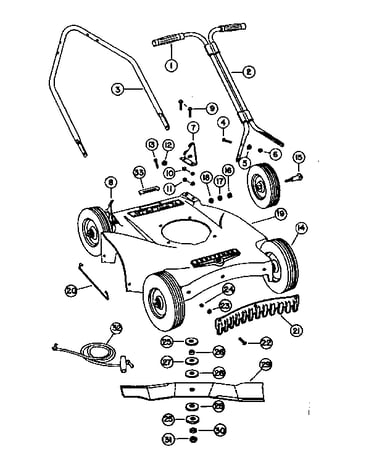

Replacement parts diagram

Wheel

Part #50920

The manufacturer no longer makes this part, and there's no substitute part

Nut 50962
#6

Replacement parts diagram

Nut

Part #50962

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 13257

#NI

All parts diagram

Lock washer

Part #13257

The manufacturer no longer makes this part, and there's no substitute part

Walk-behind Lawn Mower Engine 50917

#NI

All parts diagram

Walk-behind lawn mower engine

Part #50917

The manufacturer no longer makes this part, and there's no substitute part

Bolt 50832

#NI

All parts diagram

Bolt

Part #50832

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 5081
Lock washer

Part #5081

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 50903
#18

Replacement parts diagram

Hex nut

Part #50903

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 50823
#12

Replacement parts diagram

Hex nut

Part #50823

The manufacturer no longer makes this part, and there's no substitute part

Housing 50837
#19

Replacement parts diagram

Housing

Part #50837

The manufacturer no longer makes this part, and there's no substitute part

Bracket R H 50817
#7

Replacement parts diagram

Bracket r h

Part #50817

The manufacturer no longer makes this part, and there's no substitute part
