DeWalt
Drill/Driver

Model # DC985KA TYPE 1 Official DeWalt drill

Here are the diagrams and repair parts for Official DeWalt DC985KA-TYPE-1 drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
Nameplate 645164-00
#5

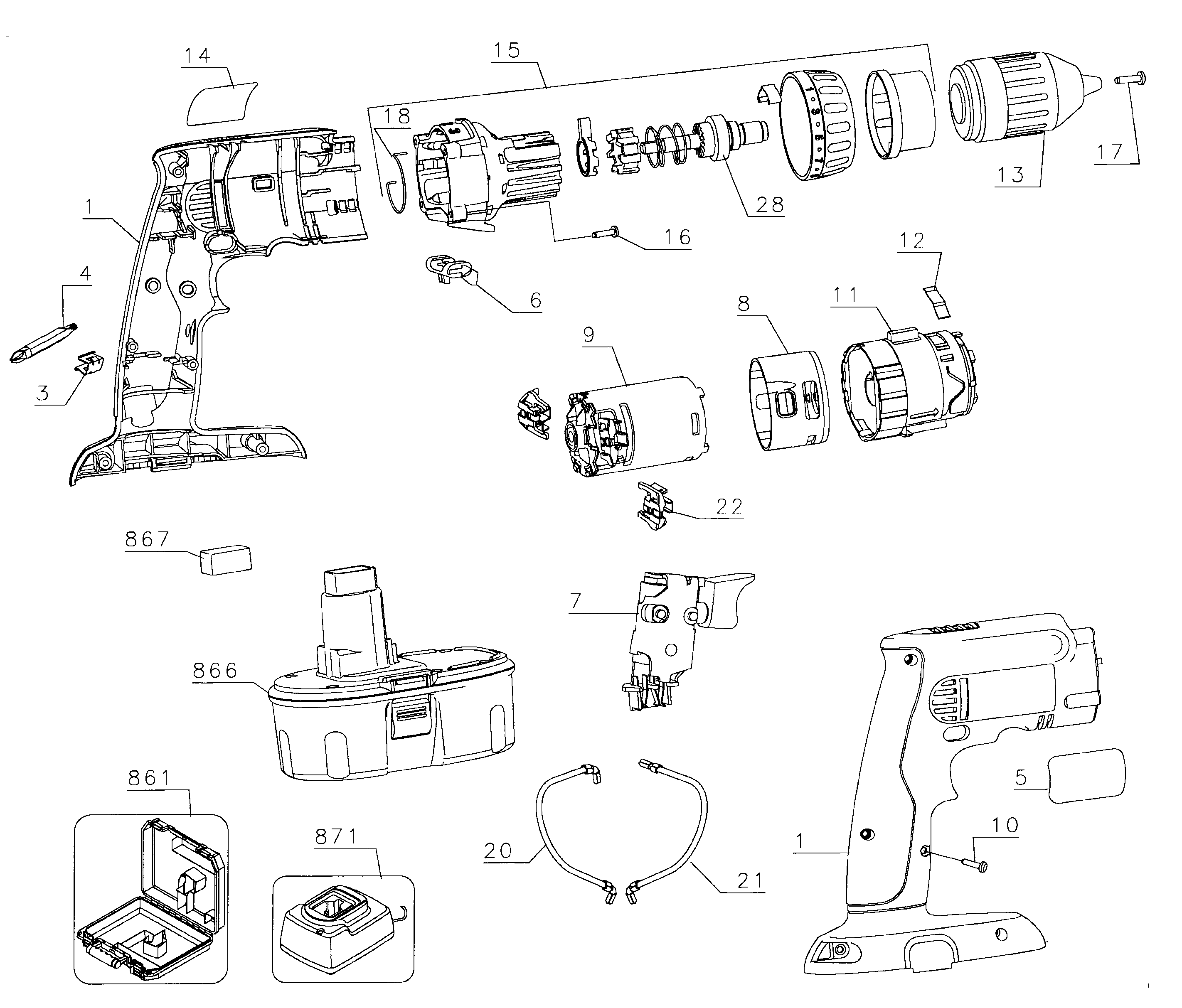

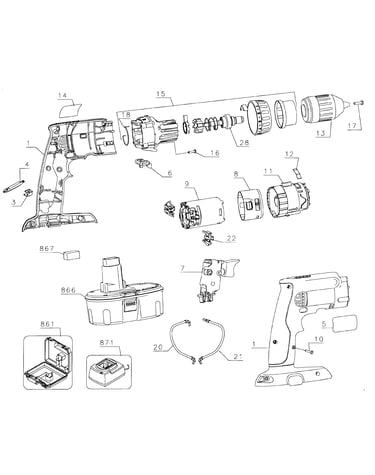

Drill assy diagram

Nameplate

Part #645164-00

The manufacturer no longer makes this part, and there's no substitute part

F/r Button 398649-00
#6

Drill assy diagram

F/r button

Part #398649-00

The manufacturer no longer makes this part, and there's no substitute part

Detent Shi 608060-00
#12

Drill assy diagram

Detent shi

Part #608060-00

The manufacturer no longer makes this part, and there's no substitute part

Drill Screw 605256-01
#17

Drill assy diagram

Drill screw

Part #605256-01

The manufacturer no longer makes this part, and there's no substitute part

Battry Cap 645221-00
#867

Drill assy diagram

Battry cap

Part #645221-00

The manufacturer no longer makes this part, and there's no substitute part

Spring 399059-00
#18

Drill assy diagram

Spring

Part #399059-00

The manufacturer no longer makes this part, and there's no substitute part

Adapter 398646-00
#8

Drill assy diagram

Adapter

Part #398646-00

The manufacturer no longer makes this part, and there's no substitute part

Drill Motor Brush 603754-01
#22

Drill assy diagram

Drill motor brush

Part #603754-01

The manufacturer no longer makes this part, and there's no substitute part

Spindle Assembly 611904-00SV
#28

Drill assy diagram

Spindle assembly

Part #611904-00SV

The manufacturer no longer makes this part, and there's no substitute part

Scrwdrvbit 607918-41
#4

Drill assy diagram

Scrwdrvbit

Part #607918-41

The manufacturer no longer makes this part, and there's no substitute part
