Sharp AF-R80BX air conditioner

Sharp AF-R80BX air conditioner Parts

Here are the diagrams and repair parts for Sharp AF-R80BX air conditioner, as well as links to manuals and error code tables, if available.

By Schematic

SELECT DIAGRAM

Browse Parts for AF-R80BX Air Conditioner

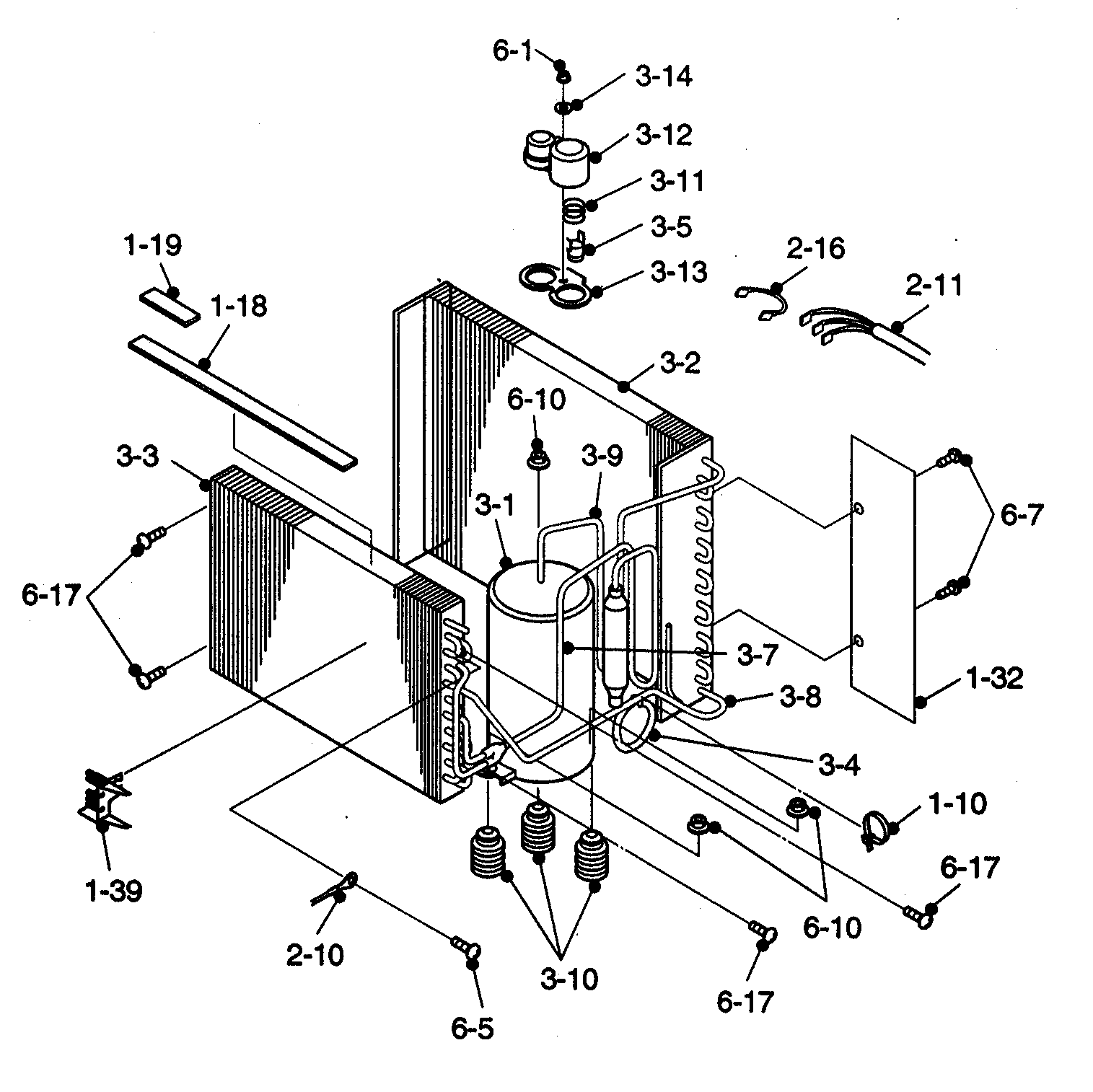

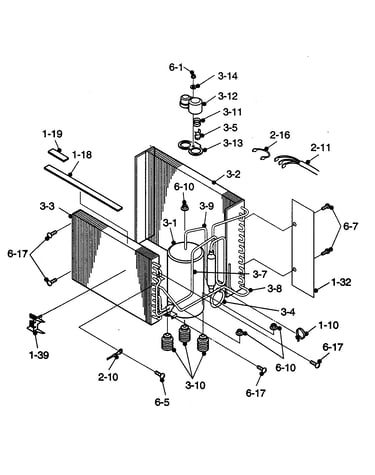

Cycle parts diagram
Seal
Part #PSEL-A994JBE0
The manufacturer no longer makes this part, and there's no substitute part

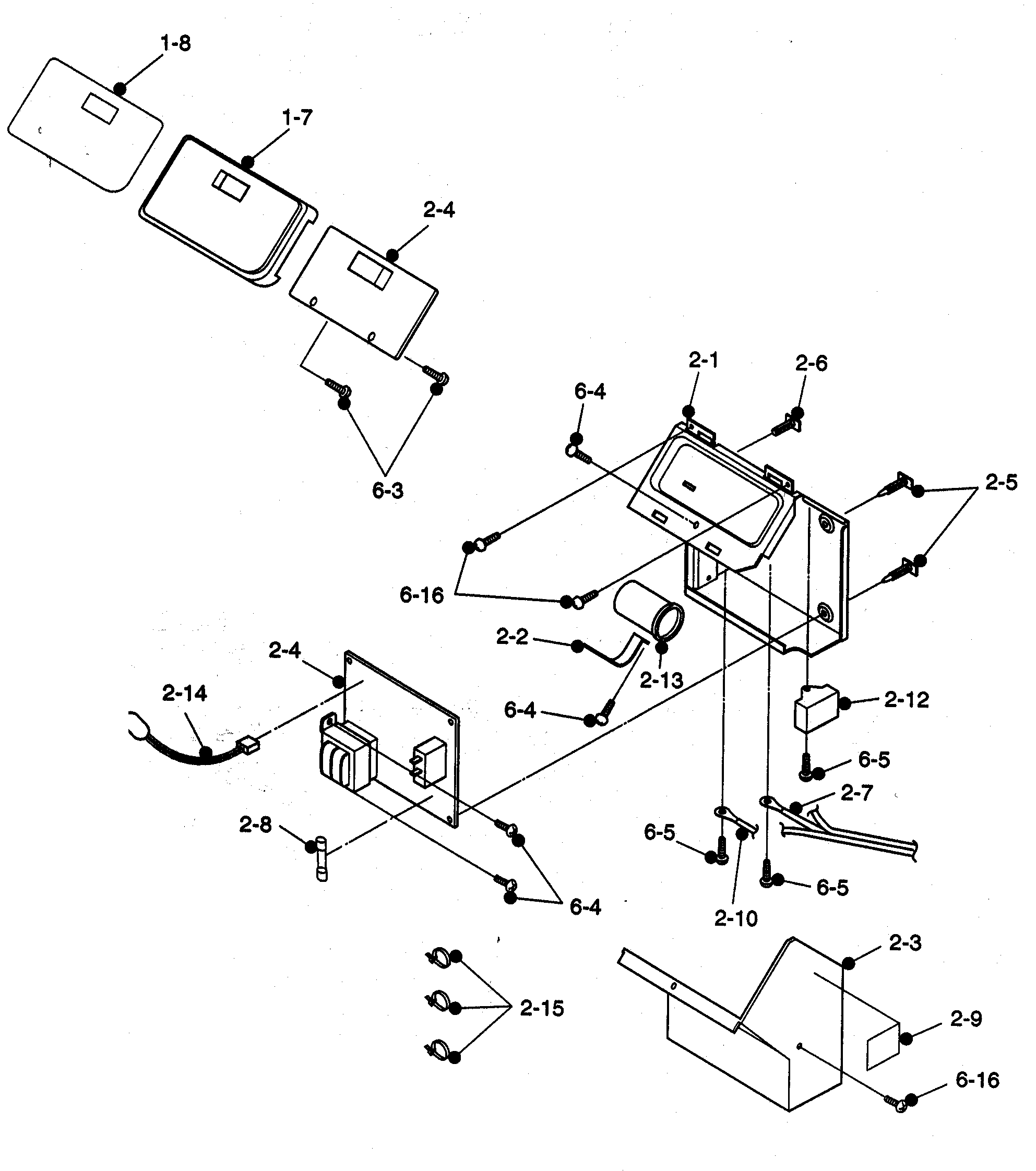

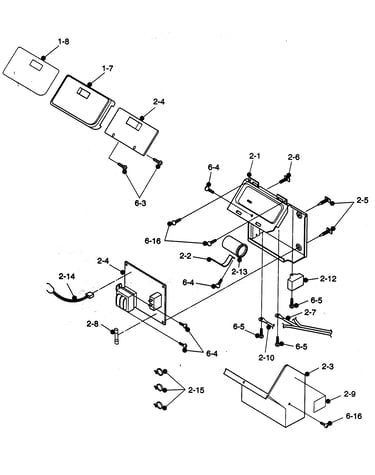

Control box parts diagram
Angle Assembly
Part #DPLT-A056JBWZ
The manufacturer no longer makes this part, and there's no substitute part
Control box parts diagram
Spacer
Part #PSPA-A085JBE0
The manufacturer no longer makes this part, and there's no substitute part
Cycle parts diagram
Condenser
Part #PCON-A436JBEZ
The manufacturer no longer makes this part, and there's no substitute part
Control box parts diagram
Plate
Part #DPLT-A038JBW0
The manufacturer no longer makes this part, and there's no substitute part

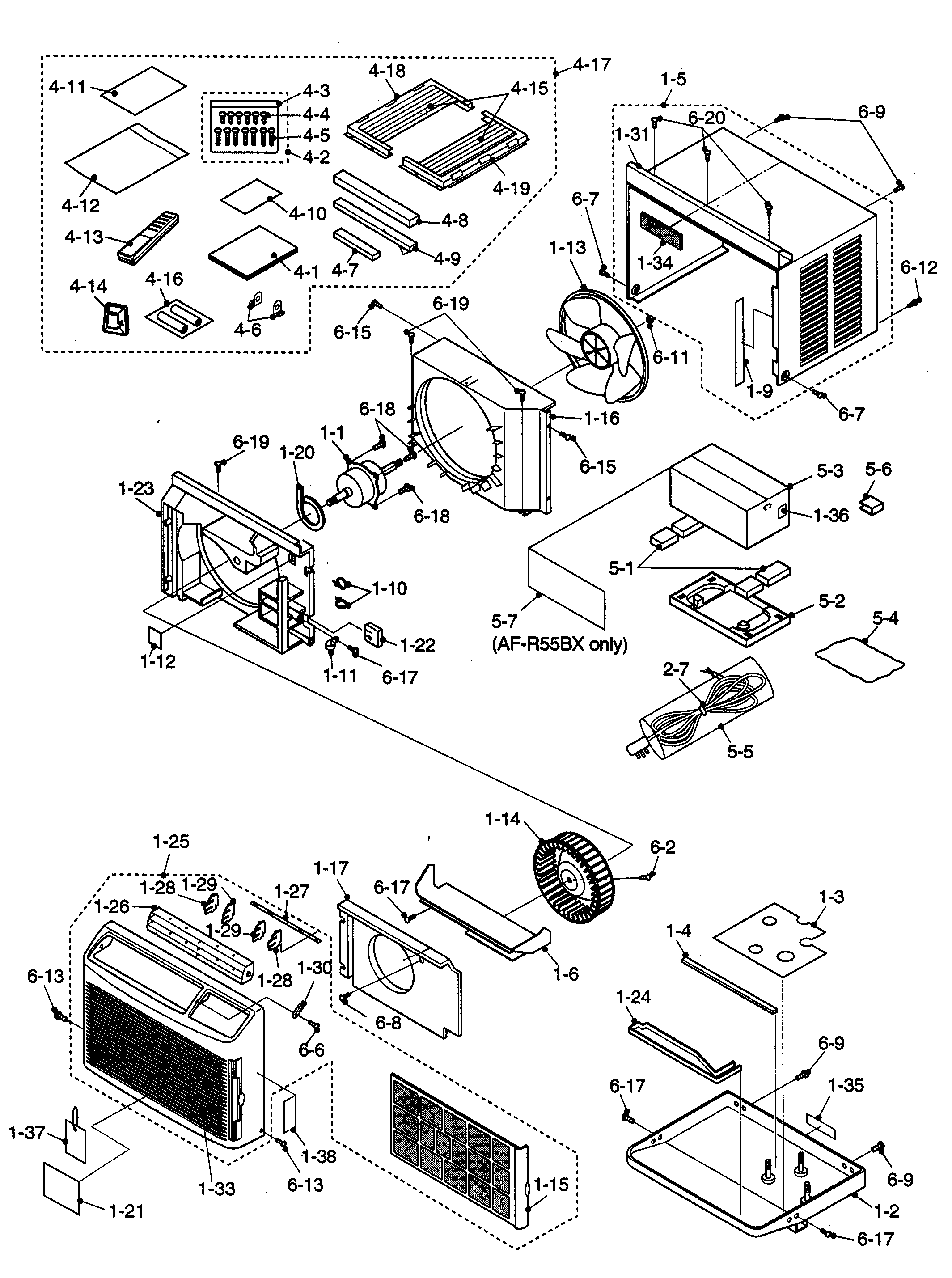

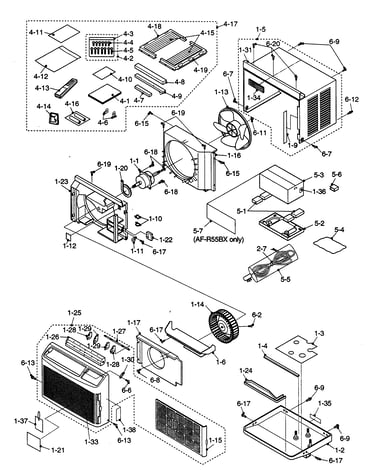

Cabinet parts diagram
Spring
Part #MSPR-A133JBE0
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Insulator
Part #PSEL-B845JBE0
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Ac Cord
Part #QACC-A244JBE0
The manufacturer no longer makes this part, and there's no substitute part
Control box parts diagram
Spacer
Part #PSPA-A084JBE0
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Chassis
Part #DCHS-A364JBTA
The manufacturer no longer makes this part, and there's no substitute part
