Model # KMHP519ESS06 Official KitchenAid microwave hood

Here are the diagrams and repair parts for Official KitchenAid KMHP519ESS06 microwave hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

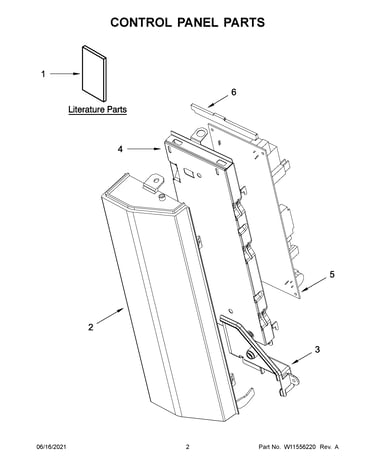

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 132 parts  |
Gaoxin-hvd C W11222648
#26

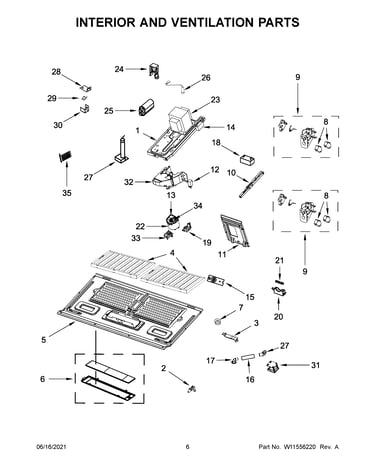

Interior and ventilation parts diagram

Gaoxin-hvd c

Part #W11222648

Replaced by #W11256462

?
Manufacturer substitution
This part replaces W11222648. Substitute parts can look different from the original.
BEST SELLER
$24.65 |
18% OFF MSRP : $30.00
In Stock
Filter 8206230
#8

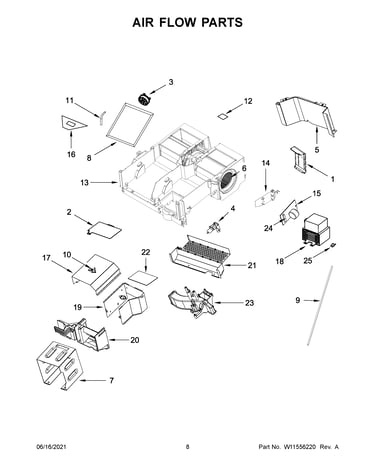

Air flow parts diagram

Filter

Part #8206230

Replaced by #8206230A

?
Manufacturer substitution
This part replaces 8206230. Substitute parts can look different from the original.
BEST SELLER
$11.14 |
15% OFF Phone Price : $13.14
In Stock
Assembly, Interlock (includes Switches) W11187757
#9

Interior and ventilation parts diagram

Assembly, interlock (includes switches)

Part #W11187757

Replaced by #W11197766

?
Manufacturer substitution
This part replaces W11187757. Substitute parts can look different from the original.
BEST SELLER
$19.97 |
36% OFF MSRP : $31.00
In Stock
Microwave Turntable Motor Coupler W10337248
#6

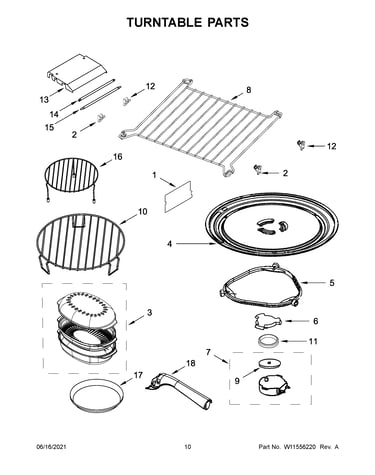

Turntable parts diagram

Microwave turntable motor coupler

Part #W10337248

This item is not returnable
$5.69 |
15% OFF Phone Price : $6.69
In Stock
Turntable W11358813
#4

Turntable parts diagram

Turntable

Part #W11358813

Replaced by #W11402532

?
Manufacturer substitution
This part replaces W11358813. Substitute parts can look different from the original.
$34.39 |
13% OFF Phone Price : $39.39
In Stock
Microwave Installation Hardware Kit (replaces W10811221) W10821385
#NI

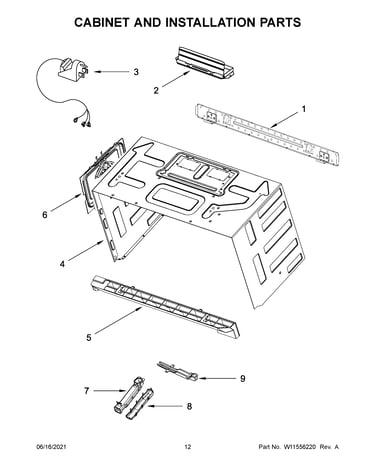

Cabinet and installation parts diagram

Microwave installation hardware kit (replaces w10811221)

Part #W10821385

$50.70 |
23% OFF MSRP : $66.00
In Stock
Microwave Vent Grille (replaces W10533490) W10701701
#5

Cabinet and installation parts diagram

Microwave vent grille (replaces w10533490)

Part #W10701701

$44.69 |
10% OFF Phone Price : $49.69
In Stock
Microwave Turntable Motor Spacer (replaces 4393588, 8206101) 8184109
#9

Turntable parts diagram

Microwave turntable motor spacer (replaces 4393588, 8206101)

Part #8184109

This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Microwave Door Handle Mounting Bracket W10540736
#8

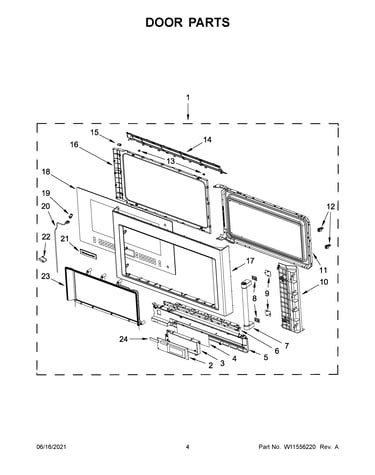

Door parts diagram

Microwave door handle mounting bracket

Part #W10540736

Replaced by #W11590575

?
Manufacturer substitution
This part replaces W10540736. Substitute parts can look different from the original.
$13.22
In Stock
Microwave Surface Light Lens W10240330
#6

Interior and ventilation parts diagram

Microwave surface light lens

Part #W10240330

This item is not returnable
$6.19 |
14% OFF Phone Price : $7.19
In Stock
