Model # 11620163 Official Kenmore powermate attachment

Here are the diagrams and repair parts for Official Kenmore 11620163 powermate attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 51 parts  |

Yoke Bearing Seal 741423
#88

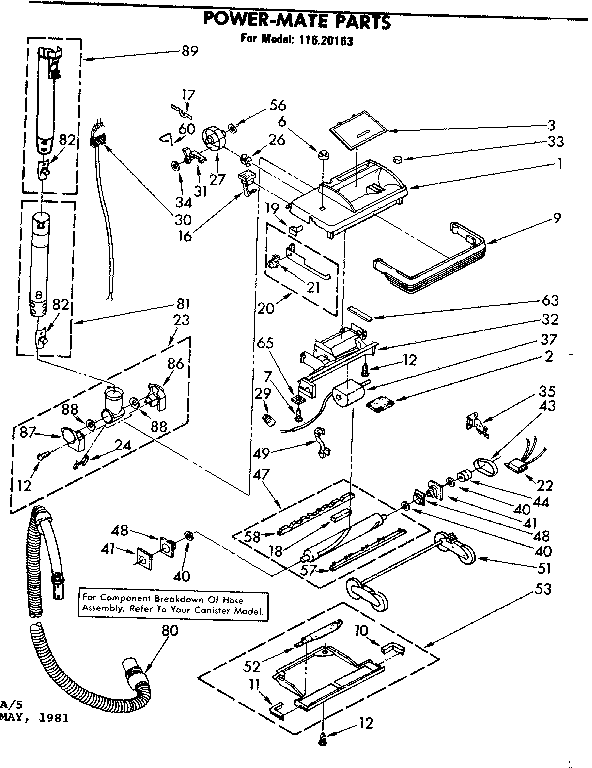

Powermate parts diagram

Yoke bearing seal

Part #741423

The manufacturer no longer makes this part, and there's no substitute part

Indicator 741606
#6

Powermate parts diagram

Indicator

Part #741606

The manufacturer no longer makes this part, and there's no substitute part

Hood 742126
#3

Powermate parts diagram

Hood

Part #742126

The manufacturer no longer makes this part, and there's no substitute part

Gasket 741810
#52

Powermate parts diagram

Gasket

Part #741810

The manufacturer no longer makes this part, and there's no substitute part

Belt 725178
#43

Powermate parts diagram

Belt

Part #725178

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Ratchet (white) 742016
#31

Powermate parts diagram

Vacuum ratchet (white)

Part #742016

The manufacturer no longer makes this part, and there's no substitute part

Motor 700656
#37

Powermate parts diagram

Motor

Part #700656

The manufacturer no longer makes this part, and there's no substitute part

Washer 722909
#34

Powermate parts diagram

Washer

Part #722909

The manufacturer no longer makes this part, and there's no substitute part

Sensor 741652
#22

Powermate parts diagram

Sensor

Part #741652

The manufacturer no longer makes this part, and there's no substitute part

Relief 680144
#49

Powermate parts diagram

Relief

Part #680144

The manufacturer no longer makes this part, and there's no substitute part
