ICP NUOD112DG03 oil-fired furnace

ICP NUOD112DG03 oil-fired furnace Parts

Here are the diagrams and repair parts for ICP NUOD112DG03 oil-fired furnace, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for NUOD112DG03 Oil-Fired Furnace

  • 1/6-1/2 Hp M for ICP NUOD112DG03 - Part 45460

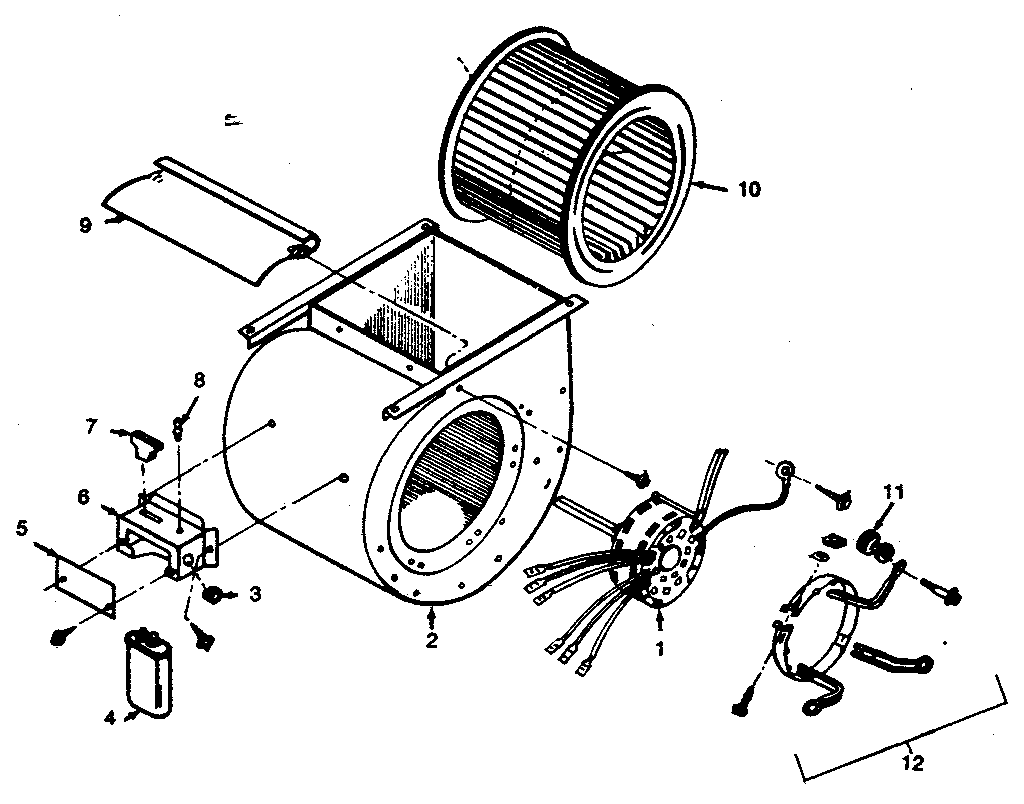

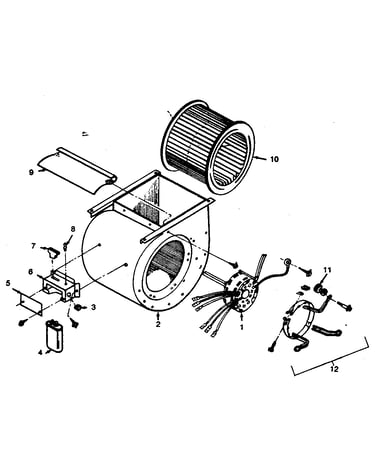

    Blower assembly diagram

    Motor

    Part #604007

    Replaced by #45460

    Info Icon
    Manufacturer substitution
    This part replaces 604007. Substitute parts can look different from the original.
    In Stock
    $280.82
    Minus Item
    Qty
    Plus Item
  • Nozzle for ICP NUOD112DG03 - Part 64605

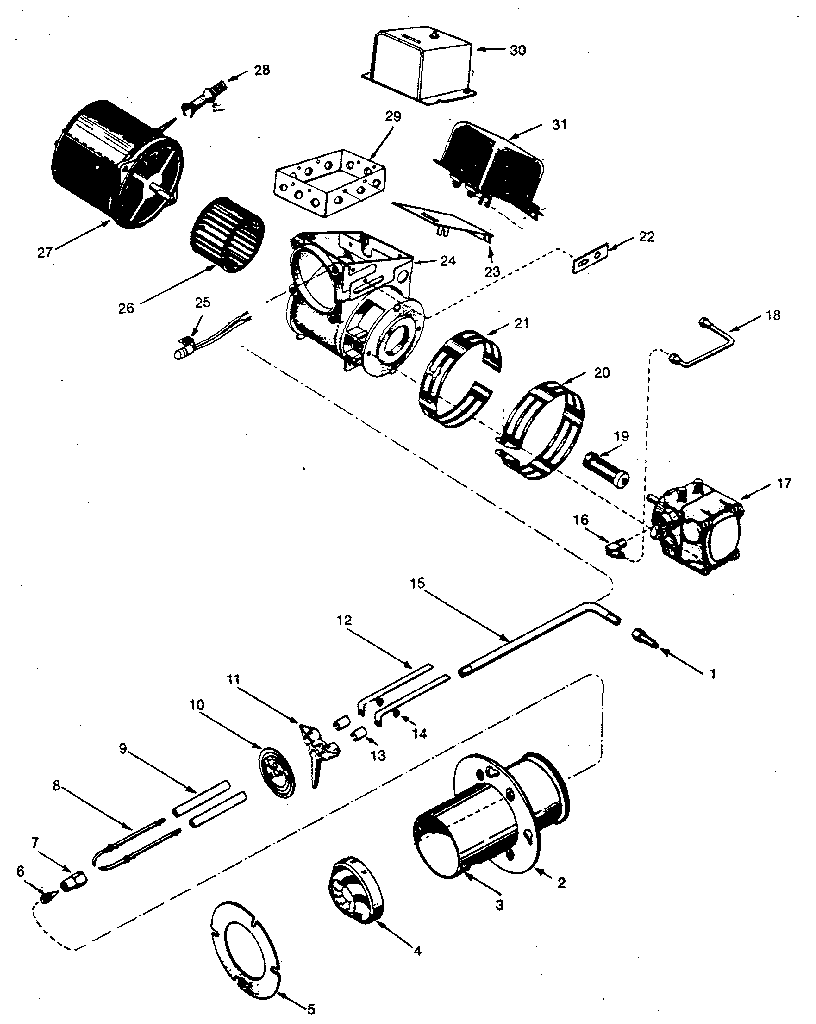

    Burner assembly diagram

    Nozzle

    Part #64605
    In Stock
    $293.51
    Minus Item
    Qty
    Plus Item
  • Coupling for ICP NUOD112DG03 - Part 610466

    Burner assembly diagram

    Coupling

    Part #610466
    In Stock
    $64.98
    Minus Item
    Qty
    Plus Item
  • Furnace Blower Fan Motor for ICP NUOD112DG03 - Part 1012514

    Blower assembly diagram

    Blower Motor

    Part #604006

    Replaced by #1012514

    Info Icon
    Manufacturer substitution
    This part replaces 604006. Substitute parts can look different from the original.
    In Stock
    $380.16
    11% OFF Was : $428.00Info Icon
    Minus Item
    Qty
    Plus Item
  • Connector for ICP NUOD112DG03 - Part 64546

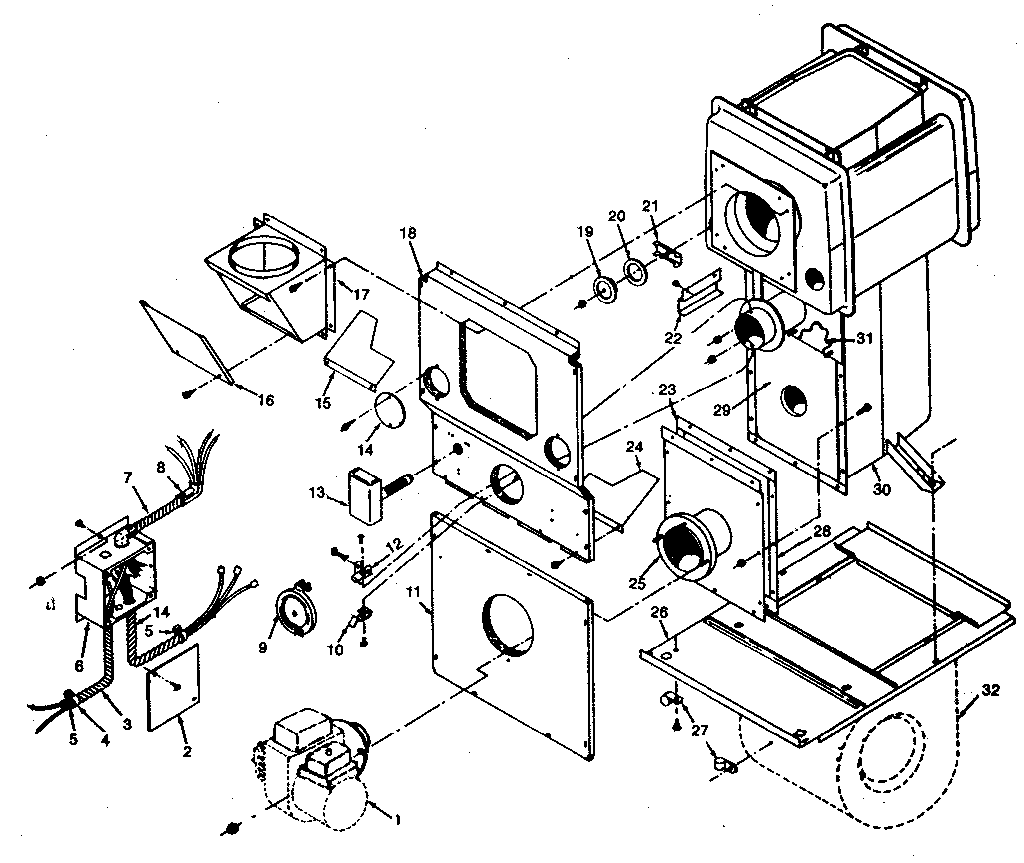

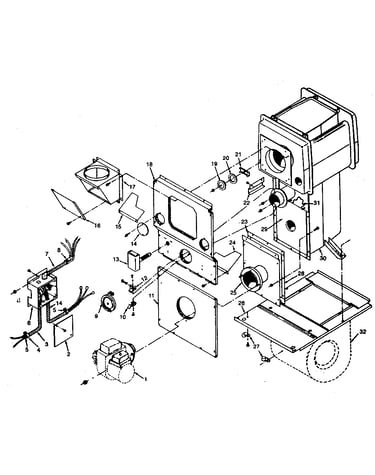

    Heat exchange diagram

    Connector

    Part #64546
    In Stock
    $49.40
    Minus Item
    Qty
    Plus Item
  • Bushing for ICP NUOD112DG03 - Part 63392

    Blower assembly diagram

    Bushing

    Part #63392
    In Stock
    $156.16
    Minus Item
    Qty
    Plus Item
  • Door Front for ICP NUOD112DG03 - Part 1004730

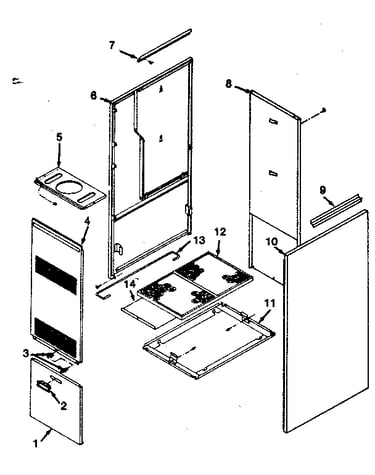

    Non-functional replacement parts diagram

    Door Front

    Part #1004730
    In Stock
    $57.03
    Minus Item
    Qty
    Plus Item
  • Door Blower for ICP NUOD112DG03 - Part 1004744

    Non-functional replacement parts diagram

    Door Blower

    Part #1004744
    In Stock
    $25.26
    Minus Item
    Qty
    Plus Item
  • Flue Box for ICP NUOD112DG03 - Part 69396

    Heat exchange diagram

    Flue Box

    Part #69396
    In Stock
    $357.18
    Minus Item
    Qty
    Plus Item
  • J-box Cover for ICP NUOD112DG03 - Part 521212

    Heat exchange diagram

    J-box Cover

    Part #521212
    In Stock
    $110.98
    Minus Item
    Qty
    Plus Item
