Model # H9MPT125L20A1 Official ICP 90+ 2-stage & multispeed blower gas furnace

Here are the diagrams and repair parts for Official ICP H9MPT125L20A1 90+ 2-stage & multispeed blower gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
Furnace Temperature Limit Switch 1013102
#16

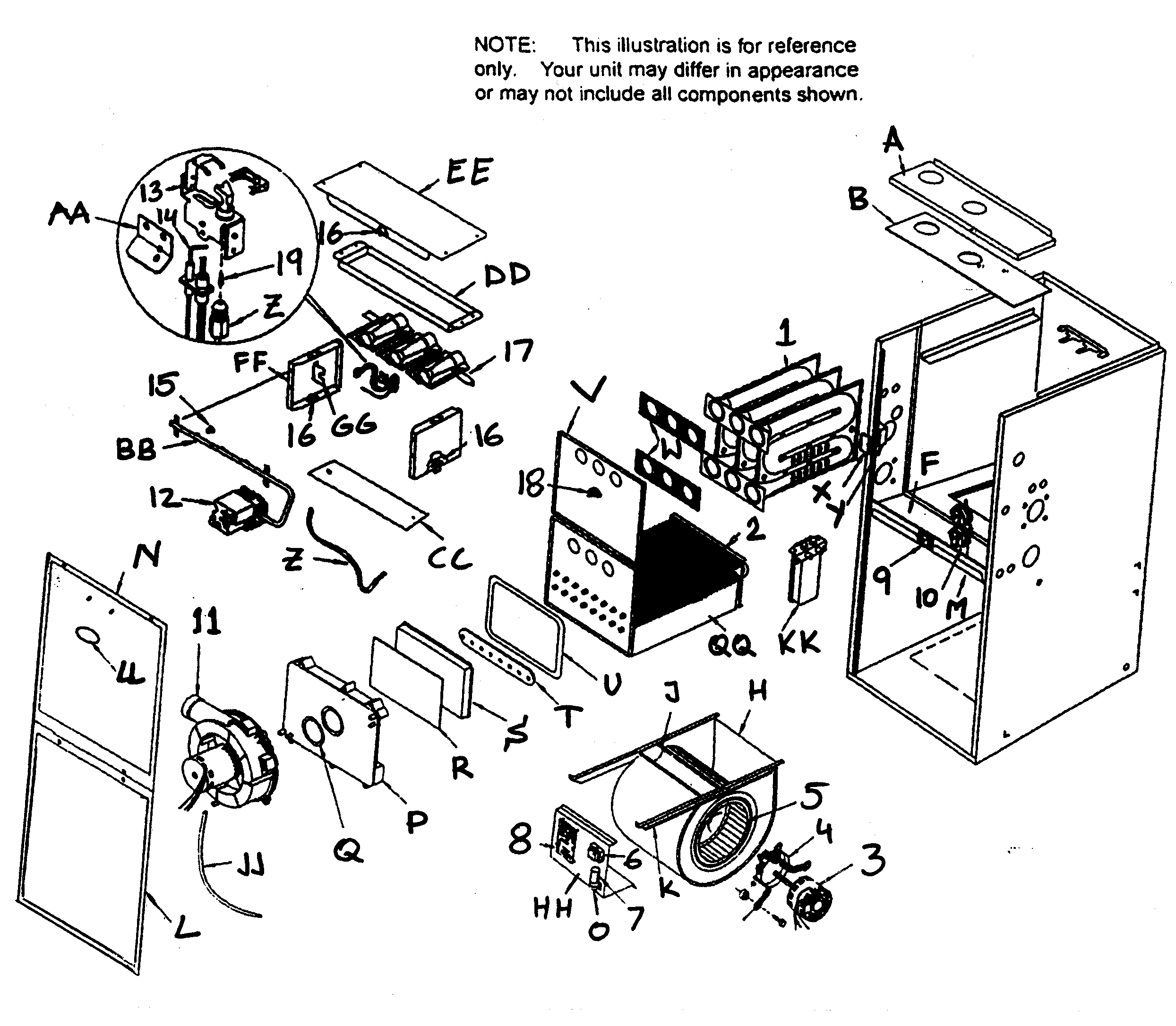

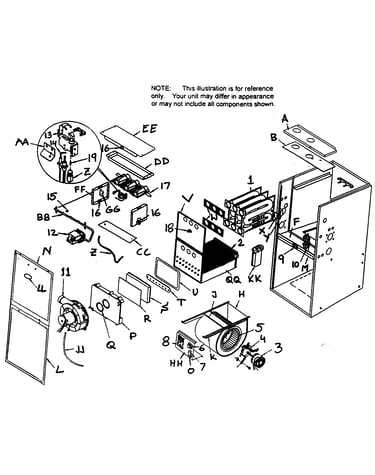

Cabinet parts diagram

Furnace temperature limit switch

Part #1013102

$15.62 |
11% OFF Phone Price : $17.62
In Stock
Furnace Blower Fan Wheel (replaces 1009147) 1011420
#5

Cabinet parts diagram

Furnace blower fan wheel (replaces 1009147)

Part #1011420

$160.43 |
6% OFF Phone Price : $170.43
In Stock
Tubing 1013077
#Z

Cabinet parts diagram

Tubing

Part #1013077

Replaced by #64930

?
Manufacturer substitution
This part replaces 1013077. Substitute parts can look different from the original.
$77.80
In Stock
Bracket 1012532
#GG

Cabinet parts diagram

Bracket

Part #1012532

$296.29
In Stock
Furnace Burner 1008726
#17

Cabinet parts diagram

Furnace burner

Part #1008726

$142.32
In Stock
Panel Cutoff 721020008
#J

Cabinet parts diagram

Panel cutoff

Part #721020008

$252.09
In Stock
Furnace Pilot Burner Bracket 1010901
#AA

Cabinet parts diagram

Furnace pilot burner bracket

Part #1010901

$86.73
In Stock
Switch 1008445
#18

Cabinet parts diagram

Switch

Part #1008445

$32.09
In Stock
Filter Rack 741010039
#MM

Cabinet parts diagram

Filter rack

Part #741010039

$47.60
In Stock
Cnvrsn-kit 1011789
#NI

Cabinet parts diagram

Cnvrsn-kit

Part #1011789

$298.29
In Stock
